0719CTXBFREQ3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 0719CTXBFREQ3

0719CTXBFREQ3: DescriptionTTL Output Clock Oscillator, 32MHz Min, 60MHz Max; CategoryPassive components oscillator; File Size281KB，1 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

0719CTXBFREQ3 Overview

TTL Output Clock Oscillator, 32MHz Min, 60MHz Max

0719CTXBFREQ3 Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknown
Is Samacsys	N
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
Manufacturer's serial number	071
Installation features	SURFACE MOUNT
Maximum operating frequency	60 MHz
Minimum operating frequency	32 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	TTL
Output load	10 TTL
physical size	12.19mm x 12.19mm x 2.16mm
longest rise time	5 ns
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

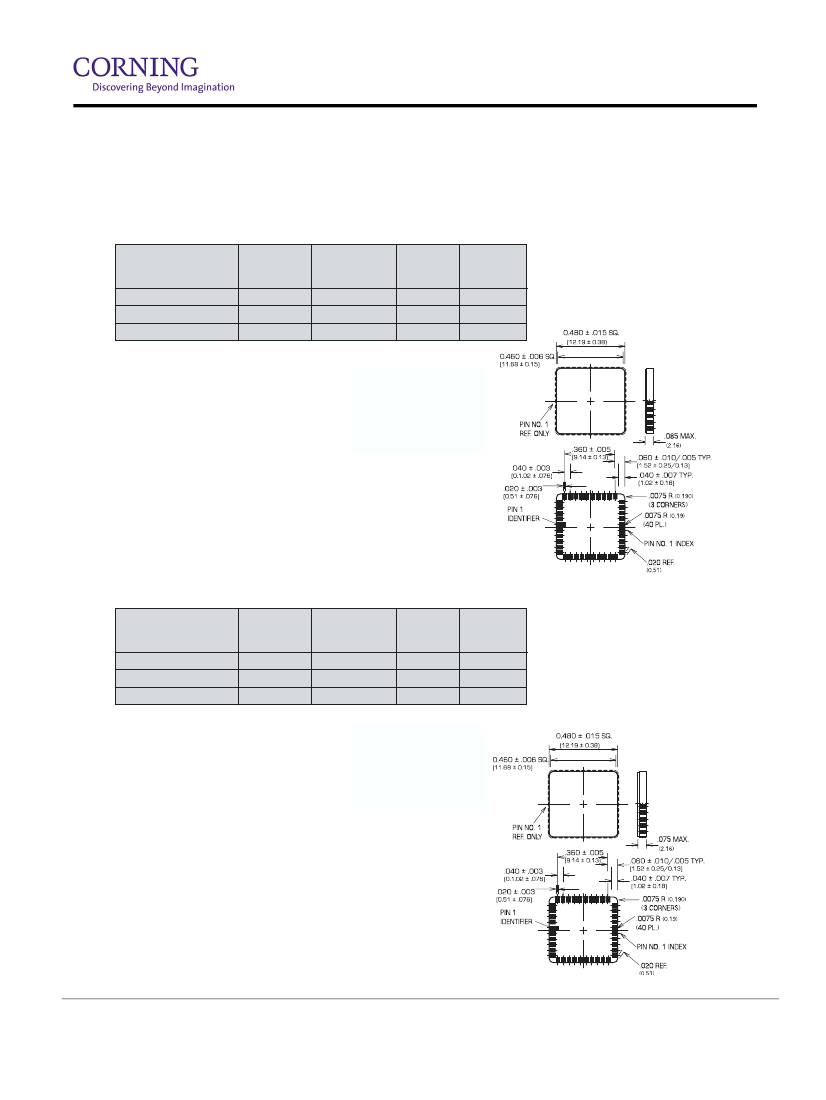

Preview

Download Datasheet

View All

Hybrid Clocks

MODEL 070

375 kHz – 80 MHz TTL Oscillator

Surface Mount 40 Pad Leadless Chip Carrier

Generic Equivalent of MIL-PRF-55310/19

Input Current

@ 5.25 V

Rise & Fall Time

(.8 & 2.0 V)

Duty Cycle

@ 1.4 V

45 to 55

40 to 60

Unit Loads

(max.)

10 TTL

PXO

Frequency Range

40.0 kHz to 12.0 MHz

12.1 MHz to 32.0 MHz

>32.0 MHz to 80.0 MHz

PIN CONNECTIONS

4, 10 – VCC

31, 37 – GND

– Output

All Others N/C

MODEL 071

375 kHz – 60 MHz TTL Oscillator

Surface Mount 40 Pad Leadless Chip Carrier

Maximum Height only 0.075" (1.91 mm)

Input Current

@ 5.25 V

Rise & Fall Time

(.8 & 2.0 V)

Duty Cycle

@ 1.4 V

45 to 55

40 to 60

Unit Loads

(max.)

10 TTL

Frequency Range

750.0 kHz to 12.0 MHz

12.1 MHz to 32.0 MHz

>32.0 MHz to 60.0 MHz

PIN CONNECTIONS

4, 10 – VCC

31, 37 – GND

– Output

All Others N/C

Corning Frequency Control

· Crystal Specifications

Corning Frequency Control Inc.

100 Watts Street

Mount Holly Springs, PA 17065

USA

717-486-3411 tel

717-486-5920 fax

www.corningfrequency.com

sales@corningfrequency.com

Corning Frequency Control GmbH & Co. KG

Landstrasse

D-74924 Neckarbischofsheim

Germany

49-07268-801-0 tel

49-07268-801-281 fax

www.corningfrequency.de

sales@corningfrequency.de

v.2002-10-24

Corning Frequency Control (Shanghai) Co. Ltd.

1F.- 2F. No. 8 Workshop, No. 308 Fenju Rd.

WaiGaoQiao Free Trade Zone

Pudong New Area Shanghai, China

86-21-5048-0777 tel

86-21-5048-1881 fax

www.corningfrequency.com

sales@corningfrequency.com
