0805-471GG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 0805-471GG

0805-471GG: DescriptionGeneral Purpose Inductor, 0.47uH, 2%, 1 Element, Ceramic-Core, SMD; CategoryPassive components inductor; File Size23KB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

0805-471GG Overview

General Purpose Inductor, 0.47uH, 2%, 1 Element, Ceramic-Core, SMD

0805-471GG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	API Delevan
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
core material	CERAMIC
DC Resistance	1.75 Ω
Nominal inductance(L)	0.47 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	0805
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.25 A
self resonant frequency	380 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 100 MHZ
surface mount	YES
Terminal surface	Gold (Au)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	50 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

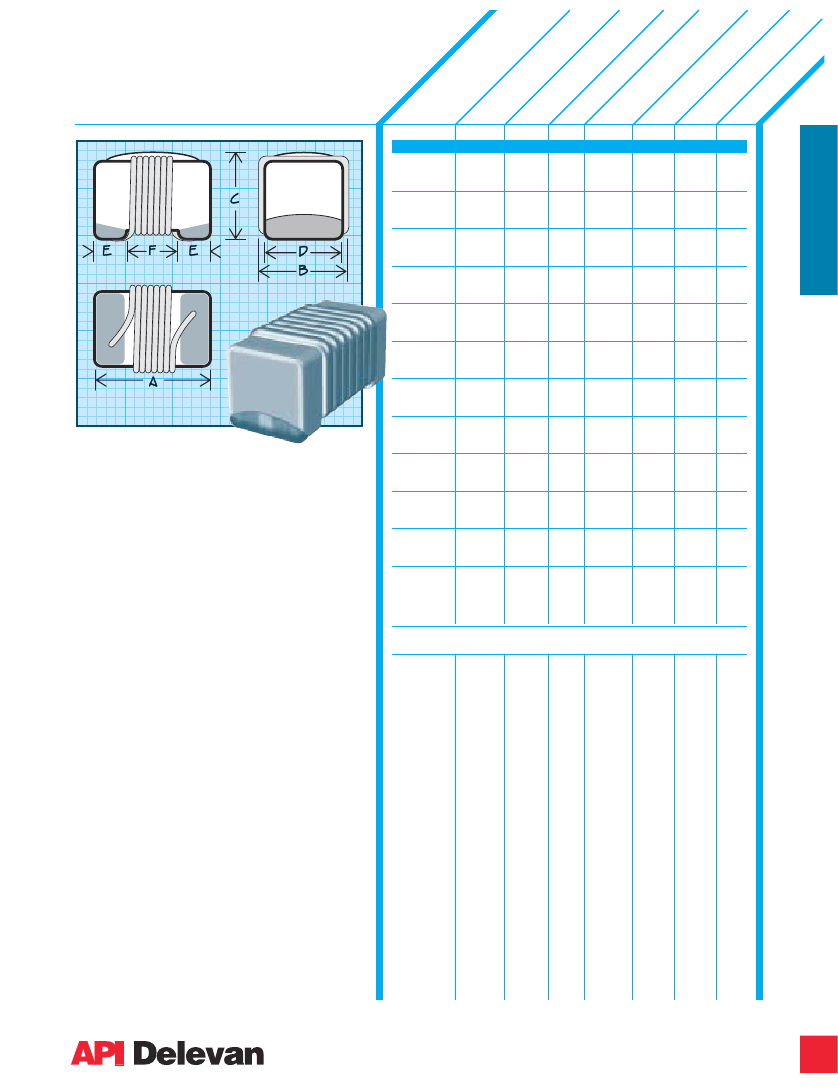

Wirewound Surface Mount Inductors

0805-2N2K

0805-3N3K

0805-6N8K

0805-8N2K

0805-12NK

0805-15NK

0805-18NK

0805-22NK

0805-27NK

0805-33NK

0805-39NK

0805-47NK

0805-56NK

0805-68NK

0805-82NK

0805-101K

0805-121K

0805-151K

0805-181K

0805-221K

0805-271K

0805-331K

0805-391K

0805-471K

0805-561K

0805-681K

0805-821K

0805-911K

0805-102K

0805-122K

0805-152K

0805-182K

0805-222K

0805-272K

Series 0805

Open Construction

Physical Parameters

Inches

0.086 Max.

0.068 Max.

0.053 Max.

0.050 (Ref. only)

0.020 (Ref. only)

0.040 (Ref. only)

Milimeters

2.18 Max.

1.73 Max.

1.35 Max.

1.27 (Ref. only)

0.50 (Ref. only)

1.03 (Ref. only)

2.2

3.3

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

910

1000

1200

1500

1800

2200

2700

Operating Temperature Range

–40°C to +125°C

Standard Termination

90/10 Solder plating;

Optional Gold Termination is available specify by

suffixing the part number with the letter G

Inductance and Q

tested on HP4291A using

HP16193A test ﬁxture

Packaging

Tape & reel (8mm): 7" reel,

3000 pieces max. Custom reel available.

Optional Tolerances: 8.2nH & Lower J = 5%

All Other Values: J = 5% H = 3% G = 2%

www

delevan

com

E-mail: apisales@delevan.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814

2/ 2002

(n UCT

H) A

±1 NC

0% E

FR UCT

EQ AN

UE CE

NC T

Y EST

)

FR ST

)

MA RES

XI IST

)

MU A

CU M NC

( E

MA RE OH

NT MS

MU R )

M ATI

(m NG

SERIES 0805 CERAMIC CORE

250

200

150

100

7.9

1500

1000

500

250

100

7.9

6000

5500

4700

4000

3400

3300

2600

2500

2050

2000

1650

1550

1450

1300

1200

1100

920

890

850

800

790

750

380

340

260

220

160

140

120

100

0.07

0.12

0.10

0.14

0.13

0.15

0.19

0.15

0.22

0.25

0.28

0.30

0.36

0.38

0.40

0.45

0.55

0.64

0.80

1.05

1.53

1.70

1.75

1.90

2.10

2.15

2.25

2.35

2.40

2.50

2.70

2.95

600

500

400

340

300

270

250

230

190

180

170

160

150

RF INDUCTORS

PAGE
