Document 159-1
Chip Inductors – 0805HS (2012)
Ceramic body and wire wound construction provide highest
SRFs available in 0805 size. These ultra-compact inductors
provide exceptional Q values, even at high frequencies.
Part
number
1
Inductance
2
(nH)
3.3 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
10 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 100 MHz
180 @ 100 MHz
220 @ 100 MHz
Free evaluation samples are available by contacting
Coilcraft or ordering them on-line at
www.coilcraft.com.
Percent
tolerance
3
5
5
5
5
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2
Q
min
4
SRF min
5
(MHz)
7900
5500
4700
4200
4000
3400
3300
2600
2500
2050
2000
1650
1550
1450
1300
1200
1100
920
870
850
DCR max
6
(Ohms)
0.08
0.11
0.12
0.10
0.15
0.17
0.20
0.22
0.25
0.27
0.29
0.31
0.34
0.38
0.42
0.46
0.51
0.56
0.64
0.70
Irms
7
(mA)
600
600
600
600
600
600
600
500
500
500
500
500
500
500
400
400
400
400
400
400
Color
code
Black
Brown
Red
Blue
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
0805HS-030TJL_
0805HS-060TJL_
0805HS-080TJL_
0805HS-100TJL_
0805HS-120TJL_
0805HS-150TJL_
0805HS-180TJL_
0805HS-220T_L_
0805HS-270T_L_
0805HS-330T_L_
0805HS-390T_L_
0805HS-470T_L_
0805HS-560T_L_
0805HS-680T_L_
0805HS-820T_L_
0805HS-101T_L_
0805HS-121T_L_
0805HS-151T_L_
0805HS-181T_L_
0805HS-221T_L_
50 @ 1500 MHz
50 @ 1000 MHz
50 @ 1000 MHz
60 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
65 @ 500 MHz
65 @ 500 MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
1. When ordering, specify
tolerance, termination
and
packaging
codes:
0805HS-221TJLC
Tolerance: F
= 1%
G
= 2%
J
= 5%
(Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (7500 parts per full reel).
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
5. SRF measured using an Agilent/HP 8720D network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF858 test fixture.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
9.8 – 10.9 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+100°C with derated current
Storage temperature
Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000/7″ reel; 750/13″ reel Paper tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.3 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 159-1
Revised 01/18/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

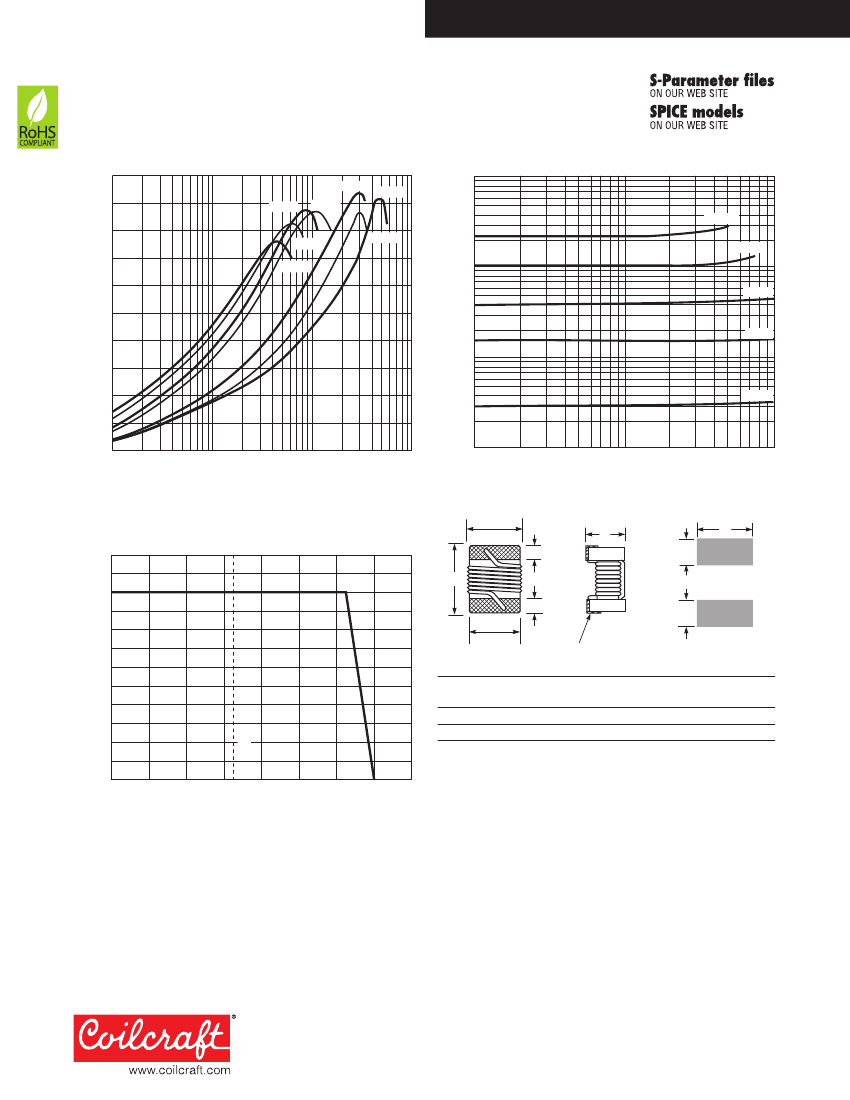

Document 159-2
0805HS Series (2012)
Typical Q vs Frequency
100
90
80
68 nH
70
60
50
40
30
20
10
0
1
10
100
1000
10000
10
100
1000
120 nH
39 nH
12 nH
22 nH
220 nH
6.8 nH
100
39 nH
100 nH
3.3 nH
Typical L vs Frequency
1000
Inductance (nH)
Q Factor
15 nH
10
3.3 nH
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
A
B
overall
F
G
F
E
terminal
C
I
J
I
Terminal wraparound:
approx 0.015/0,38 both ends
H
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120
Recommended
Land Pattern
H
I
0.040
1,02
J
0.030 inches
0,76 mm
A
max
0.085
25°C
B
max
0.060
1,52
C
max
0.057
1,45
E
0.050
1,27
F
0.020
0,51
G
0.040
1,02
0.070
1,78
2,16
Note:
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 159-2
Revised 01/18/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
