Document 159-1
ChipInductors
–
0805HSSeries
(2012)
Ceramic body and wire wound construction provide
highest SRFs available in 0805 size.
Part number
0805HS-030T _ B _
0805HS-060T _ B _
0805HS-080T _ B _
0805HS-120T _ B _
0805HS-150T _ B _
0805HS-180T _ B _
0805HS-220T _ B _
0805HS-270T _ B _
0805HS-330T _ B _
0805HS-390T _ B _
0805HS-470T _ B _
0805HS-560T _ B _
0805HS-680T _ B _
0805HS-820T _ B _
0805HS-101T _ B _
0805HS-121T _ B _
0805HS-151T _ B _
0805HS-181T _ B _
0805HS-221T _ B _
1
These ultra-compact inductors provide exceptional Q
values, even at high frequencies.
4
Inductance
(nH)
3.3 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 100 MHz
180 @ 100 MHz
220 @ 100 MHz
2
Percent
3
tolerance
20,10,5
20,10,5
20,10,5
20,10,5
20,10,5
20,10,5
20,10,5,2
20,10,5,2
20,10,5,2
20,10,5,2
20,10,5,2
10,5,2,1
10,5,2,1
10,5,2,1
10,5,2,1
10,5,2,1
10,5,2,1
10,5,2,1
10,5,2
Q min
50 @ 1500 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
65 @ 500 MHz
65 @ 500 MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
SRF min
(MHz)
7900
5500
4700
4000
3400
3300
2600
2500
2050
2000
1650
1550
1450
1300
1200
1100
920
870
850
5
DCR max
Irms
max Color
(Ohms)
(mA)
code
0.08
600
Black
0.11
600
Brown
0.12
600
Red
0.15
600
Orange
0.17
600
Yellow
0.20
0.22
0.25
0.27
0.29
0.31
0.34
0.38
0.42
0.46
0.51
0.56
0.64
0.70
600
500
500
500
500
500
500
500
400
400
400
400
400
400
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
6
7
1. Specify
tolerance, termination,
and
packaging
codes:
0805HS-221TGBC
= 1%
G
= 2%
J
= 5%
K
= 10%
M
= 20%
(Table shows stock tolerances in bold.)
= Ag/Pd/Pt/Pb
L
= Lead free Ag/Pd/Pt
= 7″ machine-ready reel. EIA-481 embossed plastic tape
(2000 per full reel).
= Less than full reel. On tape, but not machine-ready. To have a
leader and trailer added ($25 charge), use code letter C instead.
= 13″ machine-ready reel. EIA-481 embossed plastic tape.
Factory order only, not stocked (7500 per full reel).
Tolerance:
F
Termination: B
Packaging: C
B
D
2. Inductance measured using Coilcraft SMD-A fixture in Agilent/HP 4286A
impedance analyzer with Coilcraft-provided correlation pieces. For
recommended test procedures, contact Coilcraft.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using Agilent/HP 4291A with Agilent/HP 16193 test fixture and
on Agilent/HP 8753D with Coilcraft SMD-D test fixture.
5. SRF measured using Agilent/HP 8720D network analyzer and Coilcraft
SMD-D test fixture.
6. DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft
CCF858 test fixture.
7. Average current for a 15°C rise above 25°C ambient.
8. Operating temperature range
−40°C
to +125°C.
9. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Specifications subject to change without notice. Document 159-1 Revised 11/20/02

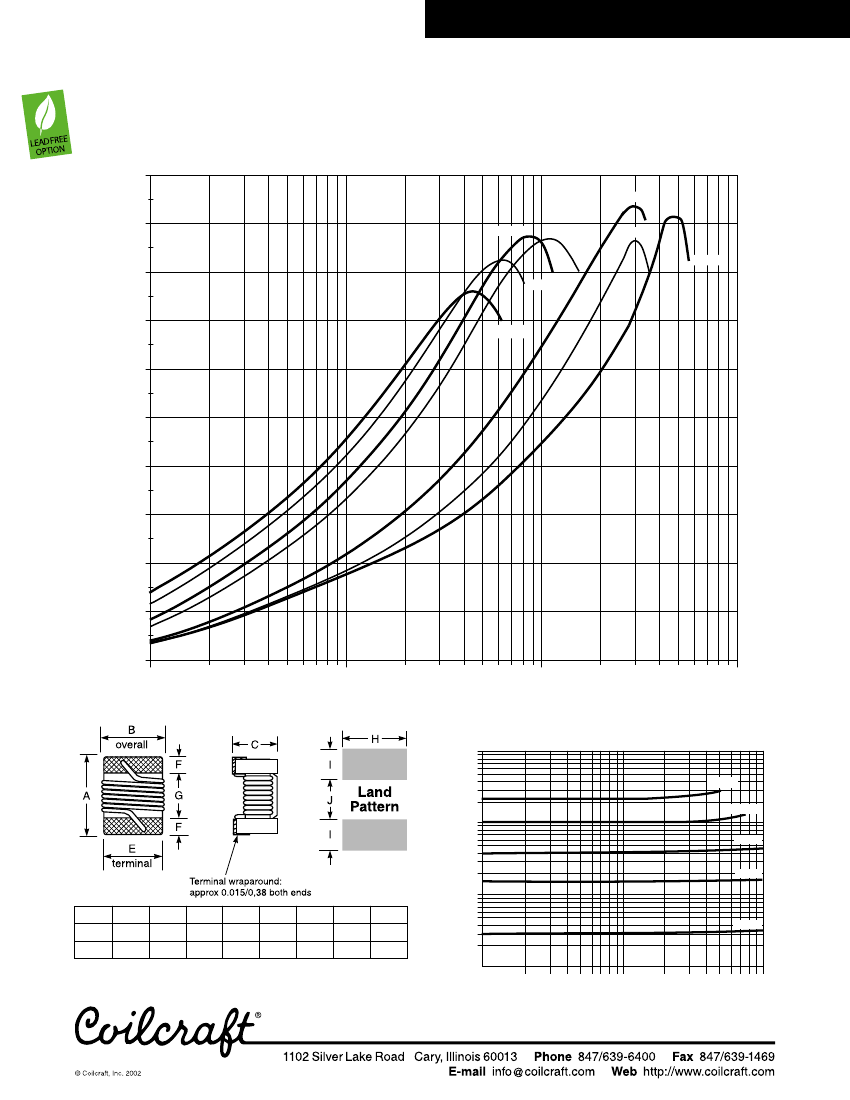

Document 159-2
0805HS Series (2012)
Typical Q vs Frequency
100
90
S-Parameter files
ON OUR WEB SITE OR CD
ON OUR WEB SITE OR CD
SPICE models
12 nH
39 nH
22 nH
6.8 nH
3.3 nH
80
68 nH
70
120 nH
60
Q Factor
50
40
30
20
10
0
10
100
1,000
10,000
Frequency (MHz)
Typical L vs Frequency
1,000
220 nH
100 nH
Inductance (nH)
100
39 nH
15 nH
10
3.3 nH
A max B max C max
0.085
2,16
0.060
1,52
0.057
1,45
E
0.050
1,27
F
0.020
0,51
G
0.040
1,02
H
0.070
1,78
I
0.040
1,02
J
0.030
0,76
1
10
100
Parts/reel: 7″ 2,000; 13″ 7,500 Tape width: 8 mm
For packaging data see Tape and Reel Specifications section.
1,000
Frequency (MHz)
Specifications subject to change without notice. Document 159-2 Revised 11/20/02
