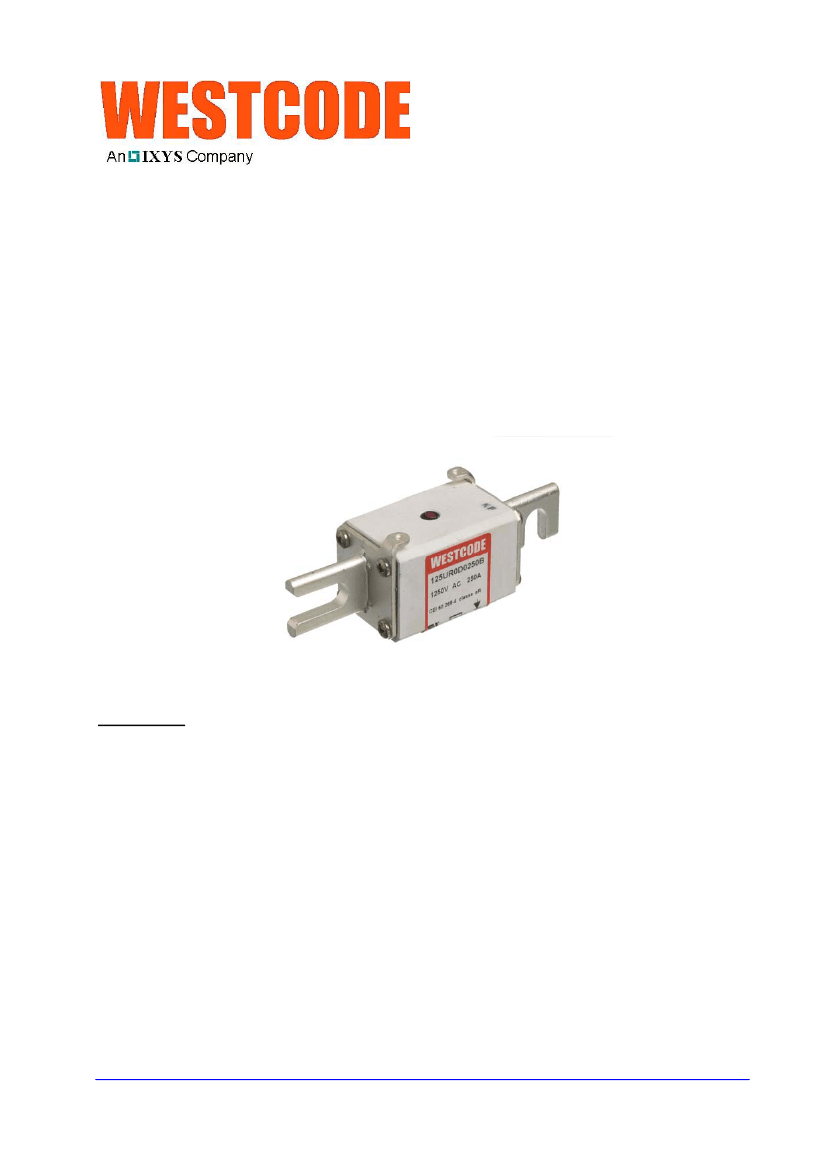

Date:- 18 Mar, 2005
Data Sheet Issue:- 1
Ultra Rapid
Semiconductor Protection Fuse
European Square Body Type
German Standard DIN110
Voltage Rating 900V to 1250V
Current Rating 63A to 1800A
Sizes 0, 1, 2, 3
Key Features:
Extremely high interrupting rating fuses for the protection of power semiconductors in accordance with
IEC standard 60269.1 and 4.
UL Recognition for many devices, CSA investigated, IEC, DIN and VDE standards
Increased technical performance giving higher ratings and a reduction in volume and weight.
Exceptionally low I
2
t, power losses
Non Magnetic construction
Highly reliable low voltage indicator system
Microswitch reference MS 7V 1-5
Data Sheet. 125URxDxxxxB
Issue 1
Page 1 of 8
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN 110 Blade Contact Fuse
Main Characteristics:
Current
rating
I
N
(A)
63
80
100
125
160
200
250
280
315
350
Pre-arcing
I
2
t @ 1 ms
I
2
t
p
(kA
2
s)
0.21
0.47
0.83
1.3
2.55
4.7
9.6
14
20
28
Tested
Interrupting
rating
Size
Voltage
U
N
(V)
Ref:
125UR0D0063B
125UR0D0080B
125UR0D0100B
Total Clearing
I
2
t @ U
N
(kA
2
s)
1.2
2.7
4.8
7.5
15
27
55
82
115
180
Watt Losses
0.8I
N
I
N
13
13.5
15
19
22.5
28
30.5
32
36
37.5
26
27
30
38
45
56
61
64
72
75
1250V
0
125UR0D0125B
125UR0D0160B
125UR0D0200B
125UR0D0250B
100kA @ 1250V
1200V
120UR0D0280B
120UR0D0315B
100kA @ 1200V
150kA @ 1100V
1100V
110UR0D0350B
Notes: Minimum operating voltage for integrated trip indicator = 20V
Micro switch reference : MS 7V 1-5
Size
Voltage
U
N
(V)
Ref:
125UR1D0160B
125UR1D0200B
125UR1D0250B
Current
rating
I
N
(A)
160
200
250
280
315
350
400
450
500
550
630
Pre-arcing
I
2
t @ 1 ms
I
2
t
p
(kA
2
s)
2.6
4.7
8.9
12
16
22
38
47
68
84
125
Total Clearing
I
2
t @ U
N
(kA
2
s)
15
27
51
68
92
127
220
270
390
485
725
Watt Losses
0.8I
N
I
N
23
27
30.5
35
38
40
40
47.5
50
56
60
46
54
61
70
76
80
80
95
100
112
120
Tested
Interrupting
rating
1250V
125UR1D0280B
125UR1D0315B
1
125UR1D0350B
125UR1D0400B
125UR1D0450B
1100V
110UR1D0500B
110UR1D0550B
100UR1D0630B
100kA @ 1250V
150kA @ 1100V
150kA @ 1000V
Notes: Minimum operating voltage for integrated trip indicator = 20V
Micro switch reference : MS 7V 1-5
Data Sheet. 125URxDxxxxB
Issue 1
Page 2 of 8
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN 110 Blade Contact Fuse
Size
Voltage
U
N
(V)
Ref:
125UR2D0280B
125UR2D0315B
125UR2D0350B
Current
rating
I
N
(A)
280
315
350
400
450
500
550
630
700
800
Pre-arcing
I
2
t @ 1 ms
I
2
t
p
(kA
2
s)
10
15
21
32
44
57
68
105
145
215
Total Clearing
I
2
t @ U
N
(kA
2
s)
60
87
120
190
255
330
390
610
815
1240
Watt Losses
0.8I
N
I
N
36
38
38.5
40
44.5
49
60
62.5
70
73
72
76
77
80
89
98
120
125
140
146
Tested
Interrupting
rating
1250V
2
125UR2D0400B
125UR2D0450B
125UR2D0500B
125UR2D0550B
100kA @ 1250V
1100V
110UR2D0630B
150kA @ 1100V
150kA @ 1000V
1000V
100UR2D0700B
100UR2D0800B
Notes: Minimum operating voltage for integrated trip indicator = 20V
Microswitch reference : MS 7V 1-5
Voltage
U
N
(V)
Current
rating
I
N
(A)
315
350
400
450
500
550
630
700
800
900
1000
1100
Pre-arcing
I
2
t @ 1 ms
I
2
t
p
(kA
2
s)
12
17
25
35
44
57
84
110
190
250
370
445
Total Clearing
I
2
t @ U
N
(kA
2
s)
68
100
145
205
255
330
485
640
1090
1440
1920
2280
Watt Losses
0.8I
N
I
N
42
43
46.5
50
56
60
66
73
74
85
87
104
84
86
93
100
112
120
132
146
148
170
174
208
100kA @ 1200V
150kA @ 1100V
150kA @ 1000V
150kA @ 900V
100kA @ 1250V
Tested
Interrupting
rating
Size
Ref:
125UR3D0315B
125UR3D0350B
125UR3D0400B
1250V
125UR3D0450B
125UR3D0500B
3
1200V
1100V
1000V
900V
125UR3D0550B
125UR3D0630B
120UR3D0700B
110UR3D0800B
100UR3D0900B
090UR3D1000B
090UR3D1100B
Notes: Minimum operating voltage for integrated trip indicator = 20V
Microswitch reference : MS 7V 1-5
Electrical Characteristics:

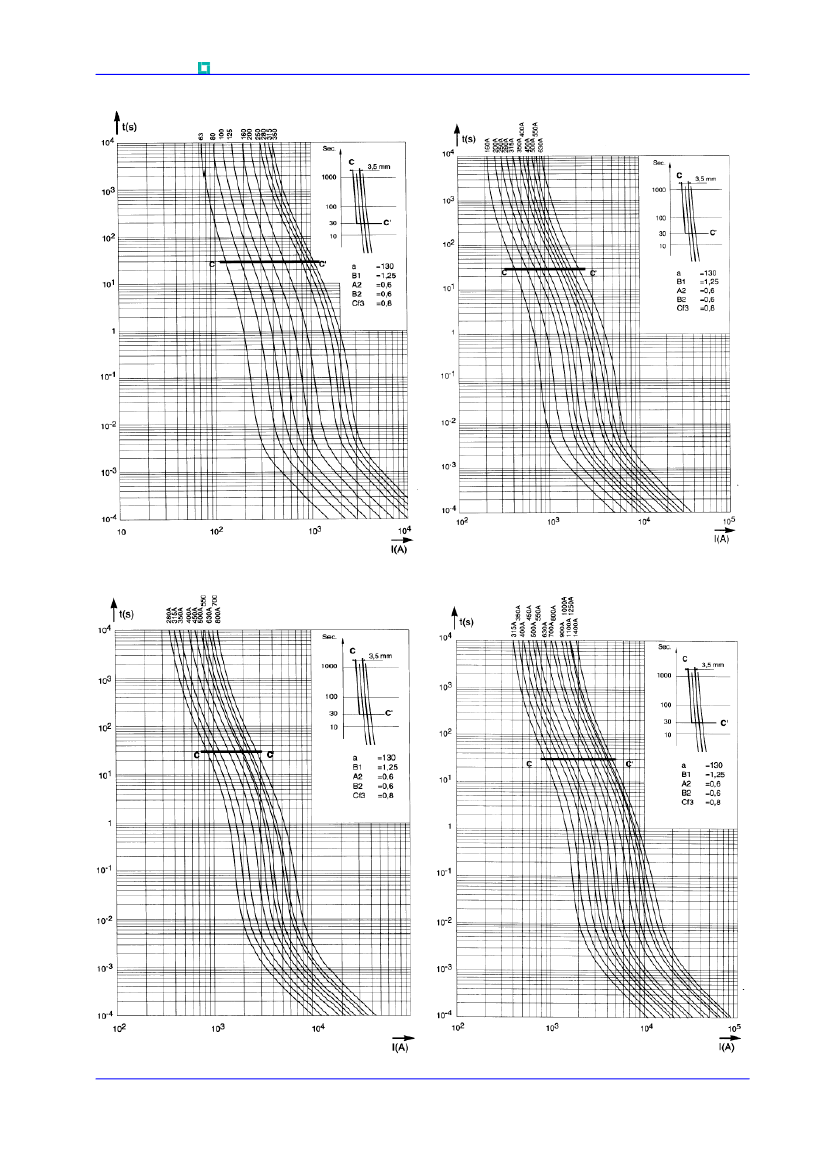

Times vs current characteristics
The curves shown on page 4 indicate the pre-arcing time for each rated current as a function of RMS
value of pre-arcing current I:
-
Tolerances on this current ± 8%
-
Beyond 30 sec, small overloads must be eliminated by another device.
-
Curve CC’ represents the maximum times taken by the associated device to clear small overloads; only its
horizontal line is represented.
Its oblique line must be plotted according to sketch in top right corner:
-
The intersection of the fuse and CC’ curves indicates the minimum breaking current I
pm
of the fuse.
Data Sheet. 125URxDxxxxB
Issue 1
Page 3 of 8
March, 2005
WESTCODE
Size 0
An
IXYS Company
German Standard DIN 110 Blade Contact Fuse
Size 1
Size 2
Size 3
Data Sheet. 125URxDxxxxB
Issue 1
Page 4 of 8
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN 110 Blade Contact Fuse

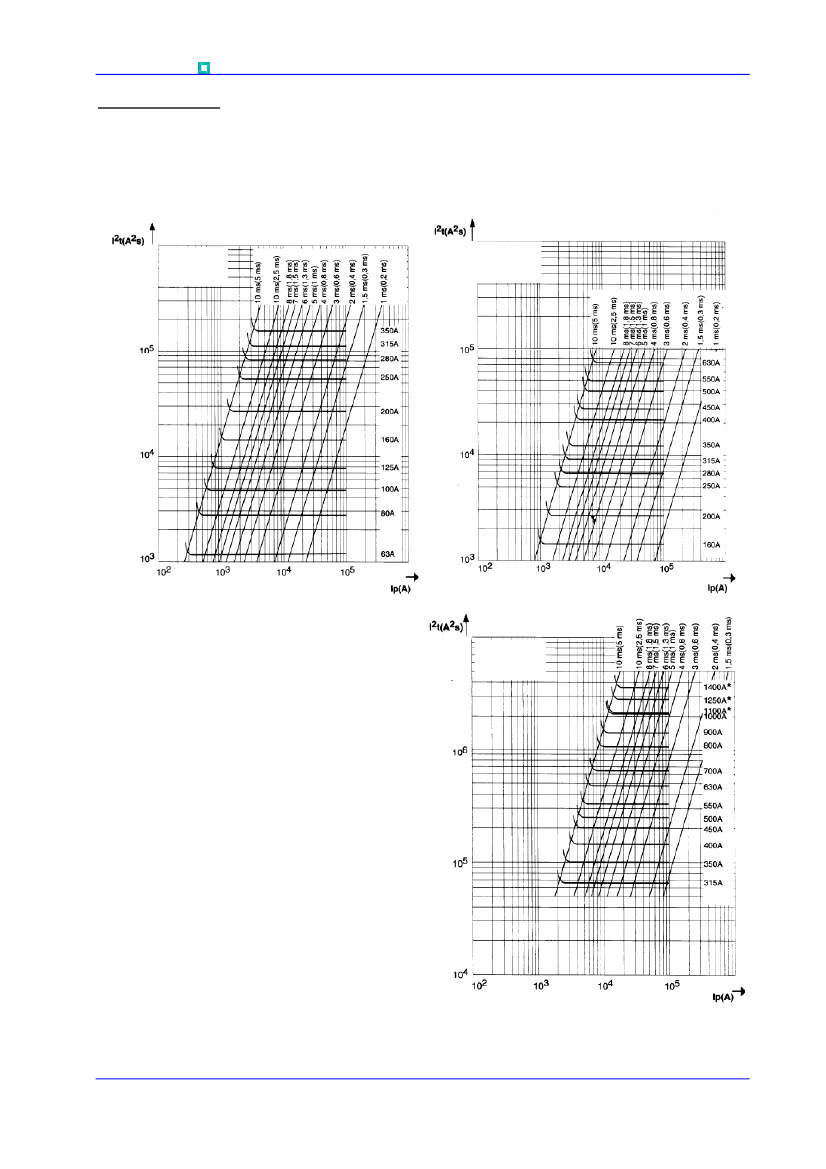

Total clearing I²T:
The horizontal curves given below indicate the maximum values of total operating I
2
t (I
2
t
t
) as a function
of prospective current Ip @ 1000V or 850V, cosϕ = 0.15.
Oblique lines indicate the corresponding total operating time T
t
, with pre-arcing time in brackets.
Size 0
Size 1
Size 3
Curve currently unavailable
Data Sheet. 125URxDxxxxB
Issue 1
Page 5 of 8
March, 2005
