09241345801 datasheet, PDF - EEWORLD Datasheet

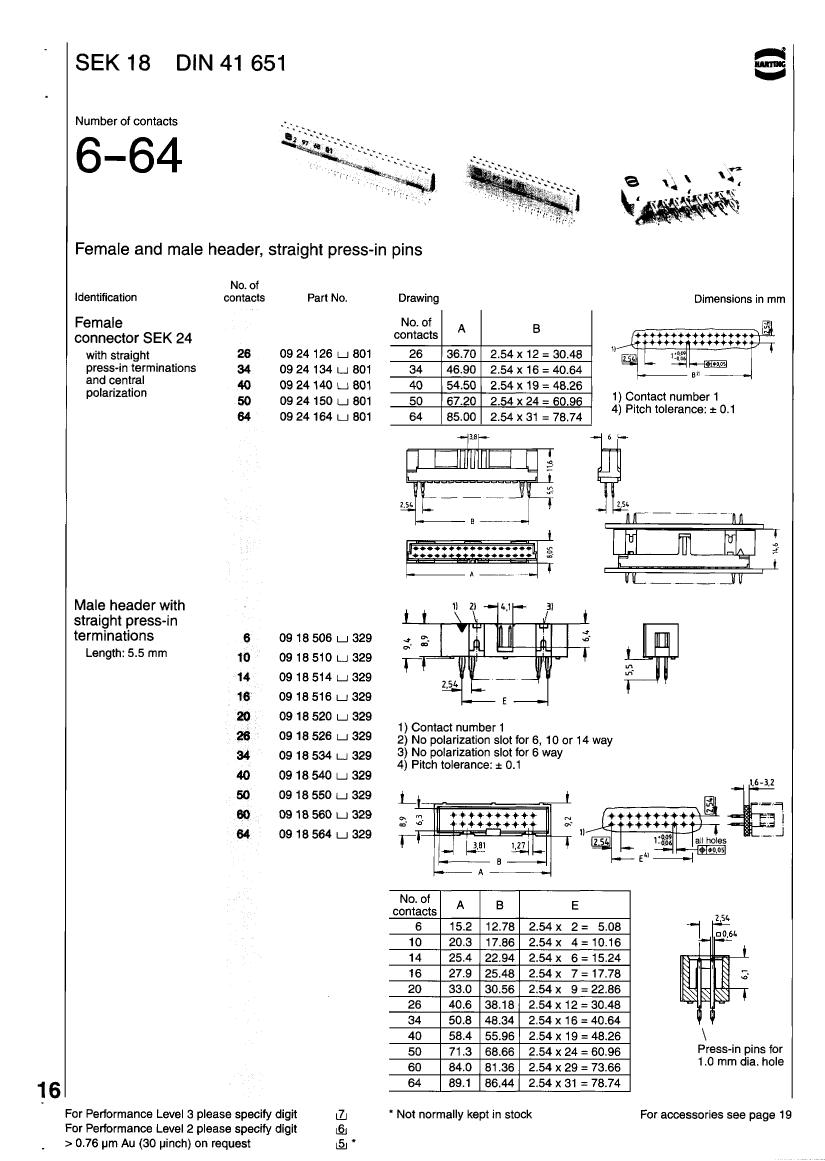

09241345801: DescriptionBoard Euro Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Beige Insulator, Receptacle; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

09241345801 Overview

Board Euro Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Beige Insulator, Receptacle

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: MIL-C-83503; DIN 41651
body width	0.317 inch
subject depth	0.457 inch
body length	1.846 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	YES
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Manufacturer's serial number	24
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.217 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1
