09243.111.071 Overview

Ring Terminal, 95mm2

09243.111.071 Parametric

Parameter Name	Attribute value
Maker	Lear Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	9243
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	95 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

Characteristics and dimensions of terminals

Part number

Specification

Material

Surface / Colour

Form

Single part

Packing unit /

piece

Section area

(mm

2

)

DIN

Nominal size

Material

thickness (mm)

a

1

d

2

d

3

l

1

09243.111.071

Cable lug ring type

CuZn

fSn 2

Single form

X

40

70.00-95.00

ähnlich 46211 Form

A

10x13.5

3.50

24.00

10.50

21.00

44.00

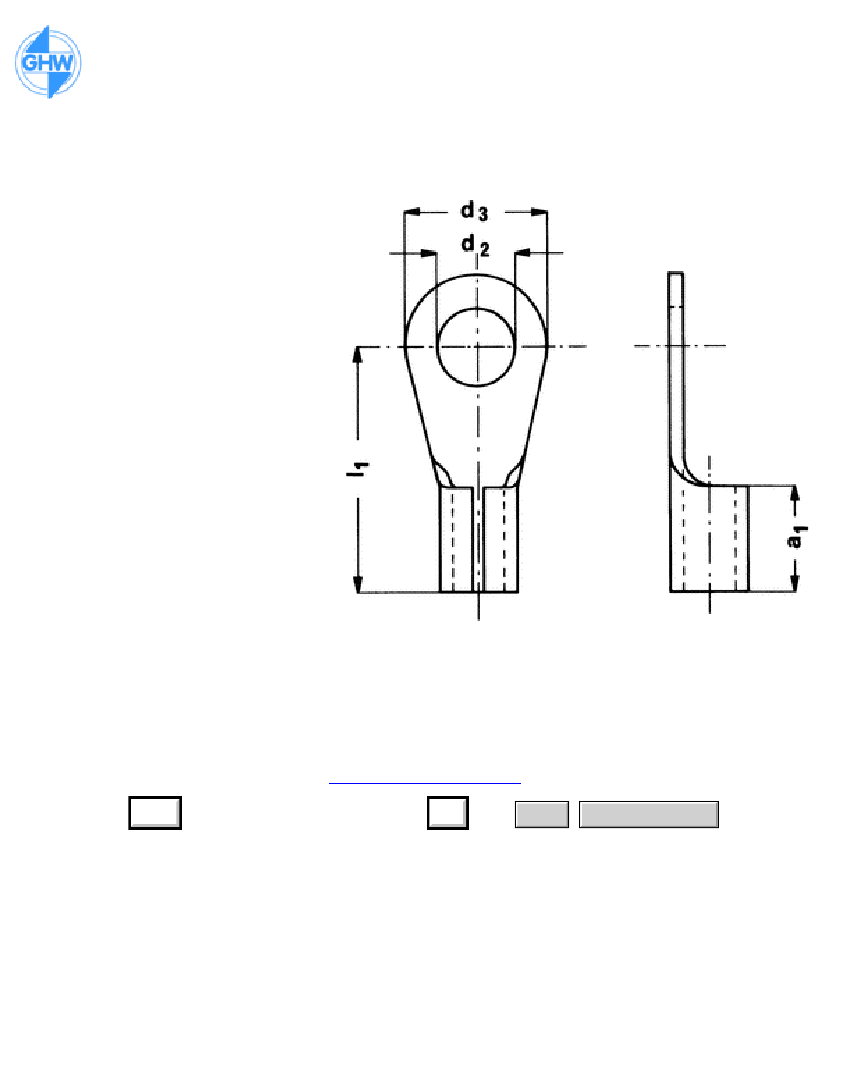

Note: The drawing only gives an overview of the geometry of the part. The crimp area is shown as

supplied in strip form. A technical drawing is available on request.
