09271322953

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size136KB,1 Pages
ManufacturerHARTING
Download Datasheet Parametric View All

09271322953 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

09271322953 Parametric

Parameter NameAttribute value
MakerHARTING
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresSTANDARD: DIN 41612, PANEL MOUNTABLE
body width0.338 inch
subject depth0.457 inch
body length2.165 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
maximum insertion force1.5568 N
Insulation resistance1000000000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number0927
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineVDE,CSA
reliabilityCOMMERCIAL
Terminal length0.157 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0
Evacuation force-minimum value1.5568 N
Base Number Matches1

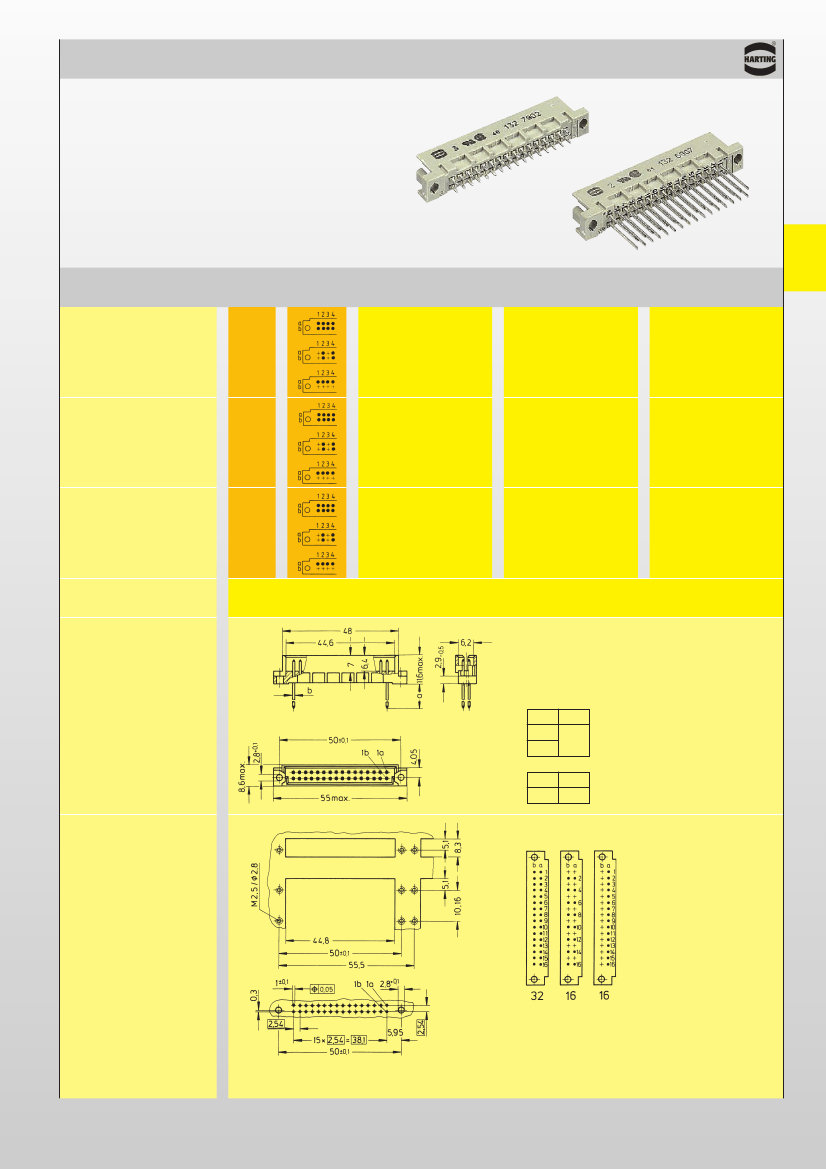

DIN 41 612 · complementary type 2Q
Number of contacts
32, 16
Male connectors
Identification
Part No.
Number
Contact
of contacts arrangement
32
30 + 2
I
16
16
Performance levels according to DIN 41 612. Explanation chapter 00
3
2
09 27 132 6902
09 27 132 6952
09 27 116 6902
09 27 116 6912
09 27 132 6903
09 27 132 6953
09 27 116 6903
09 27 116 6913
09 27 132 6907
09 27 132 6957
09 27 116 6907
09 27 116 6917
1
09 27 132 2902
09 27 132 2952
09 27 116 2902
09 27 116 2912
09 27 132 2903
09 27 132 2953
09 27 116 2903
09 27 116 2913
09 27 132 2907
09 27 132 2957
09 27 116 2907
09 27 116 2917
Male connector
with solder pins
2.5 mm
09 27 132 7902
09 27 132 7952
09 27 116 7902
09 27 116 7912
09 27 132 7903
09 27 132 7953
09 27 116 7903
09 27 116 7913
09 27 132 7907
09 27 132 7957
09 27 116 7907
09 27 116 7917
Male connector
with solder pins
4.0 mm
32
30 + 2
I
16
16
Male connector
with wrap posts
13 mm
32
30 + 2
I
16
16
Male connector
with press-in pins
Dimensions
Part Nos. and variants
see chapter 04
a
b
2.5
ø 0.7
4.0
a
13
b
l
0.6
Solder pins
Wrap posts
Panel cut out
Contact arrangement
View from termination side
Board drillings
Dimensions in mm
I
01
.
33
Male connectors with 2 leading contacts [(0.8 mm) pos. a1 and a16]
Other contact arrangements on request
Types
signal to 2 A
