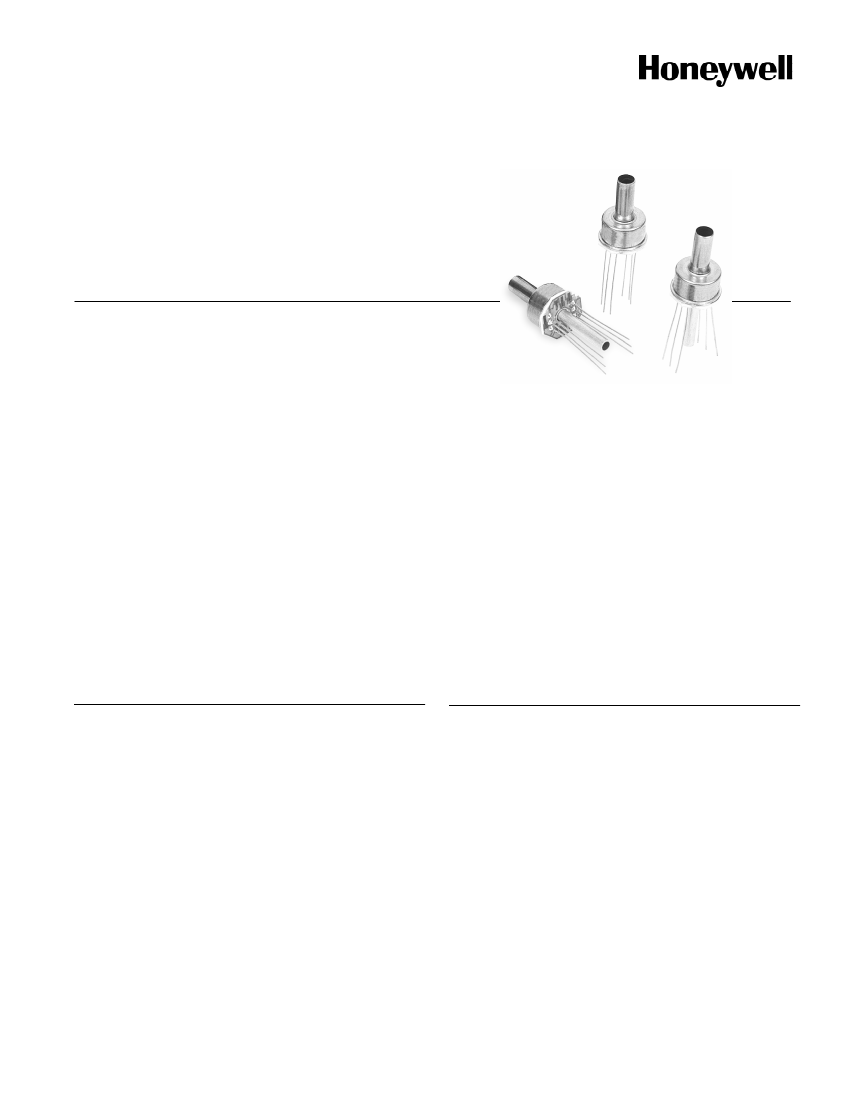

1800/1805 Series
TO-8, 0 psi to 3 psi, 0 psi to
150 psi Silicon Pressure
Sensors
DESCRIPTION
The 1800/1805 Series sensors are high performance TO-8
pressure transducers specifically designed to address a variety
of both low and medium pressure original equipment
manufacture applications.
The transducers offer two performance grades and a variety of
compensation options, including span and calibration to within
±2 mV (normalized output). The 1800/1805 Series can operate
with either constant current or voltage excitation.
FEATURES
•
•
•
•
Standard pressure ranges from 0 psi to 3 psi, 0 psi to
150 psi
Gauge, absolute or differential models
Voltage or constant current excitation
Choice of temperature compensation options
–
Laser trim, normalized output
–
Laser trim, standard output
–
Resistor compensation
•
Uncompensated version available for microprocessor-
based designs
•
•
•
•
•
POTENTIAL APPLICATIONS
Instrumentation calibration
Avionics/aerospace
Medical equipment
HVAC
Pneumatic controls
The 1800/1805 Series contains a solid state piezoresistive
pressure sensor mounted in a standard TO-8 package. They
are printed circuit board and pin-for-pin compatible with other
TO-8 pressure sensors.
1800/1805 Series
TO-8, 0 psi to 3 psi, 0 psi to 150 psi
ENVIRONMENTAL SPECIFICATIONS
(All devices)
Characteristic
Supply voltage, V
S
Compensated temperature range
Operating temperature tange
Vibration
Shock
Life
Parameter
10 Vdc
-1 °C to 54 °C [34 °F to 129 °F]
-40 °C to 121 °C [-40 °F to 257 °F]
10 g rms at 20 Hz to 200 Hz
100 g for 11 ms
100 million cycles
(1)
Characteristic
Insulation resistance
Humidity
Common-mode pressure
Max. soldering temperature
Excitation voltage V
S
Excitation current
Parameter
100 MOhm at 50 Vdc
50 % ± 10 %
150 psig
260 °C [500 °F] 10 s max.
Supply voltage V
s
=15 Vdc max.
Supply current I
s
= 2 mA max.
PERFORMANCE CHARACTERISTICS
Characteristic
Zero pressure offset
(1)
Zero pressure offset (3 psi to 5 only)
(1)
Full-scale span
(2)
Standard output–current excitation
Standard output–voltage excitation
Normalized output–current excitation
Normalized output–current excitation (3 psi only)
Normalized output–voltage excitation
Pressure non-linearity
(3)
Pressure hysteresis
(3)
Repeatability
Temperature effect on offset
(4)
Temperature effect on offset (3 psi and 5 psi only)
(4)
Temperature effect on span
Temperature effect on span (3 psi and 5 psi only)
(4)
Thermal hysteresis
Response time
(5)
Long term stability of offset and span
(6)
Common mode voltage
(7)
Standard output–current excitation
Standard output–voltage excitation
Normalized output–current excitation
Normalized output–voltage excitation
Input resistance
Current excitation
Voltage excitation
Output resistance
PRESSURE RANGE SPECIFICATIONS
Catalog Listing
1805-00 (G,D) - (K,L) (0..4) (M,L,N)
1805-01 (G,D) - (K,L) (0..4) (M,L,N)
1800-02 (G,D) - (K,L) (0..4) (M,L,N)
1800-03 (G,D) - (K,L) (0..4) (M,L,N)
1800-07 (G,D) - (K,L) (0..4) (M,L,N)
1800-08 (G,D) - (K,L) (0..4) (M,L,N)
1800-09 (G,D) - (K,L) (0..4) (M,L,N)
1800-10 (G,D) - (K,L) (0..4) (M,L,N)
Pressure Range
0 psi to 3 psi
0 psi to 5 psi
0 psi to 10 psi
0 psi to 15 psi
0 psi to 30 psi
0 psi to 50 psi
0 psi to 100 psi
0 psi to 150 psi
Min.
–
–
75
40
98
73
38
–
–
–
–
–
–
–
–
–
–
–
–
–
–
2.0
8.0
3.5
Typ.
–
–
–
–
–
–
–
±0.15
–
–
–
–
–
–
±0.1
–
–
50 %
50 %
35 %
25 %
–
–
–
–
Top Side Overpressure
(8)
15 psi
25 psi
50 psi
65 psi
250 psi
350 psi
350 psi
350 psi
Max.
±0.5
±1
150
120
102
77
42
±0.20
±0.0125
±0.0125
±0.5
±1
±0.5
±1
–
1
±0.2
–
–
–
–
–
8.0
40
6.0
Unit
mV
mV
mV
mV
mV
mV
mV
%FSS
%FSS
%FSS
mV
mV
mV
mV
%FSS
ms
%FSS
input
input
input
input
–
kΩ
kΩ
kΩ
Bottom Side Overpressure
(9)
9 psi
15 psi
30 psi
45 psi
50 psi
50 psi
50 psi
50 psi
Notes:
1. Reference conditions (unless otherwise noted); T
A
= 25 °C [77 °F], Supply V
S
= 10 Vdc ±0.01 Vdc or I
S
= 1.5 mA ±0.0015 mA.
2. Full-scale span (FSS) is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure. FFS is
ratiometric to the supply voltage.
3. Pressure non-linearity is based on best-fit straight line from the zero to the full-scale pressure. Pressure hysteresis is the maximum output
difference at any point within the operating pressure range for increasing and decreasing pressure.
4. Maximum error band of the offset voltage or span over the compensated temperature range, relative to the 25 °C [77 °F] reading.
5. Response time for a 0 psi to full-scale span pressure step change, 10 % to 90 % rise time.
6. Long term stability over a six month period.
7. Common mode voltage as measured from output to ground. For higher levels of common mode voltage, contact the factory.
8. Pressure overrange: Top: 5 x full-scale pressure or
≤350
psi, whichever is less.
9. Pressure overrange: Bottom: 3 x full-scale or
≤50
psi, whichever is less.
2
www.honeywell.com/sensing
Silicon Pressure Sensors
STANDARD COMPENSATION AND TRIM CHOICES
For maximum convenience, the 1800/1805 Series is
temperature compensated from -1 °C to 54 °C [34 °F to
129 °F]. Other temperature ranges are available upon request.
Normalized Output Option:
For design convenience and
sensor interchangeability, the 1800/1805 Series is available
with normalized output (100 ±2 mV dc in current excited
versions with pressure range >3 psi). Normalized output for
current excited 3 psi devices is 75 ±2 mV dc.

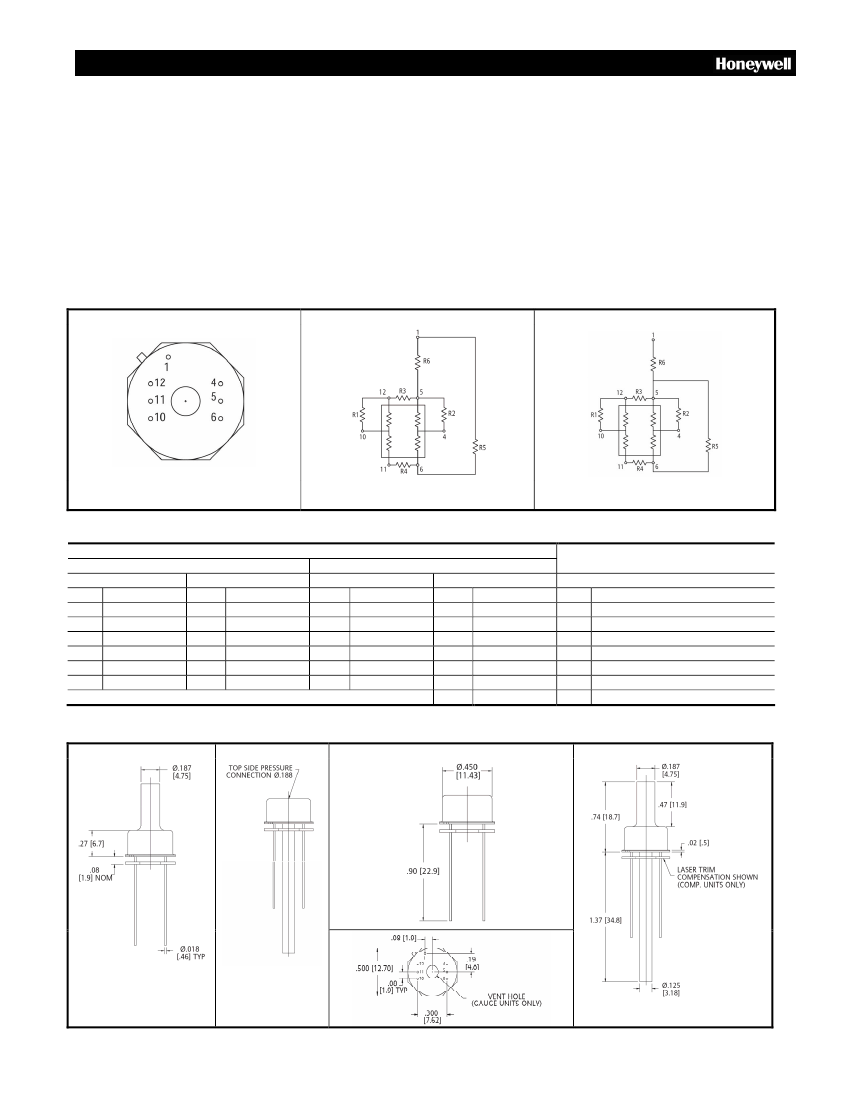

ELECTRICAL CONNECTIONS
Laser Trim:
Compensation is accomplished by using an in-
house laser trim facility that allows for tighter product
performance control and improved flexibility in response to
special customer performance requirements.
Resistors:
This option includes a printout of suggested
temperature compensation and zero offset resistor values for
each individual sensor.
CURRENT EXCITATION
VOLTAGE EXCITATION
Pin 1 on normalized and voltage
excited standard output.
EXTERNAL CONNECTIONS
Normalized output shown.
Standard output on pin 5 R6 shorted.
R5 open for standard output.
POSITIVE PRESSURE ON TOP AND BOTTOM SIDES
Current Excitation – Standard Output
Voltage Excitation – Standard Output
Discrete Resistor
Laser Trim Board
Discrete Resistor
Laser Trim Board
Pin
Connection
Pin
Connection
Pin
Connection
Pin
Connection
4
+ Output
4
+ Output
4
+ Output
4
+ Output
5
+ Input
5
+ Input
5
+ Input
5
NC
6
- Input
6
- Input
6
- Input
6
- Input
10
- Output
10
- Output
10
- Output
10
- Output
11
NC
11
NC
11
NC
11
NC
12
NC
12
NC
12
NC
12
NC
1
+ Input
Current or Voltage Excitation –
Normalized Output
Laser Trim Board
Pin
Connection
4
+ Output
5
NC
6
- Input
10
+ Output
11
NC
12
NC
1
+ Input
PRESSURE CONNECTION OPTIONS
OPTION 0
OPTION 1
OPTION 2
OPTION 4
Honeywell Sensing and Control
3
ORDER GUIDE
1800/1805
Series
1800/1805
02
A
L
1
L
Compensation
L: Laser trimmed, standard output
N: Laser trimmed, normalized output
M: Computer printout of resistor values
Pressure Range
For Model 1800 For Model 1805
02: 0 psi to 10 psi
00: 0 psi to 3 psi
03: 0 psi to 15 psi
01: 0 psi to 5 psi
07: 0 psi to 30 psi
08: 0 psi to 50 psi
09: 0 psi to 100 psi (G and A only)
10: 0 psi to 150 psi (G only)
Pressure Connections
Top
Bottom
0: 3/16 in tube
1: 3/16 hole
2: 3/16 in hole
4: 3/16 in tube
none
1/8 in tube
none
1/8 in tube
Excitation
L: Current
K: Voltage
Sensor Type
G: Gage
A: Absolute
D: Differential
Note:
Transducer recommended for use with non-corrosive, non-condensing gases.
