54602-908LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54602-908LF

54602-908LF: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size138KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

54602-908LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54602-908LF	-	-	View	Buy Now

54602-908LF Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT

54602-908LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Is Samacsys	N
Board mount options	SPLIT BOARD LOCK
body width	0.5 inch
subject depth	0.698 inch
body length	0.602 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	54602
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYESTER
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

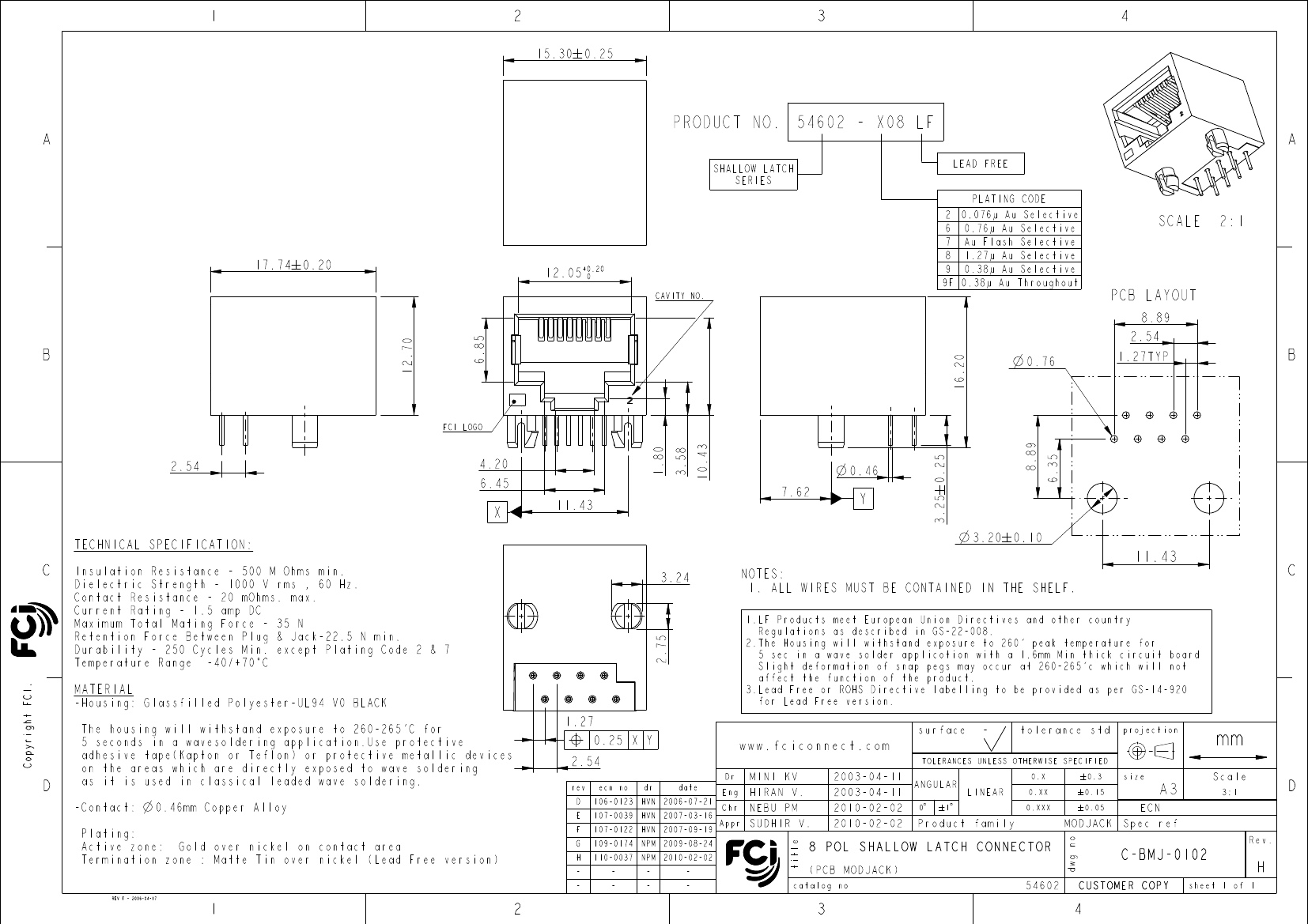

15.30 0.25

PRODUCT NO.

SHALLOW LATCH

SERIES

54602 - X08 LF

LEAD FREE

PLATING CODE

0.076µ Au Selective

0.76µ Au Selective

Au Flash Selective

1.27µ Au Selective

0.38µ Au Selective

0.38µ Au Throughout

SCALE

2:1

17.74 0.20

12.05

+0.20

CAVITY NO.

PCB LAYOUT

8.89

2.54

16.20

12.70

6.85

0.76

1.27 TYP

FCI LOGO

10.43

1.80

3.58

8.89

3.20 0.10

2.54

4.20

6.45

11.43

0.46

7.62

TECHNICAL SPECIFICATION:

3.25 0.25

6.35

11.43

3.24

NOTES:

1. ALL WIRES MUST BE CONTAINED IN THE SHELF.

1.LF Products meet European Union Directives and other country

Regulations as described in GS-22-008.

2.The Housing will withstand exposure to 260' peak temperature for

5 sec in a wave solder applicotion with a 1.6mm Min thick circuit board

Slight deformation of snap pegs may occur at 260-265'c which will not

affect the function of the product.

3.Lead Free or ROHS Directive labelling to be provided as per GS-14-920

for Lead Free version.

surface

tolerance std

projection

Insulation Resistance - 500 M Ohms min.

Dielectric Strength - 1000 V rms , 60 Hz.

Contact Resistance - 20 mOhms. max.

Current Rating - 1.5 amp DC

Maximum Total Mating Force - 35 N

Retention Force Between Plug & Jack-22.5 N min.

Durability - 250 Cycles Min. except Plating Code 2

Temperature Range -40/+70°C

& 7

MATERIAL

-Housing: Glassfilled Polyester-UL94 V0 BLACK

The housing will withstand exposure to 260-265'C for

5 seconds in a wavesoldering application.Use protective

adhesive tape(Kapton or Teflon) or protective metallic devices

on the areas which are directly exposed to wave soldering

as it is used in classical leaded wave soldering.

-Contact:

0.46mm Copper Alloy

1.27

0.25 X Y

2.54

rev

ecn no

I06-0123

I07-0039

I07-0122

I09-0174

I10-0037

date

Eng

Chr

Appr

HVN 2006-07-21

HVN 2007-03-16

HVN 2007-09-19

NPM 2009-08-24

NPM 2010-02-02

2.75

www.fciconnect.com

TOLERANCES UNLESS OTHERWISE SPECIFIED

Scale

3:1

MINI KV

HIRAN V.

NEBU PM

SUDHIR V.

title

2003-04-11

2010-02-02

ANGULAR

0.X

0.3

0.15

0.05

size

LINEAR

0.XX

0.XXX

ECN

8 POL SHALLOW LATCH CONNECTOR

(PCB MODJACK)

54602

dwg no

Plating:

Active zone: Gold over nickel on contact area

Termination zone : Matte Tin over nickel (Lead Free version)

Product family

MODJACK Spec ref

Rev.

C-BMJ-0102

CUSTOMER COPY

sheet

1 of 1

catalog no

REV F - 2006-04-17

PDM: Rev:H

STATUS:

Released

Printed: Apr 17, 2011
