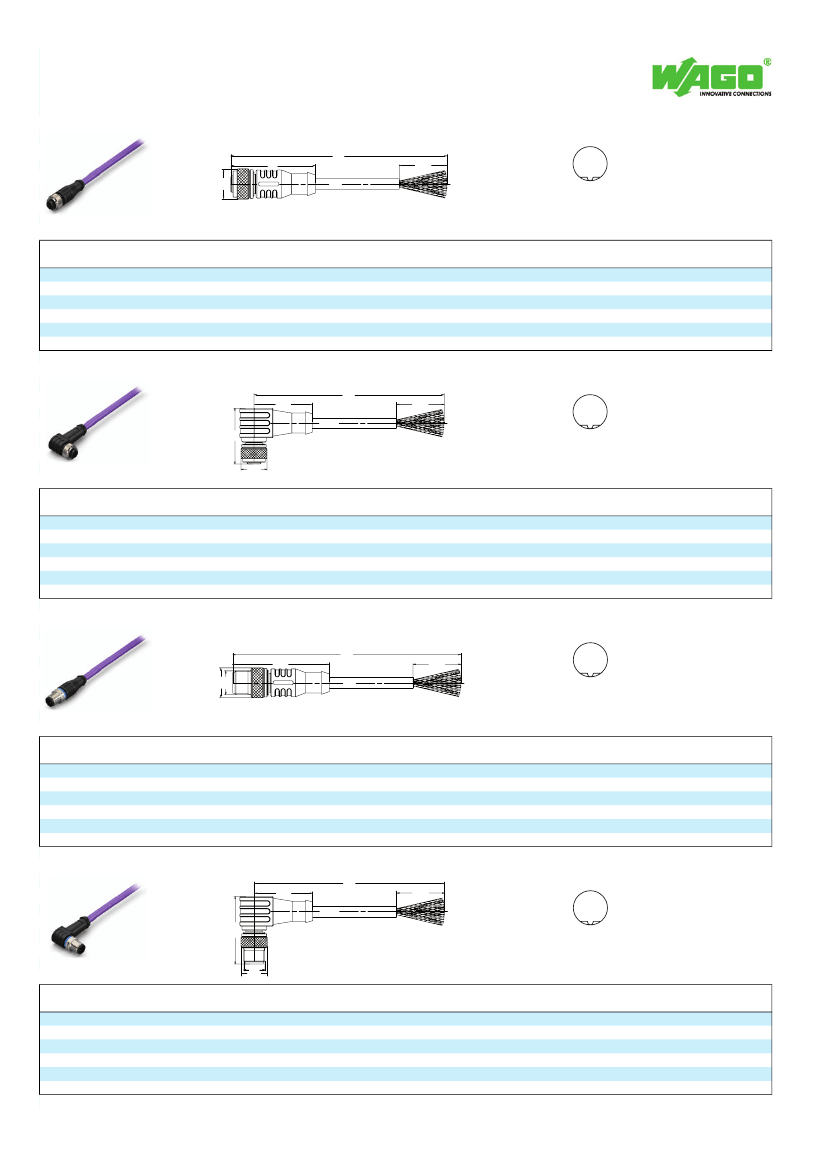

WAGO-SPEEDWAY 767
PROFIBUS cables, with one end of cable fitted
L*)
42
ø15
35±2
3
5
2
4
1
Pin 2 and 4: 0.34 mm²
1 n.c.
2 green
3 n.c.
4 red
5 n.c.
(mm)
M12 socket, straight, B coded
M12 socket, straight, one free cable end, 2.0 m
M12 socket, straight, one free cable end, 5.0 m
M12 socket, straight, one free cable end, 10.0 m
M12 socket, straight, one free cable end, 20.0 m
Item No.
756-1101/060-020
756-1101/060-050
756-1101/060-100
756-1101/060-200
Pack. Unit
1
1
1
1
L*)
33,5
35±2
3
5
2
1
4
32
Pin 2 and 4: 0.34 mm²
1 n.c.
2 green
3 n.c.
4 red
5 n.c.
(mm)
ø15
M12 socket, right angle, B coded
M12 socket, right angle, one free cable end, 2.0 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10.0 m
M12 socket, right angle, one free cable end, 20.0 m
Item No.
756-1102/060-020
756-1102/060-050
756-1102/060-100
756-1102/060-200
Pack. Unit
1
1
1
1
L*)
48,5
M12x1
4
3
5
2
35±2
1
ø15
Pin 2 and 4: 0.34 mm²
1 n.c.
2 green
3 n.c.
4 red
5 n.c.
(mm)
M12 plug, straight, B coded
M12 plug, straight, one free cable end, 2.0 m
M12 plug, straight, one free cable end, 5.0 m
M12 plug, straight, one free cable end, 10.0 m
M12 plug, straight, one free cable end, 20.0 m
Item No.
756-1103/060-020
756-1103/060-050
756-1103/060-100
756-1103/060-200
Pack. Unit
1
1
1
1
L*)
33,5
35±2
4
5
1
2
3
38,5
(mm)
Pin 2 and 4: 0.34 mm²
1 n.c.
2 green
3 n.c.
4 red
5 n.c.
M12x1
ø15
M12 plug, right angle, B coded
M12 plug, right angle, one free cable end, 2.0 m
M12 plug, right angle, one free cable end, 5.0 m
M12 plug, right angle, one free cable end, 10.0 m
M12 plug, right angle, one free cable end, 20.0 m
Item No.
756-1104/060-020
756-1104/060-050
756-1104/060-100
756-1104/060-200
Pack. Unit
1
1
1
1
*) Cable length
WAGO Kontakttechnik GmbH & Co. KG
Subject to design changes
18.02.2010
Postfach 2880 - D-32385 Minden
Hansastr. 27 - D-32423 Minden
Phone: +49(0)571/887-0
Fax: +49(0)571/887-169
E-Mail: info@wago.com
www.wago.com

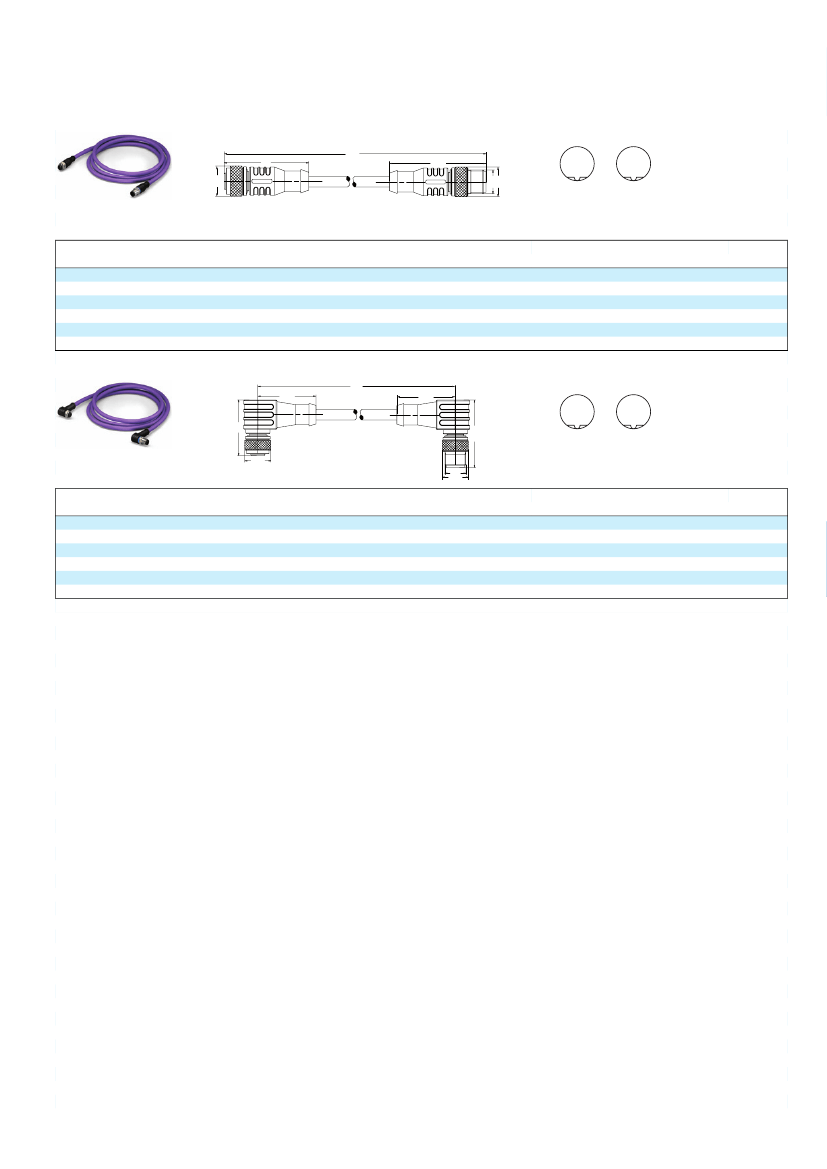

WAGO-SPEEDWAY 767
PROFIBUS cables, with both ends of cable fitted
6
463
Pin 2 and 4: 0.34 mm²
1 n.c.
2 green
3 n.c.
4 red
5 n.c.
L*)
48,5
M12x1
42
ø15
3
5
2
4
1
4
5
1
3
2
(mm)
M12 socket, straight / M12 plug, straight, B coded
M12 socket, straight, M12 plug, straight, 2.0 m
M12 socket, straight, M12 plug, straight, 5.0 m
M12 socket, straight, M12 plug, straight, 10.0 m
M12 socket, straight, M12 plug, straight, 20.0 m
ø15
Item No.
756-1105/060-020
756-1105/060-050
756-1105/060-100
756-1105/060-200
Pack. Unit
1
1
1
1
L*)
33,5
33,5
3
5
2
1
1
4
4
5
2
3
(mm)
ø15
M12x1
ø15
M12 socket, right angle / M12 plug, right angle, B coded
M12 socket, right angle, M12 plug, right angle, 2.0 m
M12 socket, right angle, M12 plug, right angle, 5.0 m
M12 socket, right angle, M12 plug, right angle, 10.0 m
M12 socket, right angle, M12 plug, right angle, 20.0 m
38,5
Pin 2 and 4: 0.34 mm²
1 n.c.
2 green
3 n.c.
4 red
5 n.c.
32
Item No.
756-1106/060-020
756-1106/060-050
756-1106/060-100
756-1106/060-200
Pack. Unit
1
1
1
1
6
*) Cable length
