89049-301

Description
Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size234KB,3 Pages
ManufacturerBel Fuse
Download Datasheet Parametric View All

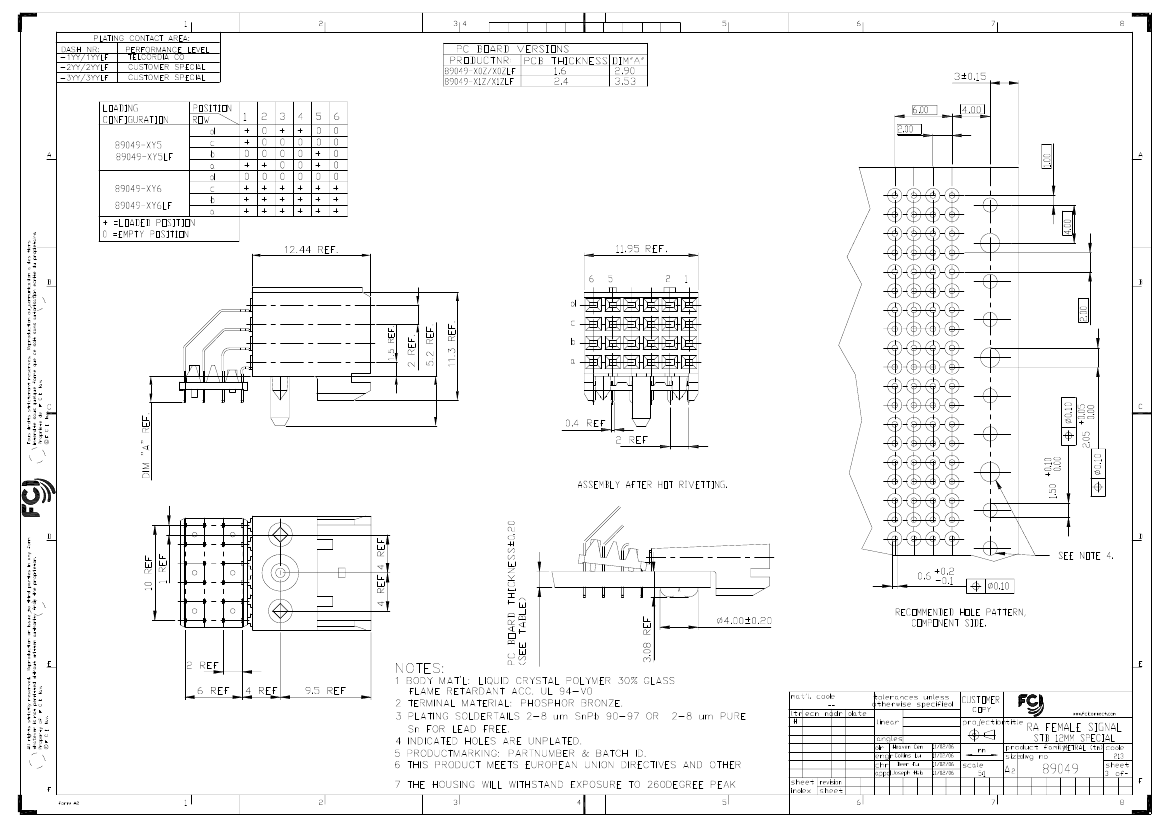

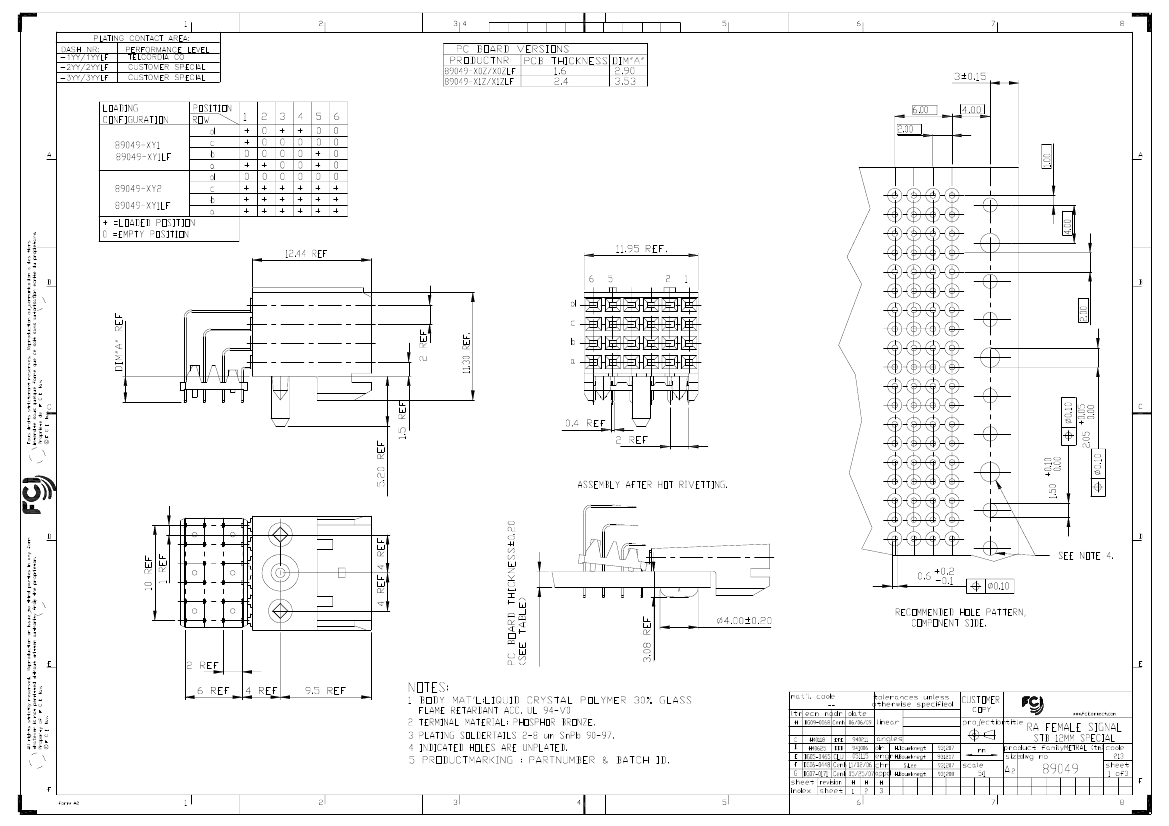

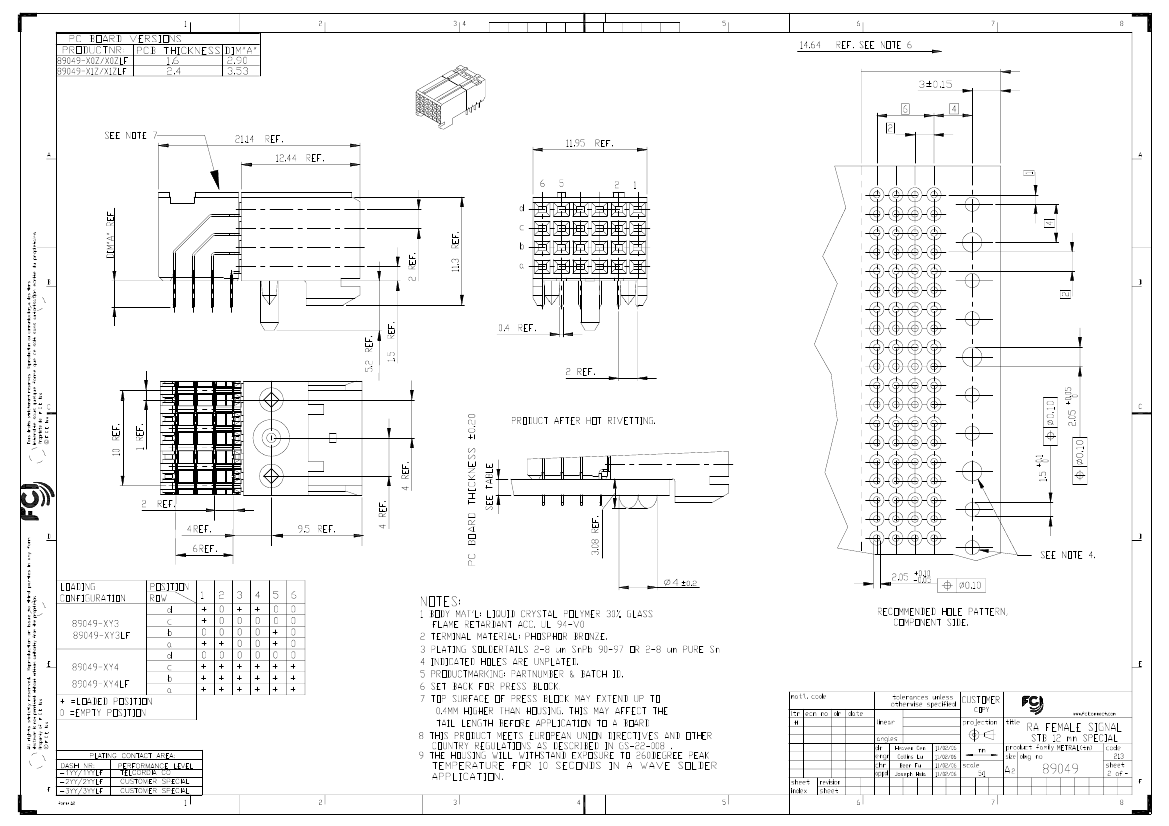

89049-301 Overview

Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug

89049-301 Parametric

Parameter NameAttribute value
MakerBel Fuse
Reach Compliance Codecompliant
Is SamacsysN
body length0.47 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN LEAD (315)
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number89049
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1
PDM: Rev:H
STATUS:
Released
Printed: May 19, 2011
.
