9110-8-128-02: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size192KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9110-8-128-02 Overview

Board Connector, 28 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH STANDOFF
body width	0.26 inch
subject depth	0.465 inch
body length	2.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.205 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Evacuation force-minimum value	.556 N
Base Number Matches	1

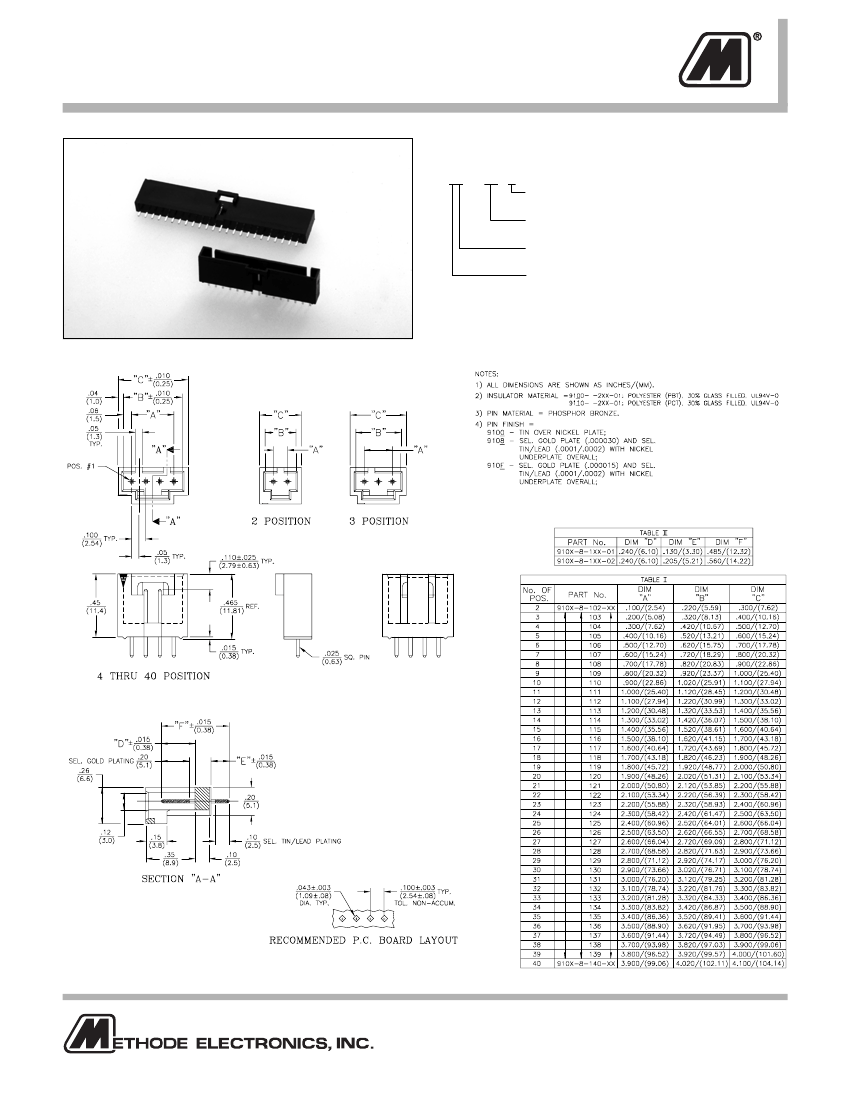

.100” (2.54mm) Single Row, Through Hole,

Vertical Shrouded Header with Latch

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-8-1XX-0X

PIN NUMBER

(SEE TABLE II)

NUMBER OF POSITIONS

(SEE TABLE I)

PIN PLATING

(SEE NOTE 4)

INSULATOR MATERIAL

(SEE NOTE 2)

MATING CONNECTORS: 9300 SERIES RECEPTACLES

8

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
