D6B-2P

Description
Hall Effect Sensor, 45deg Min, 75deg Max, 0.5-2.5V, Surface Mount
CategoryThe sensor    Sensor/transducer
File Size565KB,6 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Environmental Compliance
Download Datasheet Parametric View All

D6B-2P Online Shopping

Suppliers Part Number Price MOQ In stock
D6B-2P - - View Buy Now

D6B-2P Overview

Hall Effect Sensor, 45deg Min, 75deg Max, 0.5-2.5V, Surface Mount

D6B-2P Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerOMRON
Reach Compliance Codeunknown
Is SamacsysN
body width3.7 mm
body height5.5 mm
Body length or diameter5.5 mm
Maximum measuring range (degrees)75 deg
Minimum measuring range (degrees)45 deg
Installation featuresSURFACE MOUNT
Maximum working current0.02 mA
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
Output range0.5-2.5V
Output typeANALOG VOLTAGE
Sensor/Transducer TypeROTARY POSITION SENSOR,HALL EFFECT
Maximum supply voltage3.3 V
Minimum supply voltage2.7 V
surface mountYES
Termination typeSOLDER
Base Number Matches1

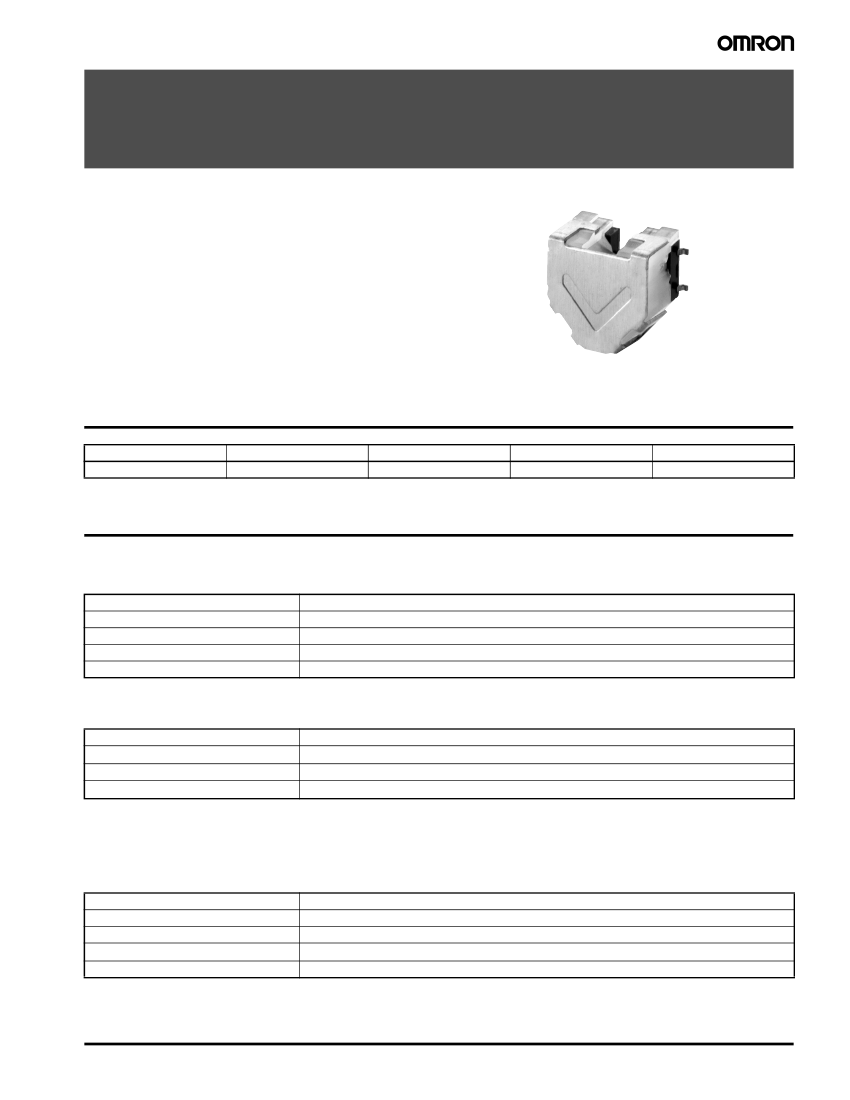

Micro Tilt Sensor
D6B
Surface Mounting Tilt Sensor Fits
Space-Confined Installations
• Detect tilting over a range of 45 to 75 degrees in right-and-
left inclination
• Gull wing surface mount terminals
• Wide operating temperature range: -10° to 60°C
• Ideal for PDAs, cell phones and test equipment; digital
cameras and video cameras to change aspect ratio
automatically; also replaces mercury switches in portable
space heaters and game machines such as pinball games
• RoHS Compliant
Ordering Information
Operation angle
45° to 75°
Return angle
50° to 20°
Output rating
0.5 VDC
Operating voltage
2.7 to 3.3 VDC
Model
D6B-2 (P)
Specifications
Absolute Maximum Ratings
Supply voltage range (V
dd
)
Output current (I
out
)
Operating temperature range
Storage temperature range
Operating/storage humidity range
-0.1 to 5.0 VDC
±1 mA
-10° to 60°C with no icing
-25° to 70°C
25% to 85% RH with no icing or condensation
Electrical Characteristics
Power supply voltage range
Output high voltage
Output low voltage
Current consumption
2.7 to 3.3 VDC
V
dd
– 0.5 V min.
0.5 V max.
20
µA
max.; 10
µA
typical (V
dd
= 3)
Note:
Measured under standard conditions of ambient temperature
5°C to 35°C.
Performance

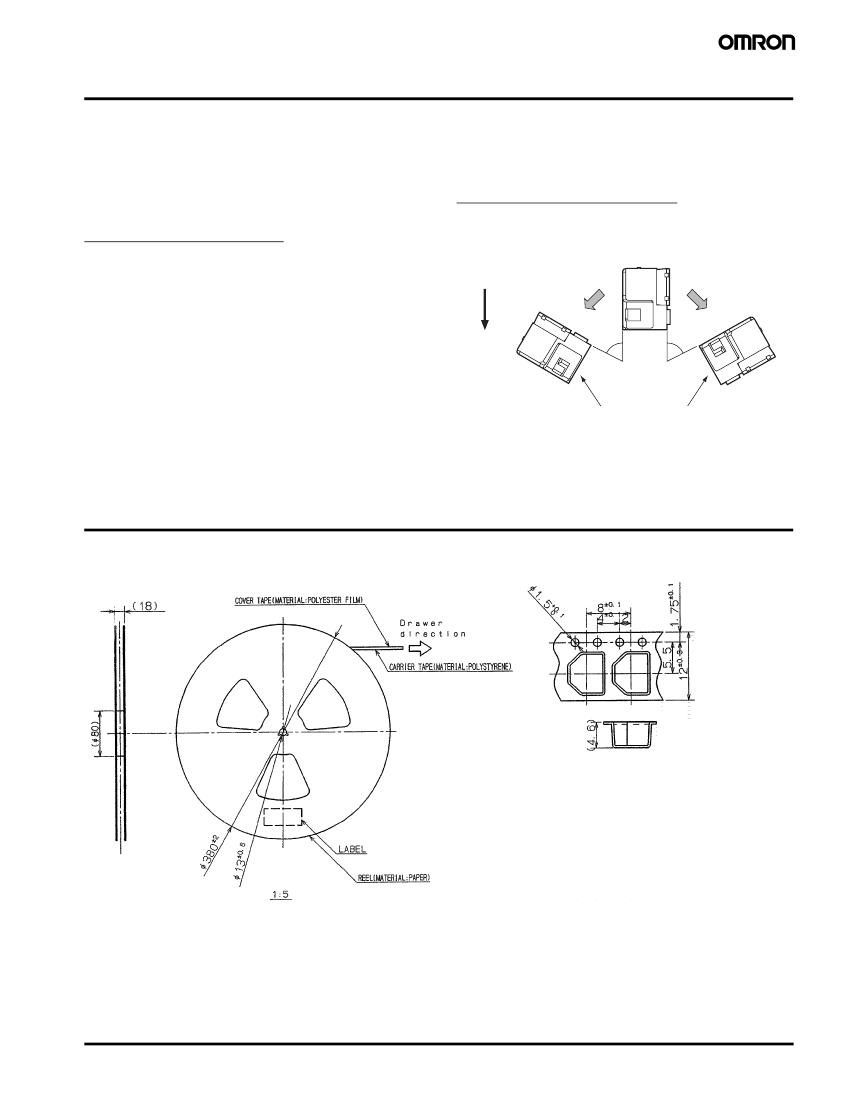

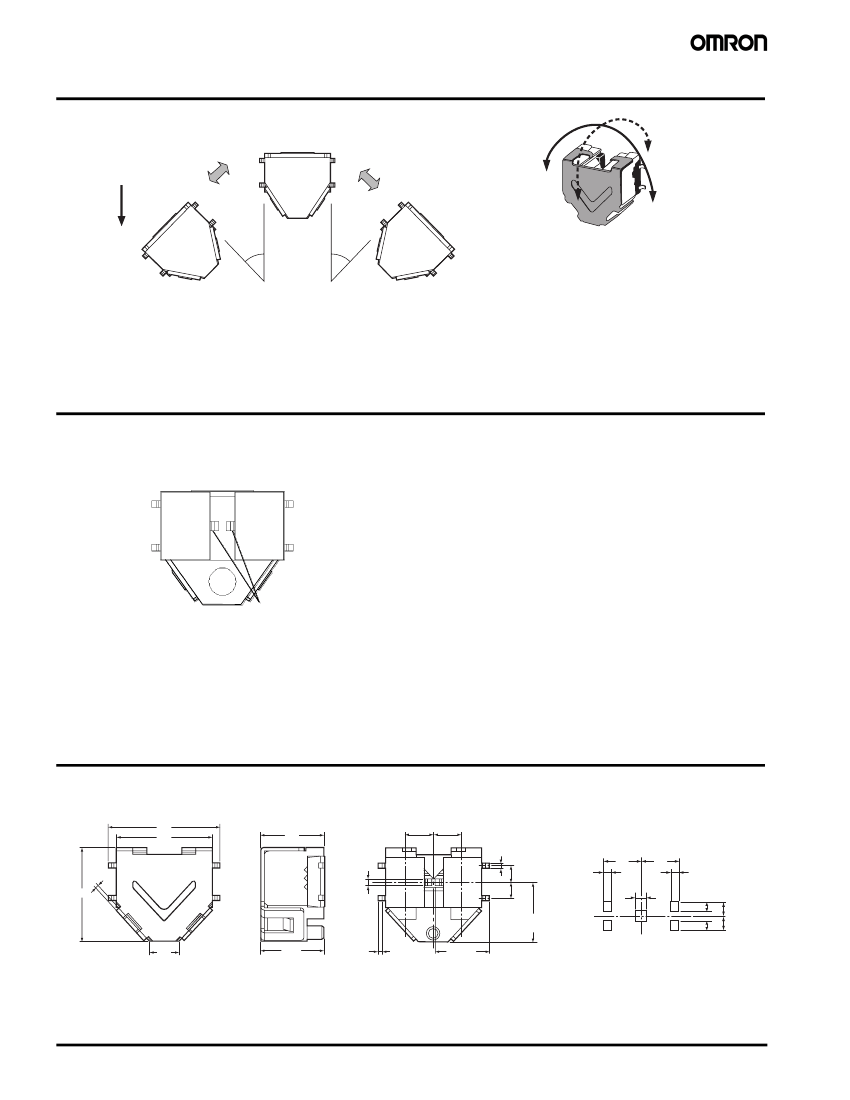

Refer to the drawing on the following page for an operational diagram showing operation and return angles.
Operation angle
Return angle
Vibration resistance
Shock resistance
Electrical life expectancy
45° to 75° (when output goes from High to Low)
50° to 20° (when output goes from Low to High)
Malfunction: 10-55-10 Hz 1.5 mm single amplitude (3.0 mm double amplitude) for 2 hours, 3-Axis
Malfunction: 735 m/s
2
(approx. 75G)
100,000 operations min. (15-20 operations/minute)
Micro Tilt Sensor
D6B
1
