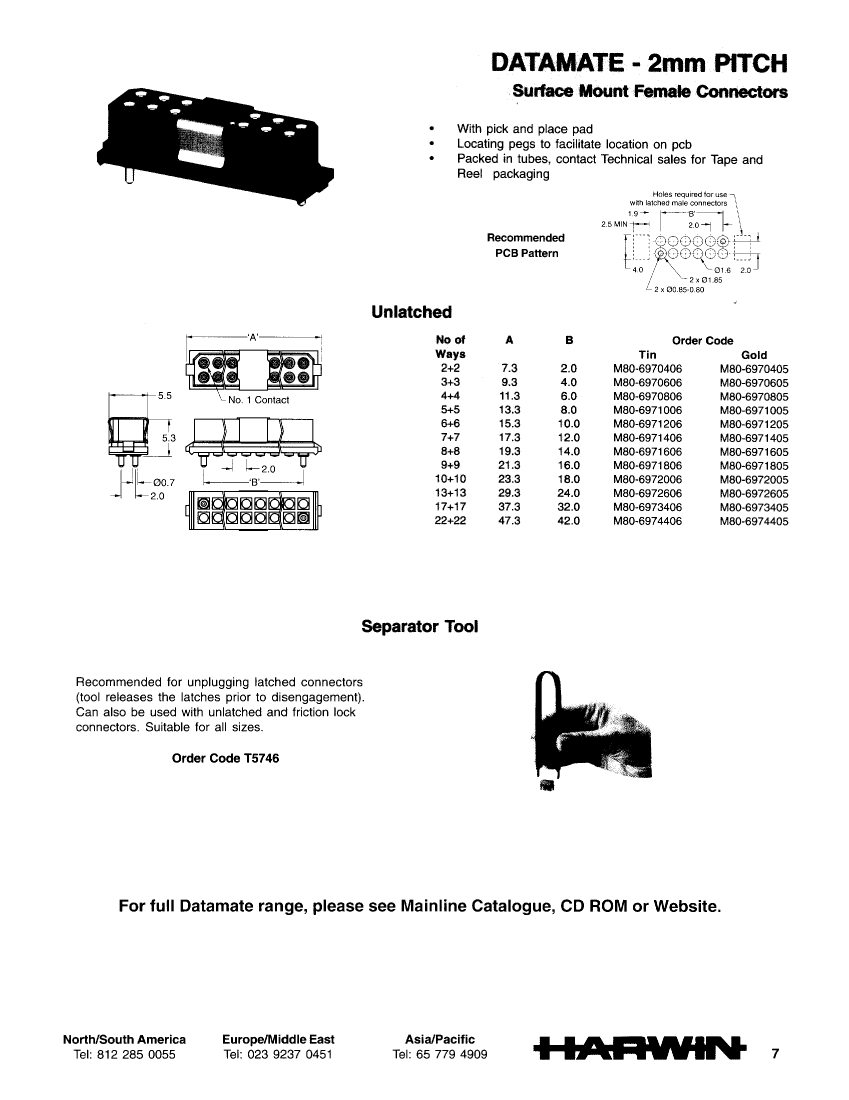

M80-6971606 datasheet, PDF - EEWORLD Datasheet

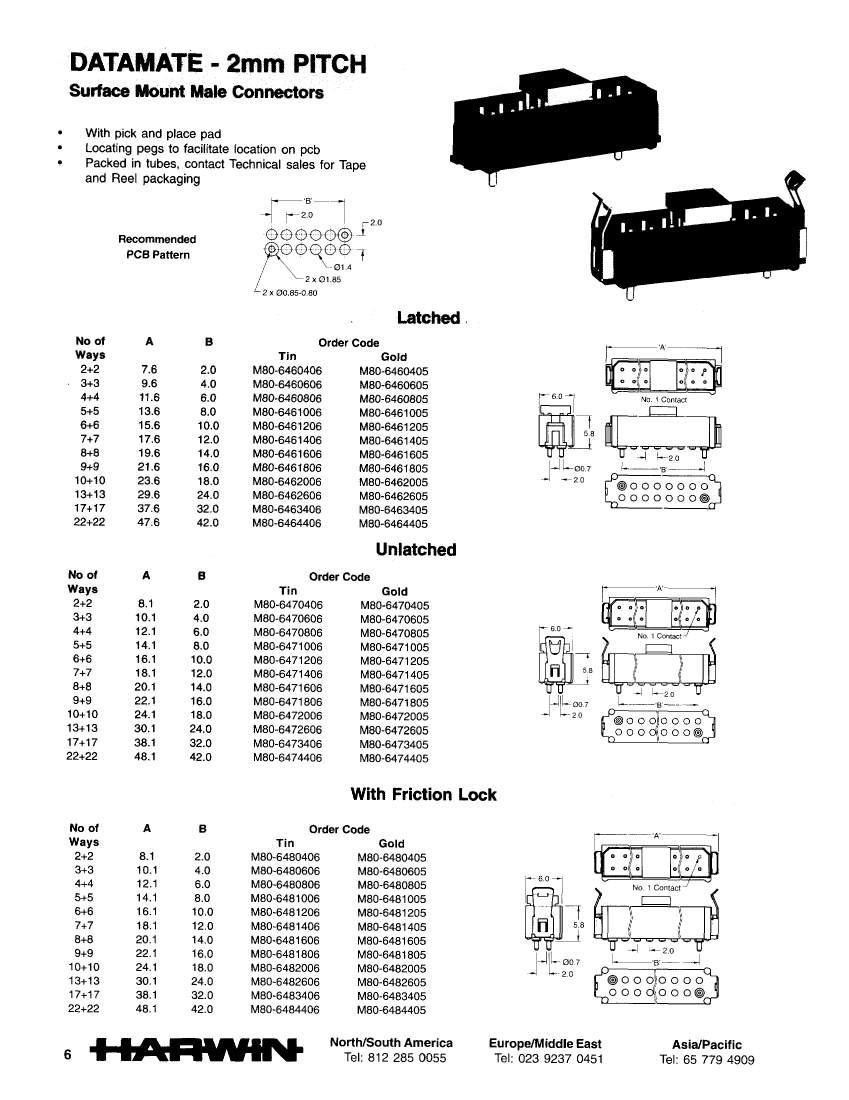

M80-6971606: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size124KB，2 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-6971606 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Harwin
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	M80
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
Base Number Matches	1
