MC74AC194DR2 datasheet, PDF - EEWORLD Datasheet

MC74AC194DR2: DescriptionParallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO16, PLASTIC, SOIC-16; Categorylogic logic; File Size263KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

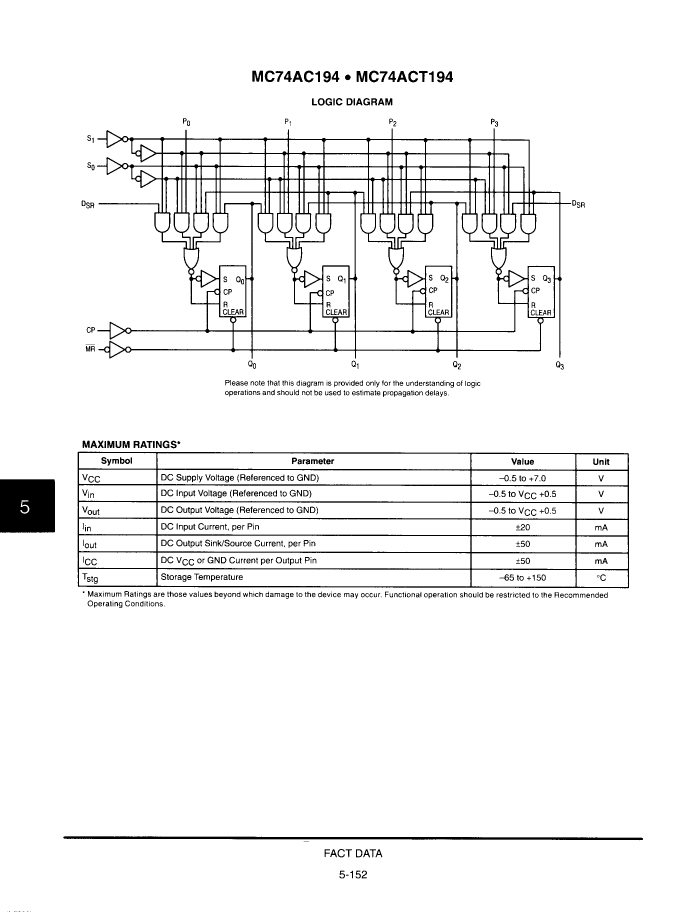

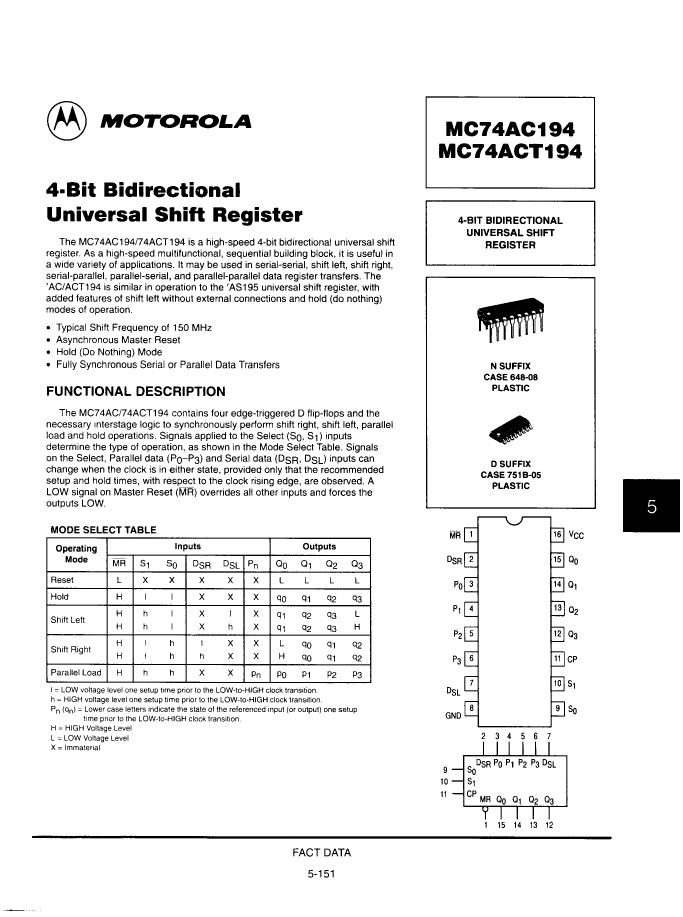

MC74AC194DR2 Overview

Parallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO16, PLASTIC, SOIC-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, SOIC-16
Reach Compliance Code	unknown
Is Samacsys	N
Other features	HOLD MODE
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT

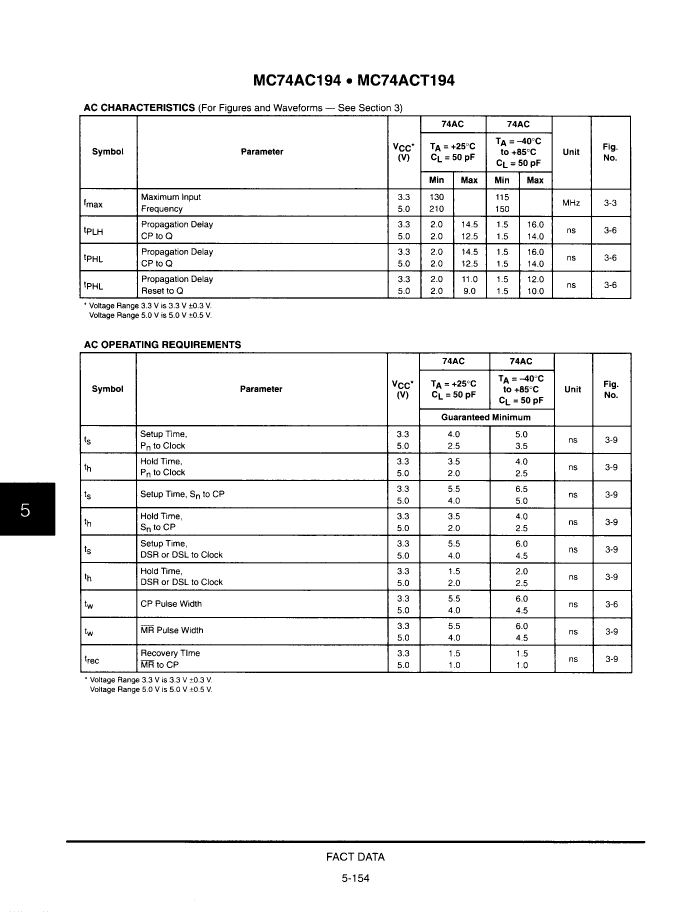

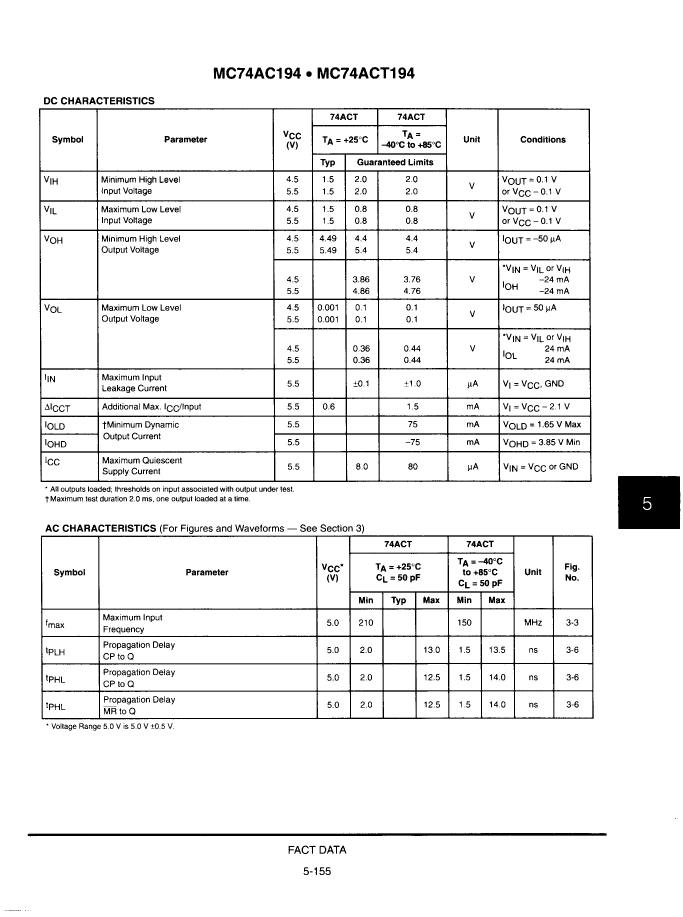

Maximum Frequency@Nom-Sup	115000000 Hz
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

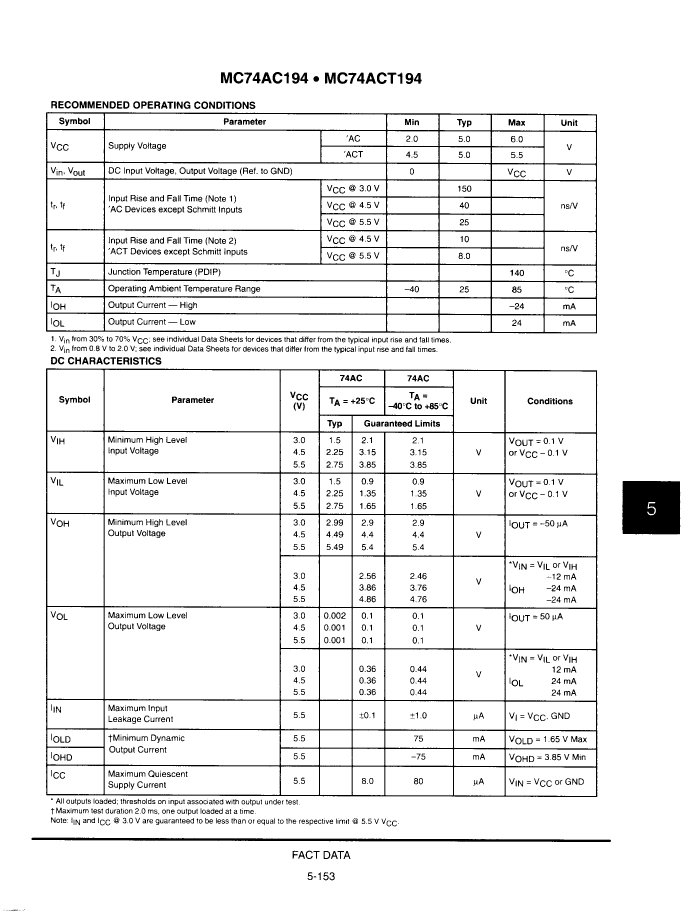

power supply	3.3/5 V
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	150 MHz
Base Number Matches	1
