Document 378-1

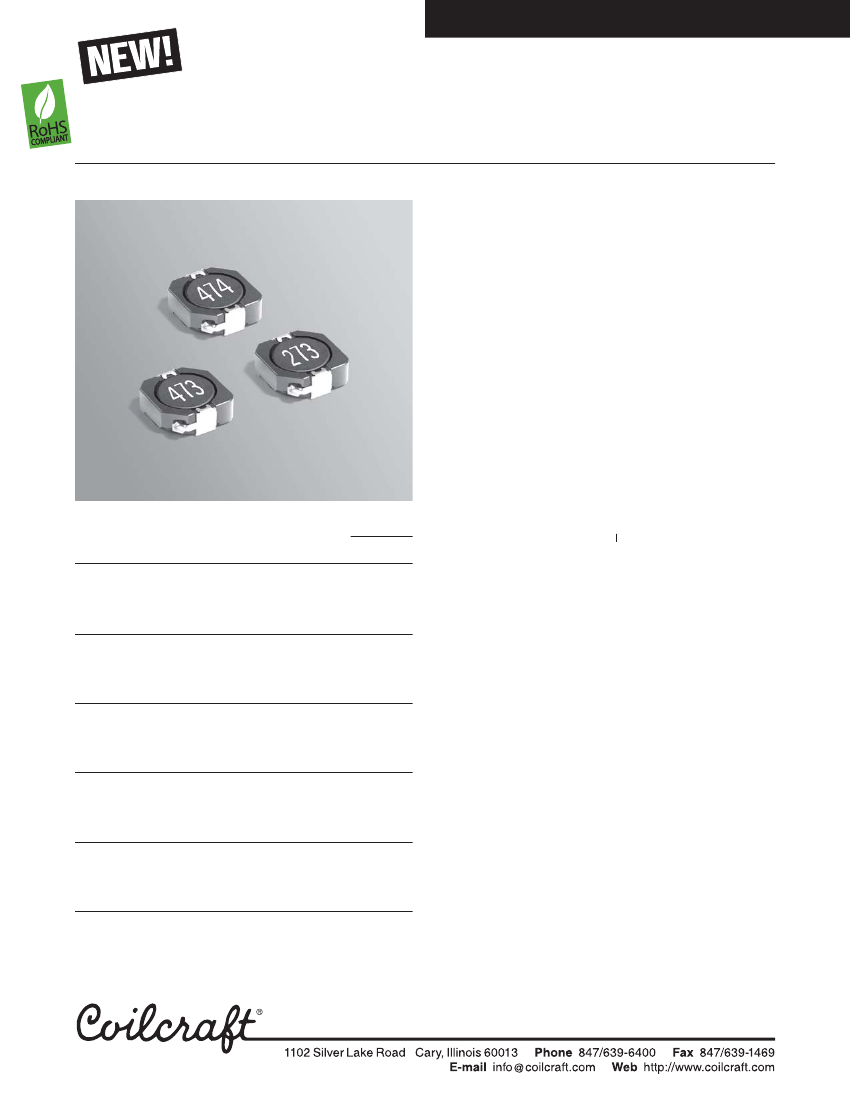

SMT Power Inductors – Series MSS1038
The MSS1038 series provides very high efficiency and
excellent current handling capability in a rugged, low cost
part. The magnetic shielding, small footprint and low profile
allow high density mounting. The flat top ensures reliable
pick and place handling.
These inductors are ideal for use in DC-DC converters,
LCD panels, and portable devices where low cost and high
reliability are critical. They are available in 30 inductance
values from 1.5 µH to 1000 µH.
Coilcraft
Designer’s Kit C391
contains samples of all
values shown. To order, contact Coilcraft or purchase
online at
http://order.coilcraft.com.
Part number
1
MSS1038-152NL_
MSS1038-252NL_
MSS1038-382NL_
MSS1038-522NL_
MSS1038-702NL_
MSS1038-103NL_
MSS1038-123NL_
MSS1038-153NL_
MSS1038-183NL_
MSS1038-223NL_
MSS1038-273NL_
MSS1038-333NL_
MSS1038-393NL_
MSS1038-473NL_
MSS1038-563NL_
MSS1038-683NL_
MSS1038-823NL_
MSS1038-104NL_
MSS1038-124NL_
MSS1038-154NL_
MSS1038-184NL_
MSS1038-224NL_
MSS1038-274NL_
MSS1038-334NL_
MSS1038-394NL_
MSS1038-474NL_
MSS1038-564NL_
MSS1038-684NL_
MSS1038-824NL_
MSS1038-105NL_
Irms
(A)
5
L
2
DCR
SRF
±30%
max
typ
3
Isat
4
20°C 40°C
(µH) (mOhms) (MHz) (A) rise rise
1.5
8.1
81
8.30 5.60 7.85
2.5
10.0
61
7.50 4.65 6.65
3.8
13.0
45
6.00 4.25 6.05
5.2
22.0
37
5.50 3.60 5.10
7.0
27.0
33
4.80 3.10 4.35
10.0
35.0
29
4.40 2.90 4.05
12.0
41.0
25
4.02 2.85 4.00
15.0
50.0
21
3.60 2.70 3.80
18.0
65.0
18
3.20 2.25 3.35
22.0
73.0
15
2.90 1.90 2.85
27.0
89.0
15
2.54 1.65 2.35
33.0
93.0
13
2.30 1.60 2.30
39.0
112.0
12
2.20 1.55 2.25
47.0
128.0
11
2.10 1.45 2.20
56.0
180.0
11
1.92 1.40 1.85
68.0
213.0
10
1.50 1.15 1.75
82.0
261.0
8
1.40 1.09 1.50
100.0
304.0
6
1.35 1.05 1.45
120.0
380.0
6
1.23 0.85 1.25
150.0
506.0
6
1.15 0.80 1.20
180.0
582.0
5
1.05 0.71 0.98
220.0
756.0
5
0.92 0.70 0.97
270.0
926.0
4
0.83 0.65 0.86
330.0 1090.0
4
0.70 0.50 0.69
390.0 1141.0
4
0.64 0.49 0.65
470.0 1243.0
3
0.58 0.45 0.63
560.0 1696.0
3
0.53 0.43 0.59
680.0 1926.0
3
0.48 0.36 0.50
820.0 2596.0
3
0.44 0.34 0.47
1000.0 2853.0
3
0.40 0.33 0.45
1. When ordering, please specify
packaging
code:
MSS1038-105NLC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (250 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc.
SRF measured using an Agilent/HP 4192A or equivalent.
DC current at which the inductance drops 35% max from its value
without current.
Average current for temperature rise from 25°C ambient.
Operating temperature range –40°C to +85°C.
Electrical specifications at 25°C.
2.
3.
4.
5.
6.
7.
Specifications subject to change without notice.
Please check our website for latest information.
Document 378-1
Revised 01/25/05
© Coilcraft, Inc. 2005
Document 378-2
SMT Power Inductors – Series MSS1038

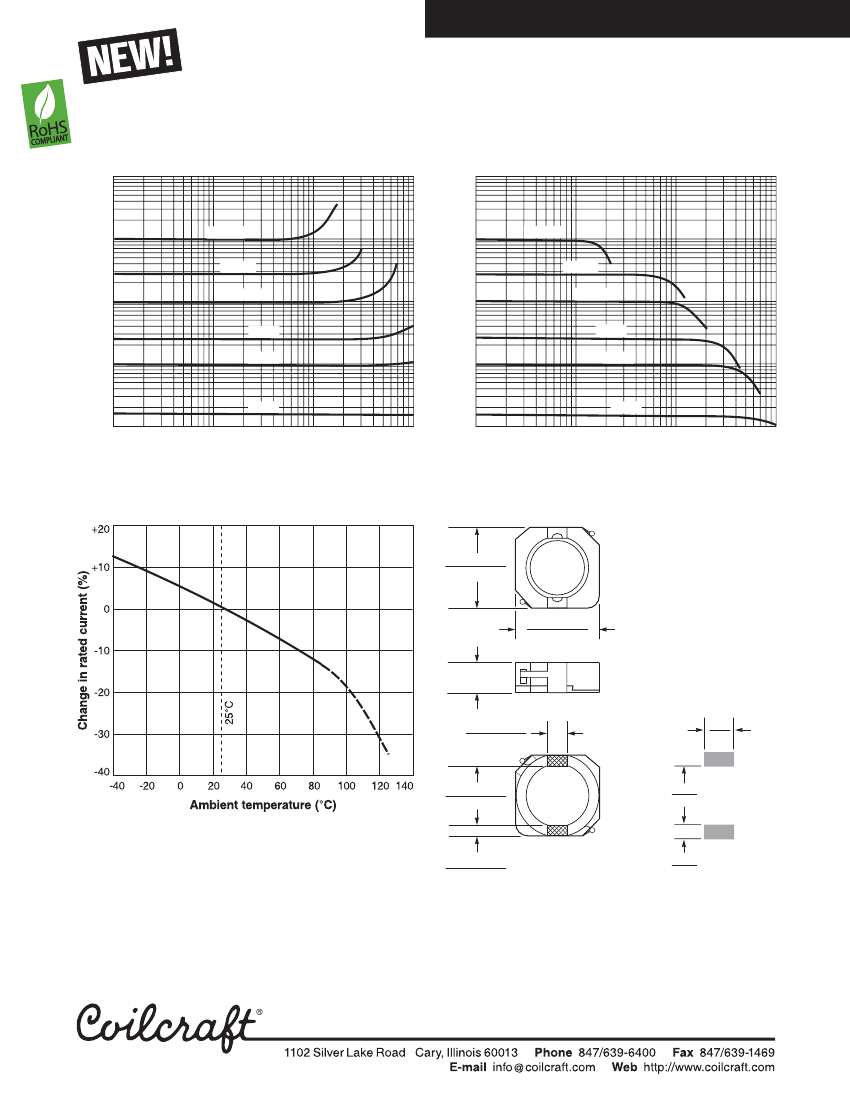

Typical L vs Frequency
10000
Typical L vs Current
10000
1000
1000 µH
1000
1000 µH
Inductance (µH)
270 µH
100 µH
Inductance (µH)
270 µH
100 µH
100
100
27 µH
27 µH
10
10 µH
10
10 µH
1.5 µH
1.5 µH
1
0.01
0.1
1
10
1
0.01
0.1
1
10
Frequency (MHz)
Current (A)
Current Derating
0.402 ±0.008
10,2 ±0,2
XXX
0.394 ±0.008
10,0 ±0,2
0.150 ±0.008
3,8 ±0,2
Recommended
Land Pattern
0.14
3,56
0.118 ±0.008
3,0 ±0,2
0.303 ±0.008
7,7 ±0,2
0.30
7,62
0.047 ±0.008
1,2 ±0,2
0.07
1,78
Terminations:
Nickel/tin over copper
Weight:
1.5 g
Tape and reel:
250/7″ reel; 1000/13″ reel 24 mm tape width
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice.
Please check our website for latest information.
Document 378-2
Revised 01/25/05
© Coilcraft, Inc. 2005
