General Purpose Inductor, 18000uH, 10%, 1 Element, Ferrite-Core, RADIAL LEADED
RLB1014-183K Parametric
Parameter Name
Attribute value
Is it Rohs certified?
incompatible
Maker
Bourns
Reach Compliance Code
not_compliant
ECCN code
EAR99
Is Samacsys
N
structure
Shrink Tube
core material
FERRITE
DC Resistance
52 Ω
Nominal inductance(L)
18000 µH
Inductor Applications
DC-DC CONVERTER
Inductor type
GENERAL PURPOSE INDUCTOR
JESD-609 code
e0
Lead diameter
0.65 mm
Lead length
25 mm
lead spacing
5 mm
Manufacturer's serial number
RLB1014
Number of functions
1
Number of terminals
2
Maximum operating temperature
80 °C
Minimum operating temperature
-20 °C
Package diameter
8.7 mm
Package length
12 mm
Package form
Radial
method of packing
Bulk
Minimum quality factor (at nominal inductance)
45
Maximum rated current
0.03 A
self resonant frequency
0.24 MHz
series
RLB1014
Shape/Size Description
CYLINDRICAL PACKAGE
shield
NO
surface mount
NO
Terminal surface
Tin/Lead (Sn/Pb)
Terminal location
RADIAL
Terminal shape
WIRE
Test frequency
0.0796 MHz
Tolerance
10%
Base Number Matches
1

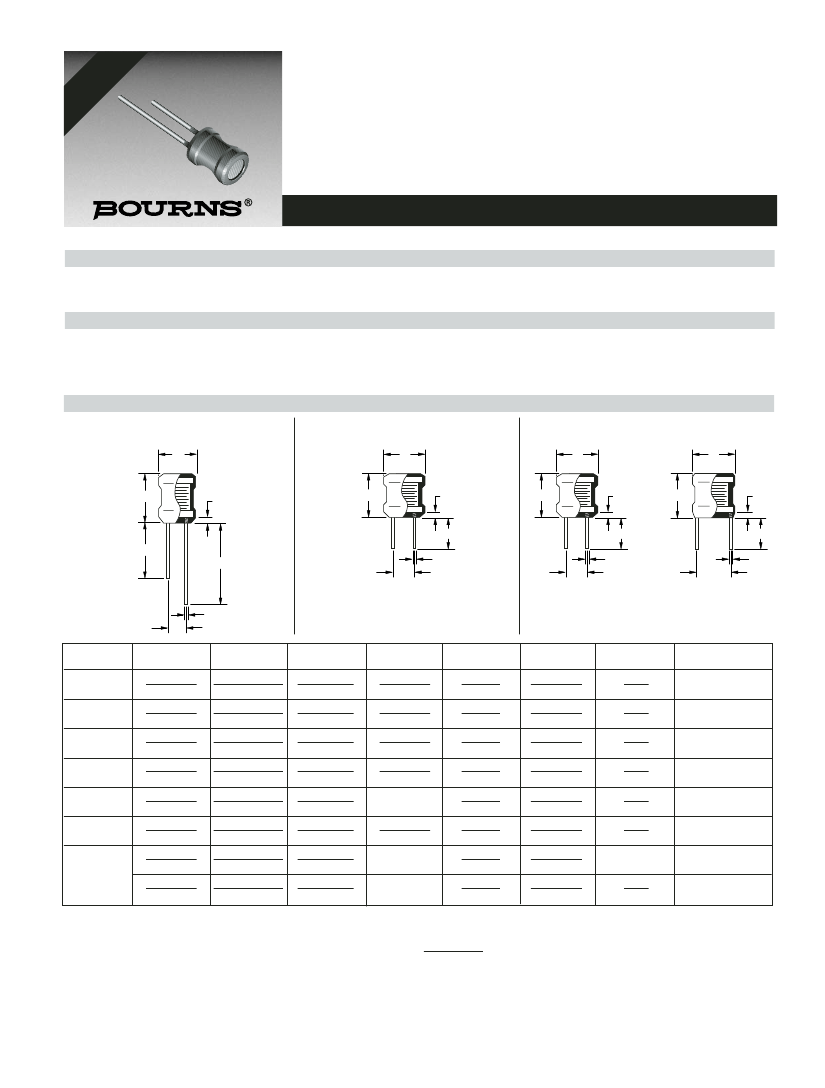

RLB1014-183K Preview
Ro VER LEA
H S SI D F
CO ON RE
M SA E
PL R
IA E
NT
Features
■
Four types available
■
High rated current for high current
Applications
■
Power supplies
■
DC/DC converters
■
General use
circuits
■
Available in E12 series
■
Lead free version available (see How to
Order)
■
Lead free versions are RoHS compliant*
RLB Series Radial Inductors
General Specifications
Temperature Rise ................................................................................................................................................20 ˚C max. at rated current
Operating Temperature ........................................................................................................................................................-20 °C to +80 °C
Storage Temperature ..........................................................................................................................................................-25 °C to +85 °C
Materials
Core Material .........................................................................................................................................................................Ferrite DR core
Lead ..................................................................................................................................................................................See How to Order
Tube...............................................................................................................................................................Shrinkable tube 125 °C, 600 V
Product Dimensions
RLB0608, RLB0812, RLB1014,
RLB0712, RLB0914 Series
A
DIA.
RLB0912 Series
A
DIA.
RLB1314-680K
thru RLB1314-153K
A
DIA.
RLB1314-3R3M
thru RLB1314-470K
A
DIA.
B
E
B
E
B
E
B
E
C
D
C
W DIA.
F
C
W DIA.
F
C
W DIA.
F
W DIA.
F
Series
RLB0608
RLB0812
RLB1014
RLB0712
RLB0912
RLB0914
A
5.0 ± 0.5
(.197 ± .020)
6.7 ± 0.5
(.264 ± .020)
8.7 ± 0.5
(.343 ± .020)
6.7 ± 0.5
(.264 ± .020)
8.7 ± 0.5
(.343 ± .020)
8.7 ± 0.5
(.343 ± .020)
11.7 ± 0.8
(.461 ± .031)
11.7 ± 0.8
(.461 ± .031)
B
6.5 +1.0/-0.5
(.256 +.039/-.020)
10.0 ± 1.0
(.394 ± .039)
12.0 ± 1.0
(.472 ± .039)
10.0 ± 1.0
(.394 ± .039)
10.0 ± 1.0
(.394 ± .039)
12.0 ± 1.0
(.472 ± .039)
12.0 ± 1.0
(.472 ± .039)
12.0 ± 1.0
(.472 ± .039)
C
28.0 ± 5.0
(1.102 ± .197)
25.0 ± 5.0
(.984 ± .197)
25.0 ± 5.0
(.984 ± .197)
25.0 ± 5.0
(.984 ± .197)
5.0 ± 1.0
(.197 ± .039)
25.0 ± 5.0
(.984 ± .197)
15.0 ± 5.0
(.591 ± .197)
15.0 ± 5.0
(.591 ± .197)
D
20.0 ± 5.0
(.787 ± .197)
18.0 ± 5.0
(.709 ± .197)
18.0 ± 5.0
(.709 ± .197)
18.0 ± 5.0
(.709 ± .197)
—
18.0 ± 5.0
(.709 ± .197)
—
—
E
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
2.5 + 0
(.098 + 0)
F
2.0 ± 0.5
(.079 ± .020)
3.0 ± 0.5
(.118 ± .020)
5.0 ± 0.8
(.197 ± .031)
3.0 ± 0.5
(.118 ± .020)
5.0 ± 0.8
(.197 ± .031)
5.0 ± 0.8
(.197 ± .031)
9.0 ± 1.0
(.354 ± .039)
7.0 ± 0.8
(.276 ± .031)
W (DIA.)
0.50
(.020)
0.65
(.026)
0.65
(.026)
0.65
(.026)
0.65
(.026)
0.65
(.026)
Per Specs.
0.80
(.031)
Inductance
Range
1.0 µH — 1000 µH
47 µH — 47 mH
100 µH — 82 mH
10 µH — 560 µH
1.5 µH — 1000 µH
3.3 µH — 1000 µH
3. 3µH — 47 µH
68 µH — 15 mH
RLB1314
DIMENSIONS ARE:
MM
(INCHES)
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
RLB Series Radial Inductors
How to Order
Electrical Schematic
Typical Part Marking
Inductance Code:
- First two digits are significant
- Third digit represents the
number of zeroes to follow
• = Start
RLB0912 - 102K __
Model: from table
Value/Tolerance: from table
Lead
L = Cu/Sn
Blank = Cu/SnPb
• 470
RLB0608 Series Electrical Characteristics
BOURNS Part No.
RLB0608-1R0M_
RLB0608-1R2M_
RLB0608-1R5M_
RLB0608-1R8M_
RLB0608-2R2M_
RLB0608-2R7M_
RLB0608-3R3M_
RLB0608-3R9M_
RLB0608-4R7M_
RLB0608-5R6K_
RLB0608-6R8K_
RLB0608-8R2K_
RLB0608-100K_
RLB0608-120K_
RLB0608-150K_
RLB0608-180K_
RLB0608-220K_
RLB0608-270K_
RLB0608-330K_
RLB0608-390K_
RLB0608-470K_
RLB0608-560K_
RLB0608-680K_
RLB0608-820K_
RLB0608-101K_
RLB0608-121K_
RLB0608-151K_
RLB0608-181K_
RLB0608-221K_
RLB0608-271K_
RLB0608-331K_
RLB0608-391K_
RLB0608-471K_
RLB0608-561K_
RLB0608-681K_
RLB0608-821K_
RLB0608-102K_
Inductance
(µH)
1.0 ± 20 %
1.2 ± 20 %
1.5 ± 20 %
1.8 ± 20 %
2.2 ± 20 %
2.7 ± 20 %
3.3 ± 20 %
3.9 ± 20 %
4.7 ± 20 %
5.6 ± 10 %
6.8 ± 10 %
8.2 ± 10 %
10.0 ± 10 %
12.0 ± 10 %
15.0 ± 10 %
18.0 ± 10 %
22.0 ± 10 %
27.0 ± 10 %
33.0 ± 10 %
39.0 ± 10 %
47.0 ± 10 %
56.0 ± 10 %
68.0 ± 10 %
82.0 ± 10 %
100.0 ± 10 %
120.0 ± 10 %
150.0 ± 10 %
180.0 ± 10 %
220.0 ± 10 %
270.0 ± 10 %
330.0 ± 10 %
390.0 ± 10 %
470.0 ± 10 %
560.0 ± 10 %
680.0 ± 10 %
820.0 ± 10 %
1000.0 ± 10 %
Q
ref.
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
50
50
50
50
50
50
50
50
50
50
50
45
45
45
45
55
55
55
55
55
Test freq. (MHz)
L
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
Q
SRF
(MHz) min.
105.0
90.0
75.0
70.0
65.0
60.0
50.0
45.0
40.0
35.0
30.0
25.0
20.0
15.0
13.0
11.0
10.0
9.0
8.0
7.5
7.0
6.5
6.0
5.5
5.0
4.8
4.4
4.2
3.8
3.6
3.3
3.0
2.8
2.4
2.2
2.0
1.8
RDC
IDC
(ohms) max.
(mA) max.
0.10
1030
0.15
980
0.20
920
0.22
880
0.24
830
0.27
790
0.30
750
0.30
720
0.35
670
0.35
640
0.40
620
0.40
590
0.45
550
0.50
530
0.55
500
0.60
480
0.65
460
0.75
430
0.85
410
0.90
390
1.00
370
1.20
350
1.30
340
1.50
320
1.70
305
1.90
290
2.10
275
2.30
235
2.50
200
2.75
180
4.68
165
6.00
150
6.50
140
8.50
135
9.00
125
9.60
120
11.50
100
Packaging: 800 pieces per bag
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
RLB Series Radial Inductors
RLB0812 Series Electrical Characteristics
BOURNS Part No.
RLB0812-470K_
RLB0812-560K_
RLB0812-680K_
RLB0812-820K_
RLB0812-101K_
RLB0812-121K_
RLB0812-151K_
RLB0812-181K_
RLB0812-221K_
RLB0812-271K_
RLB0812-331K_
RLB0812-391K_
RLB0812-471K_
RLB0812-561K_
RLB0812-681K_
RLB0812-821K_
RLB0812-102K_
RLB0812-122K_
RLB0812-152K_
RLB0812-182K_
RLB0812-222K_
RLB0812-272K_
RLB0812-332K_
RLB0812-392K_
RLB0812-472K_
RLB0812-562K_
RLB0812-682K_
RLB0812-822K_
RLB0812-103K_
RLB0812-123K_
RLB0812-153K_
RLB0812-183K_
RLB0812-223K_
RLB0812-273K_
RLB0812-333K_
RLB0812-393K_
RLB0812-473K_
Inductance
(µH)
47 ± 10 %
56 ± 10 %
68 ± 10 %
82 ± 10 %
100 ± 10 %
120 ± 10 %
150 ± 10 %
180 ± 10 %
220 ± 10 %
270 ± 10 %
330 ± 10 %
390 ± 10 %
470 ± 10 %
560 ± 10 %
680 ± 10 %
820 ± 10 %
1000 ± 10 %
1200 ± 10 %
1500 ± 10 %
1800 ± 10 %
2200 ± 10 %
2700 ± 10 %
3300 ± 10 %
3900 ± 10 %
4700 ± 10 %
5600 ± 10 %
6800 ± 10 %
8200 ± 10 %
10000 ± 10 %
12000 ± 10 %
15000 ± 10 %
18000 ± 10 %
22000 ± 10 %
27000 ± 10 %
33000 ± 10 %
39000 ± 10 %
47000 ± 10 %
Q
ref.
30
30
30
30
45
45
45
45
45
45
45
45
45
45
45
45
45
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
Test freq. (MHz)
L
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.0796
0.0796
0.0796
0.0796
0.0796
0.0796
0.0796
0.0796
0.0796
Q
SRF
(MHz) min.
6.00
5.50
5.00
4.50
4.20
3.60
3.40
3.20
3.00
2.80
2.50
2.30
2.20
2.00
1.70
1.50
1.40
1.10
0.90
0.80
0.75
0.70
0.60
0.55
0.50
0.48
0.44
0.40
0.36
0.32
0.30
0.28
0.24
0.20
0.16
0.13
0.10
RDC
(ohms) max.
0.40
0.45
0.50
0.50
0.60
0.70
0.90
1.00
1.20
1.40
1.60
1.80
2.00
2.50
2.90
3.10
3.90
4.40
6.00
7.00
8.00
9.00
12.00
14.00
16.00
18.00
24.00
30.00
39.00
46.00
54.00
76.00
92.00
102.00
140.00
150.00
162.00
IDC
(mA) max.
450
400
360
340
320
300
280
260
240
220
200
180
160
150
140
130
120
110
100
90
80
70
60
55
50
45
40
36
34
32
30
27
25
22
20
18
16
Packaging: 400 pieces per bag
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
RLB Series Radial Inductors
RLB1014 Series Electrical Characteristics
BOURNS Part No.
RLB1014-101K_
RLB1014-121K_
RLB1014-151K_
RLB1014-181K_
RLB1014-221K_
RLB1014-271K_
RLB1014-331K_
RLB1014-391K_
RLB1014-471K_
RLB1014-561K_
RLB1014-681K_
RLB1014-821K_
RLB1014-102K_
RLB1014-122K_
RLB1014-152K_
RLB1014-182K_
RLB1014-222K_
RLB1014-272K_
RLB1014-332K_
RLB1014-392K_
RLB1014-472K_
RLB1014-562K_
RLB1014-682K_
RLB1014-822K_
RLB1014-103K_
RLB1014-123K_
RLB1014-153K_
RLB1014-183K_
RLB1014-223K_
RLB1014-273K_
RLB1014-333K_
RLB1014-393K_
RLB1014-473K_
RLB1014-563K_
RLB1014-683K_
RLB1014-823K_
Inductance
(µH)
100 ± 10 %
120 ± 10 %
150 ± 10 %
180 ± 10 %
220 ± 10 %
270 ± 10 %
330 ± 10 %
390 ± 10 %
470 ± 10 %
560 ± 10 %
680 ± 10 %
820 ± 10 %
1000 ± 10 %
1200 ± 10 %
1500 ± 10 %
1800 ± 10 %
2200 ± 10 %
2700 ± 10 %
3300 ± 10 %
3900 ± 10 %
4700 ± 10 %
5600 ± 10 %
6800 ± 10 %
8200 ± 10 %
10000 ± 10 %
12000 ± 10 %
15000 ± 10 %
18000 ± 10 %
22000 ± 10 %
27000 ± 10 %
33000 ± 10 %
39000 ± 10 %
47000 ± 10 %
56000 ± 10 %
68000 ± 10 %
82000 ± 10 %
Q
ref.
45
45
45
45
40
40
40
40
35
35
35
35
50
50
50
50
50
50
50
50
45
45
40
40
50
50
50
45
45
45
45
40
35
35
35
30
Test freq. (KHz)
L
796.0
796.0
796.0
796.0
796.0
796.0
796.0
796.0
796.0
796.0
796.0
796.0
252.0
252.0
252.0
252.0
252.0
252.0
252.0
252.0
252.0
252.0
252.0
252.0
79.6
79.6
79.6
79.6
79.6
79.6
79.6
79.6
79.6
79.6
79.6
79.6
Q
SRF
(MHz) min.
3.20
3.00
2.80
2.50
2.10
2.00
1.95
1.85
1.55
1.30
1.15
1.00
0.90
0.80
0.70
0.60
0.55
0.50
0.45
0.40
0.38
0.36
0.34
0.32
0.30
0.28
0.26
0.24
0.22
0.20
0.18
0.17
0.16
0.15
0.14
0.12
RDC
(ohms) max.
0.85
0.95
1.05
1.15
1.30
1.50
1.70
1.85
2.30
2.55
2.85
3.10
4.10
4.70
5.80
7.40
8.40
9.60
10.50
12.00
14.00
16.00
18.00
24.50
32.00
36.00
48.00
52.00
58.00
62.00
90.00
100.00
150.00
200.00
220.00
240.00
IDC
(mA) max.
350
330
310
300
280
260
240
230
210
200
190
180
160
150
130
115
110
95
80
70
65
60
55
50
45
40
35
30
28
26
24
22
20
18
16
14
Packaging: 150 pieces per bag
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
RLB Series Radial Inductors
RLB0712 Series Electrical Characteristics
BOURNS Part No.
RLB0712-100K_
RLB0712-120K_
RLB0712-150K_
RLB0712-180K_
RLB0712-220K_
RLB0712-270K_
RLB0712-330K_
RLB0712-390K_
RLB0712-470K_
RLB0712-560K_
RLB0712-680K_
RLB0712-820K_
RLB0712-101K_
RLB0712-121K_
RLB0712-151K_
RLB0712-181K_
RLB0712-221K_
RLB0712-271K_
RLB0712-331K_
RLB0712-391K_
RLB0712-471K_
RLB0712-561K_
Inductance
(µH)
10 ± 10 %
12 ± 10 %
15 ± 10 %
18 ± 10 %
22 ± 10 %
27 ± 10 %
33 ± 10 %
39 ± 10 %
47 ± 10 %
56 ± 10 %
68 ± 10 %
82 ± 10 %
100 ± 10 %
120 ± 10 %
150 ± 10 %
180 ± 10 %
220 ± 10 %
270 ± 10 %
330 ± 10 %
390 ± 10 %
470 ± 10 %
560 ± 10 %
Q
ref.
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Test freq. (Hz)
L
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
Q
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
SRF
(MHz) min.
16.0
12.0
10.0
10.0
9.0
8.0
7.0
6.0
6.0
5.0
5.0
5.0
4.0
4.0
3.5
3.0
3.0
2.5
2.5
2.0
2.0
2.0
RDC
IDC
(ohms) max.
(mA) max.
0.07
1100
0.08
1000
0.09
900
0.10
750
0.12
700
0.13
650
0.15
600
0.16
550
0.18
450
0.21
400
0.24
360
0.35
340
0.40
320
0.45
300
0.50
280
0.75
260
0.90
240
1.00
220
1.10
200
1.20
180
1.50
160
1.80
150
Packaging: 400 pieces per bag
RLB0912 Series Electrical Characteristics
BOURNS Part No.
RLB0912-1R5M_
RLB0912-2R2M_
RLB0912-3R3M_
RLB0912-4R7M_
RLB0912-6R8M_
RLB0912-100K_
RLB0912-150K_
RLB0912-220K_
RLB0912-330K_
RLB0912-470K_
RLB0912-680K_
RLB0912-101K_
RLB0912-151K_
RLB0912-221K_
RLB0912-331K_
RLB0912-471K_
RLB0912-681K_
RLB0912-102K_
Inductance
(µH)
1.5 ± 20 %
2.2 ± 20 %
3.3 ± 20 %
4.7 ± 20 %
6.8 ± 20 %
10.0 ± 10 %
15.0 ± 10 %
22.0 ± 10 %
33.0 ± 10 %
47.0 ± 10 %
68.0 ± 10 %
100.0 ± 10 %
150.0 ± 10 %
220.0 ± 10 %
330.0 ± 10 %
470.0 ± 10 %
680.0 ± 10 %
1000.0 ± 10 %
Q
ref.
30
30
30
30
30
60
50
50
45
40
35
55
40
30
25
25
25
55
Test freq. (Hz)
L
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
Q
7.960 M
7.960 M
7.960 M
7.960 M
7.960 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
2.520 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.796 M
0.252 M
SRF
(MHz) min.
78.0
63.0
50.0
41.0
33.0
27.0
21.0
17.0
13.0
11.0
9.0
7.2
5.7
4.5
3.6
2.9
2.3
1.9
RDC
(ohms) max.
0.008
0.010
0.018
0.022
0.028
0.043
0.056
0.086
0.140
0.170
0.280
0.330
0.560
0.720
1.100
1.700
2.300
4.300
IDC
(A) max.
5.4
4.5
3.6
3.1
2.5
2.1
1.7
1.4
1.1
0.96
0.79
0.66
0.53
0.44
0.36
0.30
0.25
0.20
Packaging: 300 pieces per bag; available in ammo-pak (use Model RLH0912) - 1000 pieces per box
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
First Look at Zigbee
To add a smoke sensor module to the Zigbee network, you need to use the CC2530 ADC to sample the analog signal output by the sensor. The following is my own program process for us...
[size=4]It is easy to distinguish between an expert and a novice. An expert knows everything and can start working as soon as he picks it up, while a novice knows nothing and either makes mistakes or ...
If the ultimate form of a car is a silicon-based life form, then in
the field of
intelligent driving
, it has gradually taken on the appearance of a "veteran driver." In
the field of
the ...[Details]
How do you know if a machine is operating properly? The answer: by leveraging deep learning to detect anomalies in routine vibration data from industrial machines. Anomaly detection has many uses, ...[Details]
introduction
According to the China Fire Statistics Yearbook, electrical fires accounted for more than 30% of fire accidents in the past decade, and the trend is increasing year by year. They ...[Details]
Permanent magnets are essential components in a wide range of household and industrial devices. They are particularly crucial in the renewable energy sector, including electric vehicle motors. Curr...[Details]
Electric vehicles are powered by electricity, and charging is a device that supplements the vehicle's energy source. It is common to need to recharge the vehicle when driving. But can you charge th...[Details]
"We have successfully launched the first version of our dedicated chip for EMB brake-by-wire. Second-generation samples have also been successfully completed, and we are actively planning a third-g...[Details]
There are many motors that can use thyristor speed control, and they can be used in almost all industries. Various types of motors, such as fans, pumps, AC motors, DC motors, torque motors, single-...[Details]
On August 21, according to a report by Korean media SEDaily yesterday, according to semiconductor industry sources, the HBM4 samples provided by Samsung to Nvidia last month have passed initial tes...[Details]
Puttshack's Trackaball uses the Nordic nRF54L15 system-on-chip (SoC) to monitor sensors and enable Bluetooth low energy connectivity, while the nPM2100 power management integrated circuit (PMIC) ...[Details]
Smartphones can be incredibly unintelligent. For example, consider an office full of people, each absorbed in their work. Suddenly, the silence is broken by a burst of loud pop music. A colleague's...[Details]
Facial recognition, a biometric technology that uses facial features to authenticate identity, has rapidly become a global market hotspot in recent years as the technology has entered practical use...[Details]
Qiangmao, your trusted semiconductor solutions partner, sincerely invites you to visit Electronics India 2025, South Asia's leading trade show for electronic components, systems, applications...[Details]
On August 20, it was reported that the specifications of Intel's upcoming Panther Lake mobile processor appeared on the Intel GFX CI website, which mainly focuses on Intel's open source Linux drive...[Details]
According to Reuters, citing people familiar with the matter, British semiconductor design company Arm Holdings (NASDAQ:ARM) has hired Rami Sinno, head of Amazon's (NASDAQ:AMZN) artificial intellig...[Details]
Blackfin® 16-/32-bit embedded processors offer high performance, low power consumption, flexible software features, and scalability, making them suitable for converged applications such as multi-fo...[Details]
Talking
京公网安备 11010802033920号
EEWORLD
