USB3F TV
(USB-A)
USB connection system for harsh environment
EW
N
.0
USB3
ROHS
COMPLIANT
N
&
BZ

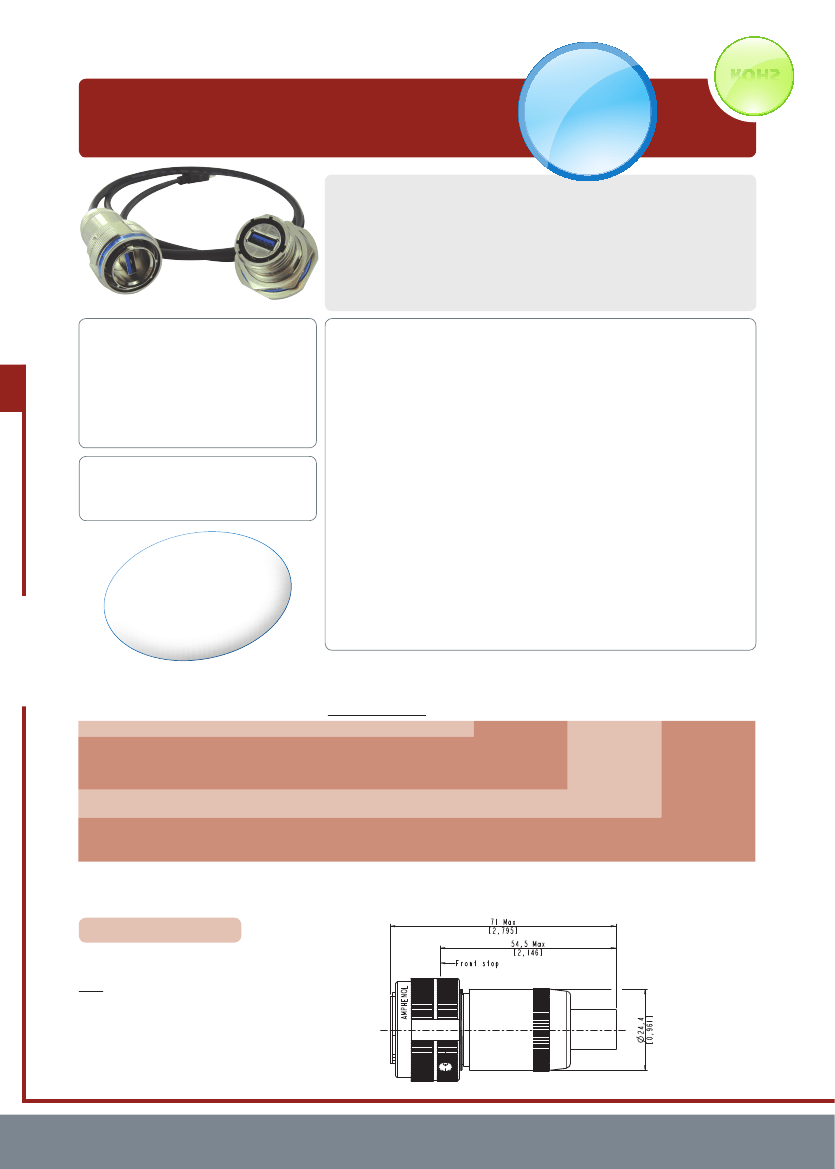

With USB Field, you can insert a standard USB 3.0 cordset into a metallic plug
which will protect it from shocks, dust and fluids.
No hazardous on-field cabling and grounding!
Also available a version including plug + cordset: see next page.
This metallic plug is connected into a receptacle, using a Tri Start Thread cou-
pling mechanism (MIL-DTL-38999 series III type) with anti-decoupling device
for high vibrations.
Applications
n
Embedded computers
n
Data acquisition and transmission in harsh
environment
n
Railways
n
Battelfield communication systems
n
Navy systems
Main characteristics
n
Sealed against fluids and dusts (IP68)
n
Shock, vibration and traction resistant
n
No cabling operation in field and no tools required
n
Improved EMI protection
n
Start Thread coupling mechanism (MIL-DTL-38999 series III type) with
Tri
anti-decoupling device - Shell size 15
n
mechanical coding / polarization possibilities (receptacle insert rotation)
2
n
USB3F TV plug retention in the receptacle: 100 N in the axis
n
Mating cycles: 500 minimum
Data transmission
USB specification 3.0
Data rate: up to 5Gb/s for high speed USB
Environmental protection
n
Sealing (when mated): IP68 (temporary immersion)
n
spray: 48 h with nickel plating
Salt
> 500 h with olive drab cadmium
500 h with marine bronze shell
n
retardant / low smoke: UL94 V0 and NF F 16 101 & 16 102
Fire
n
Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 1micro s
n
Shocks: IK06: weight of 250 g drop from 40 cm [15.75 in] onto connectors (mated
pair)
n
Humidity: 21 days, 43°C, 98% humidity
n
Temperature range: - 40°C / +85°C
d
taspee
Da
er
0
x high
1
0
SB
than U
2.
Amphenol
Examples:
Part number code: plug and receptacles without cordset.
Series USB3 Field TV
USB3F TV
2
A
G
Shell type
6:
plug (without cordset) -
For cordset solution, see page 88.
2:
square flange receptacle with female USB3.0 termination -
For cordset solution, see page 90.
7:
jam nut receptacle with female USB3.0 termination -
For cordset solution, see page 90.
Coding (for receptacle only)
A
or
B
Shells material & finish
G:
aluminium shell - olive drab cadmium plating
N:
aluminium shell - nickel plating -
ROHS compliant
- plug, olive drab cadmium plating:
USB3F TV 6 G
- jam nut receptacle, coding B, nickel plating:
USB3F TV 7 B N

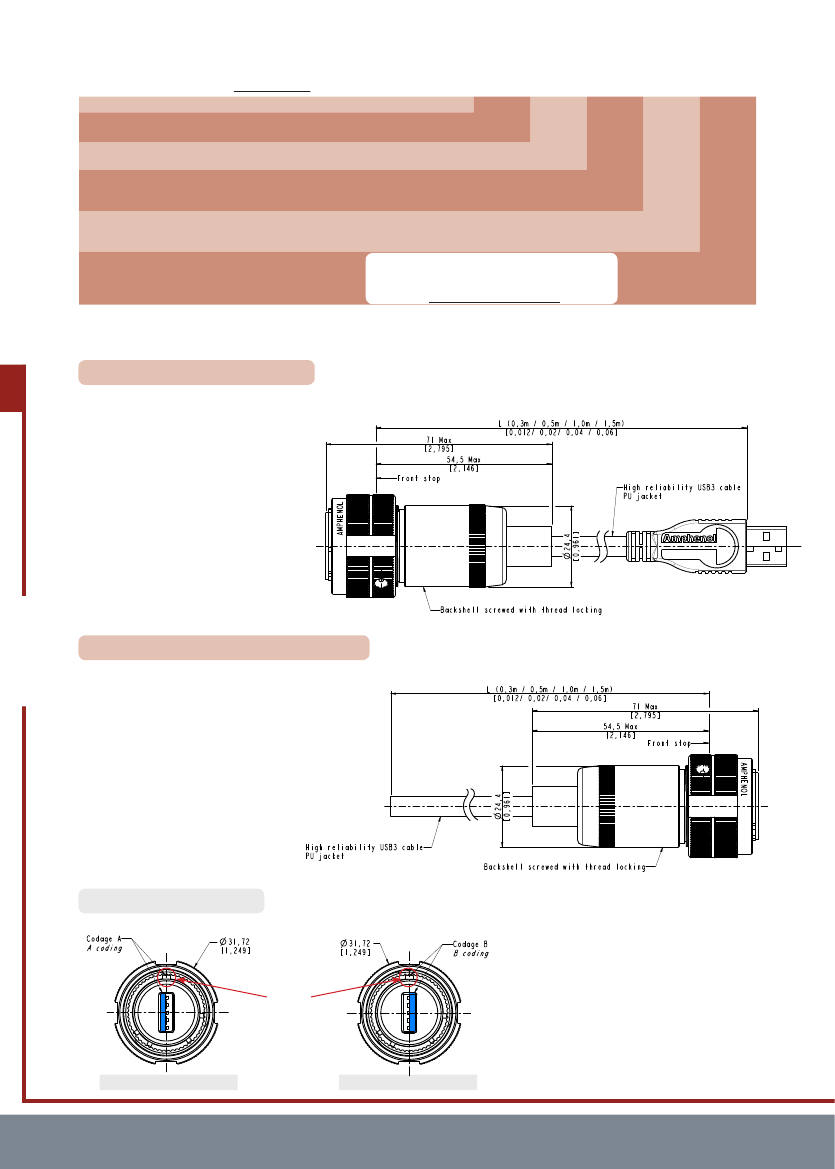

Plug without cordset
n
Shell type 6
Part number type:
USB3 FTV 6 x
Nota:
assembling instructions on page 89
86
Receptacles
n

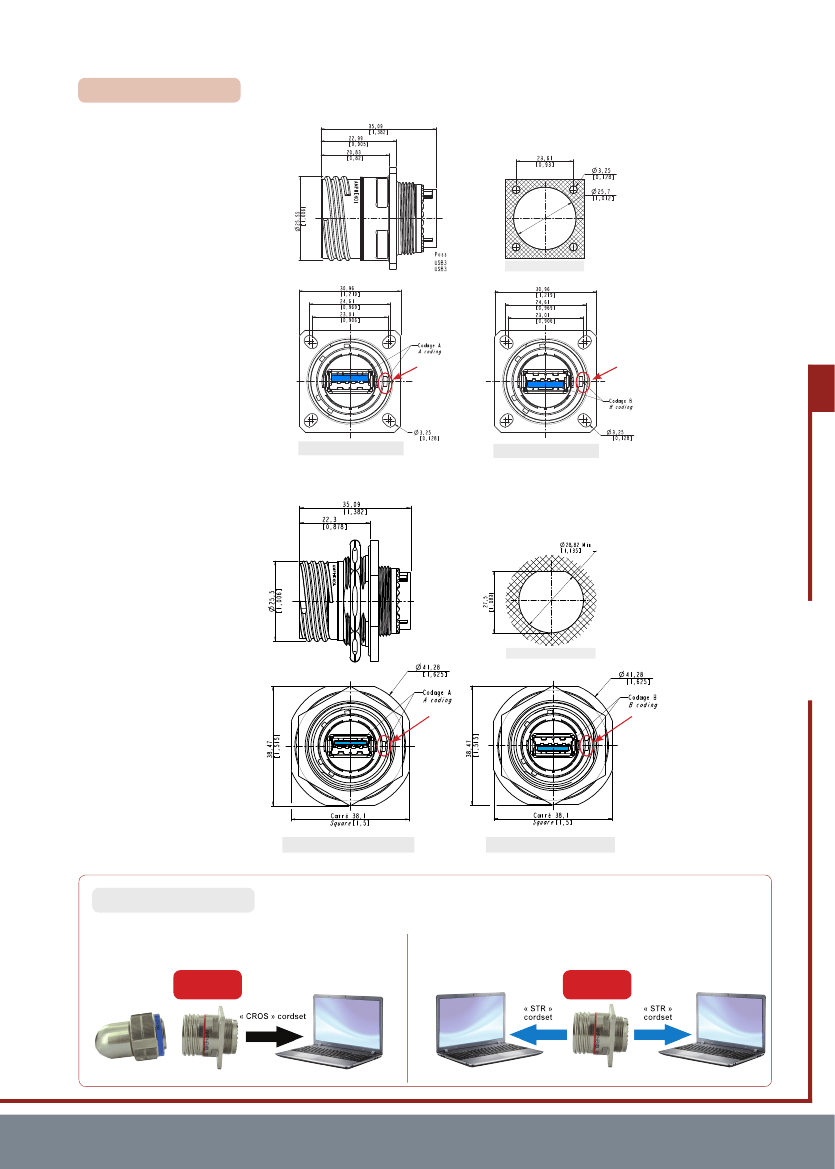

Square flange receptacle
4 mounting holes - Shell type 2
Part number type:
USB3 FTV 2 x
Panel Drilling
Main key
Main key
Coding A
Coding B
n
Jam nut receptacle
Hexagonal nut mounting - Shell type 7
Part number type:
USB3 FTV 7 x
Panel Drilling
Main key
Main key
Coding A
Coding B
Configuration use
For PC to peripheral application, use a crossed USB3 cable
«
CROS
» type in the part number code
RECEPTACLE
IS CROSSED
For PC to PC application, use a straight USB3 cable
«
STR
» type in the part number code
RECEPTACLE
IS CROSSED
87
Amphenol
Part number code: plugs with cordset.
Series USB3 Field TV
Shell type
6:
plug (with cordset)
Coding
A
or
B
Cordset length
03:
0.3 m [11.81 inches]
05:
0.5 m [19.68 inches]
10:
1 m [39.37 inches]
15:
1.5 m [59.05 inches]
USB3F TV
6
A
03
G
STR
Shells material & finish
G:
aluminium shell - olive drab cadmium plating
N:
aluminium shell - nickel plating -
ROHS compliant
Type of cable
*
CROS:
high reliability USB3 cable crossed
STR:
high reliability USB3 cable straight
OPEN:
high reliabilty USB3 cable open
no plug at the end’
Examples:
•
for PC to PC application, use a “CROS” type of cable
•
for PC to peripheral application, use a “STR” type of cable
See
Configuration use
on page 87
- plug, coding B, with 0.5m length of high reliability USB3 cable crossed, nickel plating:
USB3F TV 6 B 05 N CROS
- plug, coding A, with 1m length of high reliability USB3 cable straight, olive drab plating:
USB3F TV 6 A 10 G STR
- plug, coding B, with 0.3m length of high reliability USB3 OPEN, nickel plating:
USB3F TV 6 B 03 N OPEN
*
IMPORTANT NOTE
Plug with reinforced USB3.0 cordset
n
Shell type 6
Part number type:
USB3 FTV 6 x xx x CROS
USB3 FTV 6 x xx x STR
Amphenol
88
Plug with open reinforced USB3.0 cable
n
Shell type 6
Part number type:
USB3 FTV 6 x xx x OPEN
2 codings available for plugs
Main key
Coding A
Coding B

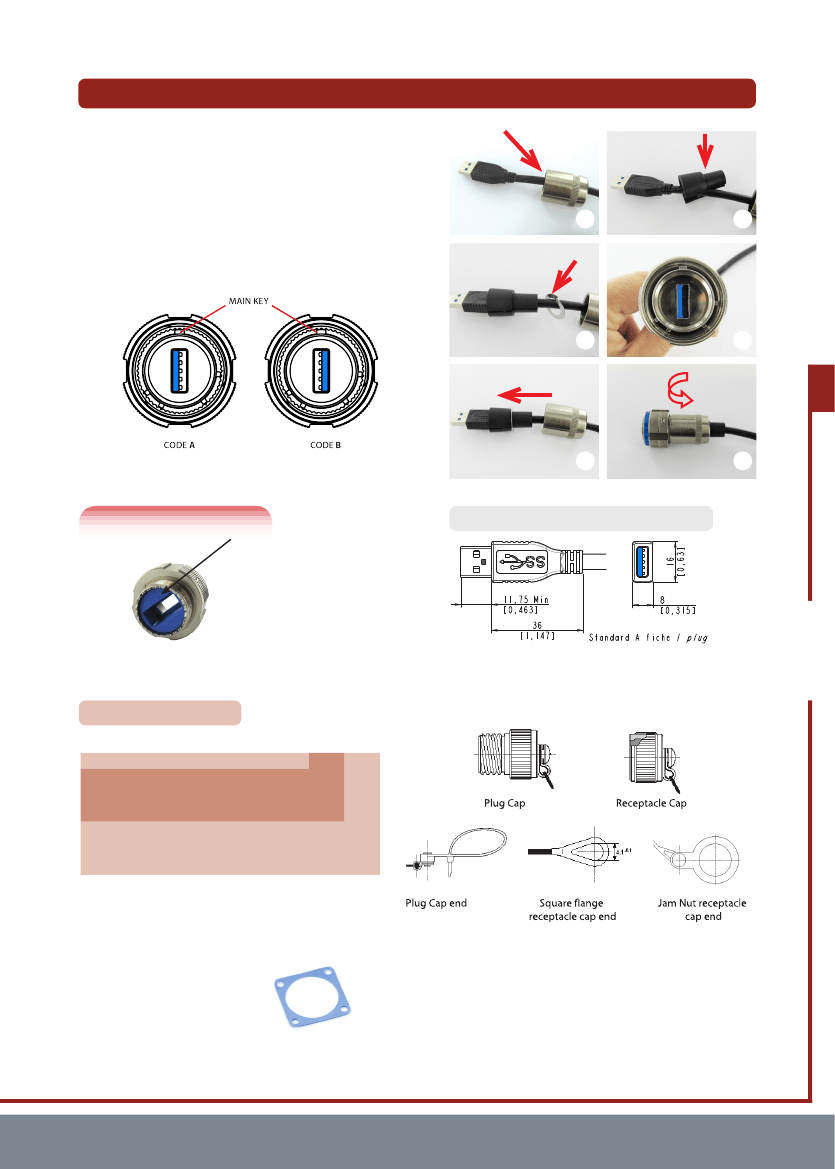

Assembly instructions
Can be used with most the USB3.0 cordset brands : No tools required!
Plug assembly
1. Insert the USB3 cordset into the metallic backshell
2. Insert the retention spacer laterally to the cable (this spacer is soft,
in order to adapt to different shapes of overmolding) and slide the
overmolding of the USB3-A plug into this retention spacer
3. Insert the friction ring laterally to the cable
4. Choose the right coding (2 positions) and insert the USB-A plug into
the protective plug.Note at this step, the main key is used for polar-
ization through the blue seal.
1
2
3
4
7. Screw the backshell on the plug body. A wrench can be necessary to
fully tighten it, and the connection to the receptacle can help
5
6
The sealing is done by the blue seal.
IMPORTANT NOTE
USB3 cordset usable -
Not provided
Accessories
n
Metallic caps
USBF TVC
Connector type
6:
plug
2:
square flange receptacle
7:
jam nut eceptacle
Shells material & finish
N:
aluminium shell - nickel -
ROHS compliant
G:
aluminium shell - olive drab cadmium
BZ:
marine bronze shell -
ROHS compliant
2
G
n
Panel gasket for square flange receptacle
Thickness: 0,8 mm [.031]
P/n:
JE15
89
Amphenol
USB3F TV
(USB-A)
Transversally sealed receptacles
NEW
B3.0
US
ROHS
COMPLIANT
N
&
BZ

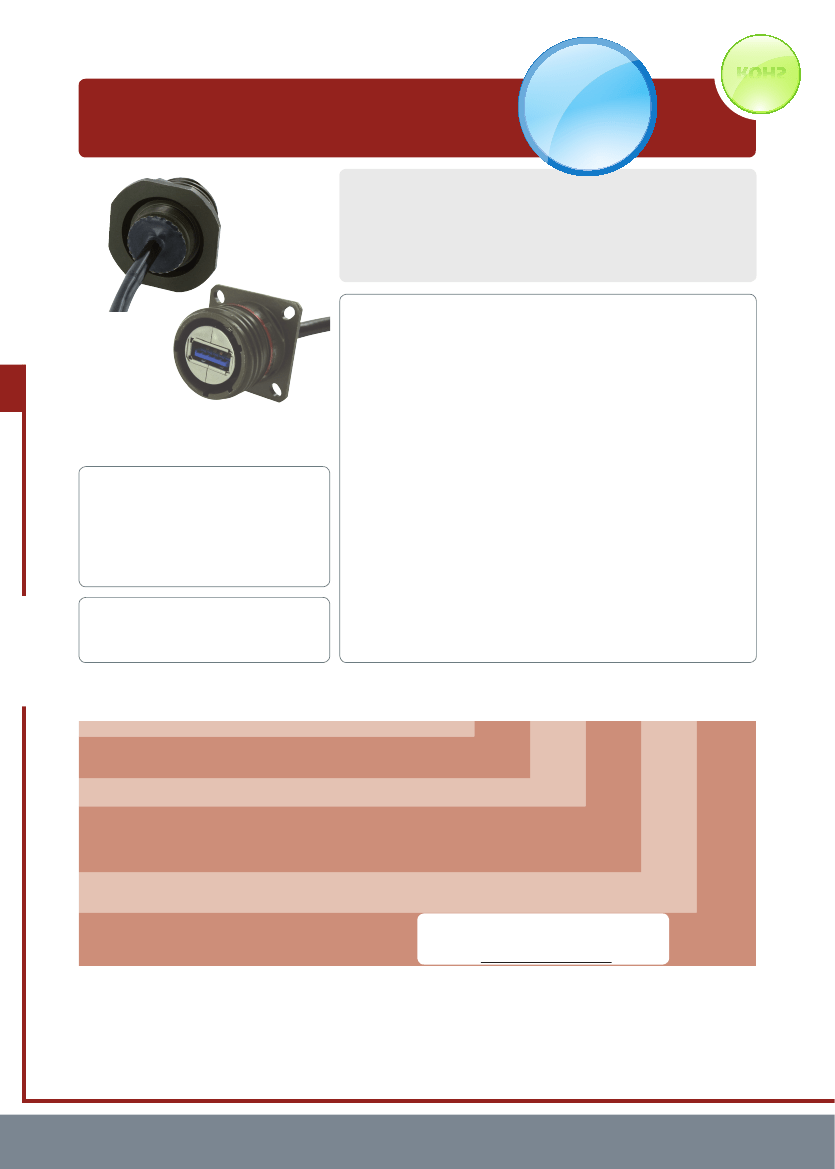

In some applications, a transversal sealing for the receptacle is a « must ».
This will prevent fluids and dust from going through the receptacle when
plug or cap are not mated to the receptacle. The sealed solution (version
"S") has a compound at the rear of the receptacle below. In addition,
the Sealed USB3F TV has been successfully tested in very high vibration
corresponding to airplane applications.
Main characteristics
n
Sealed against fluids and dusts (IP68)
n
Shock, vibration and traction resistant
n
No cabling operation in field and no tools required
n
Improved EMI protection
n
Start Thread coupling mechanism (MIL-DTL-38999 series III type) with anti-
Tri
decoupling device - Shell size 15
n
mechanical coding/polarization possibilities by the user (receptacle insert rota-
2
tion)
n
USB3F TV plug retention in the receptacle: 100 N in the axis
n
Mating cycles: 500 minimum
Applications
n
Embedded computers
n
Data acquisition and transmission in harsh
environment
n
Railways
n
Battelfield communication systems
n
Navy systems
Environmental protection
n
Sealing (when mated): IP68 (temporary immersion)
n
spray: 48 h with nickel plating
Salt
> 500 h with olive drab cadmium
500 h with marine bronze shell
n
retardant / Low smoke: UL94 V0 and NF F 16 101 & 16 102
Fire
n
Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 1micro s
n
Shocks: IK06
►
weight of 250 g drop from 40 cm [15.75 in] onto connectors
(mated pair)
n
Humidity: 21 days, 43°C, 98% humidity
n
Temperature range: - 40°C / +85°C
Data transmission
USB specification 3.0
Data rate: up to 5Gb/s for high speed USB
Amphenol
90
Part number code
Series USB3 Field TV
Shell type
2S:
square flange receptacle
7S:
jam nut receptacle
Coding
A
or
B
USB cable length
03:
0.3 m [11.81 inches]
05:
0.5 m [19.68 inches]
10:
1 m [39.37 inches]
15:
1.5 m [59.05 inches]
Shells material & finish
G:
aluminium shell - olive drab cadmium plating
N:
aluminium shell - nickel plating -
ROHS compliant
Type of cable
*
ACROS:
high reliability crossed USB3 cable with plug at the end
ASTR:
high reliability straight USB3 cable with plug at the end
OPEN:
high reliability cable open = no plug at the end
Examples:
•
for PC to PC application, use a “CROS” type of cable
•
for PC to peripheral application, use a “STR” type of cable
See
Configuration use
on page 87
USB3F TV
2
S
A
03
G
STR
*
IMPORTANT NOTE
- square flange receptacle, with 0.5m length of high reliability USB3 cable crossed, coding B, nickel plating:
USB3F TV 2 S B 05 N CROS
- jam nut receptacle, with 1m length of high reliability USB3 cable straight, coding A, olive drab cadmium plating:
USB3F TV 7 S A 10 G STR
- jam nut receptacle, with 0.3m length of high reliability USB3 cable open, coding B, olive drab cadmium plating:
USB3F TV 7 S B 03 G OPEN
