1.00mm SMT ZIF Horizontal Top Contact WR-FPC

68610814122 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	278161
Samacsys Pin Count	10
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	68610814122-1
Samacsys Released Date	2019-05-23 17:24:41
Is Samacsys	N
Other features	ROHS COMPLIANT
Board mount options	SOLDER HOLDING POSTS
body width	0.116 inch
subject depth	0.28 inch
body length	0.591 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SINGLE PRONG
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BEIGE
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e3
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

MATERIAL:

HOUSING MATERIAL: PPS

COLOR: BEIGE

ACTUATOR MATERIAL: PPS

COLOR: BROWN

CONTACT MATERIAL: PHOSPOR BRONZE

CONTACT PLATING: 100µ’’ TIN OVER 50µ’’ NI

QUALITY CLASS: 25 MATING CYCLES*

APPLICABLE FFC LAYOUT

(THICKNESS: 0.29 to 0.34)

PCB LAYOUT - COMPONENT VIEW

ENVIRONNEMENTAL:

OPERATING TEMPERATURE: -25°C UP TO 85°C

FLAMABILITY RATING: UL94-V0

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL:

CURRENT RATING: 1A

WORKING VOLTAGE: 125V

INSULATION RESISTANCE: >100MOHM

DIELECTRIC WITHSTANDING VOLT.: 500VAC/MN

CONTACT RESISTANCE: 20mOHM MAX

STANDARD

CERTIFIED: E323964 / MODEL NUMBER 686

FOLLOWED BY 1, FOLLOWED BY 03 THRU 30, FOLLOWED

BY 141 OR 144, FOLLOWED BY NUMERIC DIGITS

SOLDERING:

REFLOW PROCESS ONLY

DIMENSION:

A =B + 8.00

B =1.00 x (NB PINS - 1)

C =B + 2.15

D =B + 6.00

RoHS Compliant

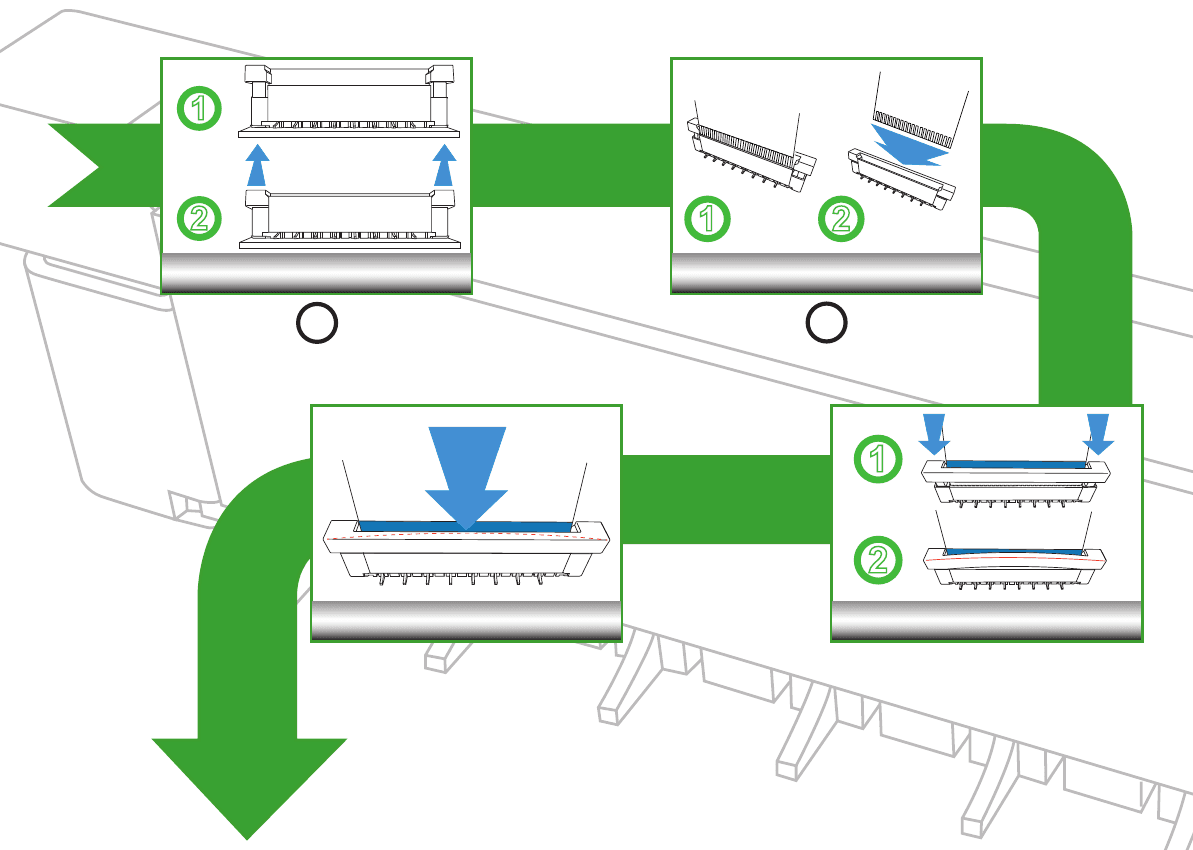

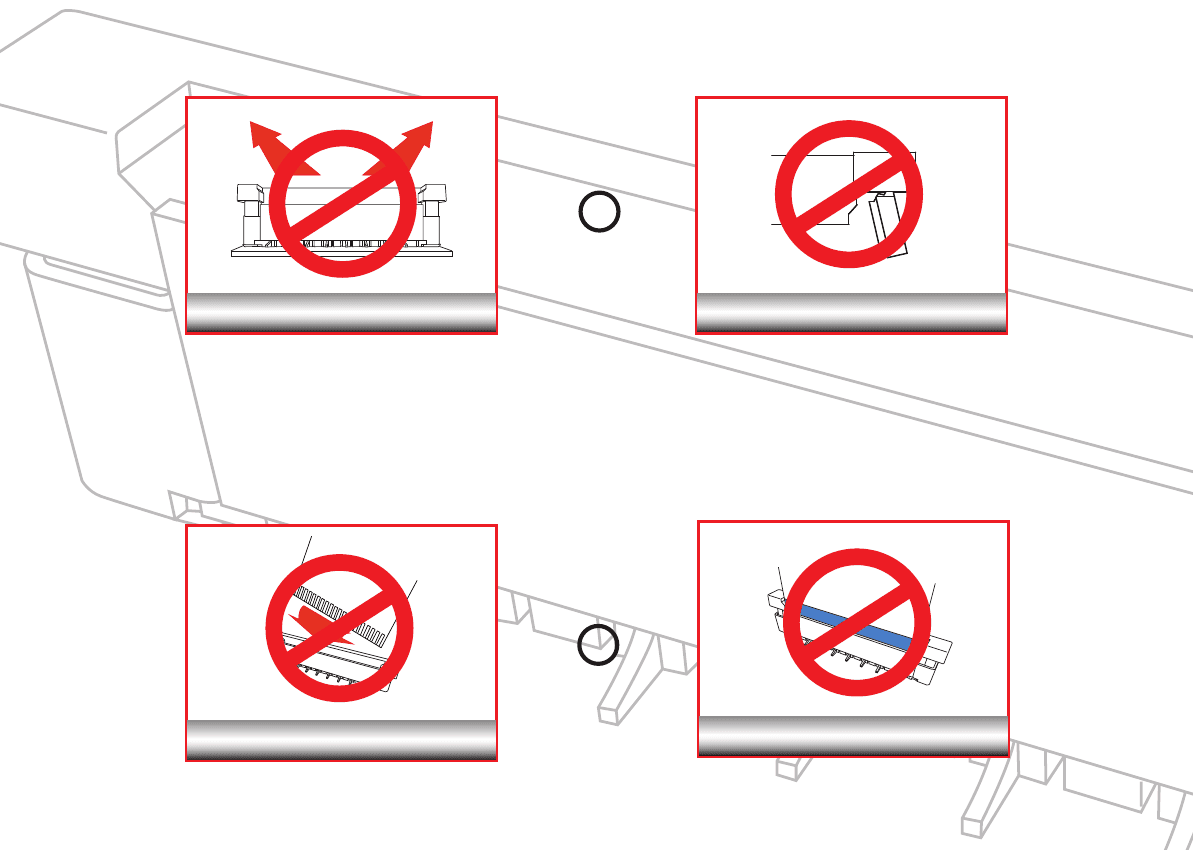

*NOTE: theoretical value related to the Tin plating; however, due to the sensitive actuator, we recommend not to make more than 1 or 2 cycles in order to maintain acceptable mechanical & electrical conditions

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: RJ

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: PEARL

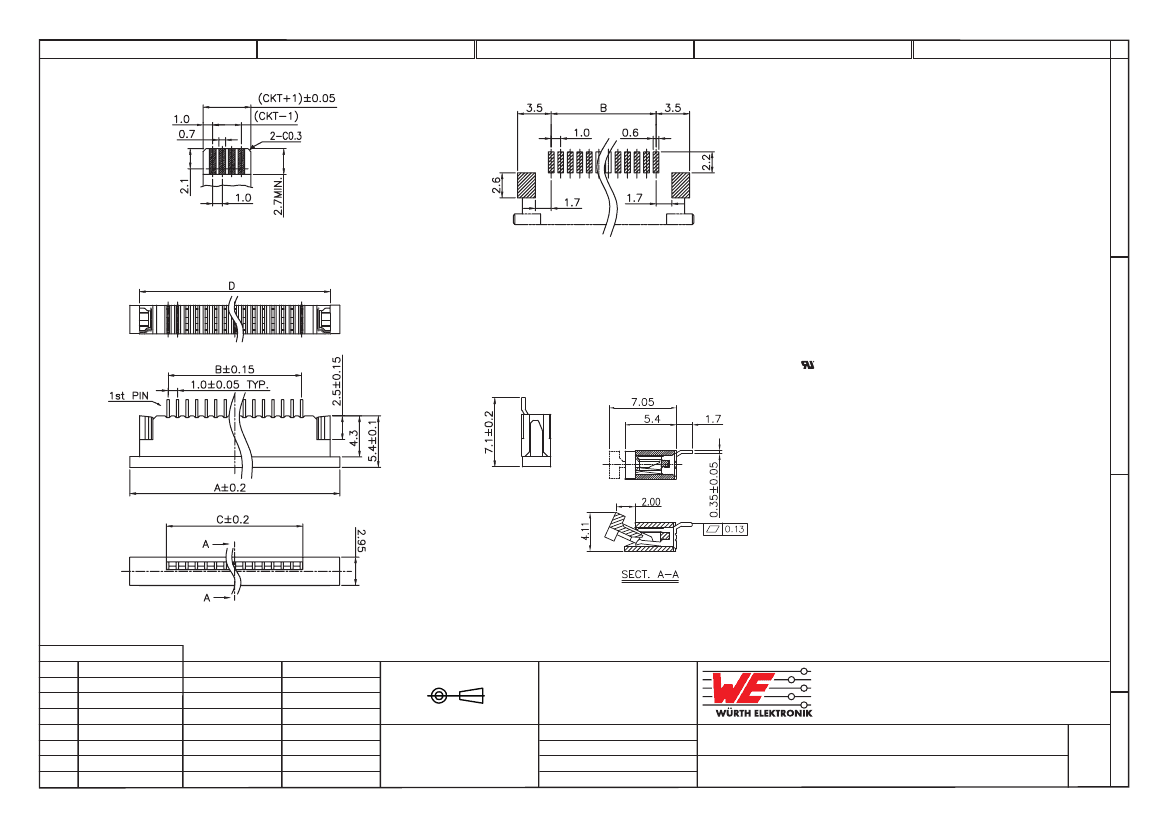

DESCRIPTION: 1.0MM ZIF FPC HORIZONTAL TOP CONTACT TYPE -

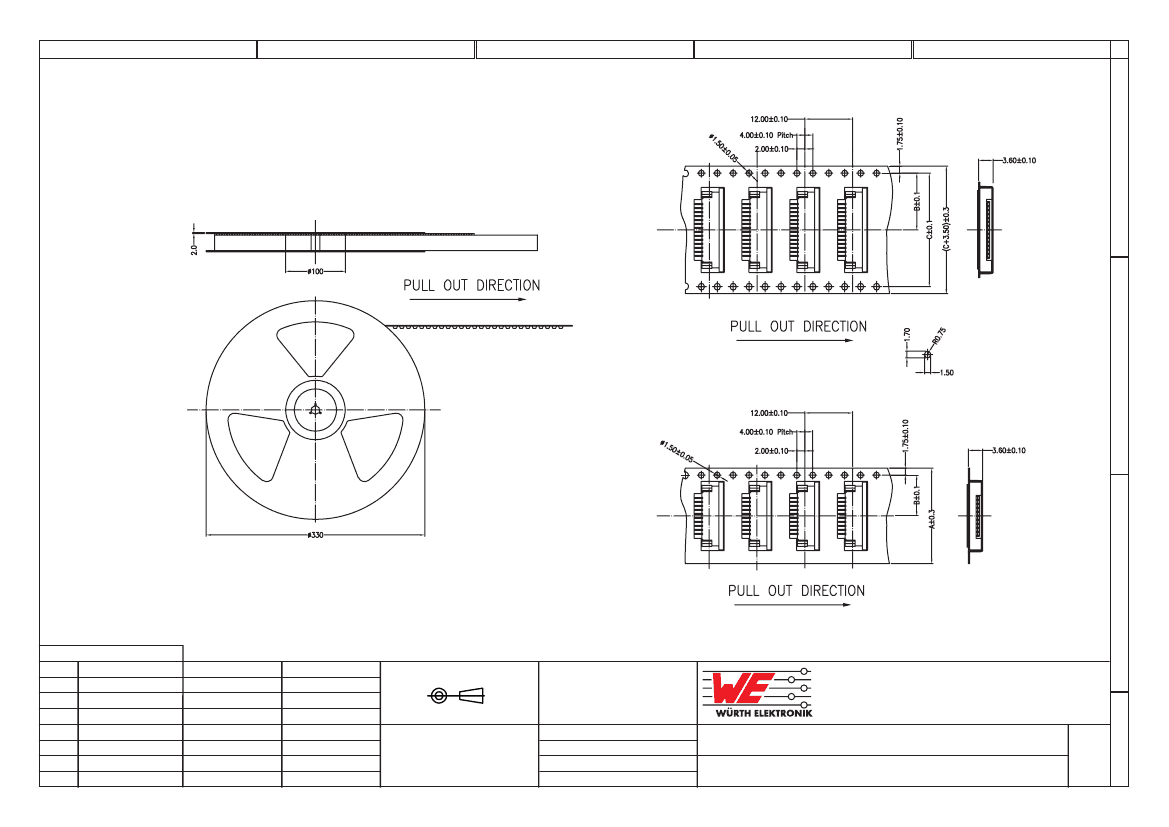

TAPE & REEL PACKAGING

WERI PART NO: 6861 xx 14122

SIZE

REV

13-DEC-13

10-APR-13

23-JAN-13

18-SEP-12

13-DEC-10

DATE

TPK UPDATE

ACTUATOR

UNIT µ => µ’’

MC NOTE

COPLANARITY

FILE
