P3Z22V10-BD-T datasheet, PDF - EEWORLD Datasheet

P3Z22V10-BD-T: DescriptionEE PLD, 15ns, PDSO24; CategoryProgrammable logic devices Programmable logic; File Size364KB，11 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

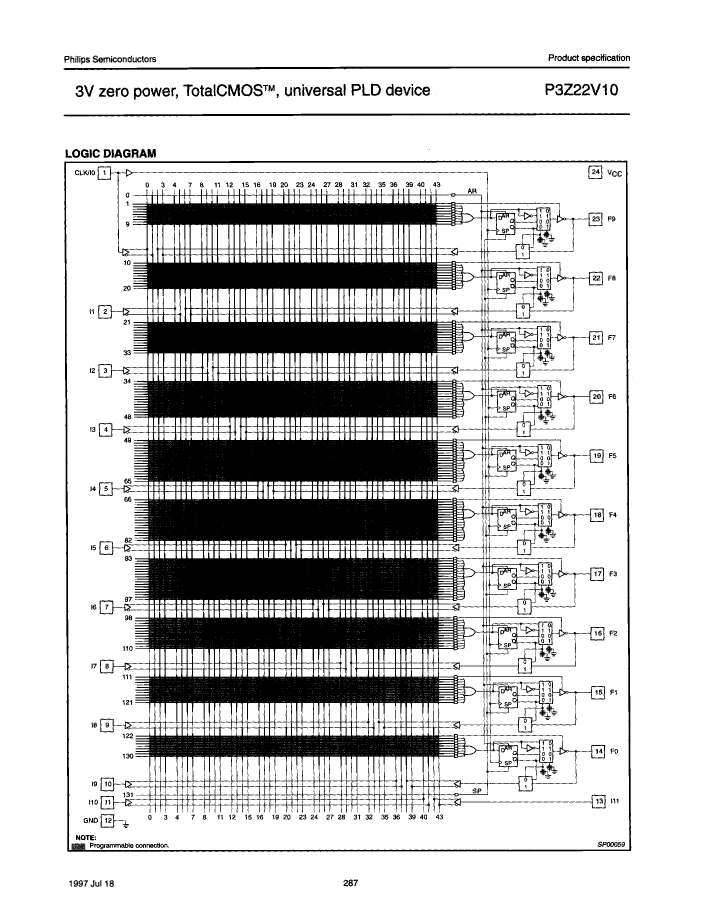

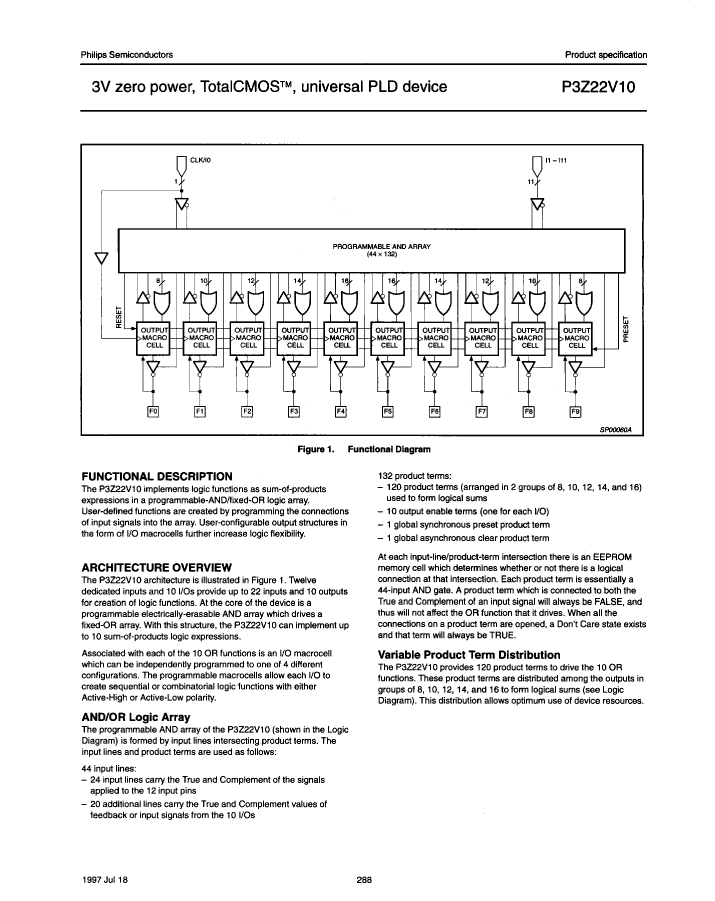

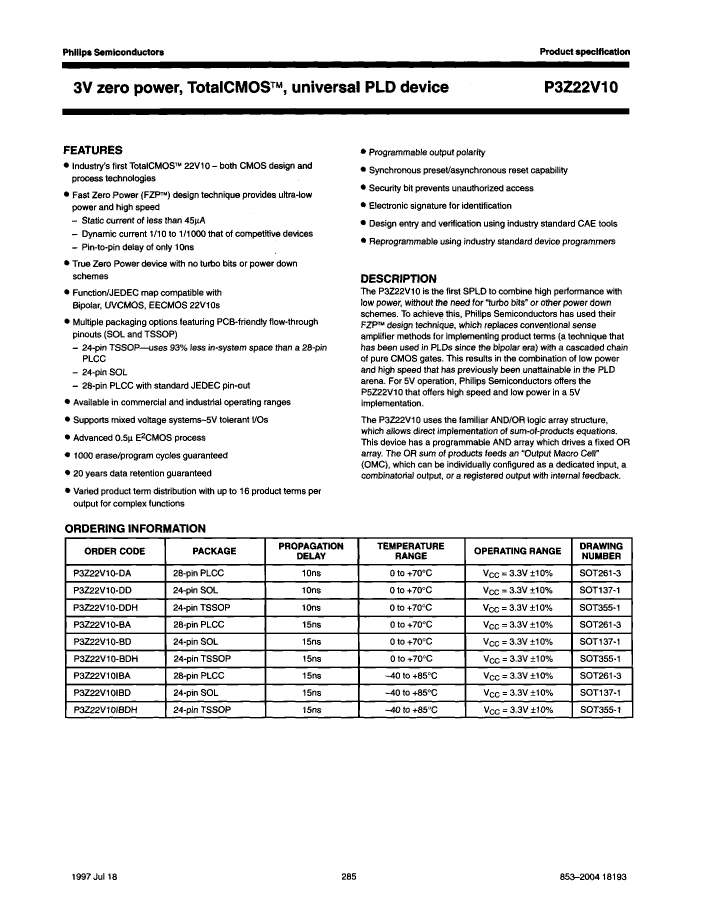

P3Z22V10-BD-T Overview

EE PLD, 15ns, PDSO24

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
Is Samacsys	N
maximum clock frequency	69 MHz
JESD-30 code	R-PDSO-G24
length	15.4 mm
Dedicated input times	11
Number of I/O lines	10

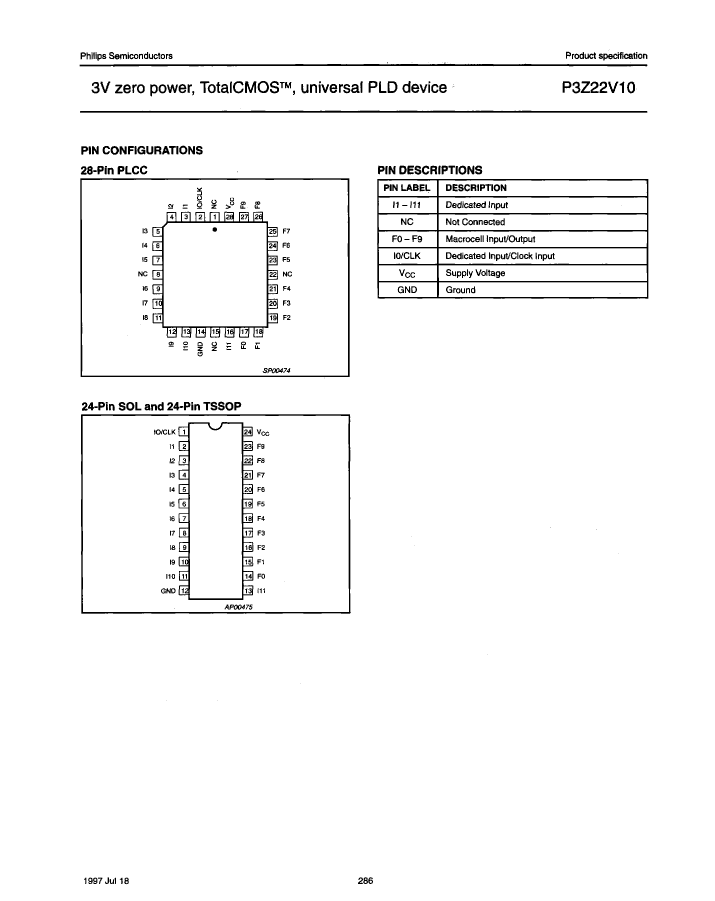

Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O

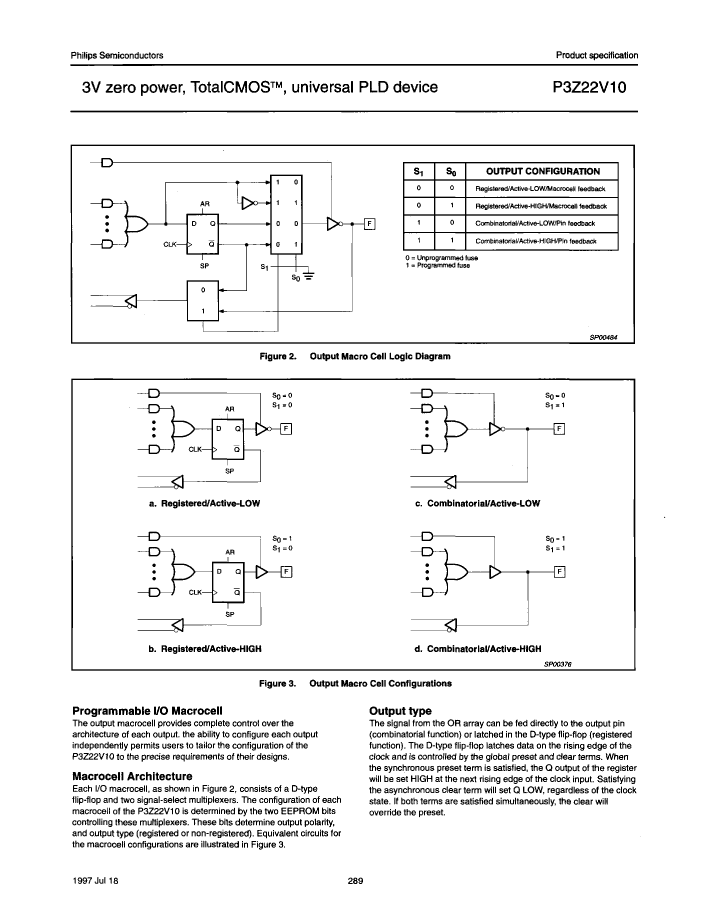

Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Programmable logic type	EE PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1
