R161082000: DescriptionRF N Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

R161082000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R161082000	-	-	View	Buy Now

R161082000 Overview

RF N Connector, Male, Cable Mount, Crimp Terminal, Plug

R161082000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	not_compliant
Factory Lead Time	5 weeks 5 days
Is Samacsys	N
Other features	CAPTIVE CENTER CONTACT
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.17 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

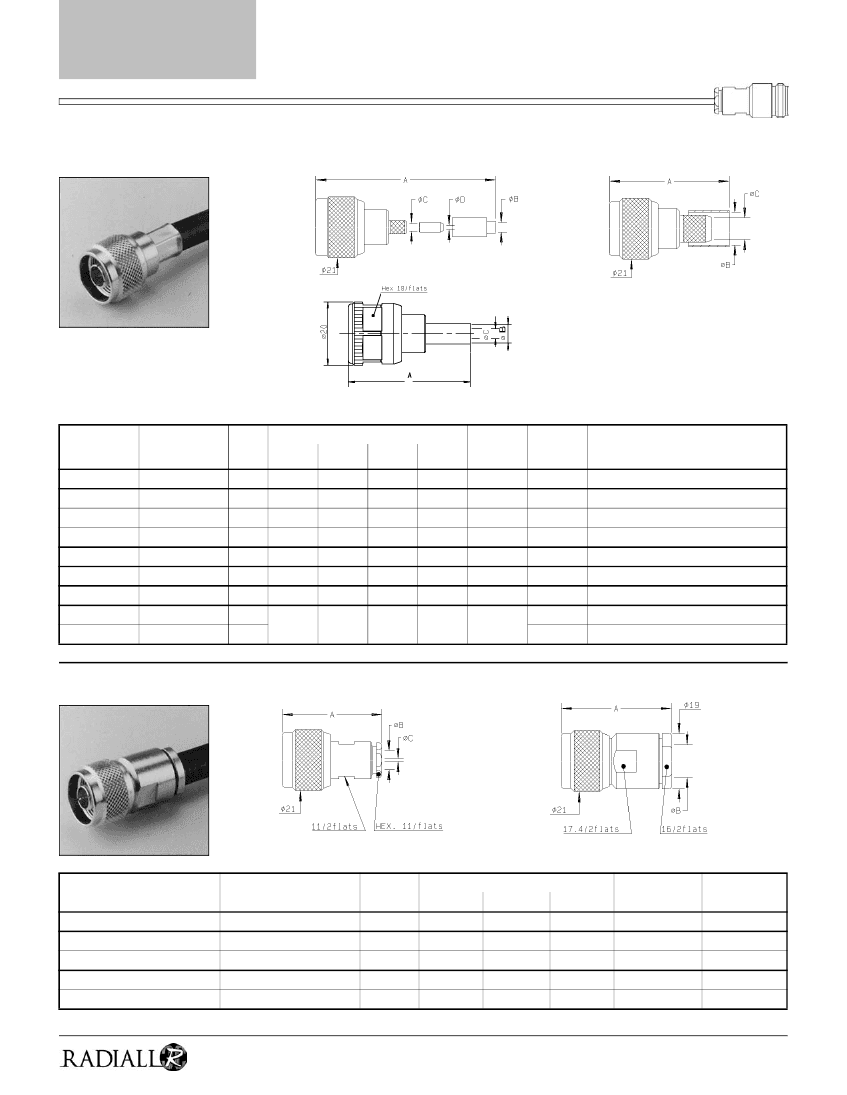

N 50

Ω

PLUGS

STRAIGHT PLUGS, FULL CRIMP TYPE, FOR FLEXIBLE CABLES

(single piece body)

Fig. 1

Fig. 2

Fig. 3

Dimensions (mm)

Cable group

2.6 / 50 / S+D

5 / 50 / S

5 / 50 / D

10 / 50 / S

10.3 / 50 / S

10.3 / 50 / D

11 / 50 / D

Part number

R161 072 000

R161 082 000

R161 083 000

R161 083 137

R161 075 000

R161 075 060

R161 076 000

R161 088 000

R161 088 137

Fig.

1

2

3

2

3

A

39.7

38.5

40.2

B

3.25

5.41

5.8

11.05

11.4

C

3.38

3.11

7.46

6.4

7.46

D

1.63

Captured

Assembly

center

instructions

contact

yes

M09

M12

M11

M10

M11

LMR 400 cable

Note

For intermodulation application / tool

ETHERNET cable

For intermodulation application / tool

STRAIGHT PLUGS, CLAMP TYPE, FOR FLEXIBLE CABLES

Fig. 1

Fig. 2

Cable group

2.6 / 50 / S + D

5 / 50 / S + D

10 + 11 / 50 / S + D

Part number

R161 004 000

R161 006 000

R161 010 000

R161 020 000

R161 022 000

Fig.

1

2

Dimensions (mm)

A

33.9

34.4

34.9

38.1

38.9

B

3.1

5.6

11.2

C

1.7

Captured

center contact

yes

no

yes

no

yes

Assembly

instructions

M01

M02

M03

M04

M05

13-12
