new
Metal circular
connector
Description

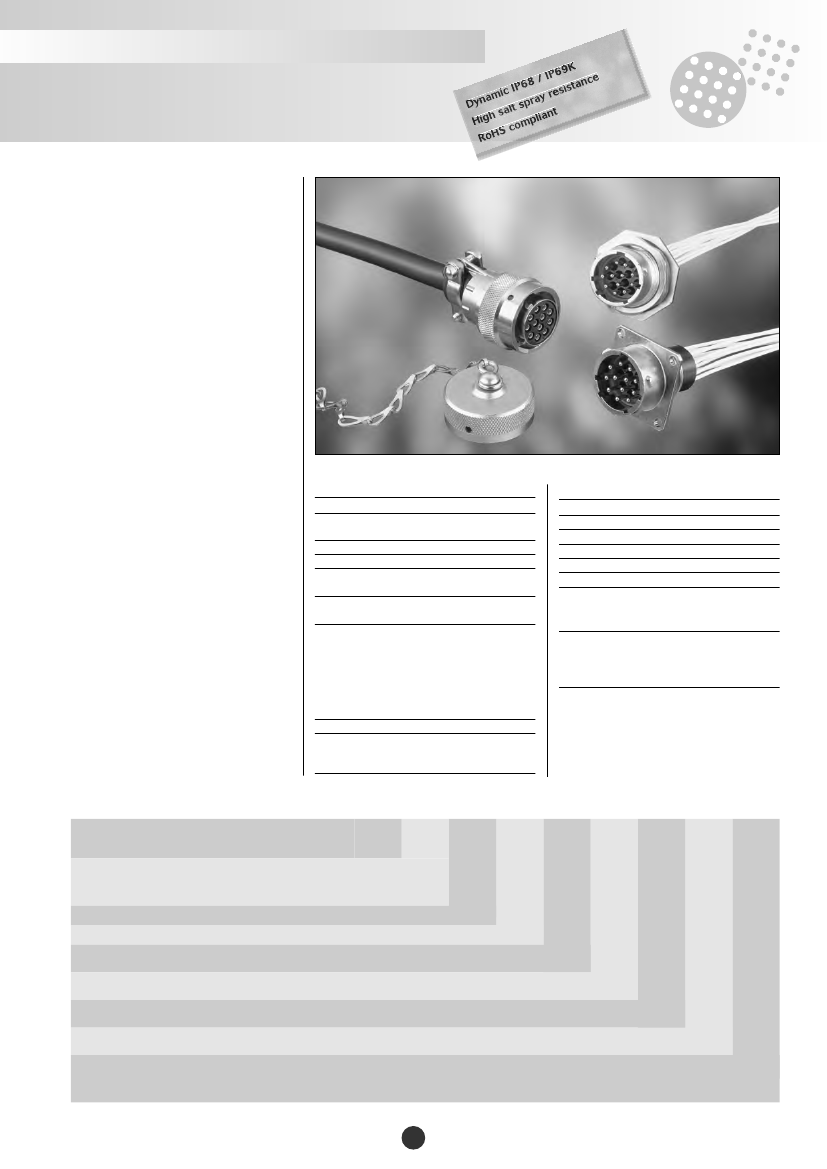

“UT0” industrial circular connectors are a range
of multiway connectors available in 8 shell sizes
and 8 insert arrangements all intermateable,
interchangeable and intermountable with the
TRIM TRIO “UTG” and “UTP industrial connector
families.
“UT0” is equipped with identical shells from
military connectors complying to MIL-C-26482
spec.
Strong and rugged built to resist every
environmental and mechanical requirement for
indoor and outdoor applications.
Amongst several characteristics, “UT0” offers
possibilities on: Shielding, High levels on sealing
and salt spray. UT0 is also the perfect solution
to connect cat5e Ethernet applications in
combination with other signals, using the same
TRIM TRIO contacts (consult factory for more info).
UT0
69K
e
/ IP
anc
68
sist
c IP
re
ami
ray
Dyn
t sp
l
t
h sa
lian
Hig
mp
S co
RoH
Performance characteristics
Features and benefits
(see p2)
• Suitable for shielding applications
• Available in 8 shell sizes and 8 insert
arrangements.
• Available in plug and receptacle versions for
both male and female contacts.
• Different insert orientations possible.
• Plastic inserts with flammability rating: UL94-V0.
•
2 levels of water protection:
Dynamic IP67 and
IP68 both versions are IP69K
•
2 levels of salt spray:
48h and 96h
Higher salt spray resistance (200/500h) upon
request
• Cat5e Ethernet compatible. Can be combined
with other signals offering the advantage to use
same contacts (consult factory).
• UL recognition in process.
• Metal bayonet ring:
- Metal wave spring loaded
- Locks with audible positive “click”
- Assures 500 matings and unmatings
• RoHS compliant
Operating temp:
Insulation
resistance:
Test potential:
Durability:
Vibration
resistance:
Thermal shock:
-40°C to +105°C
5000 MΩ min.
2000 VAC
500 matings and unmatings.
Per MIL-STD202
method 204
Per MIL-STD202
method 207
Corrosion:
Salt spray per MIL-STD 202
method 101
48h (standard version)
96h (black anodised
coupling ring)
Higher salt spray resistance (200/500h) upon
request
Shielding effectiveness: 95 dB at 1 Mhz
Degree of water protection per DIN 40050:
Dynamic IP67 / IP68 / IP69K in mated condition
and in combination with sealed back shell.
Construction
Shells: Zinc alloy
Backshells and cable glands: Brass
Coupling ring: Aluminium alloy
Coupling spring: Spring stainless steel
Insert: Glass-filled thermoplast UL94-V0
RoHS compliant
Contact accommodation
• “UT0” connectors accept TRIM TRIO size 16
crimp-type removable snap-lock contacts (see
contacts section)
• Contacts to be ordered seperately.
How to order
UT0
UT0
Body variation:
0
6
1
4
1
4
1
2
1
2
P
S
–
–
H or H6
H
––
––

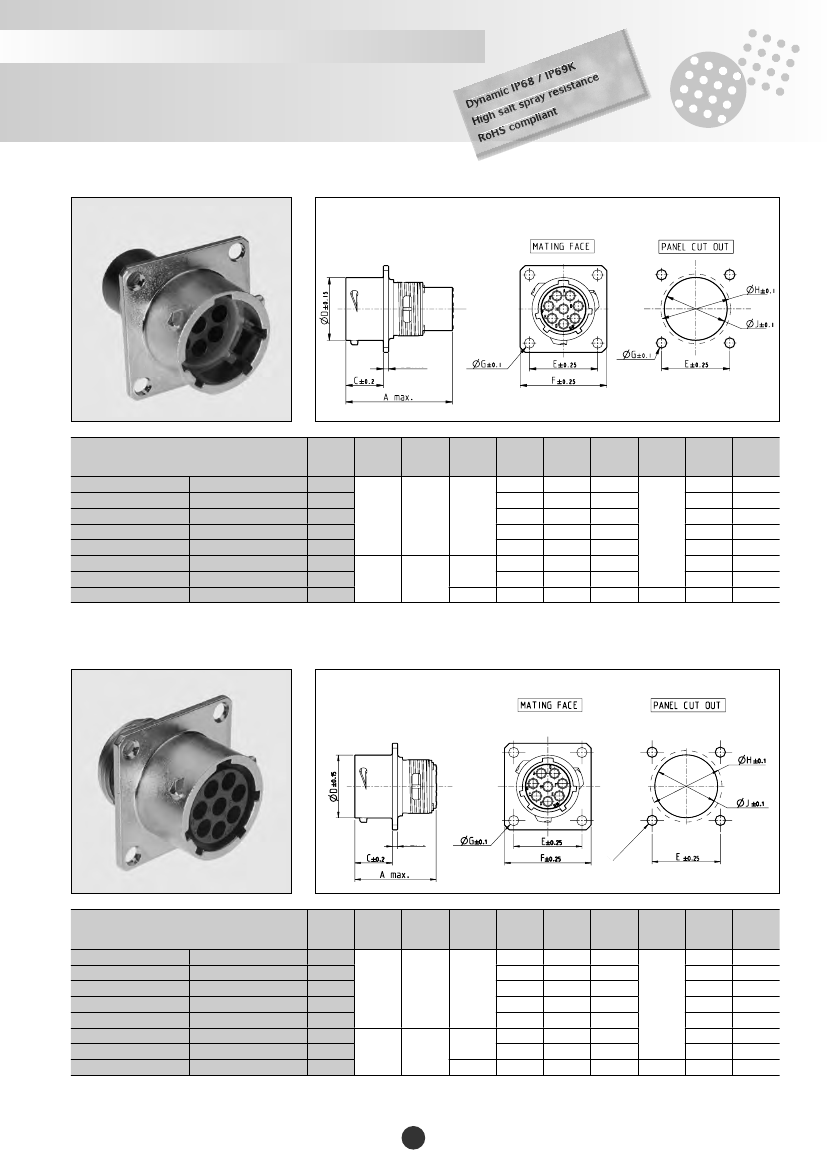

0 :
Wall mounting receptacle

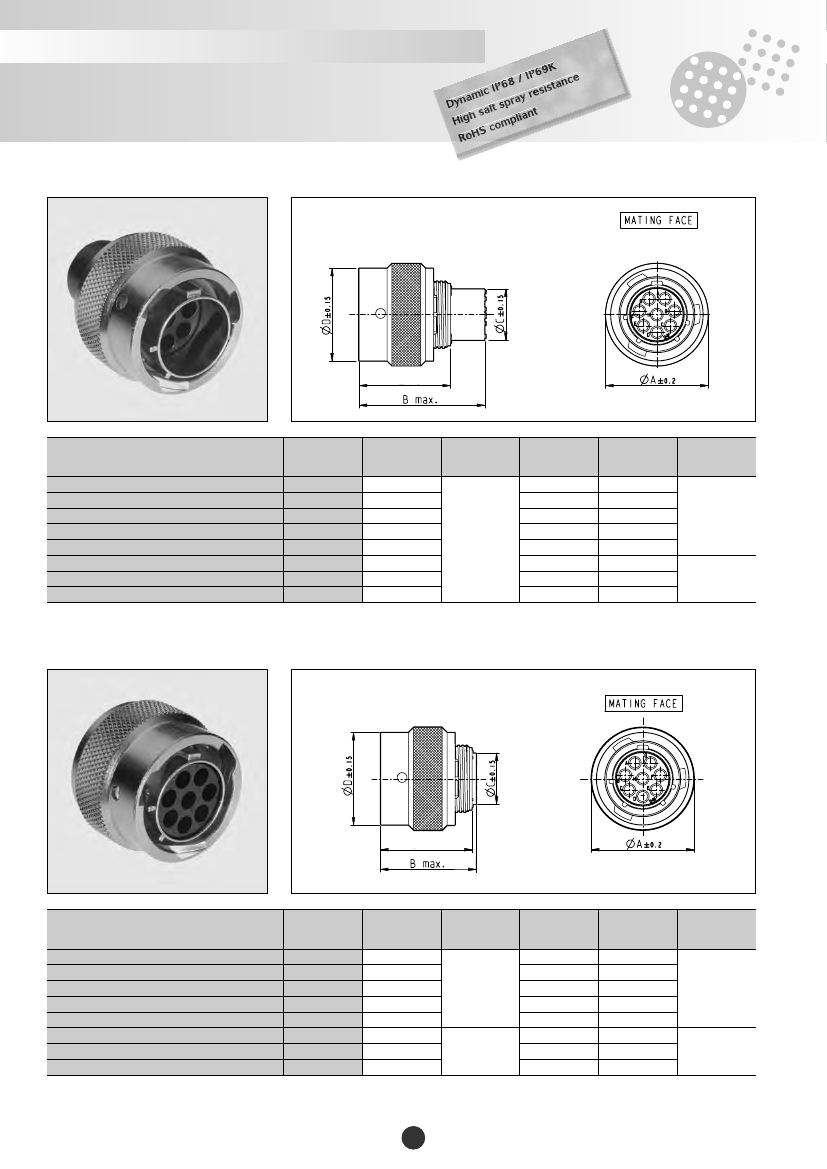

6 :
Cable plug

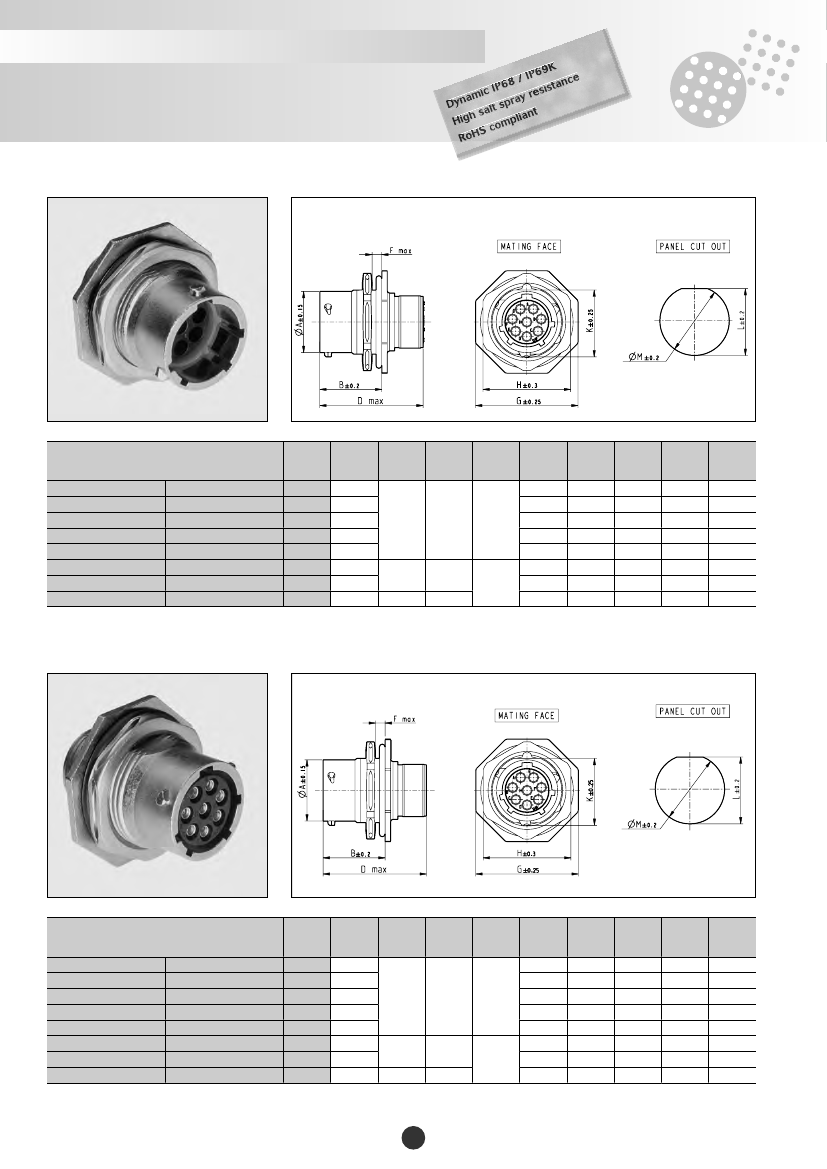

7 :
Jam nut receptacle for rear panel mounting
Shell size:
Insert arrangement:
Type of contacts:
P :
Pin contacts
S :
Socket contacts
Insert polarisation: No letter :
Standard version
W, X, Y, Z:
Different orientations (consult factory)
Application:
H :
Standard version, water protected IP 67 & IP 69K
H6 :
Water protected IP 68 & IP 69K (only needed for wall mounting & jam nut receptacles)
Design variation:
No letter :
Standard version
Others :
Special versions
Plating:
No letter :
Standard is nickel plating (48h salt spray)
01:
Black anodised jam nut (96h salt spray)
02:
Black anodised coupling ring (96h salt spray)
21
New UT0 - UT0W series
New UT0-UT0W
series
New UT0 – UT0W series:

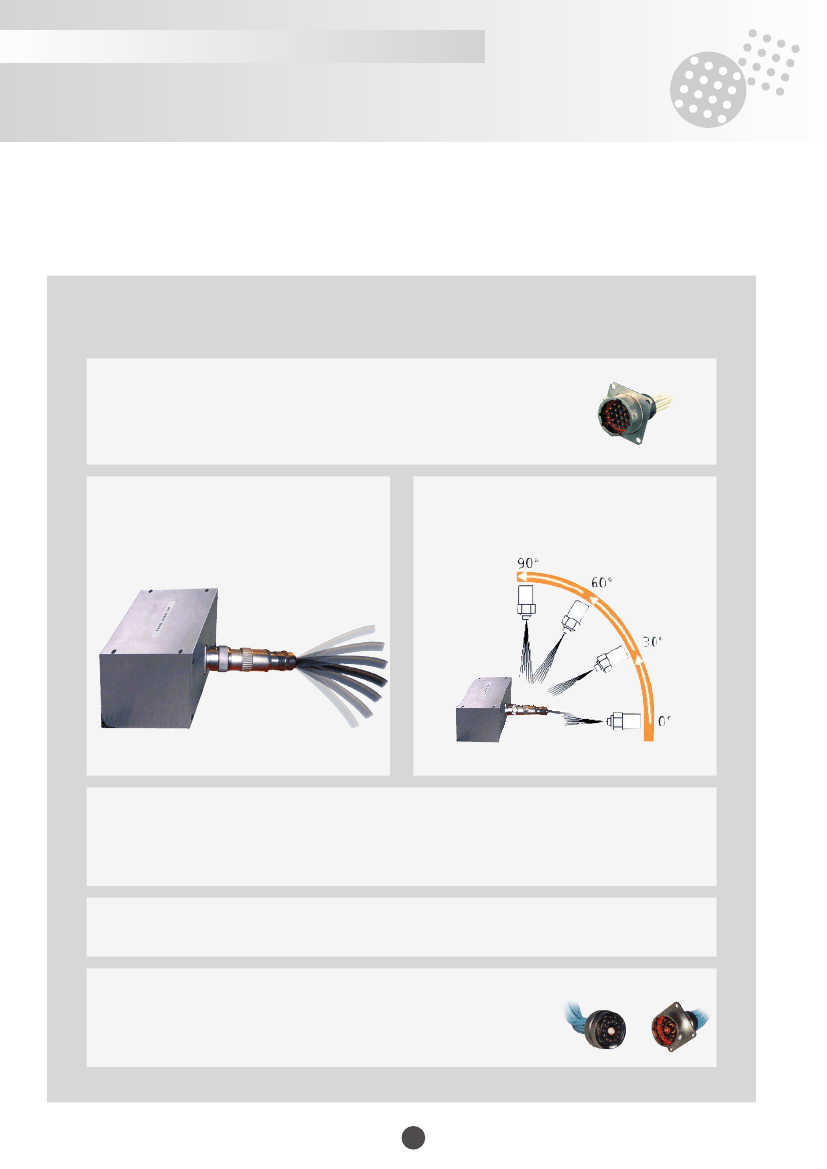

• The exclusive new product range in the TRIM TRIO broadline.
• Aesthetic and top class performances
UT0 – UT0W series major technical features & benefits
• Full metal bayonet connector
– Enabling 500 mating-unmating without wear out
– Secure locking device: audible “click” when mating
• Dynamic IP68*
Connector will remain IP68 even when:
– Pulling on the cable
– Bending the cable
• Dynamic IP69K*
Connector withstands high pressure water
cleaning.
* With appropriate back shell
* Exists also in IP67 version
• High salt spray resistance*
– Can be used in severe environment
* With appropriate back shell
* Exists in 48 and 96 hours salt spray version
* Higher salt spray resistance (e.g. 200 or 500 hours) upon request
• RoHS compliant
– Cadmium and lead free materials are used
• In accordance with following standards
– UT0 is Ethernet Cat5e compatible (consult factory)
– UTO-UTOW ranges are upgradeable to highspeed solutions
For detailed information on UT0 and UT0W series offering see pages 21 to 31
