9
8
7
6
5
4
3
2
1
E
BOTH SIDES OF BARREL
(TIN PLATING)
1.25
1.58
E
SECTION
A-A
1.15
SECTION
B-B
D
5.4
1.62
D
2
CONTACT POINT
(GOLD PLATING)
NOTES:
0.6
±
0.1
1. 適合ハウジング：505565****
APPLICABLE HOUSING :505565****
2. めっき仕様（前めっき）
PLATING (PRE-PLATING)
接点部金めっき：0.1μm MIN.
CONTACT AREA：GOLD PLATING 0.1μm MIN.
バレル両面 錫めっき：1.0μm MIN.
BOTH SIDE OF BARREL：TIN PLATING 1.0μm MIN.
下地ニッケルめっき：0.5μm MIN.
UNDER PLATING： NICKEL PLATING 0.5μm MIN.
3. アプリケーション仕様書（コネクタ取扱説明書）：AS-505565-001/002
APPLICATION SPECIFICATIONS (CONNECTOR MANUAL) : AS-505565-001/002
4. 圧着条件については、圧着仕様書（CS-505431-001）を参照願います。
PLEASE REFER TO CRIMP SPECIFICATION (CS-505431-001).
5. ½品仕様書：5055650002 PS 000
PRODUCT SPECIFICATION : 5055650002 PS 000
6. 圧着視覚教材（品質要領書）：ATS-57427-0000
CRIMPING VISUAL AID : ATS-57427-0000
2.9
0.7
±
0.1
A
1.45
C
B
½
0.15
½
C
0.92
±
0.1
CONTACT POINT
(GOLD PLATING)
A
B
トレードマーク
TRADE MARK
B
5054311100
リール REEL PACKAGE
連鎖状
CHAIN
B
2017/09/15
2017/09/26
2017/09/26
BOTH SIDES OF BARREL
(TIN PLATING)
MATERIAL
材料
銅合金, 下地ニッケル,部分金めっき，錫めっき
端子½状
オーダー番号 ORDER NO.
FORM
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
1.0
°
DIMENSION UNITS
SCALE
mm
DRWN BY
DATE
20:1
2017/09/15
DATE
REDRAWN
121145
RWATANABE01
KOMURAKAMI
TKANEKO
A
COPPER ALLOY
UNDET NICKEL PLATING
SELECTIVE GOLD PLATING
SELECTIVE TIN PLATING
(HEAT TREATED MATTE TIN)
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
±
±
±
±
±
0.2
0.2
0.2
0.2
0.2
RWATANABE01
CHK'D BY

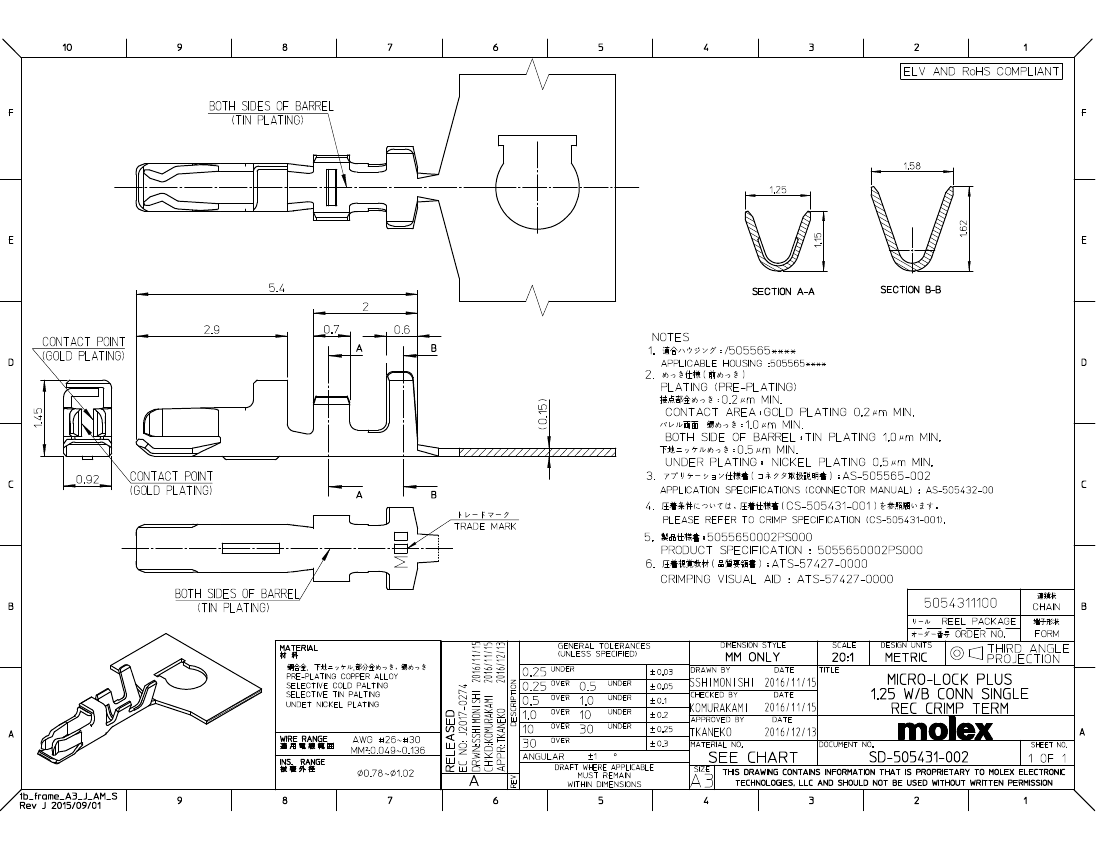

MICRO-LOCK PLUS 1.25 CRIMP TERM
CRIMP TERM
WIRE RANGE
適用電線範囲
AWG #26½#30
MM^2:0.049½0.136
KOMURAKAMI
APPR BY
DATE
2017/09/26
2017/09/26
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
TKANEKO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
INS. RANGE
被覆外径
RELEASE STATUS
FORMAT: tb-prod-A3
REVISION: G
DATE: 2017/02/06
THIRD ANGLE PROJECTION
REV
P1
RELEASE DATE
26.09.2017
09:30:54
φ0.78½φ1.02
A
5
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
505431
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
5054311100-SD
PSD
000
1 OF 1
9
8
7
6
4
2
1
