53611-G40-8LF datasheet, PDF - EEWORLD Datasheet

53611-G40-8LF: DescriptionQuickie Header, Wire to Board Connector, Double Row, 40 Positions, 2.54 mm (0.1 in.), Vertical Header 0.76 um (30 u".) Gold Mating Plating.; CategoryThe connector The connector; File Size197KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

53611-G40-8LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53611-G40-8LF	-	-	View	Buy Now

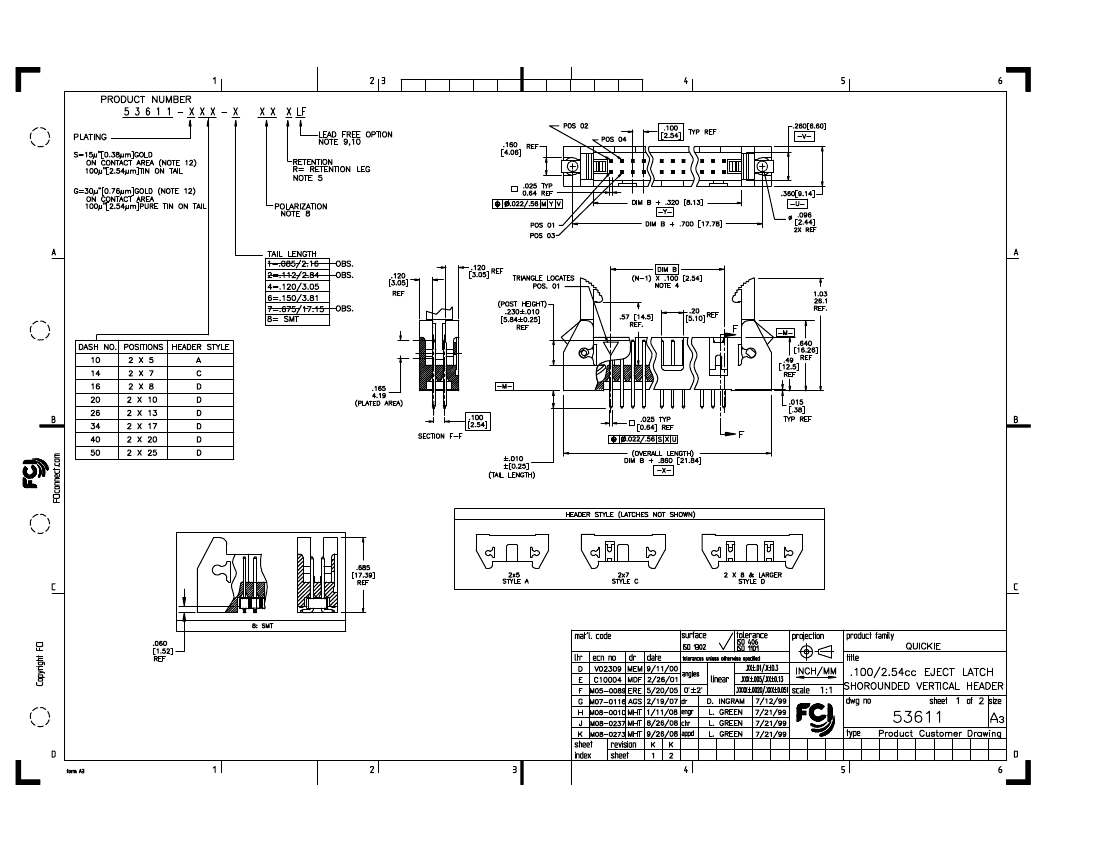

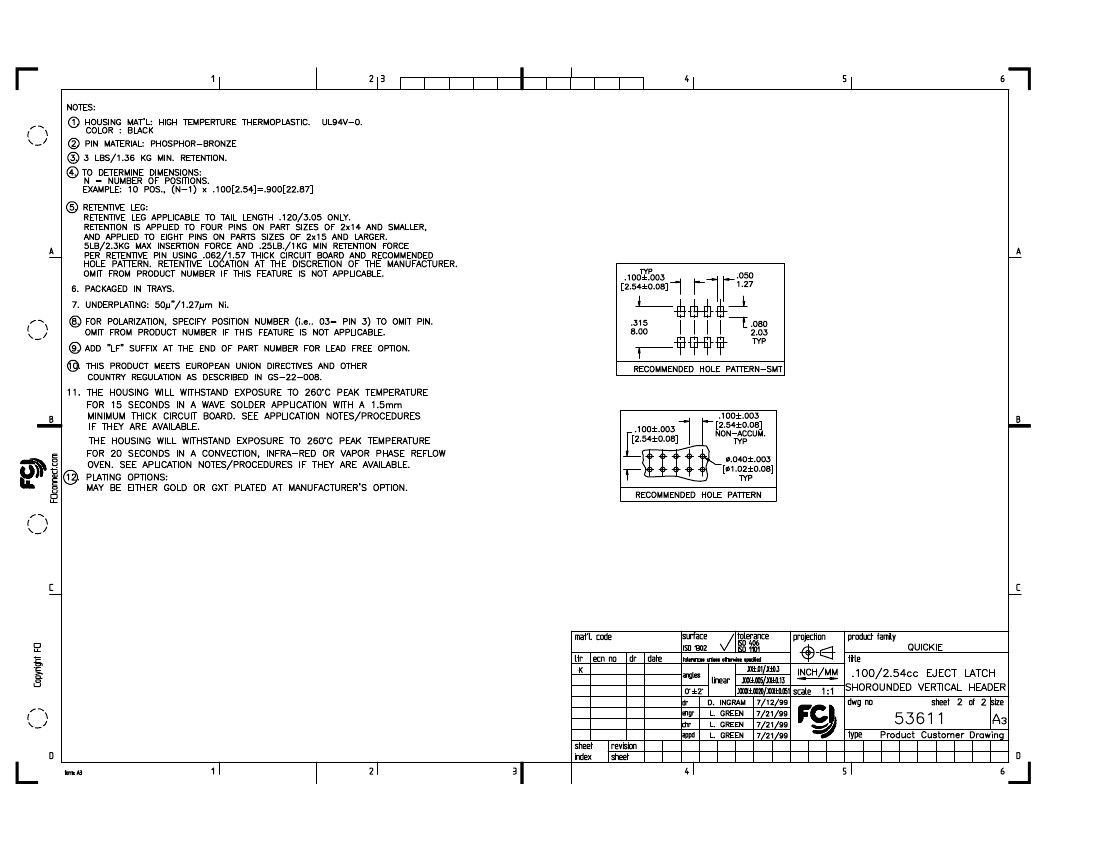

Quickie Header, Wire to Board Connector, Double Row, 40 Positions, 2.54 mm (0.1 in.), Vertical Header 0.76 um (30 u".) Gold Mating Plating.

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1600814580
package instruction	LEAD FREE
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.36 inch
subject depth	0.685 inch
body length	2.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.969 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0

PDM: Rev:K

STATUS:

Released

Printed: Apr 12, 2011

.
