3-2110838-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-2110838-6

3-2110838-6: Descriptionterminals mini 2 vrt hdr/plg 126 PC kit; CategoryThe connector; File Size320KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

3-2110838-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-2110838-6	-	-	View	Buy Now

3-2110838-6 Overview

terminals mini 2 vrt hdr/plg 126 PC kit

3-2110838-6 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Terminals
RoHS	Yes
Produc	Kits
Wire Gauge	12-10, 16-14, 22-16
Insulati	Insulated
Insulation Material	Nyl
Factory Pack Quantity	1

Preview

Download Datasheet

View All

General Information

Kit Part Number:

Description:

Application:

3-2110838-6

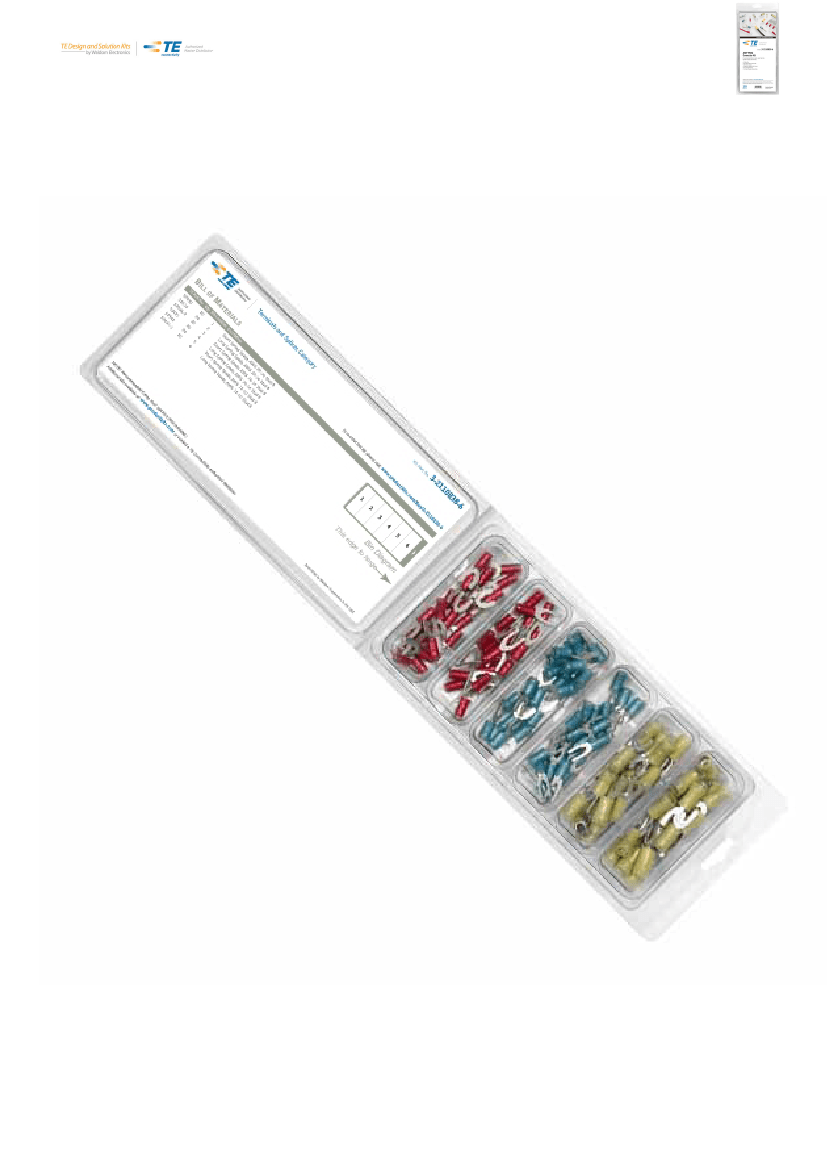

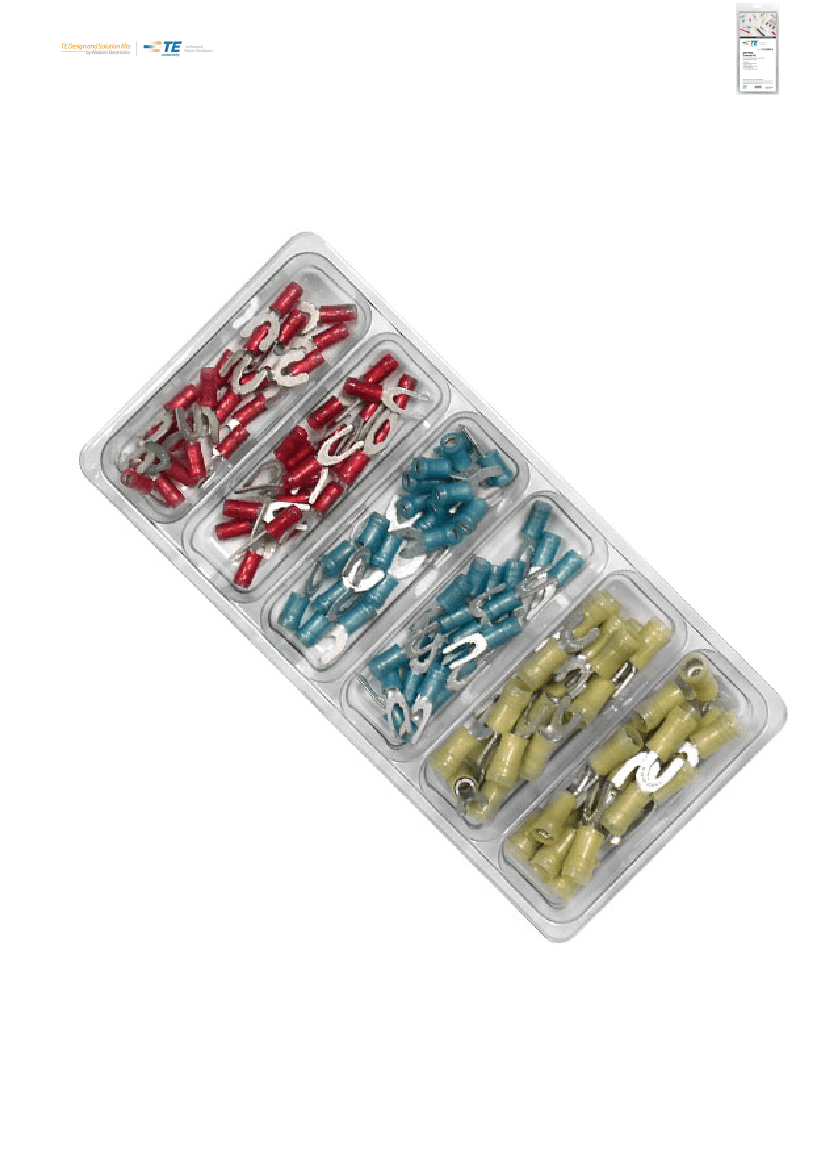

Pre-Insulated Short and Long Spring Spade Tongue Terminals Kit

Aerospace/Defense Equipment and Systems, Appliance Industries, Electrical/Electronic Components, Heavy

Equipment, HVAC Systems, Industrial, Instrumentation and Controls, Power Supplies

Family:

TE Brand:

Solution:

Product Type:

Number of Pieces:

RoHS:

Specifications

Body and Plating:

Insulation:

Stud/Tab Size:

Temperature Rating:

Terminal Type:

Tool Included:

Voltage Rating:

Wire Gauge (AWG):

Product Highlights

Tin Plated, Phosphor Bronze

Nylon

105 Degrees C (Max)

Short Spring Spade Tongue, Long Spring Spade Tongue

300 Volts AC (Max.)

12-10, 16-14 , 22-16

PIDG

AMP Products

MRO (Maintenance, Repair and Operation)

Terminals & Splices

120

Yes

Product Highlights

PIDG products are a pre-insulated terminal designed for complete and uniform reliability in the most difficult circuit environments. PIDG terminals

consist of tin plated copper or tin plated phosphor bronze body for spring spades with a copper sleeve and insulation sleeve fitted over terminal

barrel. Design of the crimping dies and construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting

this pressure evenly to the center of the crimp area. This produces a crimp for a given wire and terminal that are alike in appearance and

performance. The tensile strength approaches that of the wire itself. PIDG products are available as rings, spades, flanged spaded, slotted rings,

splices and several other varieties. Wire ranges for the terminals and splices are 26 AWG through 10 AWG and stud sizes from #2 through ¾".

Features and Benefits

• Nylon insulation is resistant to hydrocarbons (greases, oils, etc.) and has high dielectric strength

• Copper sleeve between insulation and terminal body provides excellent wire support after crimping

• Funneled wire entry on terminal prevents turned back wire strands and permits rapid wire insertion during high speed production

• Product is rated for use up to 105 degrees C and 300 Volts

• Serrations in the crimp barrel provide maximum contact and tensile strength after crimping

• Insulation is UL 94V-2 rated

Applications

• Electrical / Electronic Components

• Industrial

• Aerospace

• Instrumentation

Page 1 - Retrieved on Dec 09, 2011
