BG3040-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BG3040-7

BG3040-7: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 25W, Hybrid; CategoryPower/power management The power supply circuit; File Size151KB，4 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

BG3040-7 Overview

DC-DC Regulated Power Supply Module, 3 Output, 25W, Hybrid

BG3040-7 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel Fuse
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SECONDARY +/-15.4V OUTPUT
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	14 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P19
JESD-609 code	e0
Maximum load regulation	10%
Number of functions	1
Output times	3
Number of terminals	19
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.555 V
Minimum output voltage	3.03 V
Nominal output voltage	5.05 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	25 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

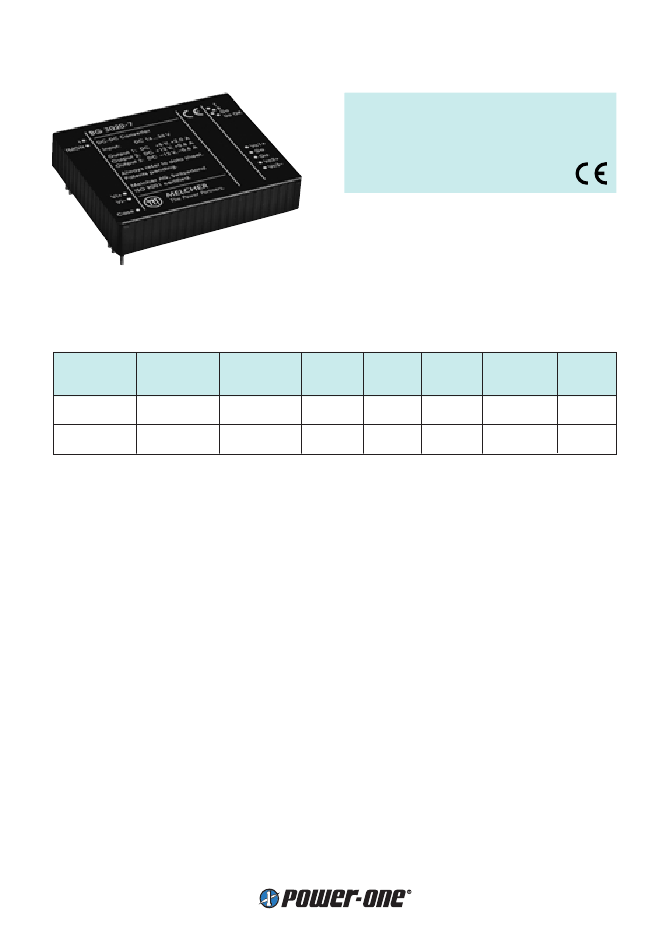

G Series

25 Watt DC-DC Converters

Input voltage ranges up to 75 V DC

3 outputs 5...15 V DC

1500 V DC I/O electric strength test voltage

• Flex power

• Serial 8-bit status communication port

• Adapted to MIL and avionics applications

Selection chart

Output 1

o nom

[V DC] [A]

5.05

Output 2

o nom

[V DC] [A]

12.6

15.4

1.6

15.4

1.6

Output 3

o nom

[V DC] [A]

–12.6

–15.4

1.6

–15.4

1.6

Input

[V DC]

14...36

36...75

14...36

36...75

Rated

Efficiency

power

typ

o tot

[W]

[%]

Type

Option

BG 3020-7

CG 3020-7

BG 3040-7

CG 3040-7

-9, D, B
