General Information
Kit Part Number:
Description:
Application:
5-2110838-4

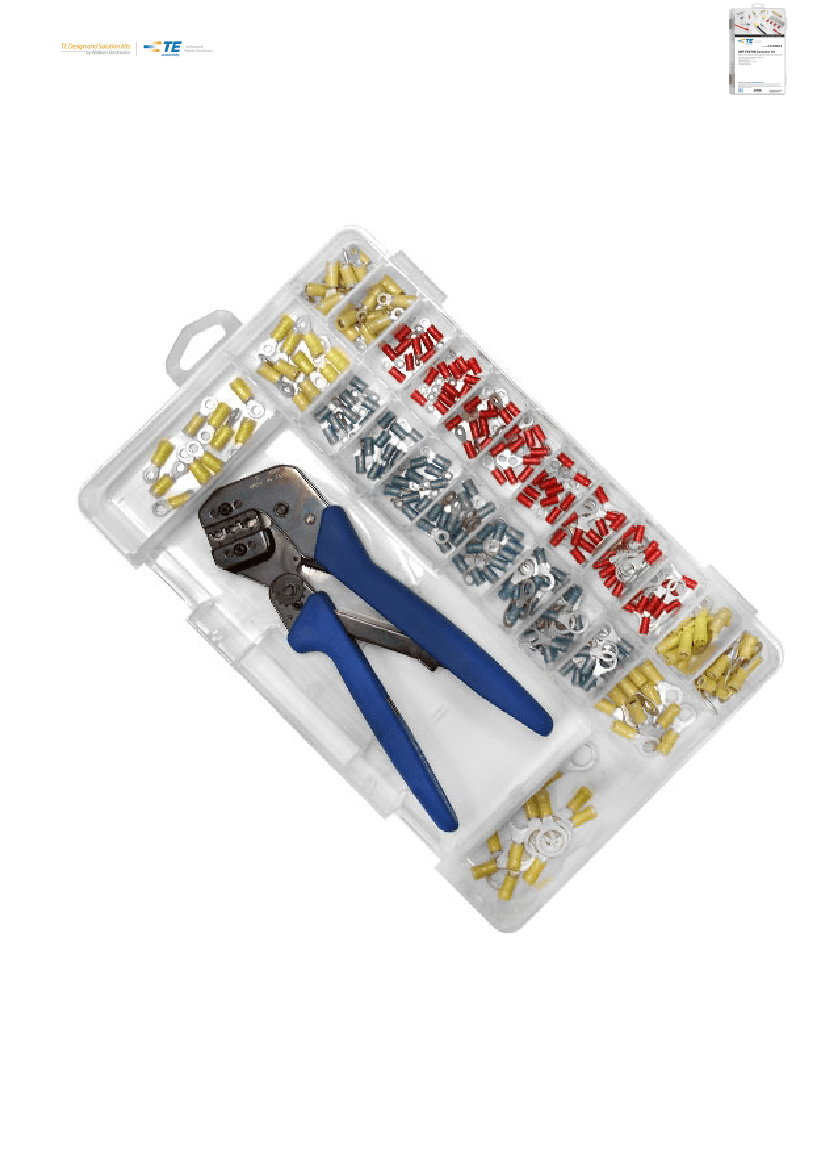

Deluxe Pre-Insulated Ring Tongue Terminals with Crimp Tool Kit
Aerospace/Defense Equipment and Systems, Appliance Industries, Electrical/Electronic Components, Heavy
Equipment, HVAC Systems, Industrial, Instrumentation and Controls, Power Supplies
Family:
TE Brand:
None:
Solution:
Product Type:
Number of Pieces:
RoHS:
Specifications
Body and Plating:
Insulation:
Stud/Tab Size:
Temperature Rating:
Terminal Type:
Tool Included:
Voltage Rating:
Wire Gauge (AWG):
Product Highlights
Tin Plated, Copper Body
Nylon
1/4, 1/2, 2, 3/8, 4, 5/16, 6, 8, 10
105 Degrees C (Max)
Ring Tongue
Yes
300 Volts AC (Max.)
12-10, 16-14 , 22-16
PIDG
AMP Products
With Tool
MRO (Maintenance, Repair and Operation)
Terminals & Splices
241
Yes
PIDG products are a pre-insulated terminal designed for complete and uniform reliability in the most difficult circuit environments. PIDG terminals
consist of tin plated copper or tin plated phosphor bronze body for spring spades with a copper sleeve and insulation sleeve fitted over terminal
barrel. Design of the crimping dies and construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting
this pressure evenly to the center of the crimp area. This produces a crimp for a given wire and terminal that are alike in appearance and
performance. The tensile strength approaches that of the wire itself. PIDG products are available as rings, spades, flanged spaded, slotted rings,
splices and several other varieties. Wire ranges for the terminals and splices are 26 AWG through 10 AWG and stud sizes from #2 through ¾".
Features and Benefits
• Nylon insulation is resistant to hydrocarbons (greases, oils, etc.) and has high dielectric strength
• Copper sleeve between insulation and terminal body provides excellent wire support after crimping
• Funneled wire entry on terminal prevents turned back wire strands and permits rapid wire insertion during high speed production
• Product is rated for use up to 105 degrees C and 300 Volts
• Serrations in the crimp barrel provide maximum contact and tensile strength after crimping
• Insulation is UL 94V-2 rated
Applications
• Electrical / Electronic Components
• Industrial
• Aerospace
• Instrumentation
• HVAC
Page 1 - Retrieved on Dec 13, 2011
Bill of Materials
Part No.
Qty
In Kit
10
Description
Datasheet
P/N
Details
Details
Search Distributors
Inventory
Search
31894
323676
50881
328999
321045
35148
35108
35109
35110
35112
58433-3
324158
31880
51863
320554
36153
31895
320573
324993
53941-1
53942-1
328998
35149
320576
35151
Ring Tongue Terminal, AWG 22-16 Stud 1/4
Datasheet
10
Ring Tongue Terminal, AWG 16-14 Stud 4
Details
Search
10
Ring Tongue Terminal, AWG 16-14 Stud 6
Details
Search
10
Ring Tongue Terminal, AWG 16-14 Stud 3/8
Details
Search
10
Ring Tongue Terminal 1/4 Stud 16-14 AWG
Details
Search
10
Ring Tongue Terminal, AWG 12-10 Stud 4
Details
Search
10
Ring Tongue Terminal # 8 Stud 12-10 AWG
Datasheet
Details
Search
10
Ring Tongue Terminal # 10 Stud 12-10 AWG
Datasheet
Details
Search
10
Ring Tongue Terminal 1/4 Stud 12-10 AWG
Datasheet
Details
Search
10
Ring Tongue Terminal 3/8 Stud 12-10 AWG
Datasheet
Details
Search
1
Pro Crimper RBY Tool (Red, Blue, Yellow)
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 22-16 AWG Stud 2
Details
Search
10
Ring Tongue Terminal # 4 Stud 22-16 AWG
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 22-16 AWG Stud 6
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 22-16 AWG Stud 8
Details
Search
10
PIDG, Ring Tongue Terminal, 22-16 AWG Stud 10
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 22-16 AWG Stud 5/16
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 22-16 AWG Stud 3/8
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 16-14 AWG Stud 2
Details
Search
10
PIDG, Ring Tongue Terminal, 16-14 AWG Stud 8
Details
Search
10
PIDG, Ring Tongue Terminal, 16-14 AWG Stud 10
Details
Search
10
PIDG, Ring Tongue Terminal, 16-14 AWG Stud 5/16
Details
Search
10
PIDG, Ring Tongue Terminal, 12-10 AWG Stud 6
Details
Search
10
PIDG, Ring Tongue Terminal, 12-10 AWG Stud 5/16
Datasheet
Details
Search
10
PIDG, Ring Tongue Terminal, 12-10 AWG Stud 1/2
Details
Search
Recommended Tool
Part No.
Included in Kit
Page 3 - Retrieved on Dec 13, 2011
