MC74VHC393DTR2 datasheet, PDF - EEWORLD Datasheet

MC74VHC393DTR2: DescriptionAHC/VHC SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO14, PLASTIC, TSSOP-14; Categorylogic logic; File Size137KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

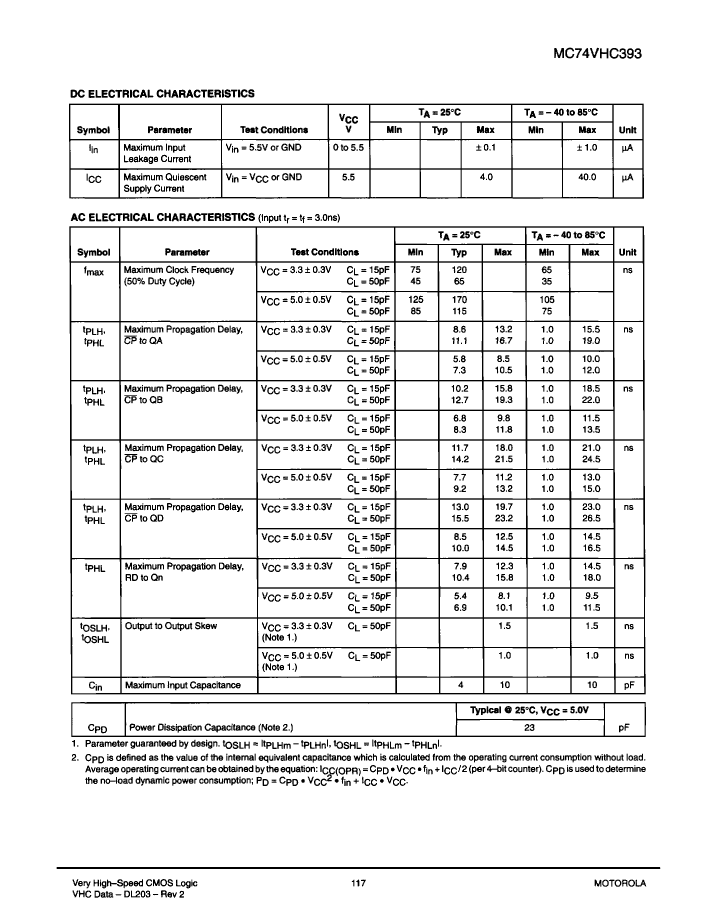

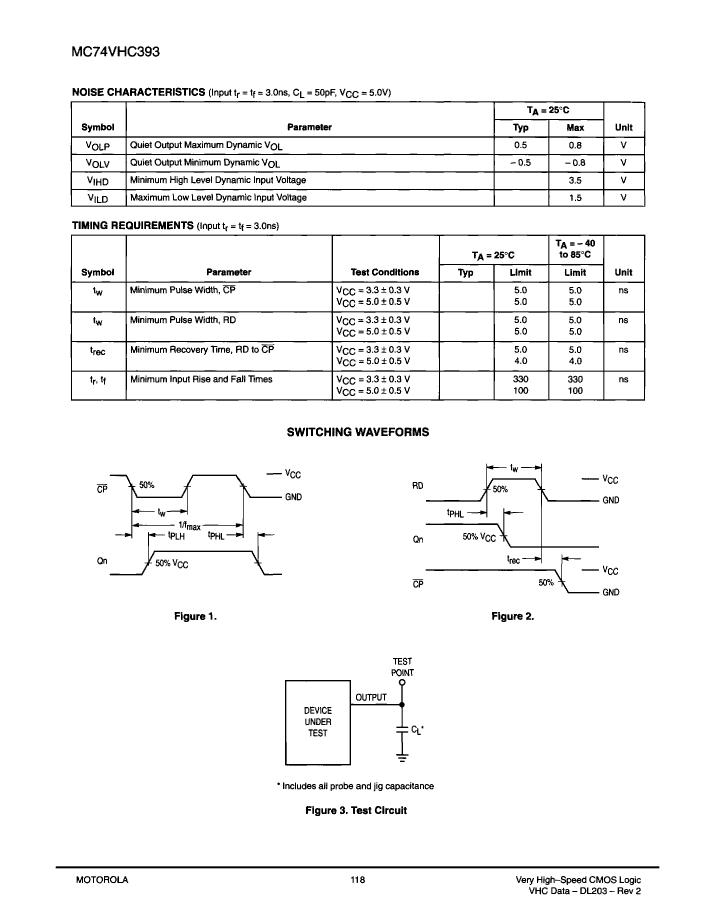

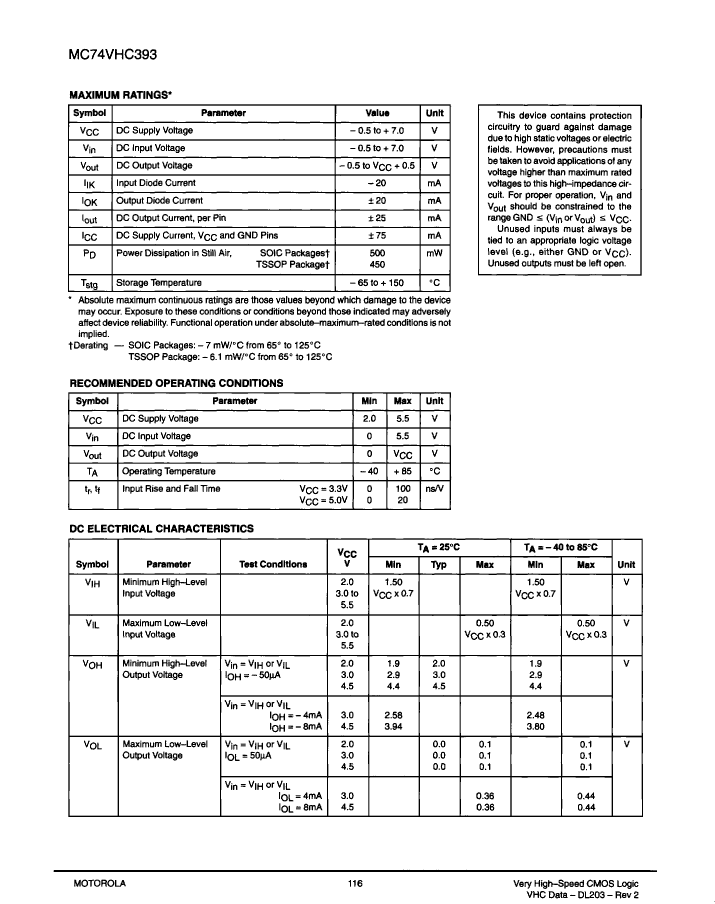

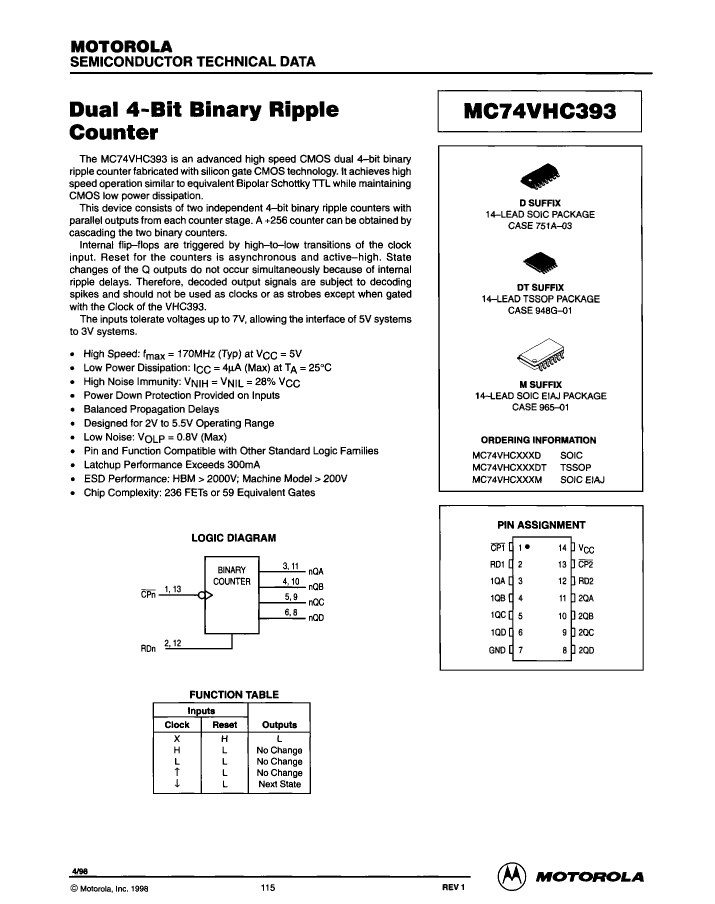

MC74VHC393DTR2 Overview

AHC/VHC SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO14, PLASTIC, TSSOP-14

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Counting direction	UP
series	AHC/VHC
JESD-30 code	R-PDSO-G14
length	5 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of digits	4
Number of functions	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	26.5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	4.4 mm
minfmax	170 MHz
Base Number Matches	1
