SDC-14551-122 datasheet, PDF - EEWORLD Datasheet

SDC-14551-122: DescriptionSynchro or Resolver to Digital Converter, CMOS, CQIP34, 1 X 0.780 INCH, 0.210 INCH HEIGHT, STAGGERED, CERAMIC PACKAGE-34; CategoryAnalog mixed-signal IC converter; File Size291KB，6 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

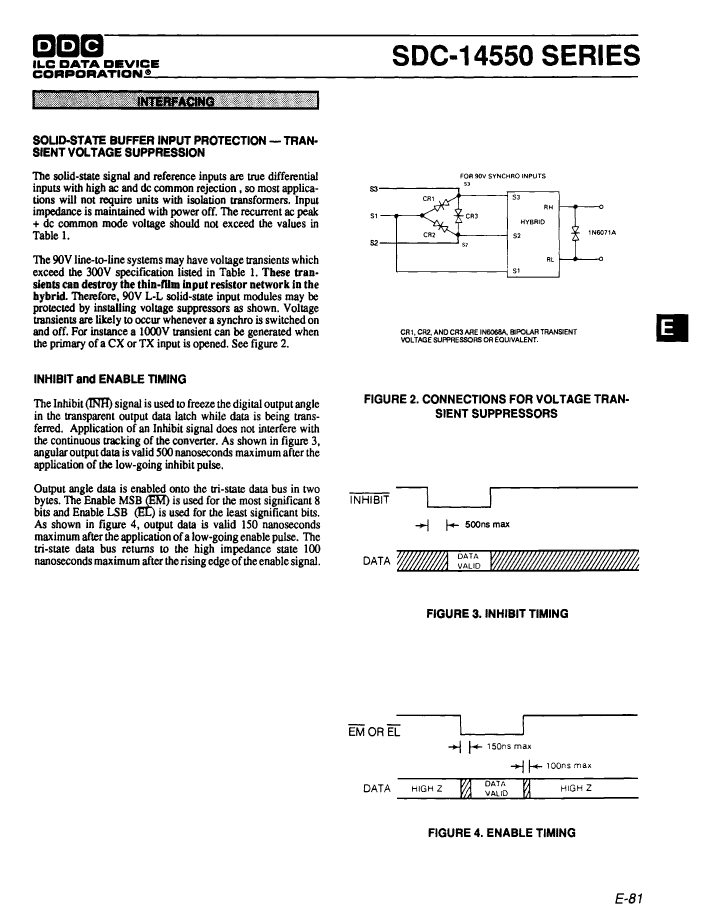

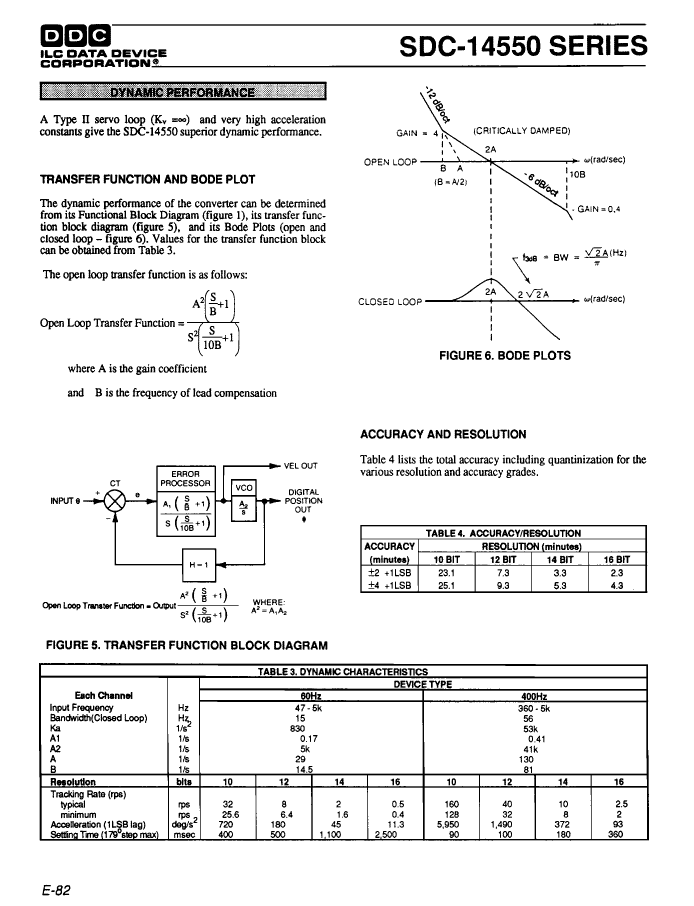

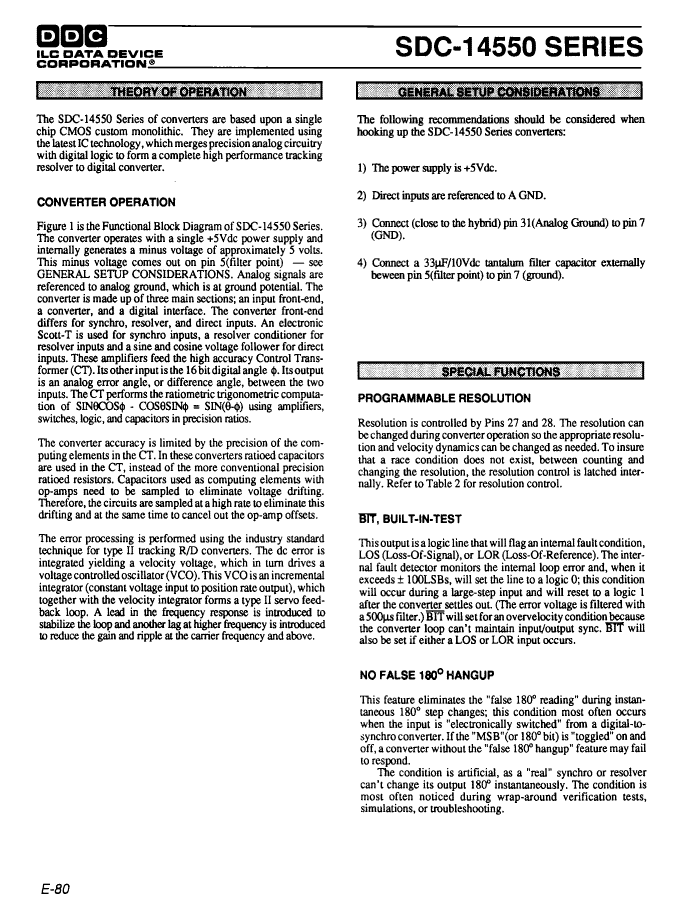

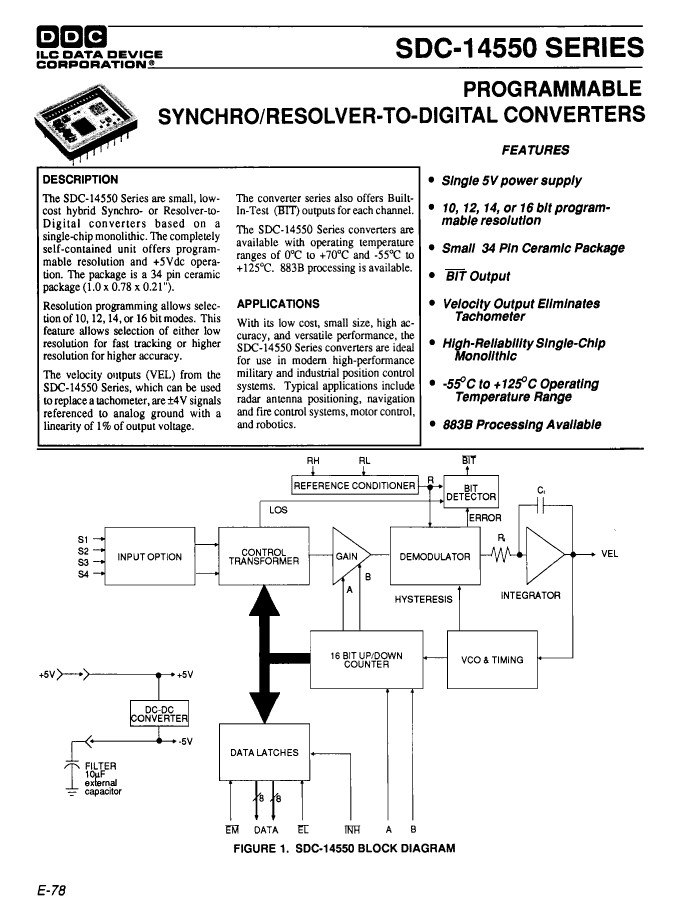

SDC-14551-122 Overview

Synchro or Resolver to Digital Converter, CMOS, CQIP34, 1 X 0.780 INCH, 0.210 INCH HEIGHT, STAGGERED, CERAMIC PACKAGE-34

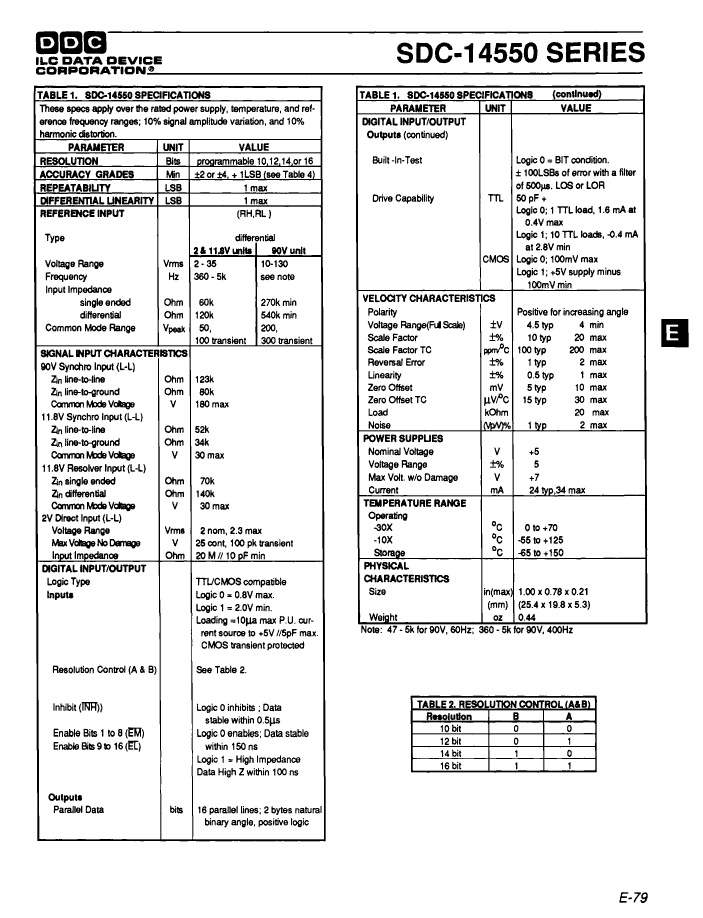

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	1 X 0.780 INCH, 0.210 INCH HEIGHT, STAGGERED, CERAMIC PACKAGE-34
Contacts	34
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PROGRAMMABLE RESOLUTION
Maximum analog input voltage	2.3 V
Maximum angular accuracy	2.3 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CQIP-P34
JESD-609 code	e0
Number of digits	16
Number of functions	1
Number of terminals	34
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Encapsulate equivalent code	QUIP34B,.4/.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	6.8 mm
Maximum stabilization time	360 µs
Signal/output frequency	5000 Hz
Maximum slew rate	34 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1
