CY7C024/0241
CY7C025/0251
4K x 16/18 and 8K x 16/18 Dual-Port
Static RAM with SEM, INT, BUSY
Features
• True Dual-Ported memory cells which allow simulta-
neous reads of the same memory location
• 4K x 16 organization (CY7C024)
• 4K x 18 organization (CY7C0241)
• 8K x 16 organization (CY7C025)
• 8K x 18 organization (CY7C0251)
• 0.65-micron CMOS for optimum speed/power
• High-speed access: 15 ns
• Low operating power: I
CC
= 150 mA (typ.)
• Fully asynchronous operation
• Automatic power-down
• Expandable data bus to 32/36 bits or more using
Master/Slave chip select when using more than one
device
• On-chip arbitration logic
• Semaphores included to permit software handshaking
between ports
• INT flag for port-to-port communication
• Separate upper-byte and lower-byte control
• Pin select for Master or Slave
• Available in 84-pin Lead (Pb)-free PLCC, 84-pin PLCC,
100-pin Lead (Pb)-free TQFP, and 100-pin TQFP
Functional Description
The CY7C024/0241 and CY7C025/0251 are low-power
CMOS 4K x 16/18 and 8K x 16/18 dual-port static RAMs.
Various arbitration schemes are included on the CY7C024/
0241 and CY7C025/0251 to handle situations when multiple
processors access the same piece of data. Two ports are
provided, permitting independent, asynchronous access for
reads and writes to any location in memory. The CY7C024/
0241 and CY7C025/0251 can be utilized as standalone
16-/18-bit dual-port static RAMs or multiple devices can be
combined in order to function as a 32-/36-bit or wider master/
slave dual-port static RAM. An M/S pin is provided for imple-
menting 32-/36-bit or wider memory applications without the
need for separate master and slave devices or additional
discrete logic. Application areas include interprocessor/multi-
processor designs, communications status buffering, and
dual-port video/graphics memory.
Each port has independent control pins: Chip Enable (CE),
Read or Write Enable (R/W), and Output Enable (OE). Two
flags are provided on each port (BUSY and INT). BUSY
signals that the port is trying to access the same location
currently being accessed by the other port. The Interrupt Flag
(INT) permits communication between ports or systems by
means of a mail box. The semaphores are used to pass a flag,
or token, from one port to the other to indicate that a shared
resource is in use. The semaphore logic is comprised of eight
shared latches. Only one side can control the latch
(semaphore) at any time. Control of a semaphore indicates
that a shared resource is in use. An automatic power-down
feature is controlled independently on each port by a chip
select (CE) pin.
The CY7C024/0241 and CY7C025/0251 are available in
84-pin Lead (Pb)-free PLCCs, 84-pin PLCCs (CY7C024 and
CY7C025 only), 100-pin Lead (Pb)-free Thin Quad Plastic
Flatplack (TQFP) and 100-pin Thin Quad Plastic Flatpack.
Cypress Semiconductor Corporation
Document #: 38-06035 Rev. *C
•
3901 North First Street
•
San Jose
,
CA 95134
•
408-943-2600
Revised November 11, 2004
CY7C024/0241
CY7C025/0251

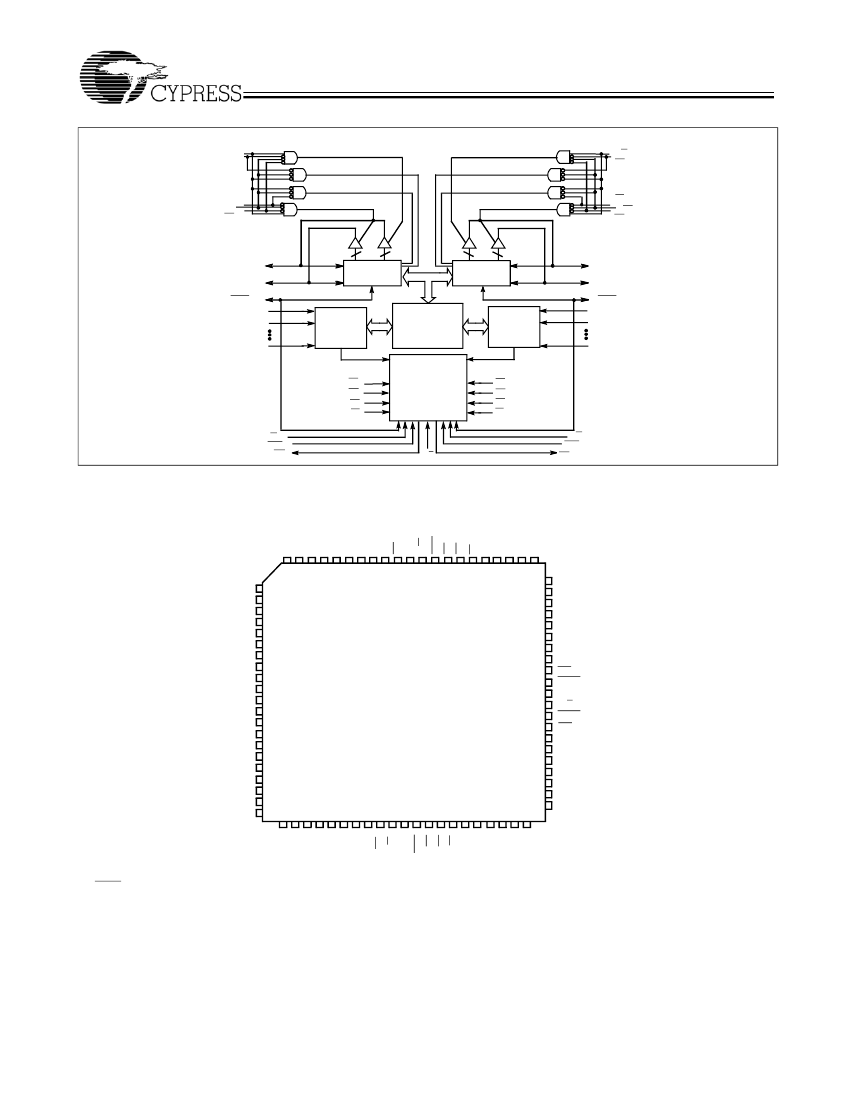

Logic Block Diagram
L
L
R/W
R
UB
R
L
LB
R
CE
R
OE
R
OE
L
[3]
I/O
8L
– I/O
15L
[2]
I/O
0L
– I/O
7L
I/O
CONTROL
I/O
CONTROL
I/O
8R
– I/O
15R
[3]
I/O
0R
– I/O
7R
[2]
[1]
BUSY
R
A
12R
(CY7C025/0251)
BUSY
L
(CY7C025/0251)
[1]
A
12L
A
11L
A
0L
ADDRESS
DECODER
MEMORY
ARRAY
ADDRESS
DECODER
A
11R
A
0R
CE
L
OE
L
UB
L
LB
L
R/W
L
SEM
L
INT
L
INTERRUPT
SEMAPHORE
ARBITRATION
CE
R
OE
R
UB
R
LB
R
R/W
R
SEM
R
M/S
INT
R
Pin Configurations
84-Pin PLCC
Top View
SEM
L
CE
L
UB
L
LB
L
NC
[4]
A
11L
GND
I/O
1L
I/O
0L
OE
L
V
CC
R/W
L
I/O
7L
I/O
6L
I/O
5L
I/O
4L
I/O
3L
I/O
2L
A
10L
A
A
8L
A
7L
A
6L
A
5L
A
4L
A
3L
A
2L
A
1L
A
0L
INT
L
BUSY
L
GND
M/S
BUSY
R
INT
R
A
0R
A
1R
A
2R
A
3R
A
4R
A
5R
A
6R
9L
11 10 9 8 7 6 5 4 3 2
I/O
8L
I/O
9L
I/O
10L
I/O
11L
I/O
12L
I/O
13L
GND
I/O
14L
I/O
15L
V
CC
GND
I/O
0R
I/O
1R
I/O
2R
V
CC
I/O
3R
I/O
4R
I/O
5R
I/O
6R
I/O
7R
I/O
8R
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
58
28
57
29
56
30
55
31
54
32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53
SEM
R
CE
R
UB
R
LB
R
NC
[5]
A
11R
GND
I/O
15R
I/O
9R
OE
R
R/W
R
I/O
13R
I/O
14R
I/O
10R
I/O
11R
I/O
12R
GND
A
10R
A
9R
A
8R
A
7R
1 84 83 82 81 80 79 78 77 76 75
74
73
72
71
70
69
68
67
66
CY7C024/5
65
64
63
62
61
60
59
Notes:
1. BUSY is an output in master mode and an input in slave mode.
2. I/O
0
–I/O
8
on the CY7C0241/0251.
3. I/O
9
–I/O
17
on the CY7C0241/0251.
4. A
12L
on the CY7C025/0251.
5. A
12R
on the CY7C025/0251.
Document #: 38-06035 Rev. *C
Page 2 of 21
CY7C024/0241
CY7C025/0251
Pin Configurations
(continued)
OE
L
V
CC
R/W
L
SEM
L
CE
L
UB
L
LB
L
NC
[4]
A
11L
A
10L
100-Pin TQFP
Top View
I/O
4L
I/O
3L
I/O
2L
GND
I/O
9L
I/O
8L
I/O
7L
I/O
6L
I/O
5L
I/O
1L
I/O
0L
A
9L
A
8L
100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76
NC
NC
NC
NC
I/O
10L
I/O
11L
I/O
12L
I/O
13L
GND
I/O
14L
I/O
15L
V
CC
GND
I/O
0R
I/O
1R
I/O
2R
V
CC
I/O
3R
I/O
4R
I/O
5R
I/O
6R
NC
NC
NC
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
NC
NC
NC
NC
A
5L
A
4L
A
3L
A
2L
A
1L
A
0L
INT
L
BUSY
L
GND
M/S
BUSY
R
INT
R
A
0R
A
1R
A
2R
A
3R
A
4R
NC
NC
NC
NC
CY7C024/5
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
GND
I/O
15R
Œ
R
I/O
7R
I/O
8R
I/O
9R
I/O
10R
I/O
11R
I/O
12R
R/W
R
GND
SEM
R
CE
R
UB
R
LB
R
NC
[5]
A
11R
A
10R
A
9R
A
8R
I/O
13R
I/O
14R
I/O
10L
I/O
9L
I/O
7L
I/O
6L
I/O
5L
UB
L
LB
L
NC
[4]
A
11L
A
10L
OE
L
V
CC
R/W
L
SEM
L
CE
L
100-Pin TQFP
Top View
I/O
4L
I/O
3L
I/O
2L
GND
I/O
1L
I/O
0L
A
9L
A
8L
100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76
NC
NC
I/O
8L
I/O
17L
I/O
11L
I/O
12L
I/O
13L
I/O
14L
GND
I/O
15L
I/O
16L
V
CC
GND
I/O
0R
I/O
1R
I/O
2R
V
CC
I/O
3R
I/O
4R
I/O
5R
I/O
6R
I/O
8R
I/O
17R
NC
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
NC
NC
NC
NC
A
5L
A
4L
A
3L
A
2L
A
1L
A
0L
INT
L
BUSY
L
GND
M/S
BUSY
R
INT
R
A
0R
A
1R
A
2R
A
3R
A
4R
NC
NC
NC
NC
CY7C0241/0251
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
I/O
10R
I/O
11R
I/O
12R
I/O
13R
I/O
14R
I/O
15R
GND
I/O
16R
OE
R
R/W
R
GND
SEM
R
CE
R
UB
R
LB
R
I/O
7R
I/O
9R
NC
A
11R
A
10R
A
9R
A
8R
Document #: 38-06035 Rev. *C
A
7R
A
6R
A
5R
[
A
7L
A
6L
A
7R
A
6R
A
5R
A
7L
A
6L
Page 3 of 21
CY7C024/0241
CY7C025/0251
Pin Definitions
Left Port
CE
L
R/W
L
OE
L
A
0L
–A
11/12L
I/O
0L
–I/O
15/17L
SEM
L
UB
L
LB
L
INT
L
BUSY
L
M/S
V
CC
GND
CE
R
R/W
R
OE
R
A
0R
–A
11/12R
I/O
0R
–I/O
15/17R
SEM
R
UB
R
LB
R
INT
R
BUSY
R
Right Port
Chip Enable
Read/Write Enable
Output Enable
Address
Data Bus Input/Output
Semaphore Enable
Upper Byte Select
Lower Byte Select
Interrupt Flag
Busy Flag
Master or Slave Select
Power
Ground
Description
Selection Guide
7C024/0241–15
7C025/0251–15
Maximum Access Time (ns)
Typical Operating Current (mA)
Typical Standby Current for I
SB1
(mA)
15
190
50
7C024/0241–25
7C025/0251–25
25
170
40
Read Operation
When reading the device, the user must assert both the OE
and CE pins. Data will be available t
ACE
after CE or t
DOE
after
OE is asserted. If the user of the CY7C024/0241 or
CY7C025/0251 wishes to access a semaphore flag, then the
SEM pin must be asserted instead of the CE pin, and OE must
also be asserted.
Interrupts
The upper two memory locations may be used for message
passing. The highest memory location (FFF for the
CY7C024/0241, 1FFF for the CY7C025/0251) is the mailbox
for the right port and the second-highest memory location
(FFE for the CY7C024/0241, 1FFE for the CY7C025/0251) is
the mailbox for the left port. When one port writes to the other
port’s mailbox, an interrupt is generated to the owner. The
interrupt is reset when the owner reads the contents of the
mailbox. The message is user defined.
Each port can read the other port’s mailbox without resetting
the interrupt. The active state of the BUSY signal (to a port)
prevents the port from setting the interrupt to the winning port.
Also, an active BUSY to a port prevents that port from reading
its own mailbox and thus resetting the interrupt to it.
If your application does not require message passing, do not
connect the interrupt pin to the processor’s interrupt request
input pin.
The operation of the interrupts and their interaction with Busy
are summarized in
Table 2.
7C024/0241–35
7C025/0251–35
35
160
30
7C024/0241–55
7C025/0251–55
55
150
20
Architecture
The CY7C024/0241 and CY7C025/0251 consist of an array of
4K words of 16/18 bits each and 8K words of 16/18 bits each
of dual-port RAM cells, I/O and address lines, and control
signals (CE, OE, R/W). These control pins permit independent
access for reads or writes to any location in memory. To handle
simultaneous writes/reads to the same location, a BUSY pin is
provided on each port. Two interrupt (INT) pins can be utilized
for port-to-port communication. Two semaphore (SEM) control
pins are used for allocating shared resources. With the M/S
pin, the CY7C024/0241 and CY7C025/0251 can function as a
master (BUSY pins are outputs) or as a slave (BUSY pins are
inputs). The CY7C024/0241 and CY7C025/0251 have an
automatic power-down feature controlled by CE. Each port is
provided with its own output enable control (OE), which allows
data to be read from the device.
Functional Description
Write Operation
Data must be set up for a duration of t
SD
before the rising edge
of R/W in order to guarantee a valid write. A write operation is
controlled by either the R/W pin (see Write Cycle No. 1
waveform) or the CE pin (see Write Cycle No. 2 waveform).
Required inputs for non-contention operations are summa-
rized in
Table 1.
If a location is being written to by one port and the opposite
port attempts to read that location, a port-to-port flowthrough
delay must occur before the data is read on the output;
otherwise the data read is not deterministic. Data will be valid
on the port t
DDD
after the data is presented on the other port.
Document #: 38-06035 Rev. *C
Page 4 of 21
CY7C024/0241
CY7C025/0251
Busy
The CY7C024/0241 and CY7C025/0251 provide on-chip
arbitration to resolve simultaneous memory location access
(contention). If both ports’ CEs are asserted and an address
match occurs within t
PS
of each other, the busy logic will
determine which port has access. If t
PS
is violated, one port
will definitely gain permission to the location, but which one is
not predictable. BUSY will be asserted t
BLA
after an address
match or t
BLC
after CE is taken LOW.
Master/Slave
A M/S pin is provided in order to expand the word width by
configuring the device as either a master or a slave. The BUSY
output of the master is connected to the BUSY input of the
slave. This will allow the device to interface to a master device
with no external components. Writing to slave devices must be
delayed until after the BUSY input has settled (t
BLC
or t
BLA
).
Otherwise, the slave chip may begin a write cycle during a
contention situation.When tied HIGH, the M/S pin allows the
device to be used as a master and, therefore, the BUSY line
is an output. BUSY can then be used to send the arbitration
outcome to a slave.
Semaphore Operation
The CY7C024/0241 and CY7C025/0251 provide eight
semaphore latches, which are separate from the dual-port
memory locations. Semaphores are used to reserve resources
that are shared between the two ports.The state of the
semaphore indicates that a resource is in use. For example, if
the left port wants to request a given resource, it sets a latch
by writing a zero to a semaphore location. The left port then
verifies its success in setting the latch by reading it. After
writing to the semaphore, SEM or OE must be deasserted for
tSOP before attempting to read the semaphore. The
semaphore value will be available t
SWRD
+ t
DOE
after the rising
Table 1. Non-Contending Read/Write
Inputs
CE
H
X
L
L
L
L
L
L
X
H
X
H
X
L
L
X
X
R/W
X
X
L
L
L
H
H
H
X
H
H
OE
X
X
X
X
X
L
L
L
H
L
L
X
X
X
X
UB
X
H
L
H
L
L
H
L
X
X
H
X
H
L
X
LB
X
H
H
L
L
H
L
L
X
X
H
X
H
X
L
SEM
H
H
H
H
H
H
H
H
X
L
L
L
L
L
L
High Z
High Z
High Z
Data In
Data In
High Z
Data Out
Data Out
High Z
Data Out
Data Out
Data In
Data In
Outputs
I/O
0
–I/O
7[2]
I/O
8
–I/O
15[3]
High Z
High Z
Data In
High Z
Data In
Data Out
High Z
Data Out
High Z
Data Out
Data Out
Data In
Data In
Operation
Deselected: Power-Down
Deselected: Power-Down
Write to Upper Byte Only
Write to Lower Byte Only
Write to Both Bytes
Read Upper Byte Only
Read Lower Byte Only
Read Both Bytes
Outputs Disabled
Read Data in Semaphore Flag
Read Data in Semaphore Flag
Write D
IN0
into Semaphore Flag
Write D
IN0
into Semaphore Flag
Not Allowed
Not Allowed
Page 5 of 21
edge of the semaphore write. If the left port was successful
(reads a zero), it assumes control of the shared resource,
otherwise (reads a one) it assumes the right port has control
and continues to poll the semaphore. When the right side has
relinquished control of the semaphore (by writing a one), the
left side will succeed in gaining control of the semaphore. If the
left side no longer requires the semaphore, a one is written to
cancel its request.
Semaphores are accessed by asserting SEM LOW. The SEM
pin functions as a chip select for the semaphore latches (CE
must remain HIGH during SEM LOW). A0–2 represents the
semaphore address. OE and R/W are used in the same
manner as a normal memory access. When writing or reading
a semaphore, the other address pins have no effect.
When writing to the semaphore, only I/O
0
is used. If a zero is
written to the left port of an available semaphore, a one will
appear at the same semaphore address on the right port. That
semaphore can now only be modified by the side showing zero
(the left port in this case). If the left port now relinquishes
control by writing a one to the semaphore, the semaphore will
be set to one for both sides. However, if the right port had
requested the semaphore (written a zero) while the left port
had control, the right port would immediately own the
semaphore as soon as the left port released it. Table 3 shows
sample semaphore operations.
When reading a semaphore, all sixteen/eighteen data lines
output the semaphore value. The read value is latched in an
output register to prevent the semaphore from changing state
during a write from the other port. If both ports attempt to
access the semaphore within t
SPS
of each other, the
semaphore will definitely be obtained by one side or the other,
but there is no guarantee which side will control the
semaphore.
Document #: 38-06035 Rev. *C
京公网安备 11010802033920号
EEWORLD
