N7416F datasheet, PDF - EEWORLD Datasheet

N7416F: DescriptionInverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14; Categorylogic logic; File Size59KB，2 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

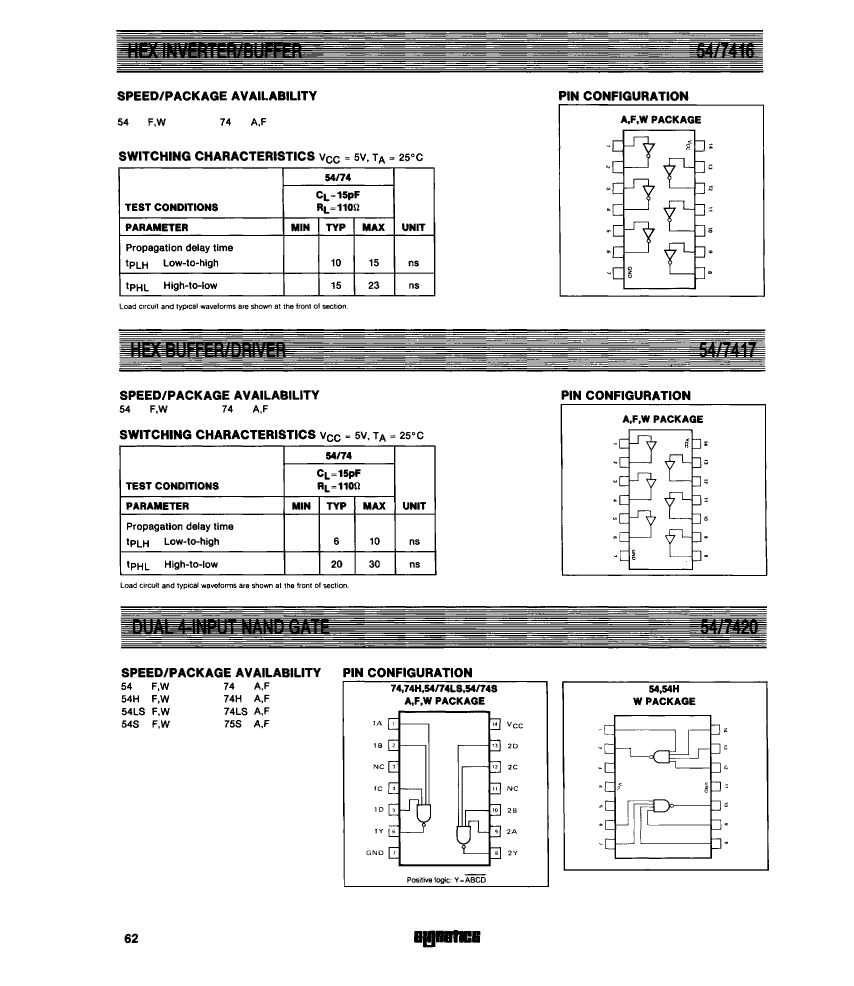

N7416F Overview

Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Is Samacsys	N
series	TTL/H/L
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Load capacitance (CL)	15 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.04 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	42 mA
Prop。Delay @ Nom-Sup	23 ns
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
