MC Energy Series
BOOSTCAP
®
Ultracapacitors
e
>
Series: MC Energy
Round, Terminal Type
»
Low Internal Resistance
»
High Energy Availability
»
Low Time Constant
Features:
» 2.7 Volt Operating Voltage
» Over 1 million duty cycles
» Lowest cost available
» Low internal resistance
» High energy density
» Threaded terminal or weldable post versions
>
Applications:
» Renewable energy
» Industrial
» UPS
» Power quality
» Telecommunications
» Consumer electronics
>
Overview:
The Energy-type ultracapacitor product line gives industrial customers a much wider range of choices to meet
their energy storage and power delivery requirements. The cells are specifically engineered to provide cost-
effective solutions for UPS, telecommunications and other lighter duty industrial electronics applications.
In addition to meeting or exceeding demanding industrial application requirements for both watt-hours of energy
storage and watts of power delivery per kilogram, all of these products will perform reliably for more than one
million discharge-recharge cycles.
The proprietary architecture and material science of the BOOSTCAP® products enable continued leadership
in controlling costs, flexibility in product offerings and allow application specific performance tailoring. The cells
operate at 2.7 volts, enabling them to store more energy and deliver more power per unit volume than any other
commercially available ultracapacitor products.
MC Energy Series
BOOSTCAP
®
Ultracapacitors
|
Page 1
| Doc. # 1009323 | Rev. 8 |
MC Energy Series
BOOSTCAP
®
Ultracapacitors
>
MC Energy Series Specifications:
Item
Operating Temperature Range
Storage Temperature Range
Rated Voltage
Capacitance Tolerance
Resistance Tolerance
Temperature Characteristics
Capacitance Change
Internal Resistance
Capacitance Change
Internal Resistance
Shelf Life
Performance
-40 °C to +65 °C
-40 °C to +70 °C
2.7 V DC
+20%
Max.
Within ± 5% of initial measured value at 25 °C ( at -40 °C)
Within 150% of initial measured value at 25 °C (at -40 °C)
Within 20% of initial specified value
Within 60% of initial specified value
After 1500 hours application of rated voltage at 65 °C
Endurance
After 1500 hours storage at 65 °C without load shall meet specification for endurance
After 10 years at rated voltage and 25 °C
Capacitance Change
Internal Resistance
Within 30% of initial specified value
Within 150% of initial specified value
Life Test
Cycle Test
Vibration Standard
Capacitors cycled between specified voltage and half rated voltage under constant
current at 25 °C (1 million)
Capacitance Change
Internal Resistance
SAEJ2380
Within 30% of initial specified value
Within 150% of initial specified value
>
MC Energy Product Specifications:
Part Number
BCAP0650 E270
BCAP1200 E270
BCAP1500 E270
BCAP2000 E270
BCAP3000 E270
Capacitance
(F)
650
1200
1500
2000
3000
ESR, DC
(mohm)
1.15
0.79
0.63
0.46
0.37
ESR, 1khz
(mohm)
0.80
0.56
0.43
0.35
0.30
Ic
(mA)
1.5
2.7
3.0
4.2
5.2
>
MC Energy Product Properties:
Maxwell Part No.
BCAP0650 E270
BCAP1200 E270
BCAP1500 E270
BCAP2000 E270
BCAP3000 E270
Rth
(C/W)
6.5
5.3
4.5
3.8
3.2
Isc
(A)
3500
3750
3900
4300
4800
Emax
(Wh/kg)
3.29
4.05
4.75
5.06
5.52
Pmax
(W/kg)
11,300
10,800
13,200
13,000
11,000
Pd
(W/kg)
3,800
3,600
4,300
4,700
4,200
MC Energy Series
BOOSTCAP
®
Ultracapacitors
|
Page 2
| Doc. # 1009323 | Rev. 8 |
MC Energy Series
BOOSTCAP
®
Ultracapacitors
>

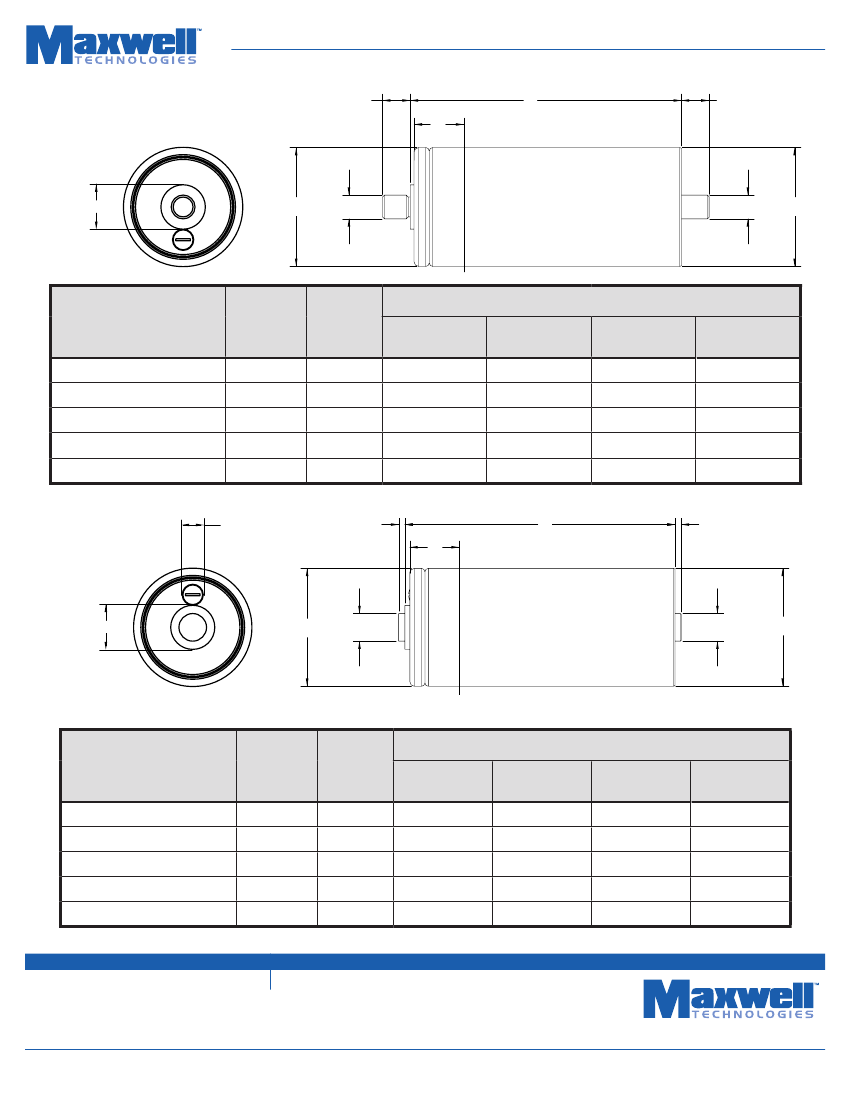

Mounting Requirements:
Do not reverse polarity.
Maximum torque for M12 screw terminals is 10Nm.
Cells are designed to be connected into series or parallel strings.
Clean terminals so each are free of external contaminants and oxidation before mounting.
Do not mount cells in excessive axial tension or compression.
Do not apply bending torque to terminals of cells or on cell body during module assembly.
Avoid module configurations that apply static or dynamic bending forces on the terminals or
body of the cell.
When mounting cells horizontally support the cell body along its length in multiple locations.
>
Markings:
Capacitors are marked with the following information - Rated capacitance and rated voltage as well as ener-
gy/power type indication in the product naming. Serial number, name of manufacturer, positive and negative
terminal, warning marking.
>
Additional Technical Information:
Capacitance and ESR, DC measured per document 1007239
Ic= Leakage current after 72 hours, 25˚C
Rth = Thermal resistance
E
max
=
½
CV
2
3600 x
mass
lsc = short circuit current (maximum peak current)
0.12V
2
P
d
=
R (DC)
mass
V
2
P
max
=
4R
(1khz)
mass
U.S. PATENT NOs. 6,631,074, 6,643,119, 6,804,108, 6,813,139, 6,842,330, 7,090,946, 7,295,423,
OTHER PATENTS PENDING
Maxwell Technologies, Inc. and its Affiliates (“Maxwell”) provide no warranties of any kind either express or implied, including
(without limitation) the implied warranties of merchantability and fitness, for uses of its products as components in life support
devices or critical systems.
“Life support devices” are devices or systems, which (a) are intended for surgical implant into a living body, or (b) support or
sustain life, and whose failure to perform when properly used in accordance with the instructions provided in the labeling can
be reasonably expected to result in bodily injury to the user. An example of a life support device includes, but is not limited to, a
heart pacemaker.
A “critical system” is any system whose failure to perform can affect the safety or effectiveness of a higher level system, or cause
bodily or property injury by loss of control of the higher level device or system. An example of a critical system includes, but is
not limited to, aircraft avionics.
Maxwell will not be liable to you for any loss or damages, either actual or consequential, indirect, punitive, special, or incidental,
arising out of or relating to these terms.
Worldwide Headquarters
MAxwELL TECHnOLOgIES
9244 Balboa Avenue • San Diego, 92123 CA, USA
PHOnE:
+(1) 858 503 3300
FAx:
+(1) 858 503 3301
EMAIL:
info@maxwell.com
European Office
MAxwELL TECHnOLOgIES SA
CH-1728 Rossens • Switzerland
PHOnE:
+41 (0) 26 411 85 00
FAx:
+41 (0) 26 411 85 05
EMAIL:
info@maxwell.com
Disclaimer of Warranty/Limitation of Liability for Uses in Life Support Devices or Critical Systems
www.maxwell.com
|
Page 4
| Doc. # 1009323 | Rev. 8 |
