3-1415410-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3-1415410-9

3-1415410-9: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.06A (COIL), 6VDC (COIL), 360mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size325KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1415410-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1415410-9	-	-	View	Buy Now

3-1415410-9 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.06A (COIL), 6VDC (COIL), 360mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1415410-9 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	conform to
Objectid	1803159093
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks 1 day
Other features	QUICK CONNECT TERMINALS ALSO AVAILABLE
body width	12.5 mm
body height	28.5 mm
Body length or diameter	31.5 mm
Maximum coil current (DC)	0.06 A
Coil operating voltage (DC)	3.6 V
Coil power	360 mW
Coil release voltage (DC)	0.3 V
Coil resistance	100 Ω
Maximum coil voltage (DC)	6 V
Nominal coil voltage	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	4000VA@400VAC
Contact (AC) maximum rated R load	16A@400VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Maximum contact voltage (AC)	400 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	50000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-20 °C
method of packing	TRAY
physical size	31.5mm x 12.5mm x 28.5mm
Guideline	BEAB; SEMKO; UL; VDE
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
seal	RT2
surface mount	NO
Termination type	SOLDER
weight	24 g

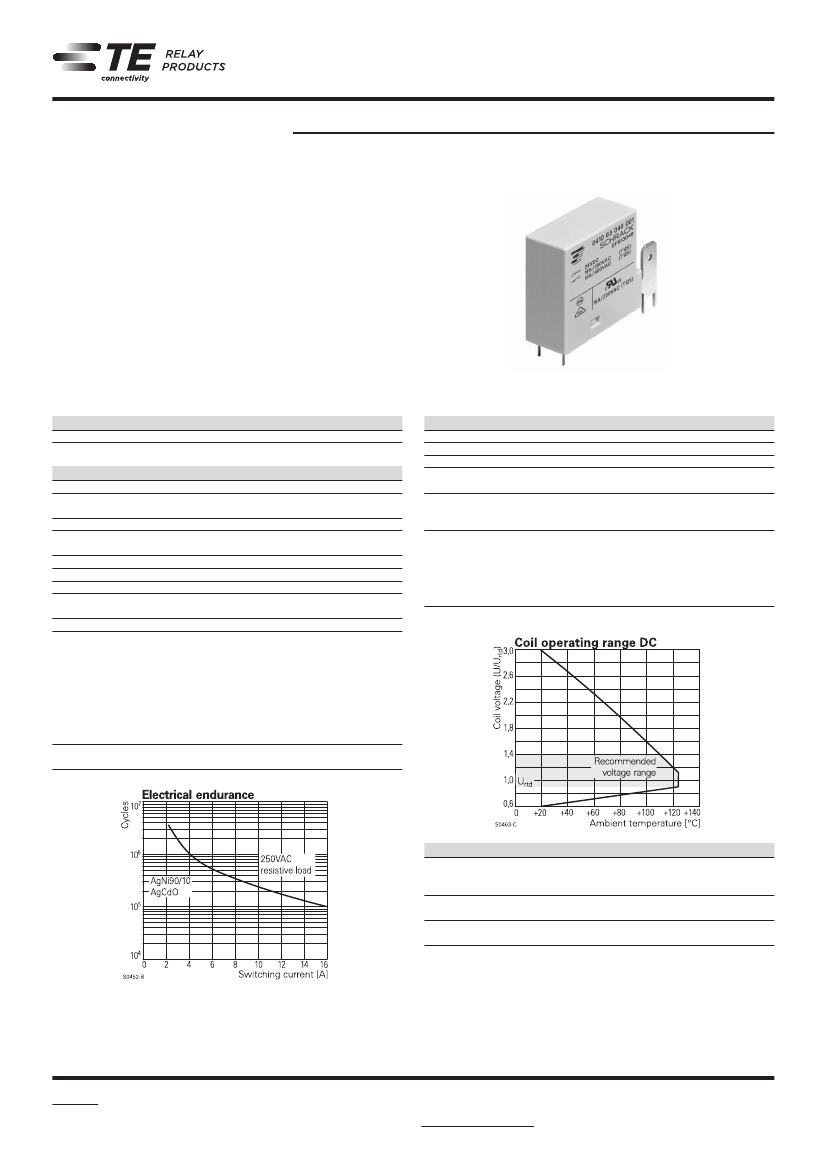

Preview

Download Datasheet

View All

General Purpose Relays

PCB Relays

Power Relay 41063 125°C

SCHRACK

1 pole 16A, 1 form A (NO) or 1 form B (NC) contact

Switching capacity 4000VA

Coil power 360mW

4kV/8mm coil-contact, insulation to VDE 0631 and 0700

Ambient temperature up to 125°C

Quick connect terminals for load side

WG version: Materials in accordance to IEC 60335-1

Typical applications

White goods appliances, oven control, electric heating, power supplies, air

conditioning, motors, magnetic valves

F0248-BA

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil insulation system according UL1446

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

054

3.6

053

5.5

050

7.3

046

14.6

043

29.2

042

36.5

Release

voltage

VDC

0.45

0.68

0.9

1.8

3.6

4.5

6 to 60VDC

class F

Coil

resistance

Ω±10%

100

230

400

1600

6400

10000

Rated coil

power

360

352

360

Approvals

VDE REG.-Nr. 3725, UL E214025

Technical data of approved types on request

Contact Data

Contact arrangement

1 form A (NO) or 1 form B (NC)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

16A

Limiting making current,

form A contact, max. 4s, duty factor 10%

25A

Breaking capacity max.

4000VA

Contact material

AgNi, AgCdO

Frequency of operation, with/without load

600/36000h

-1

Contact ratings

Type

IEC61810

410 63 … 001

410 63 … 002

410 63 … 005

410 63 … 006

Contact

A (NO)

B (NC)

A (NO)

B (NC)

Load

16A, 250VAC resistive, 125°C

12A, 250VAC resistive, 125°C

16A, 250VAC resistive, 105°C

16A, 250VAC resistive, 125°C

12A, 250VAC resistive, 125°C

16A, 250VAC resistive, 105°C

16A, 250VAC resistive, 125°C

>1x10

operations

Cycles

50x10

200x10

100x10

50x10

200x10

100x10

50x10

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Other coil voltages on request.

Mechanical endurance

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

Clearance/creepage

between contact and coil

Material group of insulation parts

Tracking index of relay base

1000V

rms

4000V

rms

≥8/8mm

IIIa

PTI250V

04-2011, Rev. 0411

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
