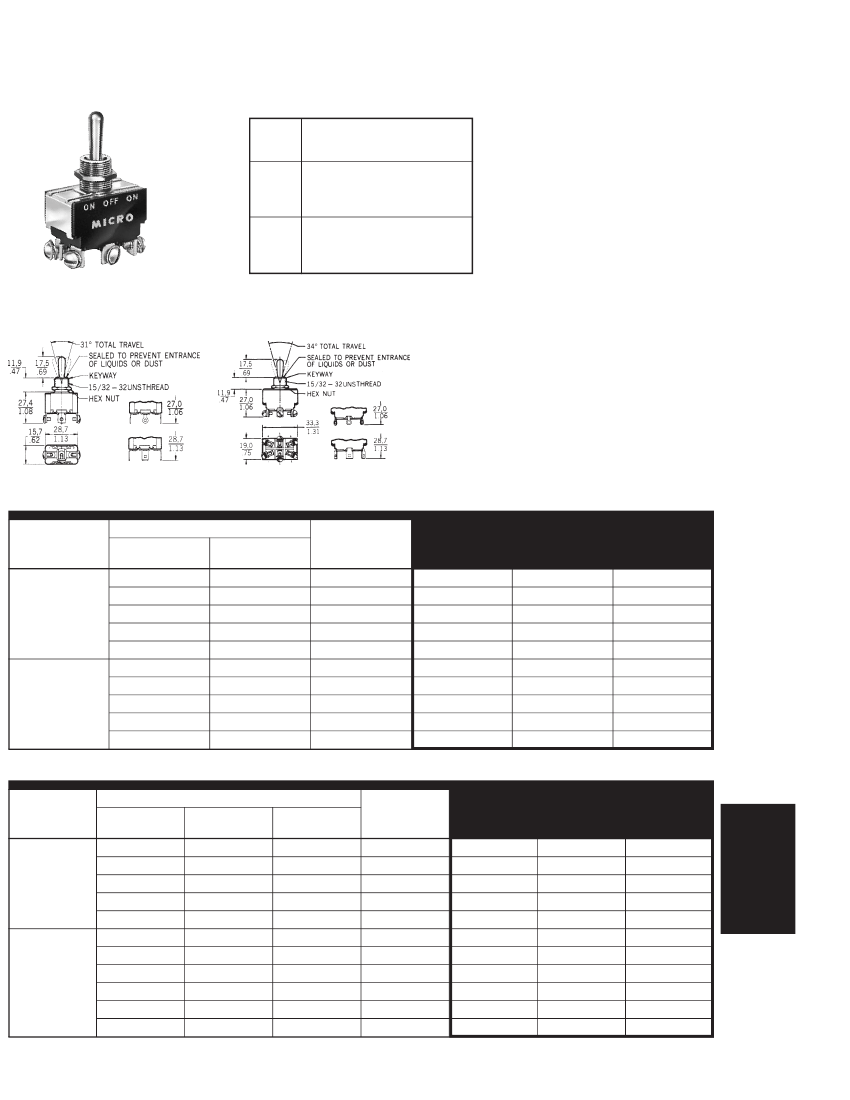

Manual Switches
Toggle Switches
ELECTRICAL RATINGS
UL/CSA
Rating
Code
L192
1
⁄
4
TS Series
FEATURES
2 or 3-position, momentary and
maintained action.
1 and 2-pole circuitry.
Rated up to 15 amps.
Lever-to-bushing seal.
Solder, screw, or quick-connect
terminals.
UL recognized, CSA certified.
CE approved
Colored sleeves for levers (not shown)
can also be furnished. See page 135
2-pole shown
Electrical Rating
10 Amps, 125, 250, 277 VAC
HP, 125 VAC
1
⁄
2
HP, 250, 277 VAC
3 Amps, 125 VAC ‘‘L’’
15 Amps, 125, 250, 277 VAC
HP, 125 VAC
1 HP, 250, 277 VAC
5 Amps, 125 VAC (L)
1
⁄
2
L191
MOUNTING DIMENSIONS
(For reference only)
1-pole
2-pole
TERMINAL CIRCUIT IDENTIFICATION
Terminal identifications are referred to in the Order-
ing Charts to indicate which circuits are made in
each toggle position (i.e., 1-2 reference indicates
circuit closure through terminals 1 and 2).
Application Note:
Honeywell MICRO SWITCH
does
not
recommend the use of silver cadmium
oxide switch contacts in non-arcing loads. Non-
arcing loads are generally loads less than 12 volts
and/or 0.5 amp. TS switches use silver cadmium
oxide contacts. If you have questions, contact the
MICRO SWITCH Application Center at 1-800-537-
6945.
2-POSITION ORDER GUIDE
Circuit(s) Made With Toggle At:
No. Of Poles
1
Keyway
Position
OFF
2-1 ON
OFF*
2-1 ON*
2-1 ON*
2
OFF
2-1 & 5-4 ON
OFF*
2-1 & 5-4 ON*
2-1 & 5-4 ON*
Opposite
Keyway
2-3 ON
2-3 ON
2-3 ON
OFF
2-3 ON
2-3 & 5-6 ON
2-3 & 5-6 ON
2-3 & 5-6 ON
OFF
2-3 & 5-6 ON
UL/CSA
Rating
Code
L191
L191
L192
L192
L192
L191
L191
L192
L192
L192
Screw
Terminals
11TS15-2
11TS15-3
11TS15-4
11TS15-6
11TS15-8
12TS15-2
12TS15-3
12TS15-4
12TS15-6
12TS15-8
12TS115-8
Solder
Terminals
11TS115-2
11TS115-3
11TS115-4
11TS115-6
11TS115-8
12TS115-2
12TS115-3
12TS95-2
12TS95-3
Quick-Connect
Terminals
11TS95-2
11TS95-3
11TS95-4
11TS95-6
3-POSITION ORDER GUIDE
Circuit(s) Made With Toggle At:
No. Of Poles
1
Keyway
Position
2-1 ON
NONE
2-1 ON*
2-1 ON*
2-1 ON*
2
2-1 & 5-4 ON
NONE
2-1 & 5-4 ON*
2-1 & 5-4 ON*
2-1 & 5-4 ON*
2-1 & 5-4 ON
Center
Position
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2-1 & 5-6 ON
Opposite
Keyway
2-3 ON
2-3 ON
2-3 ON
NONE
2-3 ON*
2-3 & 5-6 ON
2-3 & 5-6 ON
2-3 & 5-6 ON
NONE
2-3 & 5-6 ON*
2-3 & 5-6 ON
UL/CSA
Rating
Code
L191
L191
L192
L192
L192
L191
L191
L192
L192
L192
L191
12TS15-7
12TS95-7
12TS95-10
121
12TS15-5
12TS115-5
12TS95-5
11TS15-7
12TS15-1
11TS115-7
12TS115-1
11TS95-7
12TS95-1
11TS15-5
11TS115-5
11TS95-5
Screw
Terminals
11TS15-1
Solder
Terminals
11TS115-1
Quick-Connect
Terminals
11TS95-1
Toggle/Rockers
* Marked toggle positions are momentary. All other positions are maintained.
