5962-9227403MXX datasheet, PDF

5962-9227403MXX: DescriptionBus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48; Categorylogic logic; File Size207KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

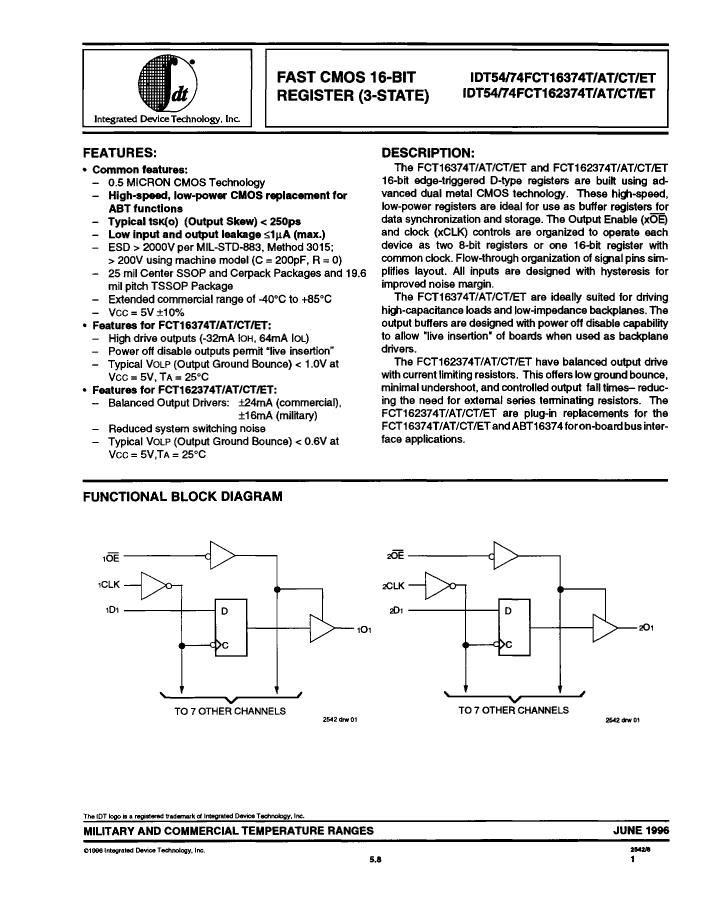

5962-9227403MXX Overview

Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,

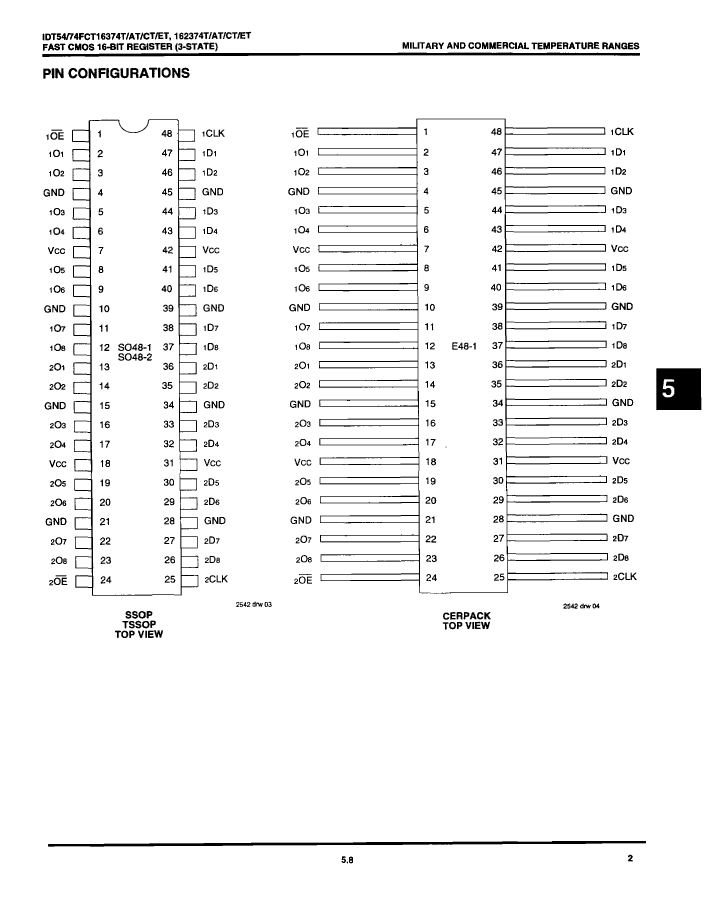

Contacts	48
Reach Compliance Code	unknown
Other features	MAX OUTPUT SKEW = 0.5NS; TYP VOLP < 0.6V @ VCC = 5V, TA = 25 DEGREE C
series	FCT
JESD-30 code	R-GDFP-F48
JESD-609 code	e0
length	15.875 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48

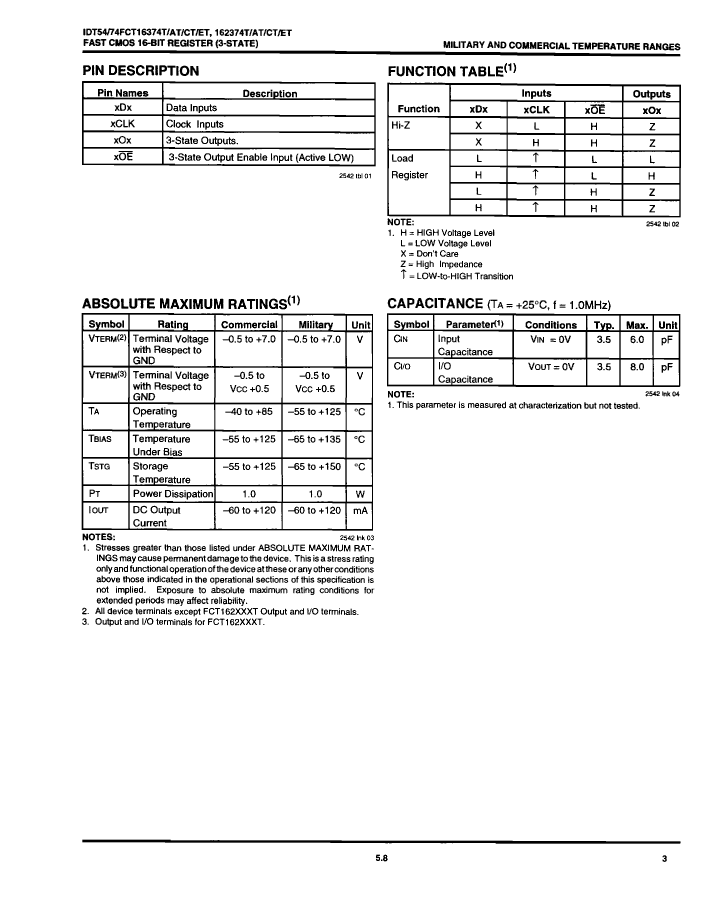

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	6.2 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.413 mm

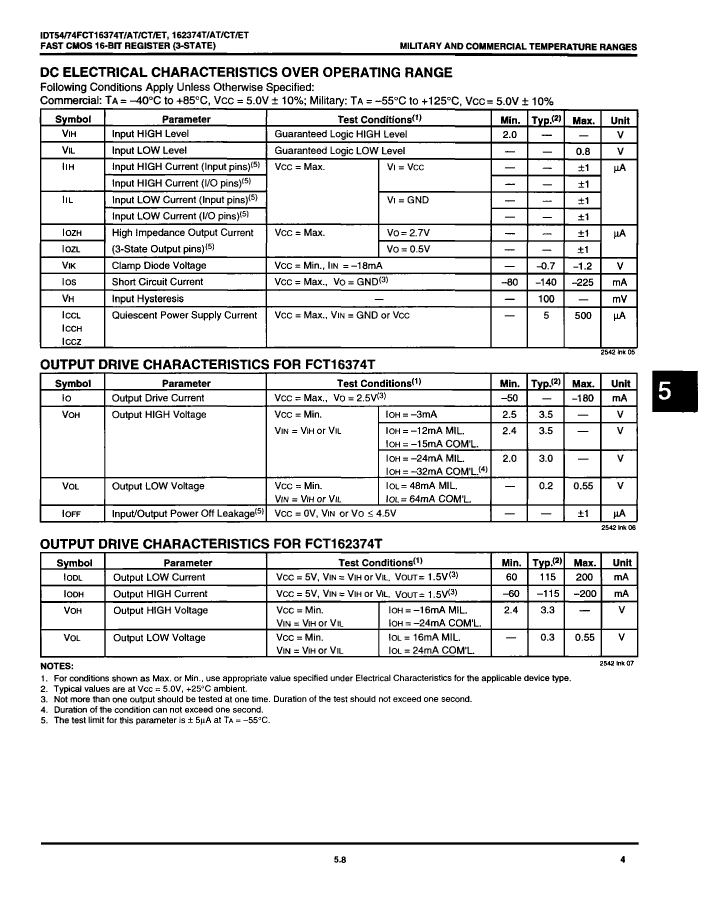

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V

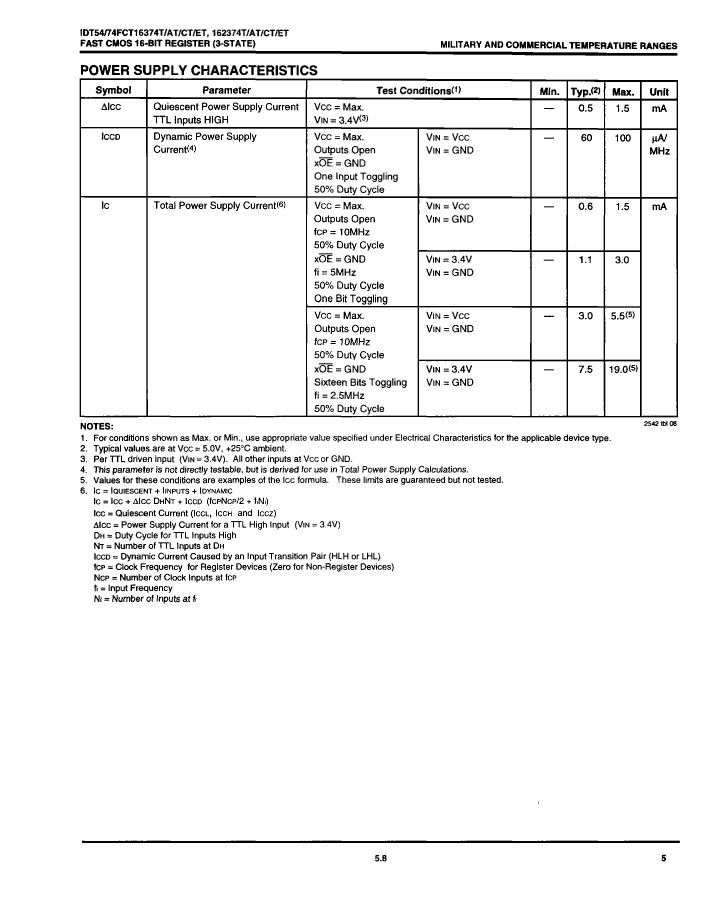

Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
width	9.652 mm
Base Number Matches	1
