BK/AGX-30V: DescriptionFAST BLOW ELECTRIC FUSE, 30A, 32VAC, 1000A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size117KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK/AGX-30V Overview

FAST BLOW ELECTRIC FUSE, 30A, 32VAC, 1000A (IR), THROUGH HOLE

BK/AGX-30V Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	26.47 mm
Body length or diameter	6.76 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Manufacturer's serial number	AGX
Installation features	THROUGH HOLE
method of packing	BOX
physical size	6.76mm x 26.47mm
Rated breaking capacity	1000 A
Rated current	30 A
Rated voltage (AC)	32 V
Guideline	CSA
surface mount	NO
Terminal surface	TIN
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

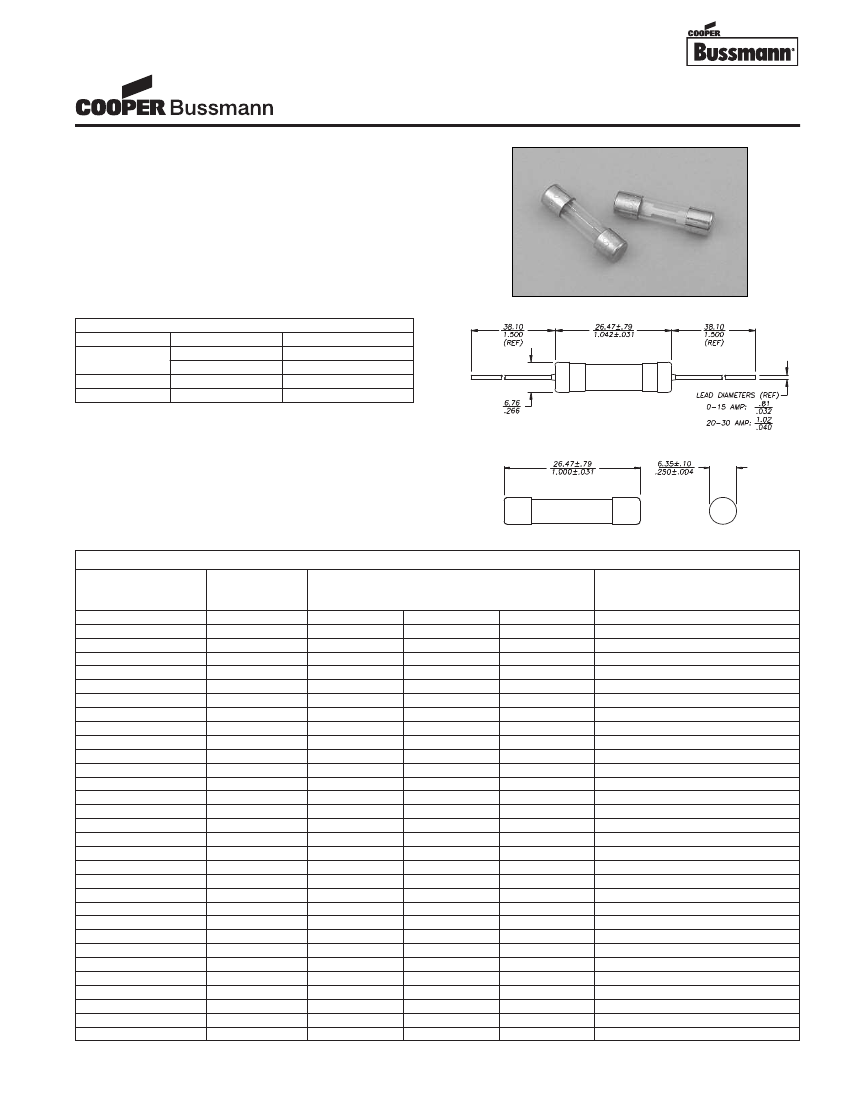

1/4" x 1" Fuses

AGX Series, Fast Acting, Glass Tube

Description

• Fast acting

• 1/4" x 1 (6.3mm x 25.4mm) physical size

• Glass tube, nickel-plated brass endcap construction

• For instruments, electronic and small appliance circuits

• Mounts in Buss panel mounted fuseholders types HJM,

HMS and HJL

• In-line fuseholder types HHB, HFB

• Fuseblocks 4520 and 3808 series, and 1/4" clips

• UL Listed product meets standard 248-14

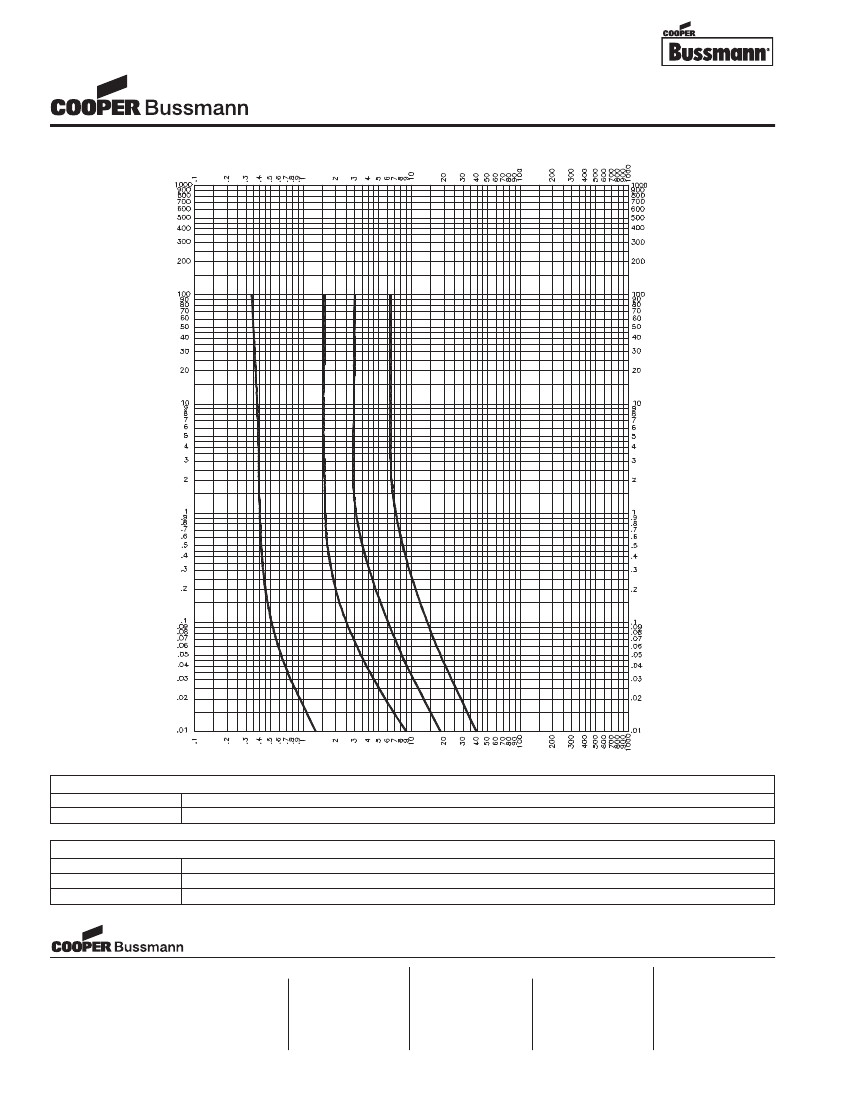

ELECTRICAL CHARACTERISTICS

Rated Current % of Amp Rating

Opening Time

110%

4 hours minimum

1/500 - 30A

135%

60 minutes maximum

1/500 - 2A

200%

5 seconds maximum

2.5A - 30A

200%

2 minutes maximum

Dimensions

mm

⁄

(inches)

Agency Information

• UL Listed Card: AGX 0-5A (Guide JDYX, File E19180)

• UL Recognized Card: AGX 6-20A (Guide JDYX2,

File E19180)

• CSA Component Acceptance Card

(Class No. 1422-01, File 53787)

Ordering

• Specify packaging, product, and option code

SPECIFICATIONS

Product Code

AGX-1/500

AGX-1/200

AGX-1/100

AGX-1/32

AGX-1/16

AGX-1/10

AGX-1/8

AGX-3/16

AGX-2/10

AGX-1/4

AGX-3/10

AGX-3/8

AGX-4/10

AGX-1/2

AGX-3/4

AGX-1

AGX-1-1/4

AGX-1-1/2

AGX-2

AGX-2-1/2

AGX-3

AGX-4

AGX-5

AGX-6

AGX-7

AGX-8

AGX-10

AGX-15

AGX-20

AGX-25

AGX-30

Voltage

Rating

AC

250V

125V

32V

250VAC

35A

100A

-

Interrupting

Rating

125VAC

10,000A

1,000A

-

32VAC

-

1,000A

Typical DC Cold

Resistance

(ohms)**

1750.00000

285.00000

155.00000

35.00000

22.50000

10.25000

5.41000

3.11500

2.66000

2.79000

1.42500

0.93050

0.89900

0.47850

0.26000

0.16250

0.12750

0.09400

0.06825

0.04930

0.03825

0.02700

0.02050

0.01475

0.01275

0.01100

0.00867

0.00510

0.00358

0.00275

0.00215

** DC Cold Resistance (Measured at <10% of rated current)
