LCA1/0-38F-X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> LCA1/0-38F-X

LCA1/0-38F-X: Descriptionterminals copper comp lug 1H 1/0 awg; CategoryThe connector terminals; File Size79KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LCA1/0-38F-X Overview

terminals copper comp lug 1H 1/0 awg

LCA1/0-38F-X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panduit
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	0 AWG

Preview

Download Datasheet

View All

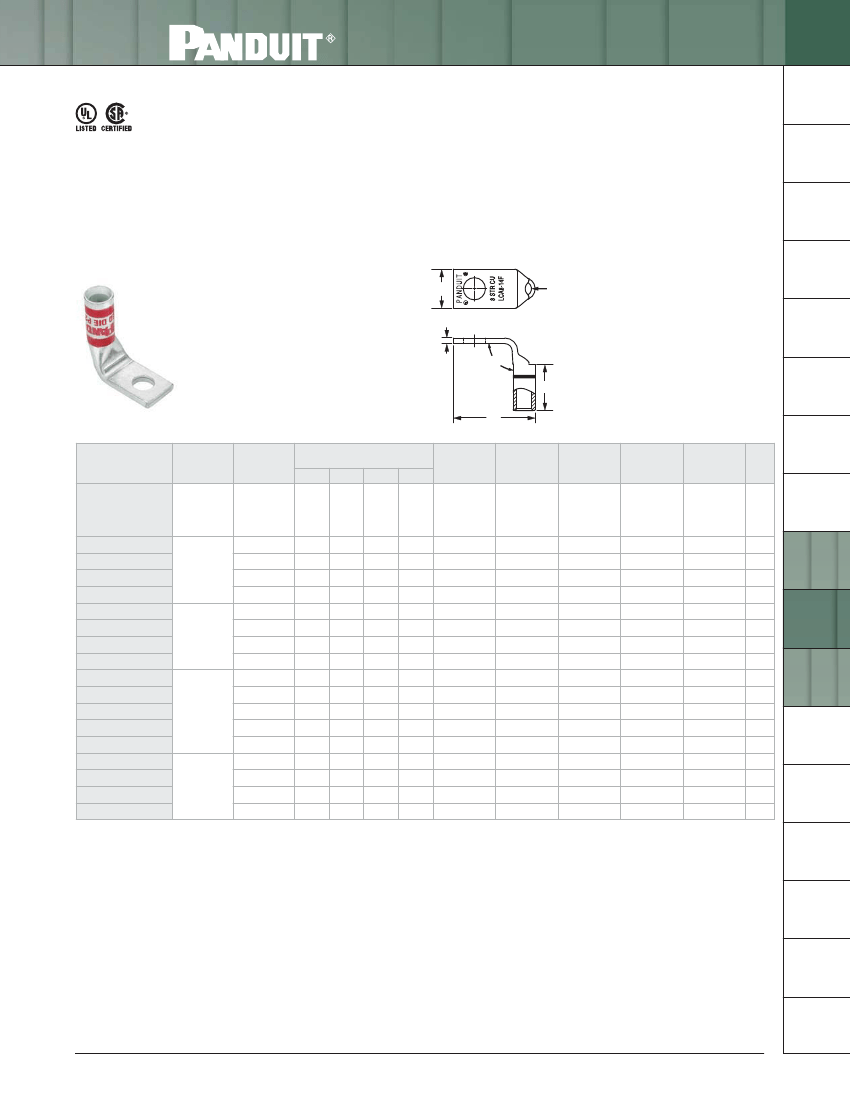

ELECTRICAL SOLUTIONS

Code Conductor, One-Hole, Standard Barrel with Window Lug, 90° Angle

For Use with Stranded Copper Conductors

Type LCA-F

• Color-coded barrels marked with Panduit and specified competitor

die index numbers for proper crimp die selection

• Inspection window to visually assure full conductor insertion

• Tin-plated to inhibit corrosion

• UL Listed and CSA Certified to 35 KV** and temperature rated

to 90°C when crimped with Panduit and specified competitor

crimping tools and dies

• UL Listed and CSA Certified for wide wire range-taking capability

when crimped with Panduit

Uni-Die

™

Dieless Crimping Tools‡

•

Tested by Telcordia

–

meets NEBS Level 3

• American Bureau of Shipping Approved

System

Overview

B1.

Cable Ties

B2.

Cable

Accessories

INSPECTION

WINDOW

B3.

Stainless

Steel Ties

90˚

C1.

Wiring

Duct

Figure Dimensions

(In.)

0.42

0.38

0.05

0.94

C2.

Surface

Raceway

Part Number

LCA10-14F-L*

Copper

Conductor

Size

#14 – #10

AWG STR,

#12 – #10

AWG SOL

Stud Hole

Size

(In.)

1/4

Panduit

Color

Code

—

Panduit

Die Index

No.‡

—

Burndy

Die Index

No.‡

—

T&B

Die Index

No.‡

—

Wire Strip

Length

(In.)

7/16

Std.

Pkg.

Qty.

C3.

Abrasion

Protection

C4.

Cable

Management

LCA8-10F-L

LCA8-14F-L

LCA8-56F-L

LCA8-38F-L

LCA6-10F-L

LCA6-14F-L

LCA6-56F-L

LCA6-38F-L

LCA4-10F-L

LCA4-14F-L

LCA4-56F-L

LCA4-38F-L

LCA4-12F-L

LCA2-14F-Q

LCA2-56F-Q

LCA2-38F-Q

LCA2-12F-Q

#2 AWG

#4 – #3

AWG STR,

#2 AWG

SOL

#6 AWG

#8 AWG

#10

1/4

5/16

3/8

#10

1/4

5/16

3/8

#10

1/4

5/16

3/8

1/2

1/4

5/16

3/8

1/2

0.41

0.48

0.56

0.60

0.45

0.48

0.56

0.62

0.55

0.62

0.75

0.60

0.66

0.75

0.56

0.81

0.88

0.08

0.07

0.05

0.09

0.08

0.07

0.06

0.09

0.07

0.10

0.08

0.90

0.99

1.11

1.21

0.94

1.03

1.15

1.25

1.03

1.12

1.24

1.34

1.59

1.24

1.36

1.44

1.67

Red

Blue

Gray

Brown

P21

P24

P29

P33

5/8

7/8

15/16

D1.

Terminals

D2.

Power

Connectors

D3.

Grounding

Connectors

E1.

Labeling

Systems

E2.

Labels

‡See pages D3.58 – D3.61 for tool and die information.

*Not tested to NEBS Level 3 requirements.

**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.

E3.

Pre-Printed

& Write-On

Markers

E4.

Permanent

Identification

E5.

Lockout/

Tagout

& Safety

Solutions

Index

Table continues on page D2.18

For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)

LCA1/0-38F-X Related Products

	LCA1/0-38F-X	LCA3/0-56F-X	LCA4/0-14F-X
Description	terminals copper comp lug 1H 1/0 awg	CONN TERM RECT TONG 3/0AWG #5/16	CONN TERM RECT TONG 4/0 AWG #1/4
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Panduit	Panduit	Panduit
Reach Compliance Code	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	8 weeks	8 weeks	8 weeks
terminal gender	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	WIRE TERMINAL	WIRE TERMINAL	WIRE TERMINAL
Wire gauge	0 AWG	0 AWG	0 AWG
