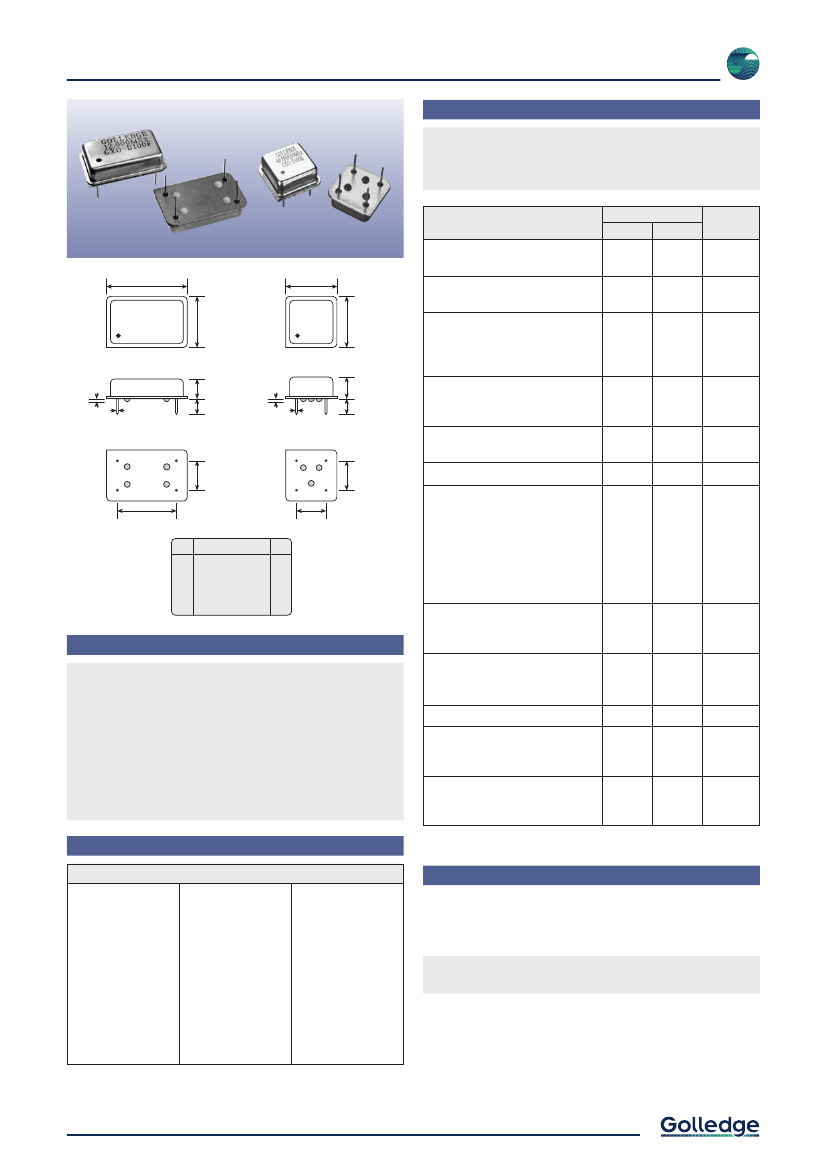

5V Oscillator
Specifications
GXO-U100
GXO-U100F: Full size (14 pin DIL)
GXO-U100H: Half size (8 pin DIL)
Parameters
20.80
(max)
13.08
(max)
Variant
F
H
Option
Codes
Package style:
14 pin DIL (full size)
8 pin DIL (half size)
Frequency range:
300kHz ~ 160MHz
13.08
(max)
13.08
(max)
Frequency stability:
±100ppm
±50ppm
±25ppm
Other
B
A
specify
0.80
0.46Ø
5.08
(max)
4.00
(min)
0.80
0.46Ø
5.70
(max)
4.00
(min)
Operating temperature range:
0 to +70°C
-40 to +85°C
Storage temperature range:
-55 to +125°C
I
1
14
7
8
7.62
1
8
4
5
7.62
Supply voltage (V
DD
):
+5.0V (±5%)
Supply current (max):
15mA (300kHz ~ 5.0MHz)
20mA (>5.0 ~ 24.0MHz)
30mA (>24.0 ~ 40.0MHz)
45mA (>40.0 ~ 60.0MHz)
60mA (>60.0 ~ 80.0MHz)
70mA (>80.0 ~ 110MHz)
50mA (>110 ~ 160MHz)
15.24
PIN
1
7
8
14
CONNECTION
Not connected
Ground
Output
Supply
PIN
1
4
5
8
7.62
Scale 1:1
Features
Driving ability:
50pF HCMOS / 10 TTL (<50.0MHz)
30pF HCMOS / 5 LSTTL (>50.0MHz)
Output voltage:
0 level = 0.4V max
1 level = 90% V
DD
min
Start up time:
10ms max
Rise / fall times:
6ns max (<80.0MHz)
5ns max (>80.0MHz)
Waveform symmetry @ 50% V
DD
:
45:55 max (<50.0MHz)
40:60 max (>50.0MHz)
Standard.
Optional - Please specify required code(s) when ordering
«
«
«
«
«
Standard frequencies held in stock
Express manufacturing service
Custom frequencies easily available
Low cost for volume applications
Industrial temperature range option
Standard Frequencies
Frequencies in MHz
1.00000
1.84320
2.00000
2.45760
3.68640
4.00000
4.09600
4.91520
5.00000
6.00000
8.00000
8.19200
9.83040
10.00000
11.28960
12.00000
14.31818
14.74560
16.00000
16.38400
18.43200
19.66080
20.00000
24.00000
24.57600
25.00000
25.17500
28.32200
28.63600
29.49120
30.00000
32.00000
33.33000
33.86880
40.00000
48.00000
50.00000
60.00000
64.00000
66.00000
72.00000
80.00000
Ordering Information
Product name + variant + option codes (if any) + frequency
e.g:
GXO-U100F 40.0MHz
±100ppm 0+70°C (standard)
GXO-U100F/BI 40.0MHz
±50ppm -40+85°C
Option code X (eg GXO-U100F/X) denotes a custom spec.
Preferred choice for leaded oscillator.
Gull wing version available for SM. Refer to our website for details.
Other frequencies available. Please consult our sales office.
