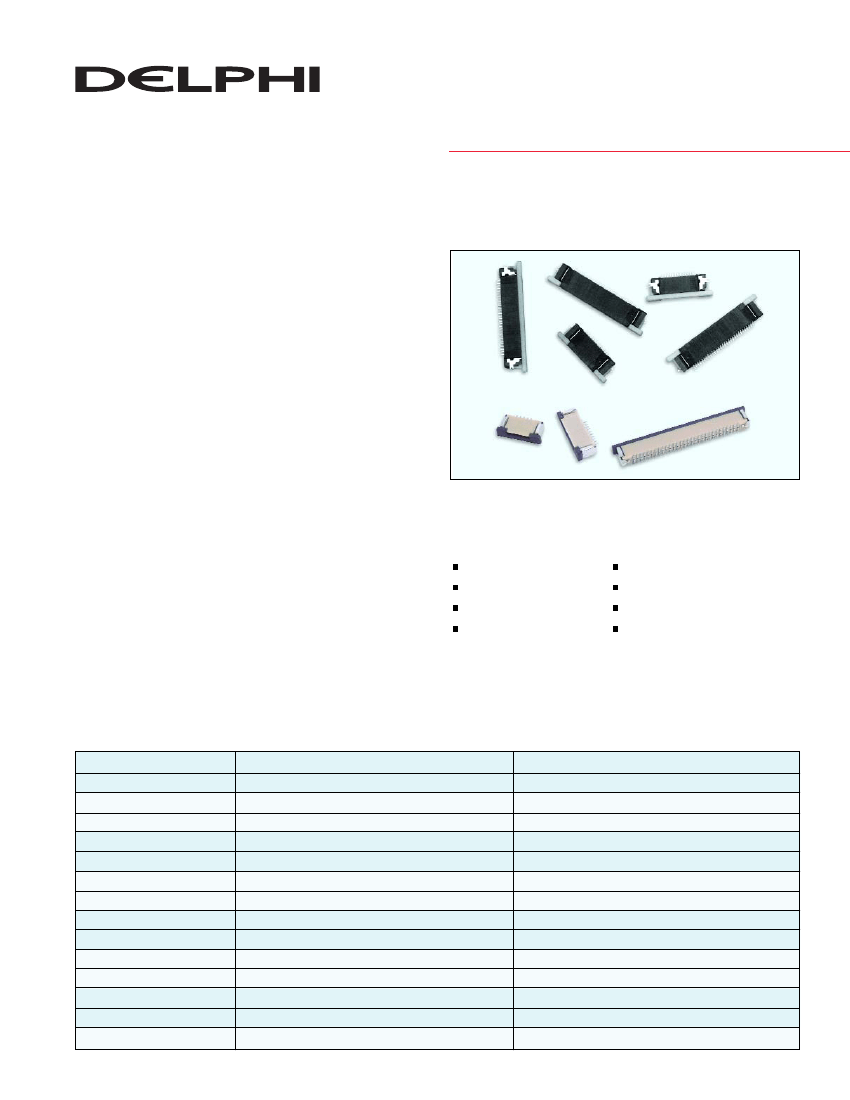

Description
Delphi Connection Systems’ 0.5mm and 1mm Pitch Flexible Printed
Circuit (FPC) Connectors interface with flat flexible cable or flexible
printed circuits. The contacts use a Zero Insertion Force (ZIF) actuator
mechanism which snaps down over the cable for termination.
0.5mm —
0.5mm Pitch FPC Connectors are horizontal configurations that interface
with pads on 0.5mm [0.020 in.] centers and with a thickness of 0.3mm
[0.012 in.]. Sizes accommodate 4 through 50 positions.
1mm —
1mm Pitch FPC Connectors are available in horizontal or vertical
configurations. These connectors interface with pads on 1mm centers
with a thickness of 0.3mm [0.12 in.]. Sizes accommodate 3 through 32
positions.
Typical Applications
FPC Connectors are used in a variety of electronic applications,
including:
Mobile phones
Keyboards
Disk drives
Fax machines
Handheld scanners
Keypads
Printers
Laptop and notebook computers
Industry Approvals
These components have been evaluated by Underwriters Laboratories
as recognized components, and are included in UL File E134099.
1mm
3 through 32
Top or bottom contact, horizontal or vertical formats
Surface mount (SMT)
Stamped and formed
Tubes (standard), or Tape & reel (available upon request)
Molded thermoplastic, UL94V-O
Phosphor bronze
1 amp max.
40 mΩ max. (final)
200 VAC RMS
-40°C to +85°C
30 cycles
2.54 µm [.100 µin.] tin/lead over nickel
Tan (natural)
Brown
Performance Characteristics
Total No. of Positions
Orientation
Mounting Style
Contact Style
Packaging Type
Insulator Material
Contact Base Material
Current Rating
Contact Resistance
Voltage Rating
Operating Temperature
Durability (Mating Cycles)
Plating (Contact Area)
Insulator Color
Actuator Color
0.5mm
4 through 50
Top or bottom contact, horizontal format
Surface mount (SMT)
Stamped and formed
Tubes (standard), or Tape & reel (available upon request)
Molded thermoplastic, UL94V-O
Phosphor bronze
0.3 amps max.
40 mΩ max. (final)
25 VDC
-25°C to +85°C
30 cycles
2.54 µm [.100 µin.] tin/lead over nickel
Black
Tan (natural)
Horizontal FPC
Connectors

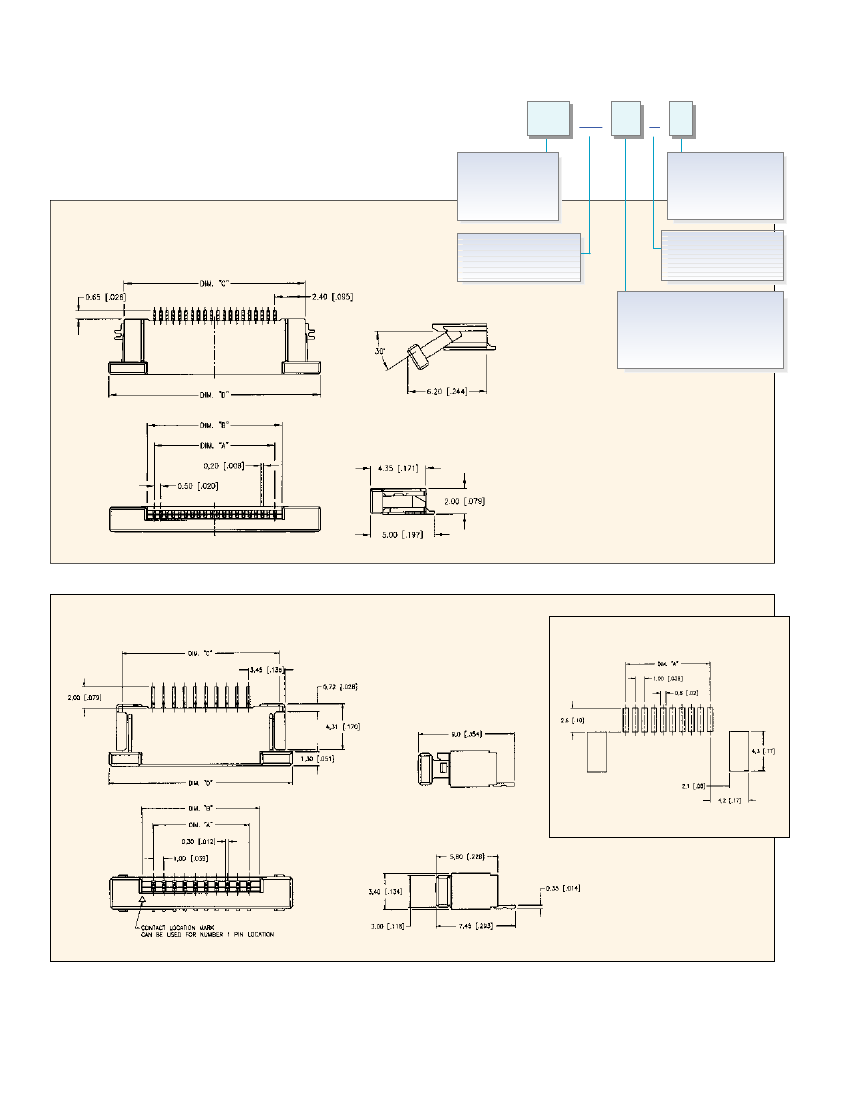

0.5mm Top Contact
Ordering Nomenclature
Series:
FPC HT 03 T R
Packaging:
T
= Tubes (standard)
R
= Tape and reel
Plating:
T
= Tin/lead
No. of Contact Positions:
04
through
50
= 0.5mm
03
through
32
= 1mm
FPC5
= 0.5mm
FPC
= 1mm
Configuration:
HT
= Horizontal Top
Actuator open

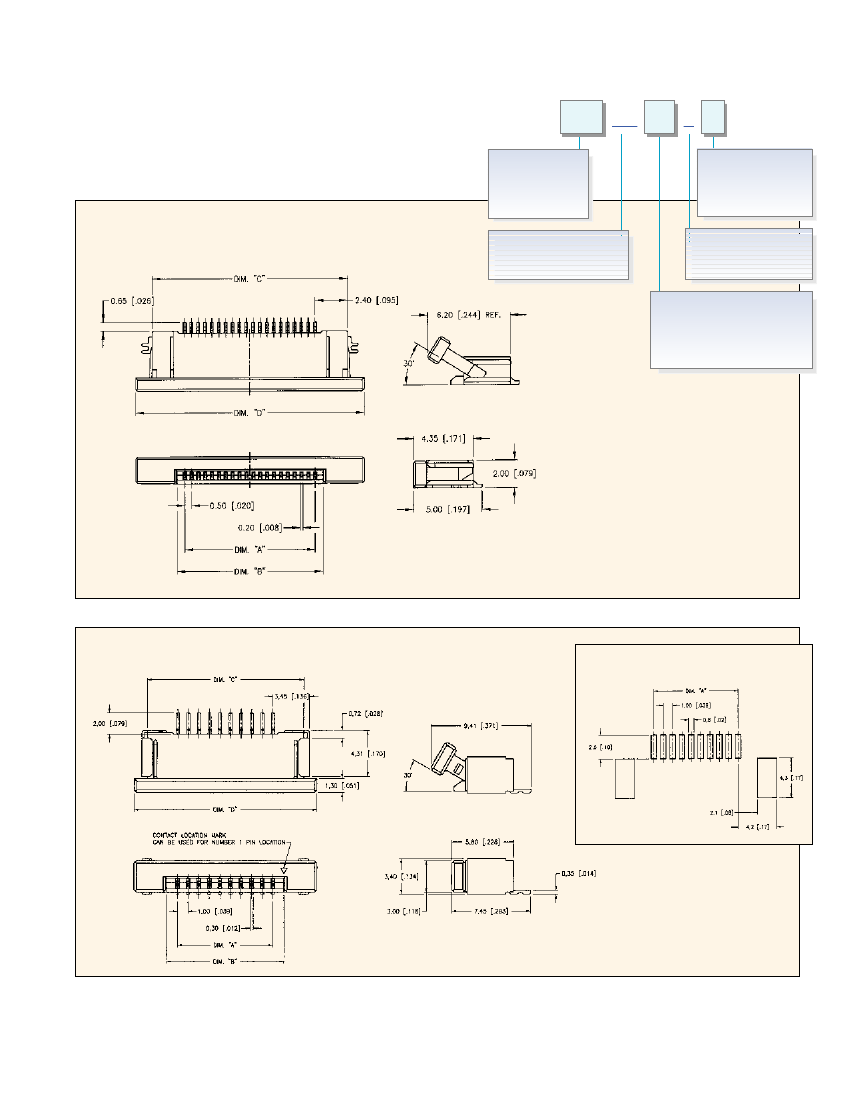

1mm Top Contact
PCB Layout
Actuator open
For dimensions “A”, “B”, “C”, and “D”, see charts on
page 6.
Dimensions shown are for reference only. Unless otherwise specified, dimensions are in millimeters and [inches].
2.
Delphi Connection Systems • www.delphi.com/connect
Horizontal FPC
Connectors
0.5mm Bottom Contact
Ordering Nomenclature
Series:
FPC HB 03 T R
Packaging:
T
= Tubes (standard)
R
= Tape and reel
Plating:
T
= Tin/lead
FPC5
= 0.5mm
FPC
= 1mm
Configuration:
HB
= Horizontal Bottom
No. of Contact Positions:
04
through
50
= 0.5mm
03
through
32
= 1mm
Actuator open
1mm Bottom Contact
PCB Layout
Actuator open
For dimensions “A”, “B”, “C”, and “D”, see charts on page 6.
Dimensions shown are for reference only. Unless otherwise specified, dimensions are in millimeters and [inches].
0.5mm and 1mm Pitch FPC Connectors • www.delphi.com/connect
3.
1mm Vertical
FPC Connectors

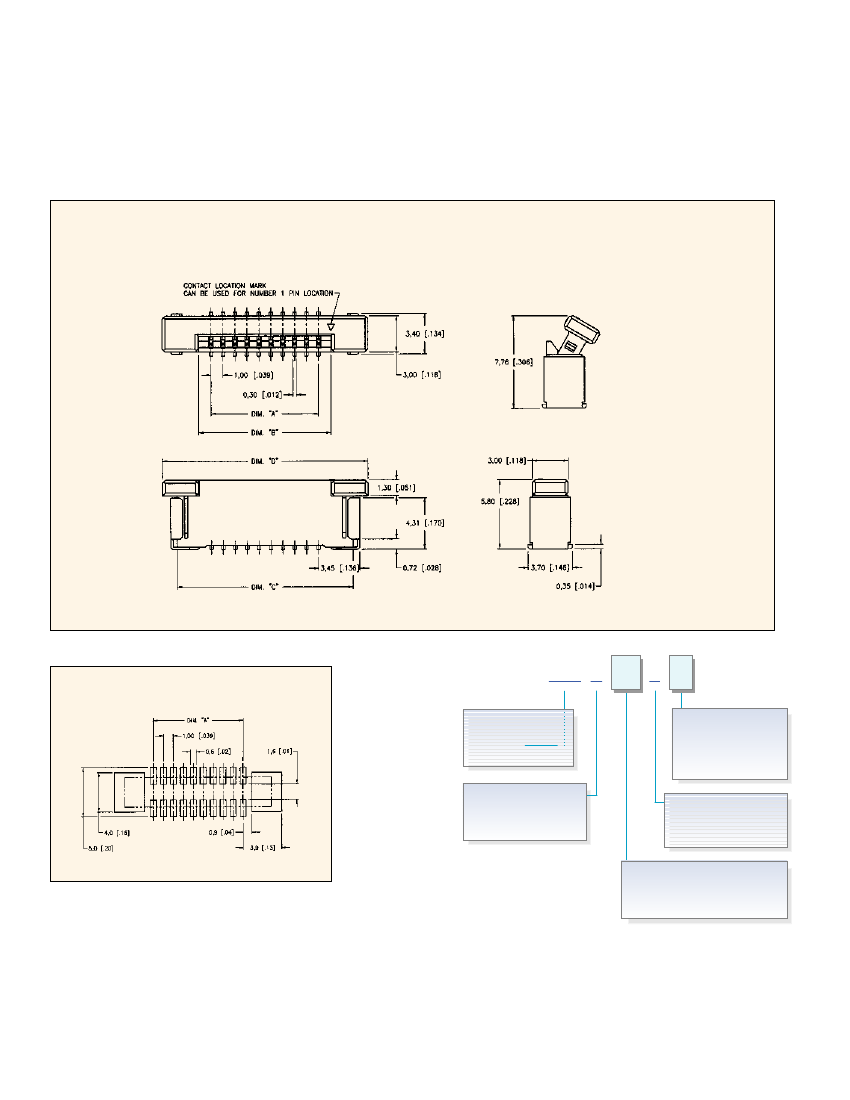

1mm Vertical Connectors
Actuator open
Ordering Nomenclature
PCB Layout
Series:
FPC
= 1mm
FPC V 03 T R
Packaging:
T
= Tubes (standard)
R
= Tape and reel
Configuration:
V
= Vertical
Plating:
T
= Tin/lead
No. of Contact Positions:
03
through
32
For dimensions “A”, “B”, “C”, and “D”, see chart on page 6.
Dimensions shown are for reference only. Unless otherwise specified, dimensions are in millimeters and [inches].
4.
Delphi Connection Systems • www.delphi.com/connect
0.5mm & 1mm
FPC Connectors

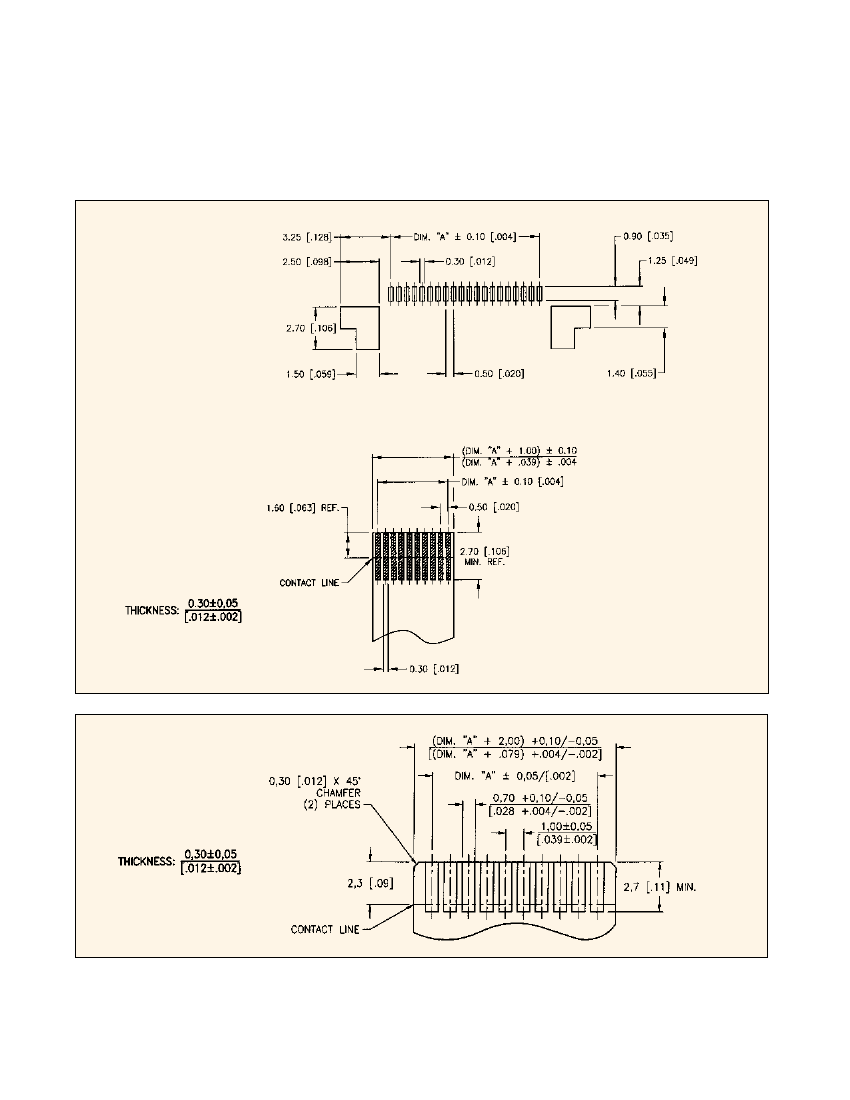

0.5mm PCB Layout
0.5mm Recommended
Mating Cable Layout
1mm Recommended
Mating Cable Layout
For dimensions “A”, “B”, “C”, and “D”, see charts on
page 6.
Dimensions shown are for reference only. Unless otherwise specified, dimensions are in millimeters and [inches].
0.5mm and 1mm Pitch FPC Connectors • www.delphi.com/connect
5.
