22AR100KLFTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 22AR100KLFTR

22AR100KLFTR: DescriptionRESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.125W, 100000ohm, ROHS COMPLIANT; CategoryPassive components The resistor; File Size158KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

22AR100KLFTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22AR100KLFTR	-	-	View	Buy Now

22AR100KLFTR Overview

RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.125W, 100000ohm, ROHS COMPLIANT

22AR100KLFTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 1413
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	885196
Samacsys Pin Count	3
Samacsys Part Category	Variable Resistor
Samacsys Package Category	Other
Samacsys Footprint Name	22AR100KLFTR-1
Samacsys Released Date	2019-10-24 14:25:08
Is Samacsys	N
Actuator direction	VERTICAL
Actuator type	SCREW
Other features	RATED AC VOLTAGE (V): 200
structure	Rectangular
gang number	1
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.21 mm
Package length	3.51 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR, 7 INCH
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	220 deg
size code	1413
surface mount	YES
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	HOOK
Tolerance	20%
Operating Voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

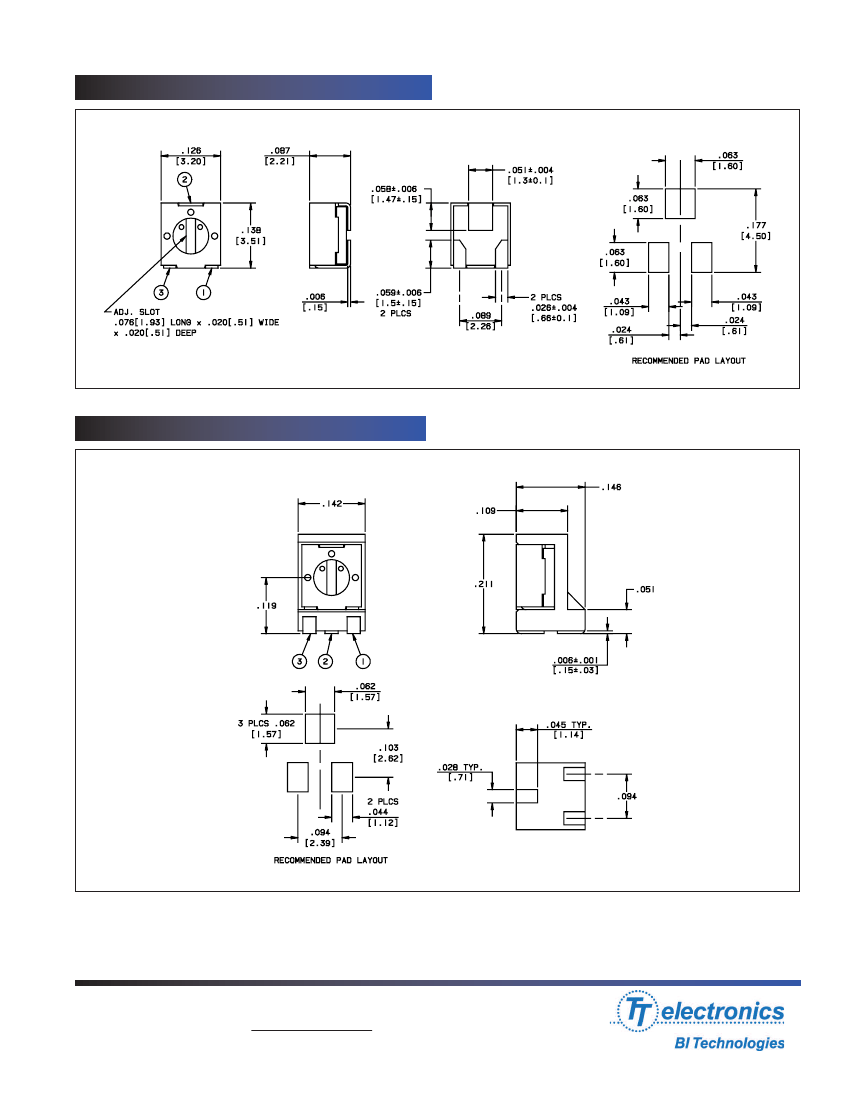

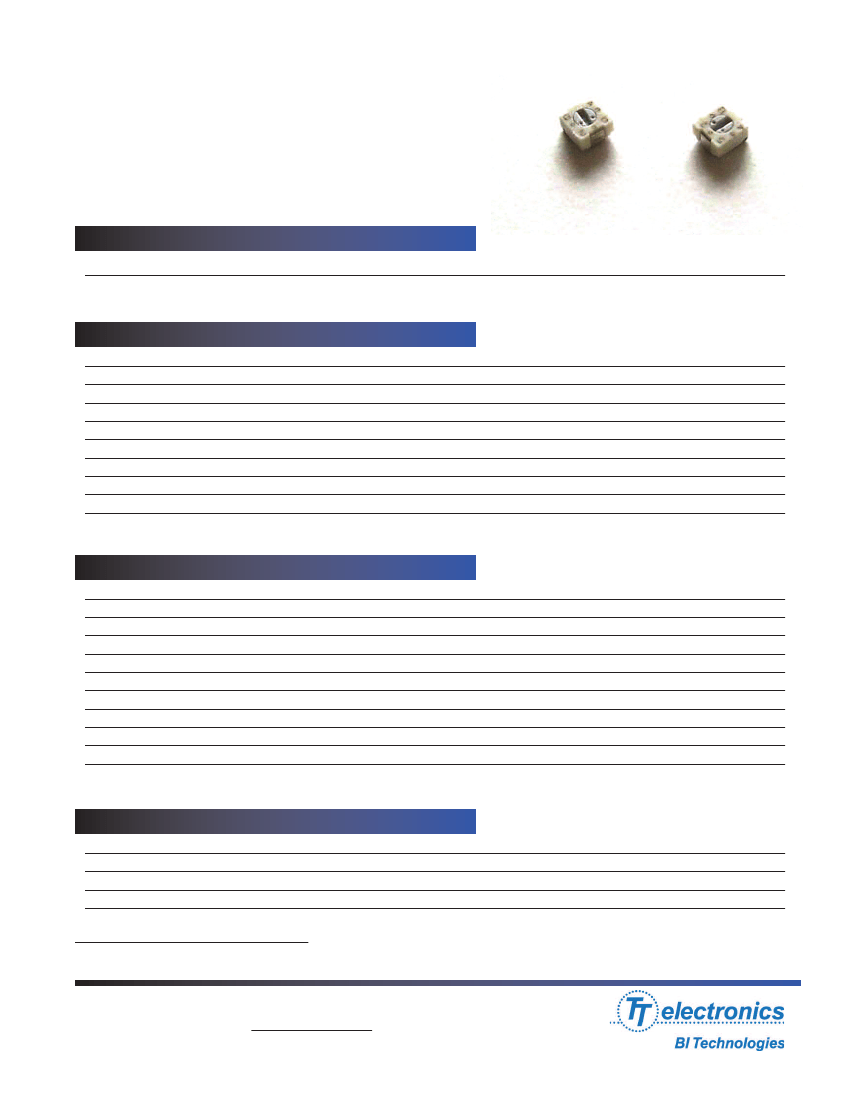

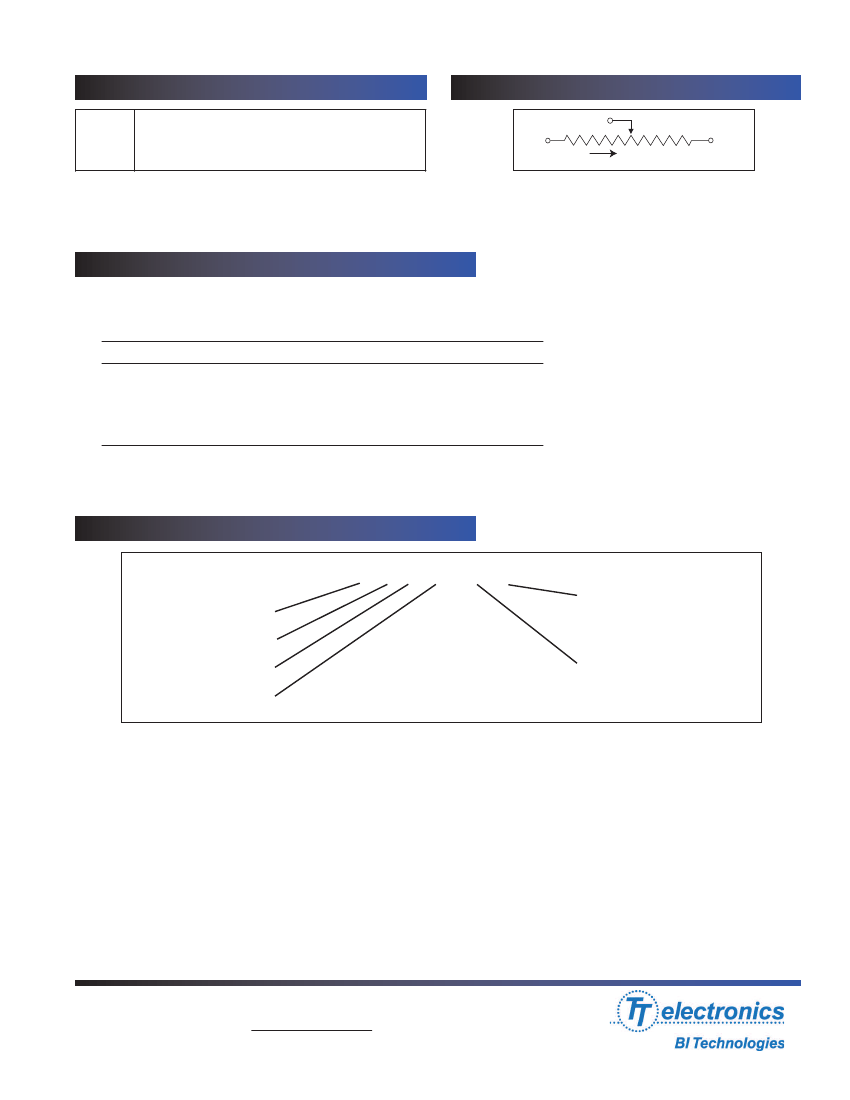

Model 22

3 mm Square

Sealed Single Turn

Surface Mount

Cermet Trimming Potentiometer

MODELS AVAILABLE

J Hook

Side Mount

22A

22S

ELECTRICAL

Standard Resistance Range

Standard Resistance Tolerance

Input Voltage

Power Rating

End Resistance

Actual Electrical Travel

Dielectric Strength

Insulation Resistance

Resolution

Contact Resistance Variation

10 Ohms to 2 Megohms

±20%

200 Vdc Max. or rms not to exceed power rating

0.125 Watts at 70°C derating to 0 at 125°C

1% or 3 Ohms Max., whichever is greater

220° nominal

500 Vrms

100 Megohms Min.

Essentially infinite

3% or 3 Ohms Max., whichever is greater

ENVIRONMENTAL

Seal

Temperature Coefficient

Operating Temperature Range

Thermal Shock

Moisture Resistance

Shock

Vibration

High Temperature Exposure

Rotational Life

Load Life

Resistance to Solder Heat

85°C Fluorinert® (No Leaks)

±100 ppm/°C (<100 Ohms = ±150 ppm/°C)

–55°C to +125°C

Five cycles –55°C to +125°C (2% ∆RT, 1% ∆VR)

Ten 24 hour cycles (3% ∆RT)

6 ms sawtooth, 100 G’s (1% ∆RT, 1% ∆VR)

20 G’s, 10 to 2,000 Hz (1% ∆RT, 1% ∆VR)

250 hours at 125°C (2% ∆RT, 2% ∆VR)

100 cycles (3% ∆RT)

1,000 hours at 70°C & 0.125 Watts (3% ∆RT, 1% ∆VR)

260°C for 5 seconds

MECHANICAL

Mechanical Stops

Stop Strength

Torque

Weight

Wiper Position

Specifications subject to change without notice.

Fluorinert® is a registered trademark of 3M Company.

Solid

1.3 oz.-in. Min. (300 g-cm)

0.65 oz.-in. Max. (150 g-cm)

0.002 oz. nominal (0.14 grams)

Approximately 50%

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

August 12, 2010

Website: www.bitechnologies.com

Model 22 page 1 of 3
