RSCK1/0-6-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> RSCK1/0-6-1

RSCK1/0-6-1: Descriptionterminals Cu comp lug inline reduce splice kits; CategoryThe connector; File Size57KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric View All

RSCK1/0-6-1 Overview

terminals Cu comp lug inline reduce splice kits

RSCK1/0-6-1 Parametric

Parameter Name	Attribute value
Manufacture	Pandui
Product Category	Terminals
RoHS	Yes
Factory Pack Quantity	1
Unit Weigh	45.359 g

Preview

Download Datasheet

View All

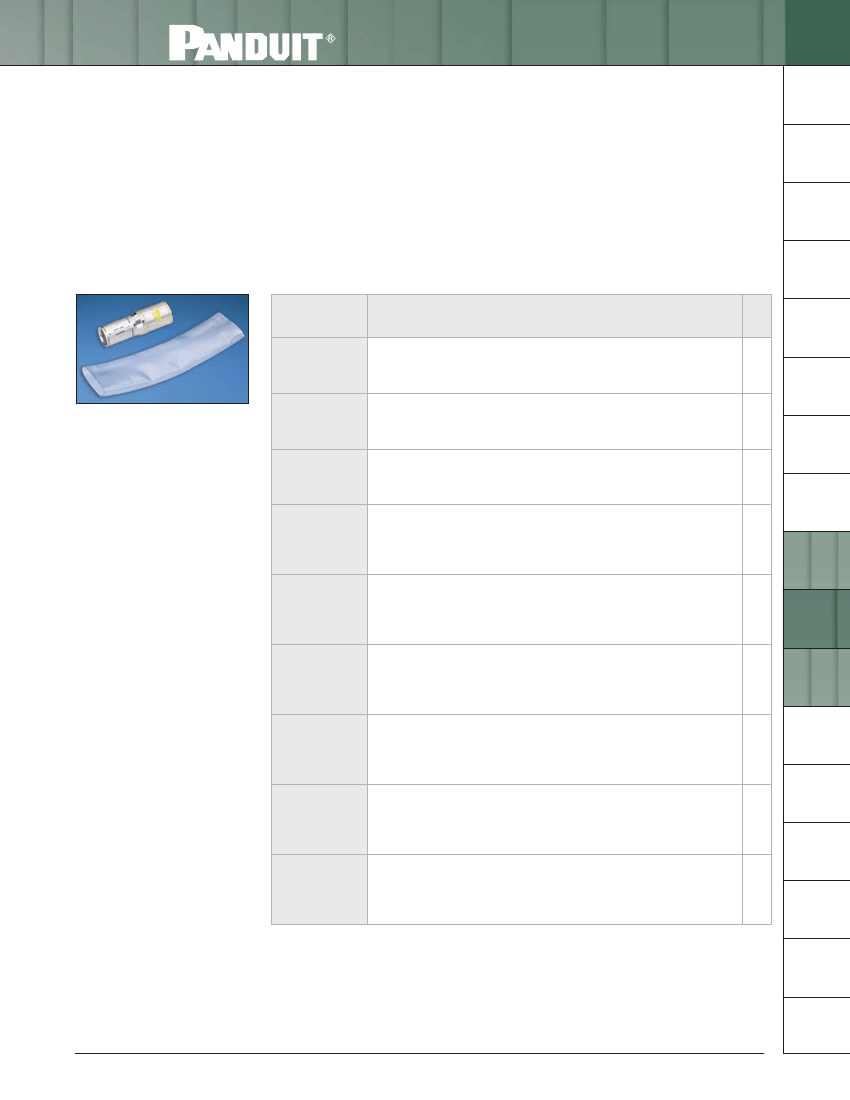

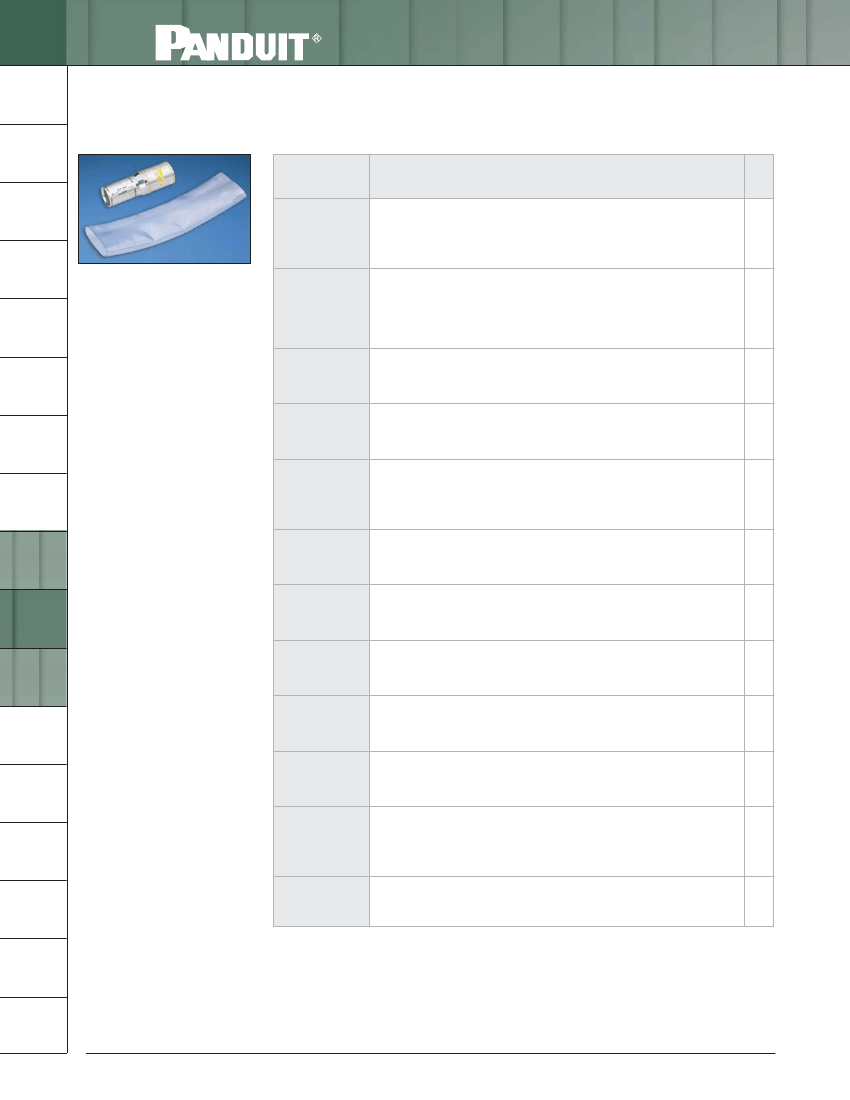

ELECTRICAL SOLUTIONS

Code/Flex Conductor, with Window, In-Line Reducing Splice Kit

Type RSCK

• Includes all components in one package for making a complete

electrical connection: Panduit copper compression RSC in-line

reducing splice (see pages D2.105 – D2.106) and crystal clear PVC

heat shrink sleeves pre-cut to length to insulate reducing splice

• Panduit RSC in-line reducing splice is UL Listed and temperature

rated to 90°C when crimped with Panduit crimping tools and dies

• Panduit crystal clear PVC heat shrink has a UL 224 VW-1

flammability rating and passes Telcordia GR-347-CORE

Compression and Cut-Through Penetration Test and Abrasion

Resistance Test

• Panduit crystal clear PVC heat shrink is UL Recognized with a

temperature rating of 150°C, high temperature insulating property

• Rated for 600 V applications when Panduit crystal clear PVC heat

shrink is applied

System

Overview

B1.

Cable Ties

B2.

Cable

Accessories

B3.

Stainless

Steel Ties

Part Number

RSCK4-6-1

Part Description

Kit contains:

1 pc. RSC4-6-L copper compression in-line reducing splice.

1 pc. HSTTPN50-713-Q crystal clear PVC heat shrink 1/2" dia. x 7.125" long.

Std.

Pkg.

Qty.

C1.

Wiring

Duct

RSCK2-6-1

Kit contains:

1 pc. RSC2-6-Q copper compression in-line reducing splice.

1 pc. HSTTPN62-750-Q crystal clear PVC heat shrink 5/8" dia. x 7.500" long.

C2.

Surface

Raceway

RSCK2-4-1

Kit contains:

1 pc. RSC2-4-Q copper compression in-line reducing splice.

1 pc. HSTTPN62-750-Q crystal clear PVC heat shrink 5/8" dia. x 7.500" long.

C3.

Abrasion

Protection

RSCK1/0-6-1

Kit contains:

1 pc. RSC1/0-6-X copper compression in-line reducing splice.

1 pc. HSTTPN75-775-Q crystal clear PVC heat shrink 3/4" dia. x 7.750" long.

1 pc. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.

C4.

Cable

Management

D1.

Terminals

RSCK1/0-4-1

Kit contains:

1 pc. RSC1/0-4-X copper compression in-line reducing splice.

1 pc. HSTTPN75-775-Q crystal clear PVC heat shrink 3/4" dia. x 7.750" long.

1 pc. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.

D2.

Power

Connectors

RSCK2/0-6-1

Kit contains:

1 pc. RSC2/0-6-X copper compression in-line reducing splice.

1 pc. HSTTPN75-775-Q crystal clear PVC heat shrink 3/4" dia. x 7.750" long.

1 pc. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.

D3.

Grounding

Connectors

RSCK2/0-4-1

Kit contains:

1 pc. RSC2/0-4-X copper compression in-line reducing splice.

1 pc. HSTTPN75-775-Q crystal clear PVC heat shrink 3/4" dia. x 7.750" long.

1 pc. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.

E1.

Labeling

Systems

RSCK4/0-6-1

Kit contains:

1 pc. RSC4/0-6-X copper compression in-line reducing splice.

1 pc. HSTTPN100-775-Q crystal clear PVC heat shrink 1" dia. x 7.750" long.

1 pc. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.

E2.

Labels

RSCK4/0-4-1

Kit contains:

1 pc. RSC4/0-4-X copper compression in-line reducing splice.

1 pc. HSTTPN100-775-Q crystal clear PVC heat shrink 1" dia. x 7.750" long.

1 pc. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.

E3.

Pre-Printed

& Write-On

Markers

E4.

Permanent

Identification

E5.

Lockout/

Tagout

& Safety

Solutions

Index

Table continues on page D2.104

For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
