SPC15585 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> SPC15585

SPC15585: DescriptionIC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size134KB，2 Pages; ManufacturerSPC Multicomp

Download Datasheet Parametric View All

SPC15585 Overview

IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

SPC15585 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.397 inch
body length	0.697 inch
Contact to complete cooperation	AU ON NI
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP14
Dielectric withstand voltage	1400VAC V
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000000 Ω
Manufacturer's serial number	SPC
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

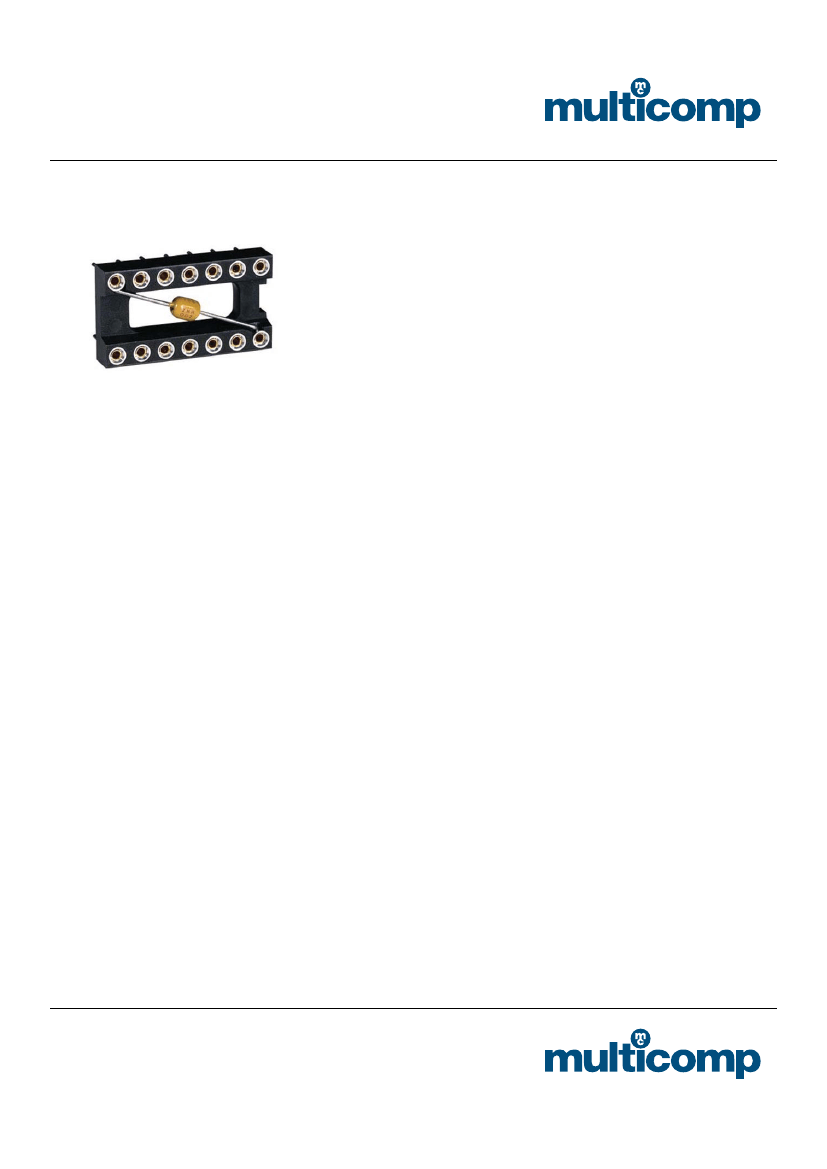

Machined Pin Capacitor

Dip Socket Series

Features:

•

Four finger clip with funnel design entry

Side and end stackable

Pin 1 polarized

Specifications:

Capacitor Data:

Style

Type

Capacitor Value

Voltage

Working Temperature

Ratings:

Current

Voltage

Dielectric Strength

Contact Resistance

Insulation resistance

Air and Creepage Distance

PCB Thickness

PCB Hole Size

Material:

Plastic

Sleeve

Clip

Temperature Range

Insertion Depth

Insertion Diameter

Mechanical Life

: PBT Glass-filled

: Turned brass, Flash copper plated, Nickel 2-3μm, Tin 5μm

: Beryllium-copper, Nickel 2-3μm, Gold 0.25μm

: -55°C / +125°C, 260°C for 5 sec. (solder bath resistant)

: 2.4mm min. to 3.9mm max.

: 0.4mm min. to 0.56mm max.

: 100 cycles

: 1A max.

: 10mV to 60V

: > 1,000V (RMS)

: ≤7mΩ

: > 10

Ω

: > 0.6mm

: 1.6mm to 2mm

: 0.7mm to 0.9mm

: Axial multilayer ceramic

: Z5U

: 0.1μF

: 50V

: +10°C to +85°C

www.element14.com

www.farnell.com

www.newark.com

Page <1>

29/10/12

V1.0
