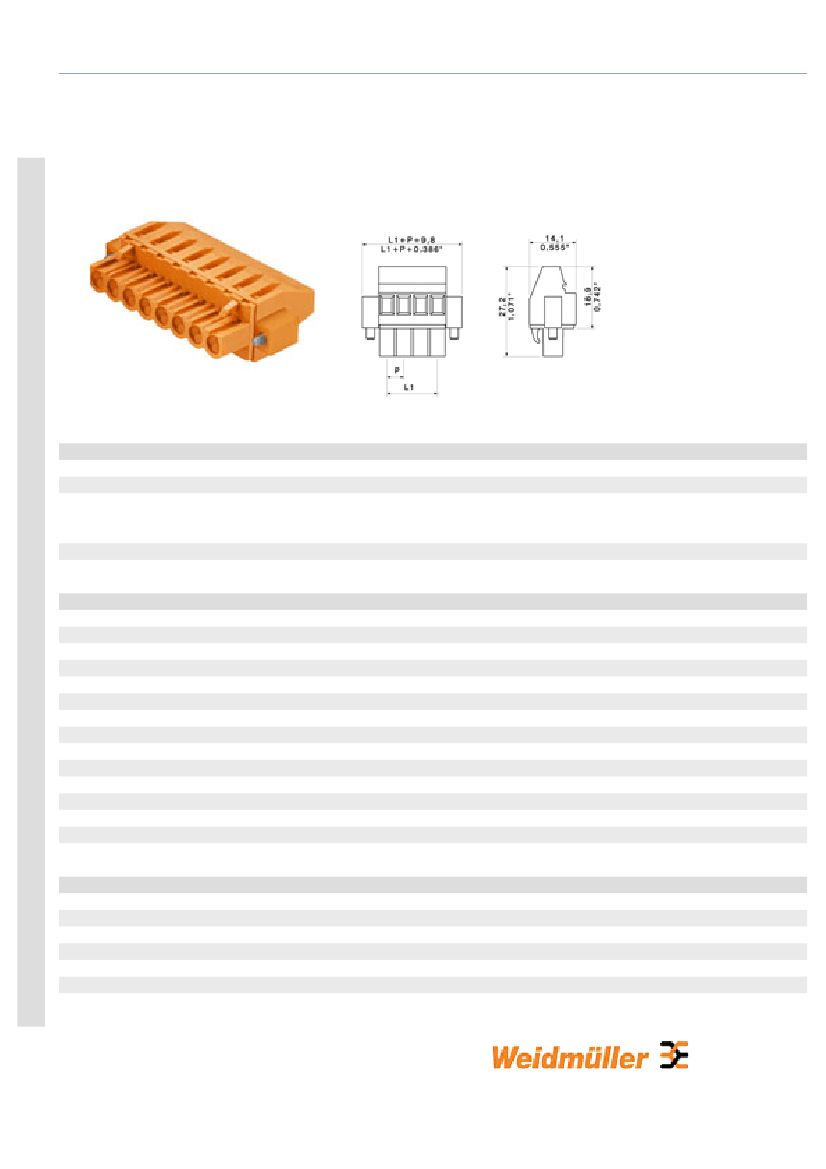

Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00-5.08/90/270 | BLZP 5.08/270F SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1950620000
BLZP 5.08/06/270F SN SW
PCB plug-in connector, Female connectors,
Clamping yoke connection, Clamping range, max.:
4 mm², Pitch: 5.08 mm, No. of poles: 6, 270°, Box
4032248628896
50 pc(s).
Clamping yoke connection
270°
5.08 mm
0.2 inch
6
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
7 mm
25.4 mm
1 inch
Safe from finger touch
PBT
black
IIIa
V-0
>= 200
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00-5.08/90/270 | BLZP 5.08/270F SN
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
0.13 mm²
4 mm²
26
12
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
2.8 mm x 2.4 mm
15.5 A
13 A
12 A
10.5 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
50 V
300 V
10 A
26
12
50 V
300 V
10 A
26
12
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00-5.08/90/270 | BLZP 5.08/270F SN
Approvals
Approvals institutes
Similar products
Order No.
1950310000
1950550000
1950320000
1950560000
1950330000
1950570000
1950340000
1950580000
1950350000
1950360000
1950630000
1950370000
1950640000
Part designation
BLZP 5.08/02/270F SN OR
BLZP 5.08/02/270F SN SW
BLZP 5.08/03/270F SN OR
BLZP 5.08/03/270F SN SW
BLZP 5.08/04/270F SN OR
BLZP 5.08/04/270F SN SW
BLZP 5.08/05/270F SN OR
BLZP 5.08/05/270F SN SW
BLZP 5.08/06/270F SN OR
BLZP 5.08/07/270F SN OR
BLZP 5.08/07/270F SN SW
BLZP 5.08/08/270F SN OR
BLZP 5.08/08/270F SN SW
Version
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 2, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 2, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 3, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 3, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 4, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 4, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 5, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 5, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 6, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 7, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 7, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 8, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 4 mm², Pitch: 5.08 mm, No. of
poles: 8, 270°, Box
