866518112200003 Overview

Circular Connector,

866518112200003 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Is SamacsysN
Connector typeCIRCULAR CONNECTOR
Base Number Matches1

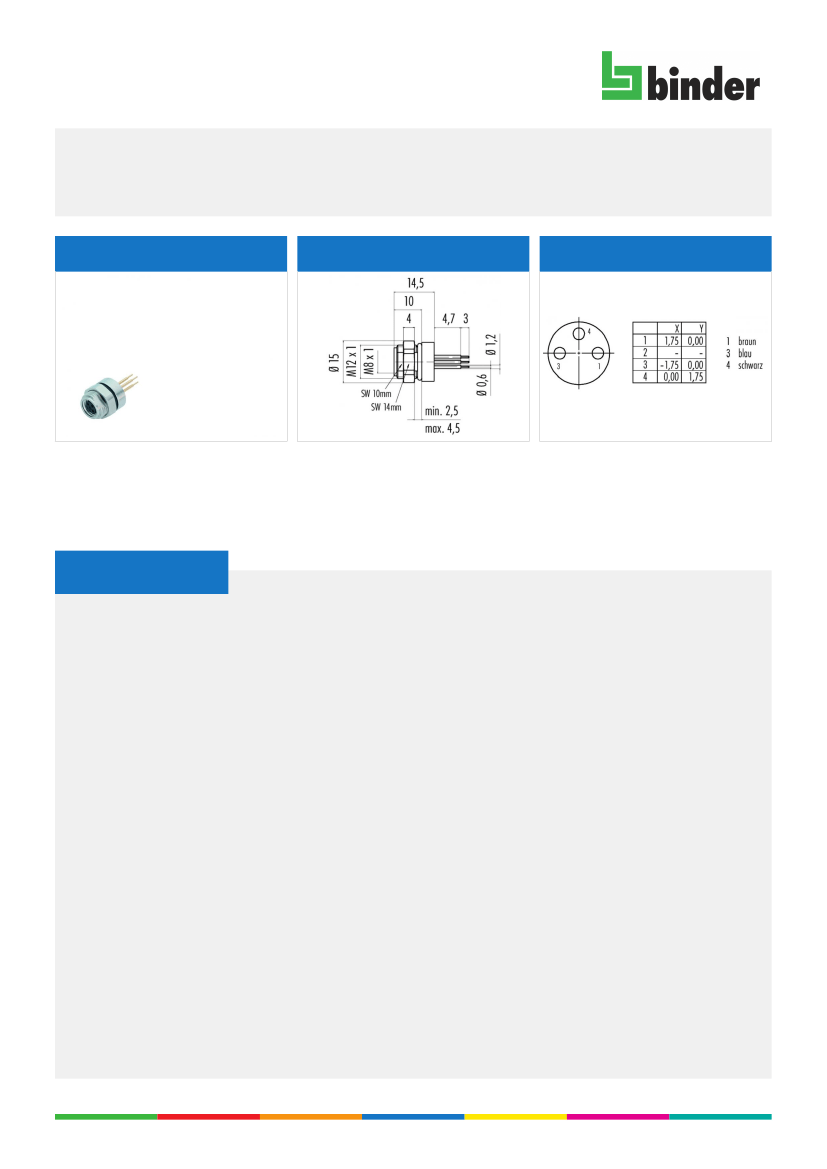

Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
Contacts: 3, female panel mount connector, front mounting, dip-solder, contact length A: 4.7 mm
M8 Series 768/718
86 6518 1122 00003
Illustration
Scale drawing
Contact arrangement

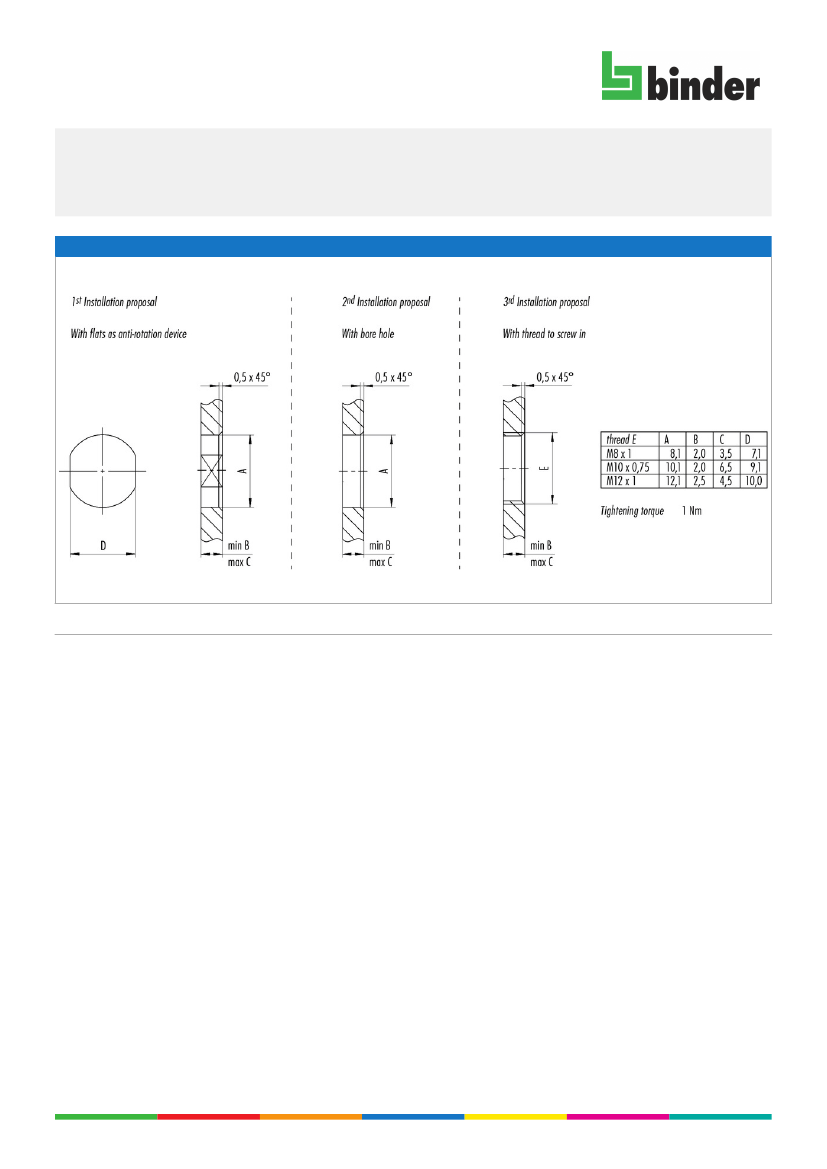

You can find the assembly instructions on the next page.
Technical data
General values
Connector design
Connector locking system
Termination
Upper limit temperature
Lower limit temperature
female panel mount connector
bolted
dip-solder
85 °C
-40 °C
Electrical values
Rated current (40 °C)
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Insulating material group
Volume resistivity
EMC compliance
Degree of protection
Mechanical operation
4A
60 V
1500 V
3
II
II
≤ 3 mΩ
not shielded
IP67
> 100 Mating cycles
Material
Contact material
Contact plating
Contact body material
CuSn (bronze)
Au (gold)
PA
Date: 2019-02-25 - Page 1 of 3
