B068-1612-108-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B068-1612-108-Z

B068-1612-108-Z: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size263KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B068-1612-108-Z Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug

B068-1612-108-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.193 inch
subject depth	0.197 inch
body length	0.65 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B068
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6482 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

NUMBER OF CONTACTS:

06 thru 50

DEFINITION:

1 - STRAIGHT

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

NUMBER OF ROWS:

2 - DOUBLE ROW

PIN STYLE CONTACT:

1 - CANTILEVER BEAM

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: PHOSPHOR BRONZE

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

S.E.

B.S.

Checked

S.M.

Approved

S.M.

Date

02/01/96

08/08/08

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

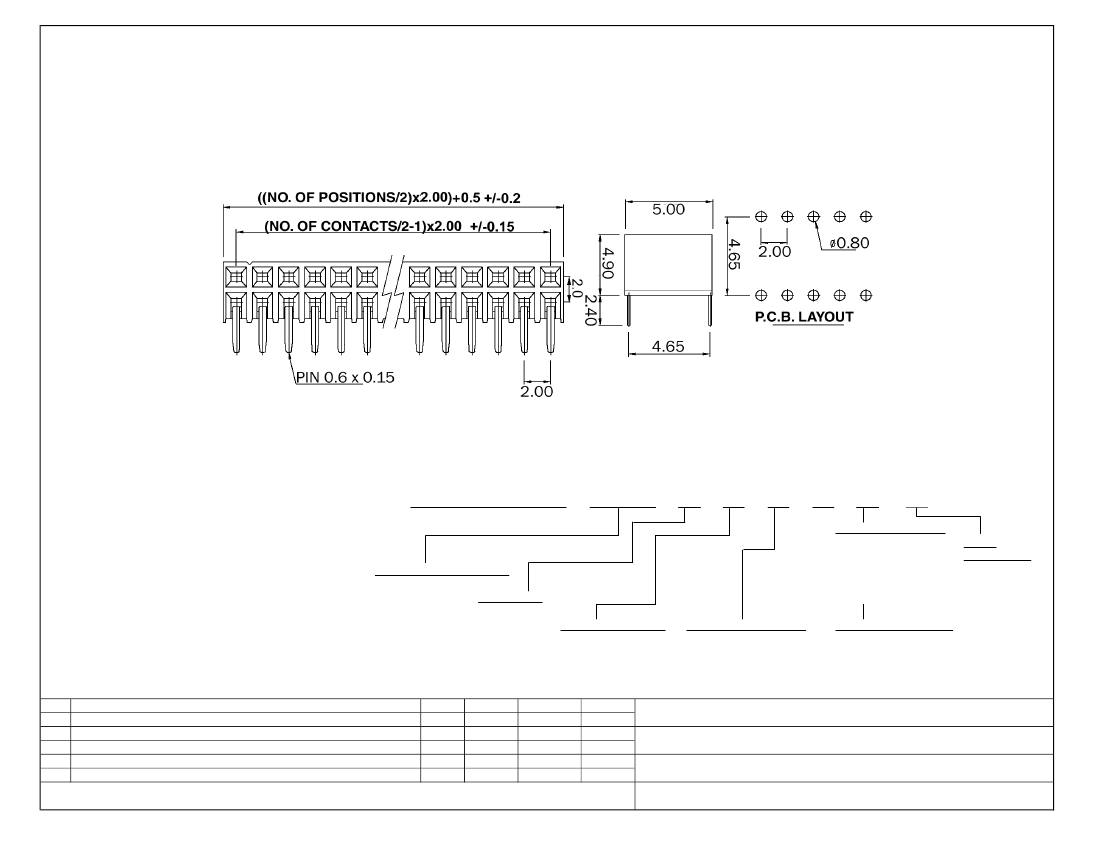

RECEPTACLE ASSEMBLY, 2.00mm Pitch, SIDE ENTRY, DOUBLE ROW

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/-

UNIT: mm

SERIES: B068

Pg: 1
