Document 277-1
Power Inductors – RFB Series
•
•
•
•
Low cost, high current power inductors
2.2 µH to 18 mH inductance range
500 V isolation from winding to core.
RFB0810 and RFB1010 have a flame retardant polyolefin
wrap to protect the winding.
Core material
Ferrite
Terminations
Tin-silver over tin over copper over steel. Other
terminations available at additional cost.
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +85°C.
Packaging: –40°C to +80°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
150 parts per tray; optional fanfold tape
PCB washing
Only pure water or alcohol recommended

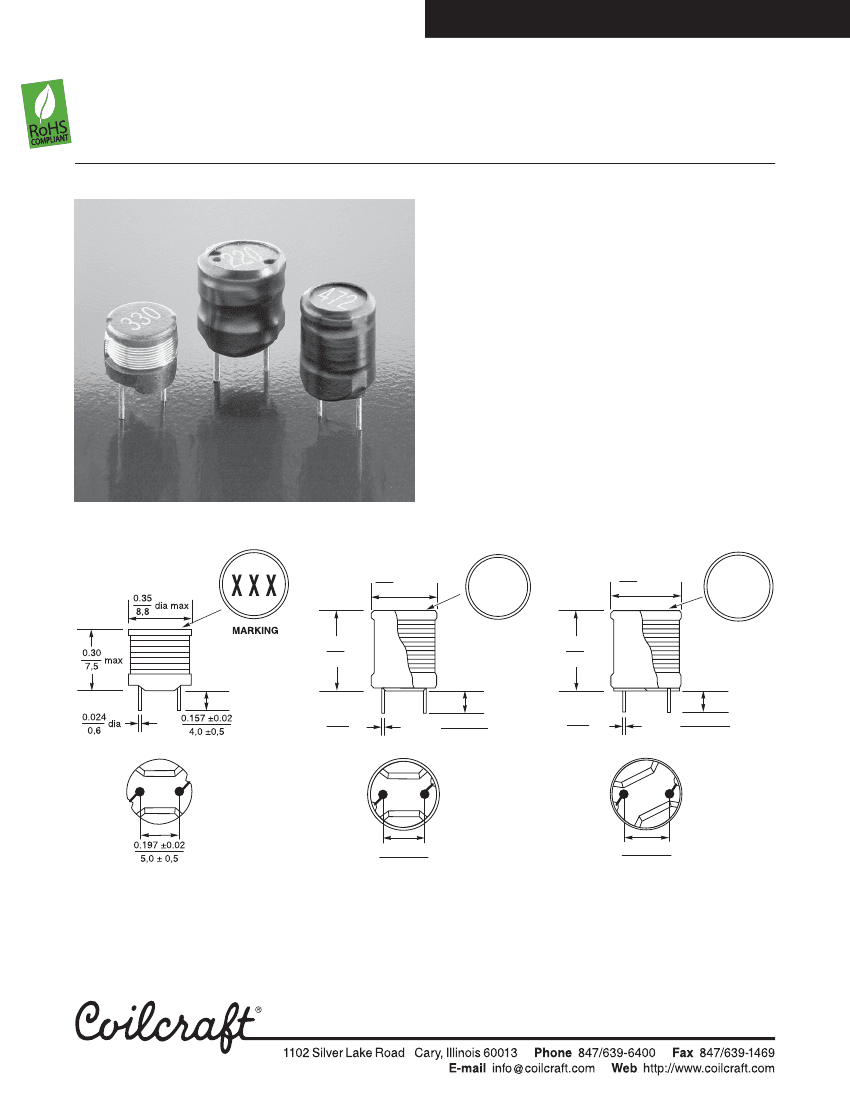

RFB0807
RFB0810
0.37
dia max
9,5
RFB1010
XXX
MARKING
0.45
max
11,5
0.43
dia max
11,0
XXX
MARKING
0.45
max
11,5
0.024
dia
0,6
0.157 ±0.02
4,0 ±0,5
0.031
dia
0,8
0.157 ±0.02
4,0 ±0,5
0.197 ±0.02
5,0 ±0,5
0.236 ±0.02
6,0 ±0,5
Weight:
1.22 – 1.46 g
Weight:
1.97 – 2.25 g
Weight:
3.04 – 3.32 g
Specifications subject to change without notice.
Please check our website for latest information.
Document 277-1
Revised 10/22/09
© Coilcraft, Inc. 2009
Document 277-2
Power Inductors – RFB0807 Series
Part
number
1
RFB0807-2R2L
RFB0807-2R7L
RFB0807-3R3L
RFB0807-3R9L
RFB0807-4R7L
RFB0807-5R6L
RFB0807-6R8L
RFB0807-8R2L
RFB0807-100L
RFB0807-120L
RFB0807-150L
RFB0807-180L
RFB0807-220L
RFB0807-270L
RFB0807-330L
RFB0807-390L
RFB0807-470L
RFB0807-560L
RFB0807-680L
RFB0807-820L
RFB0807-101L
RFB0807-121L
RFB0807-151L
RFB0807-181L
RFB0807-221L
RFB0807-271L
RFB0807-331L
RFB0807-391L
RFB0807-471L
RFB0807-561L
RFB0807-681L
RFB0807-821L
RFB0807-102L
RFB0807-122L
RFB0807-152L
RFB0807-182L
RFB0807-222L
RFB0807-272L
RFB0807-332L
RFB0807-392L
RFB0807-472L
RFB0807-562L
RFB0807-682L
RFB0807-822L
RFB0807-103L
RFB0807-123L
RFB0807-153L
RFB0807-183L
Inductance
2
2.2 µH ±20%
2.7 µH ±20%
3.3 µH ±20%
3.9 µH ±20%
4.7 µH ±20%
5.6 µH ±20%
6.8 µH ±20%
8.2 µH ±20%
10 µH ±10%
12 µH ±10%
15 µH ±10%
18 µH ±10%
22 µH ±10%
27 µH ±10%
33 µH ±10%
39 µH ±10%
47 µH ±10%
56 µH ±10%
68 µH ±10%
82 µH ±10%
100 µH ±10%
120 µH ±10%
150 µH ±10%
180 µH ±10%
220 µH ±10%
270 µH ±10%
330 µH ±10%
390 µH ±10%
470 µH ±10%
560 µH ±10%
680 µH ±10%
820 µH ±10%
1.0 mH ±10%
1.2 mH ±10%
1.5 mH ±10%
1.8 mH ±10%
2.2 mH ±10%
2.7 mH ±10%
3.3 mH ±10%
3.9 mH ±10%
4.7 mH ±10%
5.6 mH ±10%
6.8 mH ±10%
8.2 mH ±10%
10 mH ±10%
12 mH ±10%
15 mH ±10%
18 mH ±10%
DCR max
(Ohms)
0.012
0.014
0.017
0.020
0.024
0.028
0.033
0.035
0.040
0.050
0.065
0.078
0.100
0.110
0.120
0.160
0.190
0.210
0.280
0.330
0.400
0.450
0.510
0.700
0.800
0.900
1.16
1.31
1.75
1.95
2.20
3.00
3.40
4.50
5.20
5.80
8.00
8.90
11.8
13.1
17.6
19.6
27
30
34
46
53
56
SRF typ
3
(MHz)
80
40
40
40
40
40
30
30
30
30
25
20
20
17
15
13
12
11
10
9
8
7
6
5
5
4.5
4.5
3.5
2.9
2.7
2.6
2.6
2.6
2.3
2.1
1.8
1.5
1.2
1.1
1.0
1.0
0.9
0.8
0.7
0.7
0.6
0.5
0.5
I
sat
4
(A)
6.00
5.50
5.00
4.50
4.20
4.00
3.60
3.30
3.10
2.80
2.50
2.30
2.10
1.90
1.70
1.60
1.45
1.30
1.20
1.10
1.00
0.90
0.80
0.70
0.65
0.60
0.55
0.45
0.40
0.38
0.35
0.32
0.30
0.28
0.25
0.22
0.20
0.18
0.15
0.12
0.10
0.10
0.10
0.10
0.10
0.08
0.06
0.05
Irms
(A)
5
20°C rise 40°C rise
5.00
4.60
4.20
3.70
3.50
3.40
3.20
3.00
3.00
2.50
2.25
2.07
1.90
1.70
1.50
1.45
1.30
1.20
1.10
1.00
0.90
0.80
0.72
0.63
0.60
0.55
0.50
0.40
0.36
0.35
0.31
0.29
0.25
0.24
0.21
0.20
0.18
0.17
0.14
0.11
0.10
0.10
0.10
0.10
0.10
0.10
0.08
0.08
7.50
6.54
5.97
5.26
4.98
4.83
4.55
4.27
4.20
3.56
3.20
2.94
2.70
2.42
2.13
2.06
1.85
1.71
1.56
1.42
1.30
1.14
1.02
0.90
0.85
0.78
0.71
0.57
0.51
0.50
0.44
0.41
0.40
0.34
0.30
0.28
0.26
0.24
0.19
0.16
0.15
0.15
0.14
0.14
0.13
0.13
0.11
0.10
1. When ordering, please specify
termination
code:
RFB0807-183L
Termination: L
= Tin-silver over tin over copper over steel.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
To order parts packaged in fanfold tape (800 parts per box), add the letter “F” at the end of the part number.
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-meter or equivalent.
SRF measured using Agilent/HP 4191A or equilvalent.
DC current at which the inductance drops 10% (typ) from its value without current.
Current that causes a 40°C temperature rise from 25°C ambient.
2.
3.
4.
5.
6. Electrical specifications at 25°C.
Specifications subject to change without notice.
Please check our website for latest information.
Document 277-2
Revised 10/22/09
© Coilcraft, Inc. 2009
Document 277-3
Power Inductors – RFB0807 Series

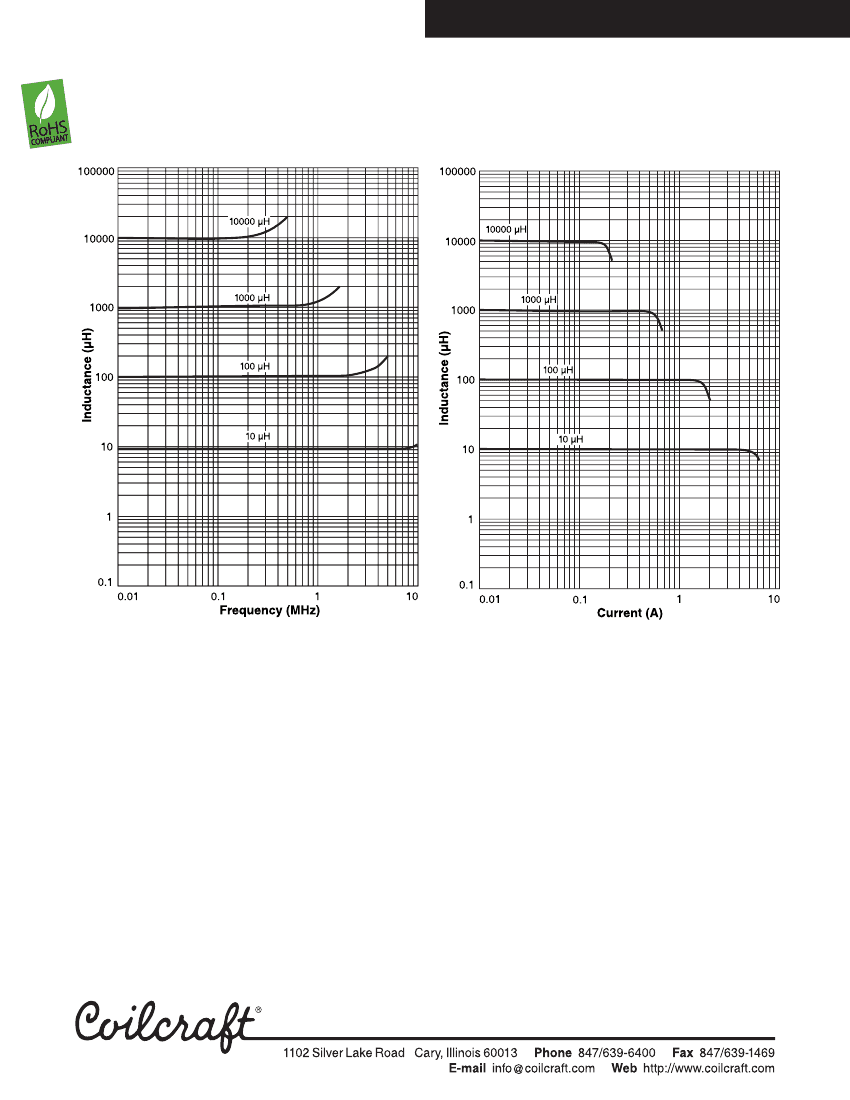

Typical L vs Frequency
Typical L vs Current
Specifications subject to change without notice.
Please check our website for latest information.
Document 277-3
Revised 10/22/09
© Coilcraft, Inc. 2009
Document 277-4
Power Inductors – RFB0810 Series
Part
number
RFB0810-100L
RFB0810-120L
RFB0810-150L
RFB0810-180L
RFB0810-220L
RFB0810-270L
RFB0810-330L
RFB0810-390L
RFB0810-470L
RFB0810-560L
RFB0810-680L
RFB0810-820L
RFB0810-101L
RFB0810-121L
RFB0810-151L
RFB0810-181L
RFB0810-221L
RFB0810-271L
RFB0810-331L
RFB0810-391L
RFB0810-471L
RFB0810-561L
RFB0810-681L
RFB0810-821L
RFB0810-102L
RFB0810-122L
RFB0810-152L
RFB0810-182L
RFB0810-222L
RFB0810-272L
RFB0810-332L
RFB0810-392L
RFB0810-472L
RFB0810-562L
RFB0810-682L
RFB0810-822L
RFB0810-103L
RFB0810-123L
RFB0810-153L
RFB0810-183L
Inductance
1
±10%
10 µH
12 µH
15 µH
18 µH
22 µH
27 µH
33 µH
39 µH
47 µH
56 µH
68 µH
82 µH
100 µH
120 µH
150 µH
180 µH
220 µH
270 µH
330 µH
390 µH
470 µH
560 µH
680 µH
820 µH
1.0 mH
1.2 mH
1.5 mH
1.8 mH
2.2 mH
2.7 mH
3.3 mH
3.9 mH
4.7 mH
5.6 mH
6.8 mH
8.2 mH
10 mH
12 mH
15 mH
18 mH
DCR max
(Ohms)
0.030
0.035
0.040
0.040
0.050
0.055
0.075
0.085
0.100
0.120
0.150
0.190
0.200
0.240
0.340
0.360
0.480
0.550
0.650
0.850
1.00
1.10
1.40
1.90
2.20
2.80
3.20
3.60
4.80
5.60
7.60
8.90
9.60
12.0
14.0
17.5
21
28
32
36
SRF typ
2
(MHz)
22
20
17
15
12
12
11
10.3
9.5
8.6
7.5
6.6
5.5
5.3
4.5
4.4
4.4
4.0
3.5
3.0
2.5
2.3
2.0
2.0
2.0
1.6
1.3
1.3
1.3
1.2
1.0
0.9
0.9
0.8
0.7
0.6
0.6
0.5
0.5
0.4
Isat
3
(A)
4.20
3.90
3.60
3.30
2.90
2.60
2.40
2.20
2.00
1.80
1.60
1.50
1.40
1.20
1.10
1.00
0.92
0.84
0.75
0.70
0.63
0.58
0.52
0.48
0.43
0.40
0.35
0.32
0.29
0.26
0.24
0.22
0.20
0.18
0.16
0.15
0.13
0.12
0.11
0.10
Irms
(A)
4
20°C rise 40°C rise
4.00
3.75
3.52
3.30
3.20
2.87
2.65
2.44
2.22
2.00
1.77
1.54
1.30
1.22
1.14
1.06
0.98
0.90
0.82
0.85
0.67
0.59
0.51
0.43
0.35
0.33
0.31
0.29
0.27
0.25
0.23
0.21
0.20
0.18
0.16
0.14
0.12
0.11
0.10
0.09
5.30
5.10
4.80
4.50
4.20
3.90
3.60
3.30
3.00
2.70
2.40
2.10
1.80
1.70
1.60
1.50
1.40
1.30
1.10
1.00
0.90
0.80
0.70
0.60
0.50
0.47
0.45
0.42
0.39
0.36
0.33
0.31
0.28
0.25
0.23
0.20
0.17
0.15
0.14
0.12
1. When ordering, please specify
termination
code:
RFB0810-183L
Termination: L
= Tin-silver over tin over copper over steel.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
To order parts packaged in fanfold tape (800 parts per box), add the letter “F” at the end of the part number.
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-meter or equivalent.
SRF measured using Agilent/HP 4191A or equilvalent.
DC current at which the inductance drops 10% (typ) from its value without current.
Current that causes a 40°C temperature rise from 25°C ambient.
2.
3.
4.
5.
6. Electrical specifications at 25°C.
Specifications subject to change without notice.
Please check our website for latest information.
Document 277-4
Revised 10/22/09
© Coilcraft, Inc. 2009
Document 277-5
Power Inductors – RFB0810 Series

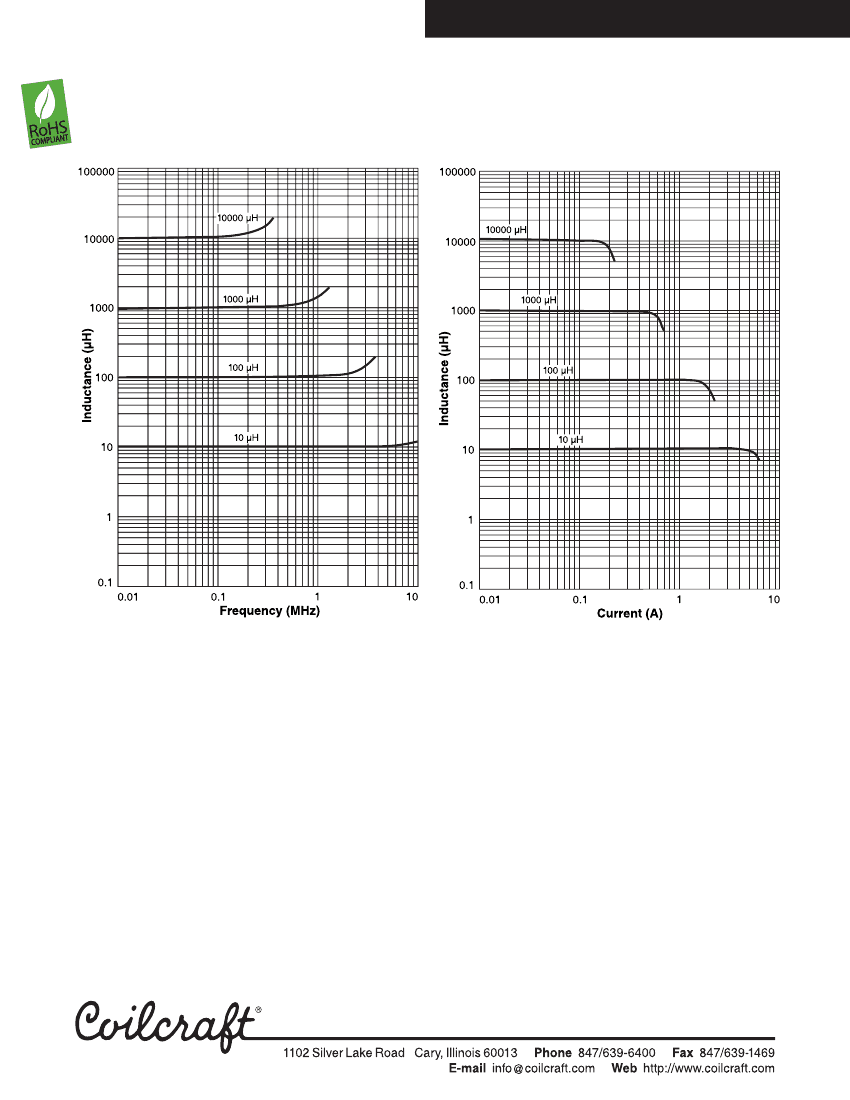

Typical L vs Frequency
Typical L vs Current
Specifications subject to change without notice.
Please check our website for latest information.
Document 277-5
Revised 10/22/09
© Coilcraft, Inc. 2009
