mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1

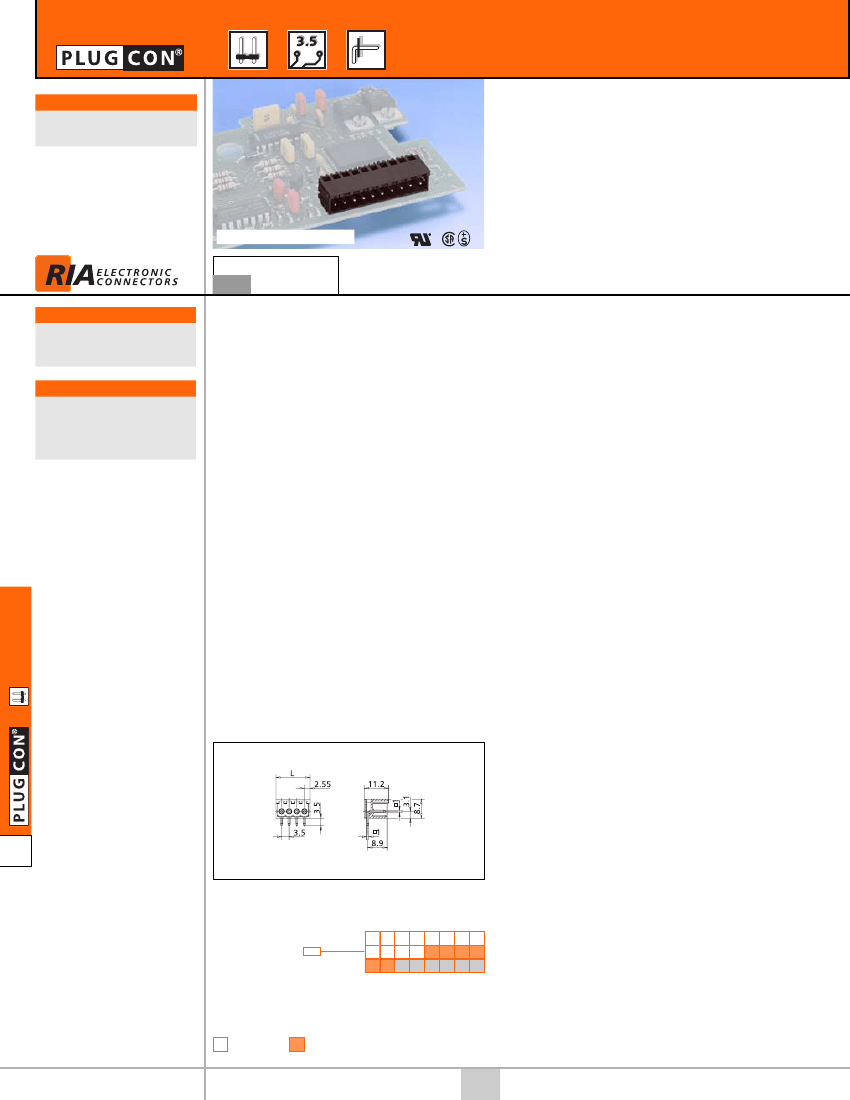

Type
182
Terminal block that mates with
Type 182
Type 169
Page DB-2
codable, square pins
1 mm square
closed end
Electrical Data
Voltage
Current
Square pins
PCB hole diameter
Solder pin length
300 V
10 A
1 mm square - mating
1 mm square - solder
1.5 mm
3.5 mm
Accessories
for
Type 182
Coding set 720243-01-3
Coding set 720243-02-4
Page J-10
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
brown
copper alloy,
silver over nickel plating
optional: gold plating
- consult factory
2 to 18
Additional data - page H-3
Color
Pin
Pole sizes
Dimensions (mm)
H
L = (circuits - 1) x centerline + 5.1
Part Numbers
Type 182
Complete the part number
by adding the pole size.
centerline 3.5 mm
Part No.
311821
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
H-10
Subject to technical changes and printing errors.
