1SNA115124R0700 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 1SNA115124R0700

1SNA115124R0700: DescriptionModular Terminal Block, 150A, 35mm2, 1 Row(s), 1 Deck(s),; CategoryThe connector terminals; File Size105KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/; Environmental Compliance

Download Datasheet Parametric View All

1SNA115124R0700 Overview

Modular Terminal Block, 150A, 35mm2, 1 Row(s), 1 Deck(s),

1SNA115124R0700 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Fastening method	SCREW
Installation type	DIN RAIL/G RAIL
Number of layers	1
Rows	1
Number of channels	2
Rated current	150 A
Rated voltage	800 V
safety certificate	UL; CSA; IEC
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	35 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

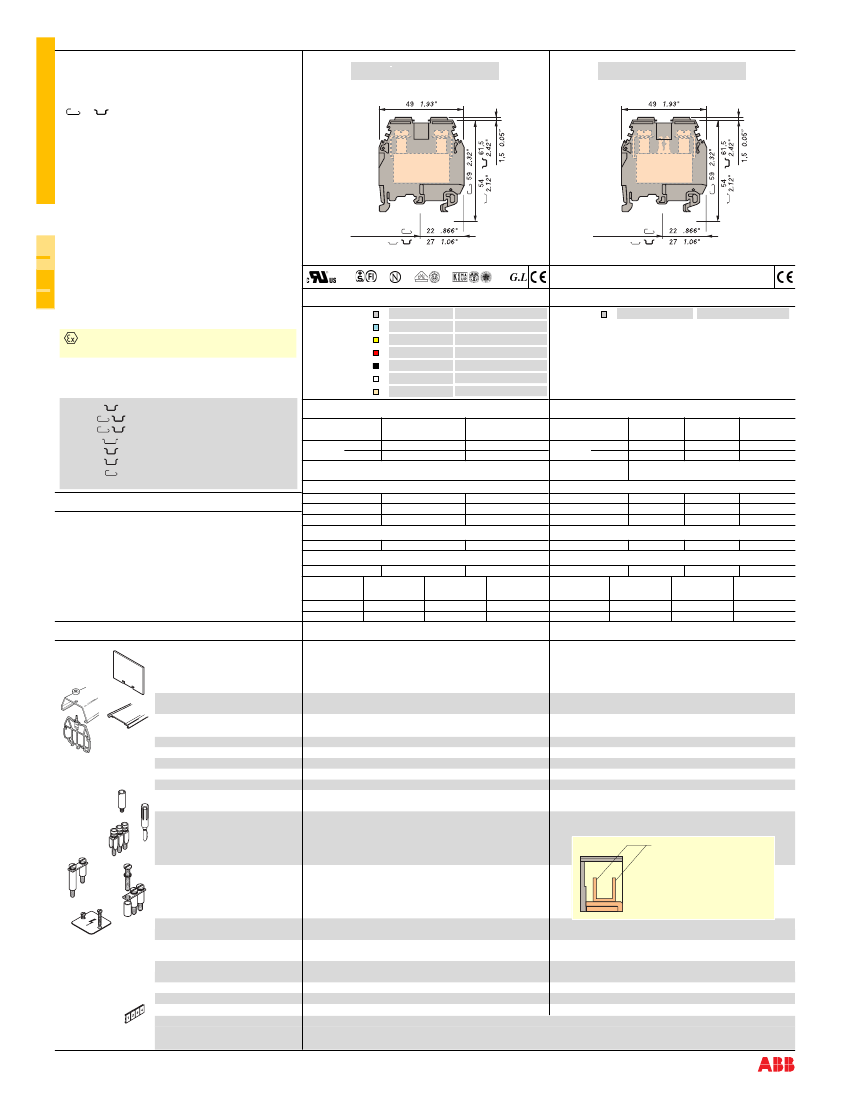

160T01013

061108

Standard terminal blocks

Screw clamp

DIN 1 - 3

Spacing 16 mm

-0,1

(.630")

M 35/16

Spacing 16 mm

-0,1

(.630")

M 35/16.2A.2G

center of rail

Standard 16 mm block with partition.

Standard 16 mm block with partition and central quick-connect tabs

Colour

Grey

Blue

Yellow

Red

Black

White

Beige V0

Type

M 35/16

M 35/16.N

M 35/16

M 35/16.V0

Part numbers Colour

1SNA

115 124

R0700

1SNA

125 124

R0100

1SNA

105 124

R1600

1SNA

400 195

R2200

1SNA

400 194

R2100

1SNA

400 196

R2300

1SNA

195 124

R0000

Grey

Type

M 35/16.2A.2G

Part numbers

1SNA

115 719

R2300

refer to the section "Special Applications" for part

numbers and characteristics.

End stop

th. 9 mm

BADL

1SNA

399 903

R0200

End stop

th. 10 mm

BAM2

1SNA

206 351

R1600

th. 10 mm

BAM2 V0

1SNA

296 351

R0000

End stop

35 x 7,5 x 1

PR3.Z2

Rail

1SNA

174 300

R1700

35 x 15 x 2,3

PR4

Rail

1SNA

168 500

R1200

Rail

35 x 15 x 1,5

PR5

1SNA

168 700

R2200

32 x 15 x 1,5

PR1.Z2

Rail

1SNA

163 050

R0400

Other end stops, rails and accessories : see section on accessories.

Characteristics

Wire size

NFC

Screw

clamp

Rigid

Flexible

Characteristics

IEC

DIN

10-0 AWG

10-1 AWG

Screw

clamp

Rigid

Flexible

UL/CSA

Wire size

IEC

NFC DIN

CSA

1-50 mm²

1-35 mm²

Quick connect

1-50 mm²

16-0 AWG

1-35 mm²

16-2 AWG

4 tabs : 2,8 x 0,8 series 110 - 1,5 mm² max.

2 tabs : 6,3 x 0,8 series 250 - 2,5 mm² max.

800 V

8 kV

125 A (4)

35 mm² / B9

Recomm.

Screwdriver

6,5-7 mm

.255" - .276"

0 AWG

Protection

IP20

NEMA 1

Voltage

Rated

Impulse withstand

Pollution degree

800 V

8 kV

125 A

35 mm² / B9

Recomm.

Screwdriver

6,5-7 mm

.255" - .276"

Recomm.

torque

2,8-3 Nm

24.9-26.7 lb.in

600 V

Voltage

Rated

Impulse withstand

Pollution degree

Notes

The use of some accessories may decrease the block's

voltage rating. For more information, consult us.

BJDP1

permits the interconnection with a terminal block

series "M" spacing 6 or 6,5 or 8 or 10 mm.

BJDP2

permits the interconnection with a terminal block

series "M" spacing 12 mm.

Current

Rated

150 A

0 AWG

Protection

IP20

NEMA 1

Current

Rated

Wire size

Rated / Gauge

Wire strip.

length

17 mm

.669"

Wire size

Rated / Gauge

Wire strip.

length

17 mm

.669"

Recomm.

torque

2,8-3 Nm

24.3-26.1 lb.in

Accessories

Type

Part numbers Type

Part numbers

Separator end section

grey

SCFT1

SCFCV1.2

(1)

SCFCV1.2 V0 (1)

th. 1,0 mm

1SNA

103 588

R2600

th. 3,0 mm

1SNA

116 795

R1100

th. 3,0 mm

1SNA

196 795

R1200

SCFT1

SCFCV1.2

(1)

th. 1,0 mm

1SNA

103 588

R2600

th. 3,0 mm

1SNA

116 795

R1100

Separator end section grey

for cover CPV

beige

Protective cover

Test socket

Test plug

CPM

CPV1.2

AL4

FC2

FC4

(for SCF16...)

1SNA

187 312

R1400

(for SCFCV1.2...)

1SNA

176 816

R1200

DIA. 4,0 mm

1SNA

168 237

R0500

DIA. 2,0 mm

1SNA

007 865

R2600

DIA. 4,0 mm

1SNA

167 860

R0100

CPM

CPV1.2

(for SCF16...)

(for SCFCV1.2...)

1SNA

187 312

R1400

1SNA

176 816

R1200

Assembled

jumper bar

(with IP20 protection)

125 A

Jumper bar not assembled 125 A

50 A

95 A

Universal jumper bar

Protection label

Screw for protection label

BJMI16

BJS16

EV16

BJDP1(2)(3)

BJDP2(2)(3)

EP12

EP16

VSP16

RC65 - RC610

1SNA

206 217

R0000

1SNA

206 218

R1100

1SNA

206 219

R1200

1SNA

206 220

R1700

1SNA

206 221

R0400

1SNA

168 238

R1600

1SNA

179 627

R0700

spacing 16<->spacing 6-6,5-8 or 10

1SNA

179 623

R0300

spacing 16 <->spacing 12

1SNA

179 624

R0400

3 blocks

1SNA

163 430

R2600

4 blocks

1SNA

163 431

R1300

1SNA

173 147

R2000

(2)

RTM9

RC810

RC1010

RC65 - RC610

RTM9

poles

2 quick-connect outputs for

6.3 x 0.8 series 250 tabs

(2 tabs) or 2.8 x 0.8 series

110 tabs (4 tabs)

See section on markers method

RC810

RC1010

Note : (1) Separator end section snapped on rail. (2) Use of these accessories requires the user to cut out the partition.

(3) See column "various applications" on previous pages. (4) Maximum withstand current : 8 A for

quick-connect connection for 2,8 x 0,8 mm tabs and 20 A for quick-connect connection for 6,3 x 0,8 mm tabs.
