3XSLD10U: DescriptionTrans Voltage Suppressor Diode, 50000W, 30V V(RWM), Unidirectional, 1 Element, Silicon; CategoryDiscrete semiconductor diode; File Size30KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

3XSLD10U Overview

Trans Voltage Suppressor Diode, 50000W, 30V V(RWM), Unidirectional, 1 Element, Silicon

3XSLD10U Parametric

Parameter Name	Attribute value
Parts packaging code	AXIAL DIODE
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakdown voltage	39 V
Minimum breakdown voltage	35.4 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	50000 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

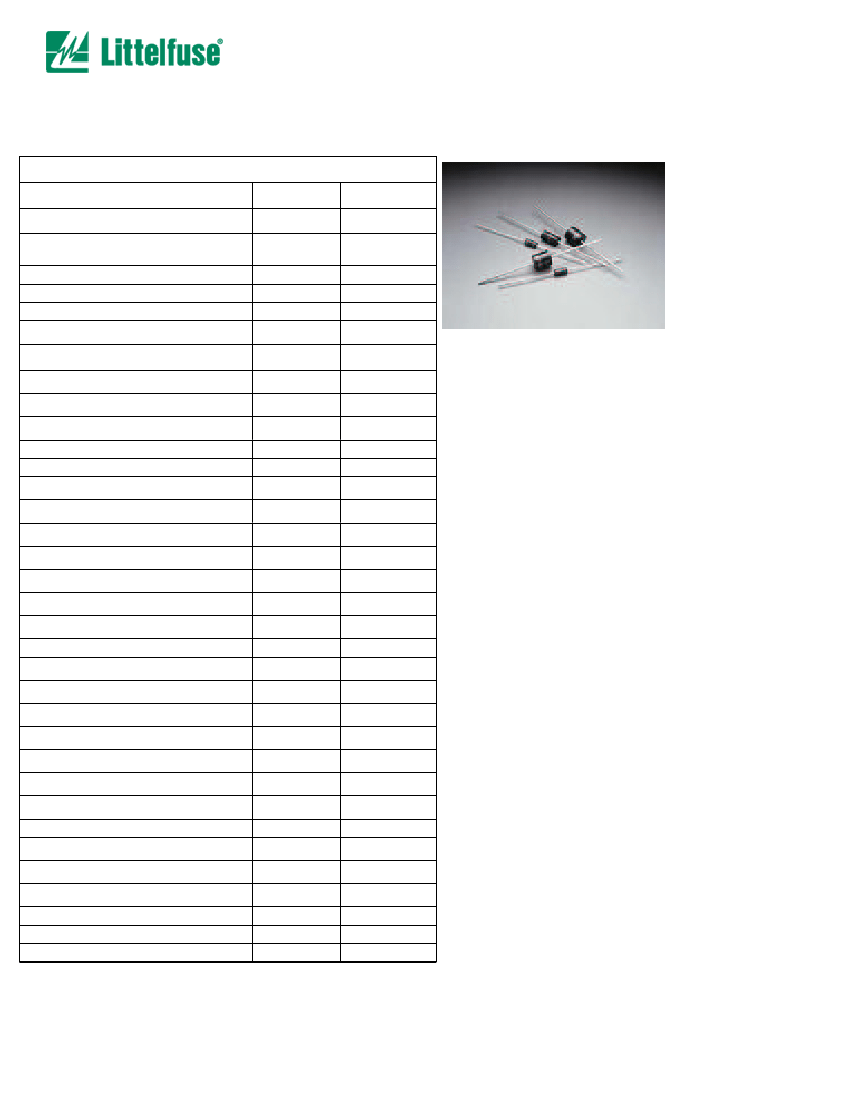

Part:

3xSLD10U

Series:

SLD® Series - High Power Automotive TVS Diode For Protection Against Load Dump Conditions

Technology:Silicon Avalanche Diode (SADs)

PARAMETERS

Package Type

Mount Method

Maximum Reverse Leakage Current

Maximum Temperature

Standoff Polarity

Tolerance

Breakover Voltage

Maximum Breakover Voltage

On-state forward Voltage

Minimum Foldback Voltage

Reverse Standoff Voltage

Device Wattage

AC Working Voltage

Reverse Stand-off Voltage

Breakdown Voltage @ IT

Test Current

Clamping Voltage

Peak Pulse Current

Max Capacitance

Working Inverse Blocking Voltage

Inverse Blocking Leakage Current

Peak Inverse Blocking Voltage

Peak Pulse Current

Minimum Zener Voltage @ IZ

Maximum Zener Voltage @ IZ

Zener Current

Zener Resistance

Peak Pulse Power - 10x1000Âµs

Peak Pulse Power - 8x20Âµs

Peak Pulse Power - 10x160Âµs

Battery/System Voltage 12/14

Battery/System Voltage 24/28

Battery/System Voltage 36/42

Pkg Type

Mount

I

R

Max Temp (Â°C )

Polarity

Tolerance

V

BO

MIN (V)

V

BO

MAX (V)

V

F

(V)

V

FB

V

SO

Watts

VAC

V

R

(V)

V

BR

MIN (V)

V

BR

MAX (V)

I

T

(mA)

V

CL

@ I

PP

(ÂµA)

I

PP

10x1000(A)

I

PP

8x20 (A)

C TYP (pF)

V

WIB

(V)

I

IB

@ V

WIB

(ÂµA)

V

PIB

(V)

I

PP

(A)

V

Z

MIN (V)

V

Z

MAX (V)

I

Z

(A)

Resistance (Ohms)

P

PP

10x1000Âµs (W)

P

PP

8x20Âµs (W)

P

PP

10x160Âµs (W)

Volt 12/14

Volt 24/28

Volt 36/42

Y

0

0.00

100.00

0.00

0

50000

2200

Axial Leaded

Through Hole

10.00

150.00

Bipolar

0

35.40

39.00

3.50

0.00

30.00

0

30.00

0.00

5.00

45.00

100.00

PROTECTS AGAINST:

EFT (Electrical Fast Transient)

Board Level

Lightning Transients

AC Mains

Telecom - DC Power

Other Threats

Automotive - Load Dump

ESD
